Glide Mini 1000mm

Introduction

The Glide Mini offers a high power wall grazing solution for both interior and external applications with an IP66 and IK08 rated slim line compact housing with a weather resistant RAL 9006 grey paint finish. The Glide Mini is supplied with fixed output control gear as standard but can also be supplied with DALI or DMX drivers. This flexibility of control extends to lens options also with 10x40° or 50x50° beam angles as standard with a wide range of lens options available on request ensuring the distribution can be tailored to your needs. Glide Mini is ideal for wall grazing applications at 2-3m, however a wide range of beam angles and colour temperatures are available on request. The Glide Mini is supplied complete with IP66 rated plug and socket connections and adjustable mounting brackets allowing quick and simple installation.

GLIDE MINI complies with:

UKCA | CE | IP66 | IK08 | 24V

Recommended applications:

Façade Lighting | Hotel / Leisure | Parking / Exterior | Retail | Shop Front

Specification

Construction

  • Housing: Extruded aluminium
  • Toughened glass cover
  • IK08
  • IP66 housing and electrical connectors

Environmental

  • Designed to allow simple replacement of components with commonly available tools in compliance with the Eco Design Directive, please see the installation leaflet for maintenance instructions.
  • Powered by European branded drivers and emergency modules ensuring replacement parts are easily sourced.
  • Every luminaire is labelled with a unique ID number allowing easy identification of spare parts for the lifetime of the product.
  • Contains no single use plastics or polystyrene packaging.
  • Supplied in plain card boxes with paper tape ensuring packaging is easily recycled.
  • Designed to allow simple disassembly for end of life recycling.
  • UK based manufacturing providing local support throughout the product lifetime and minimising transportation miles.

Installation

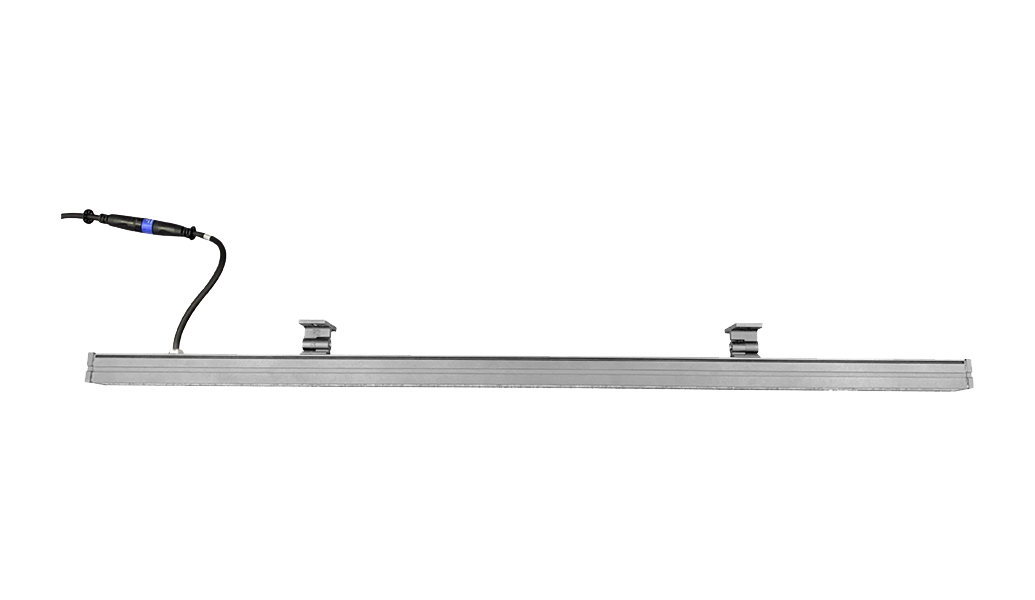

  • Supplied complete with angle adjustable mounting brackets
  • Supplied with prewired leads for rapid low cost installation

Variations

  • Available in a range of lumen outputs and lens options offering multiple beam angles
  • RAL9006 Grey as standard, other colours available on request

Performance

  • 50,000 operating hours
5 year extended warranty available on most products.
Arrow right

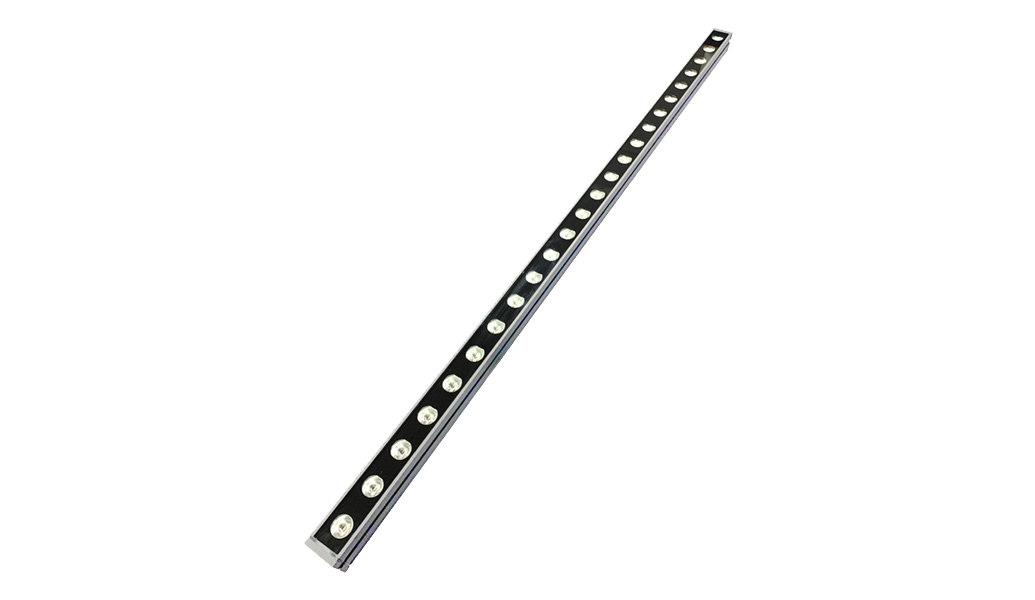

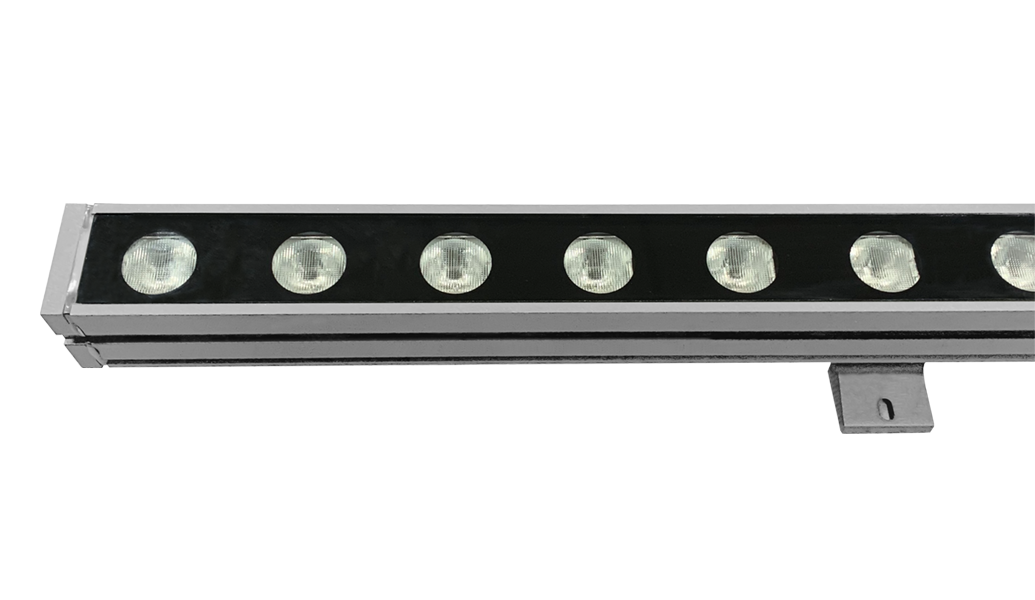

Product Images

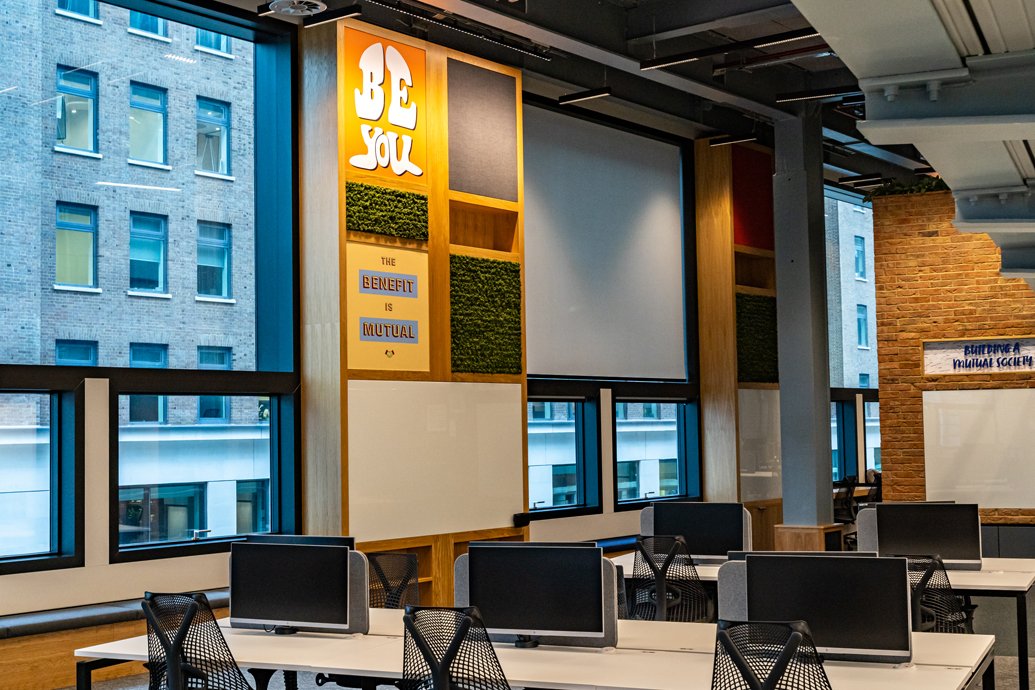

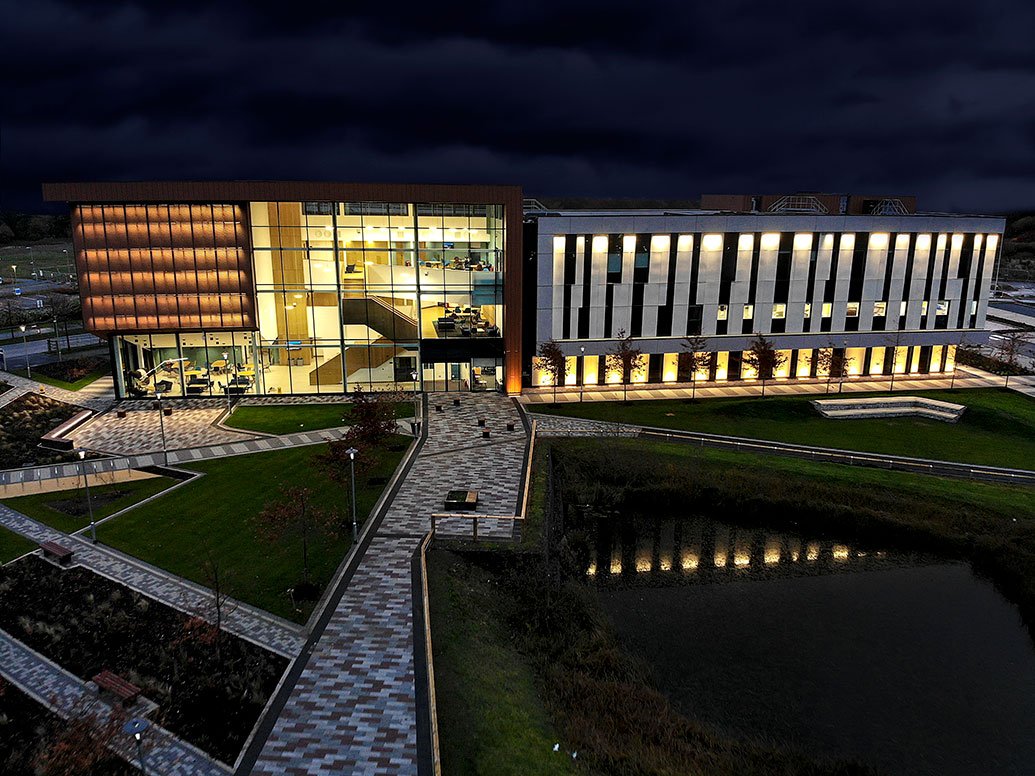

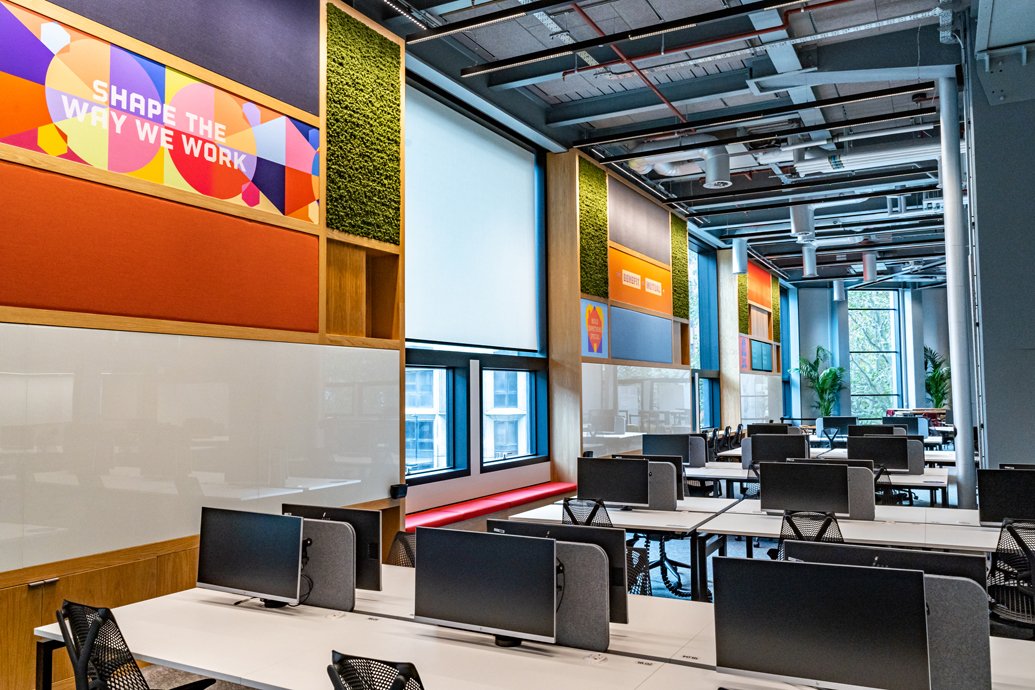

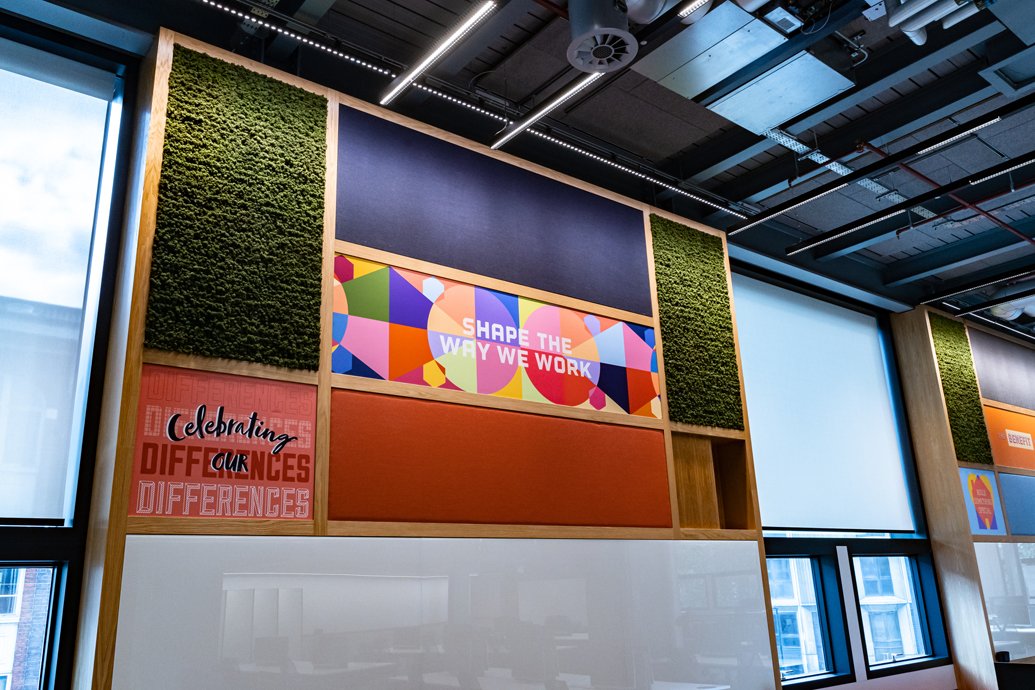

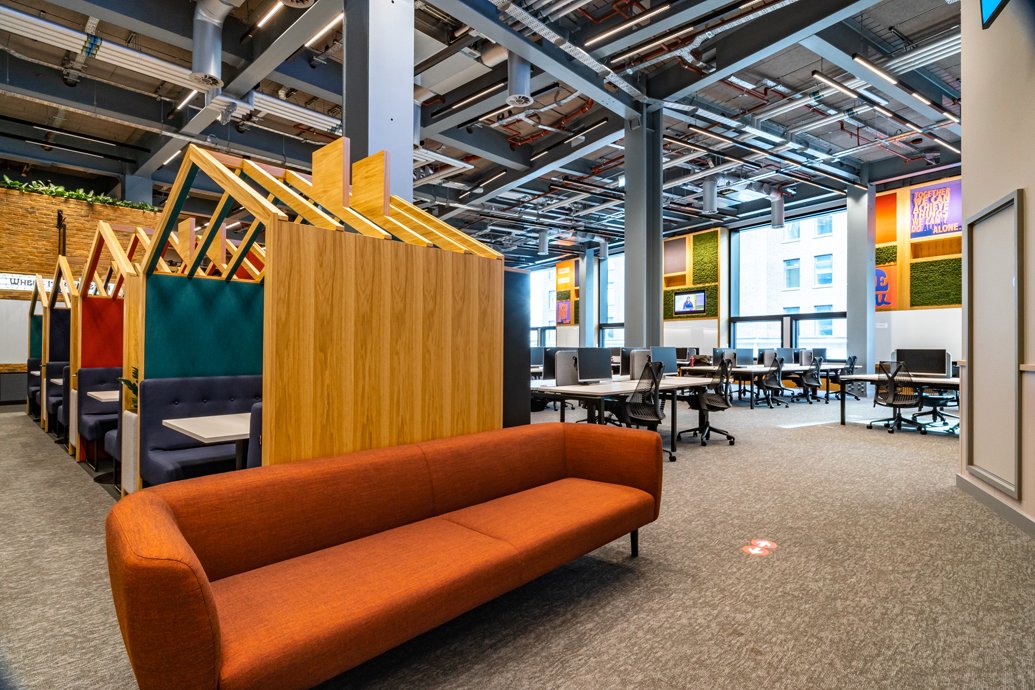

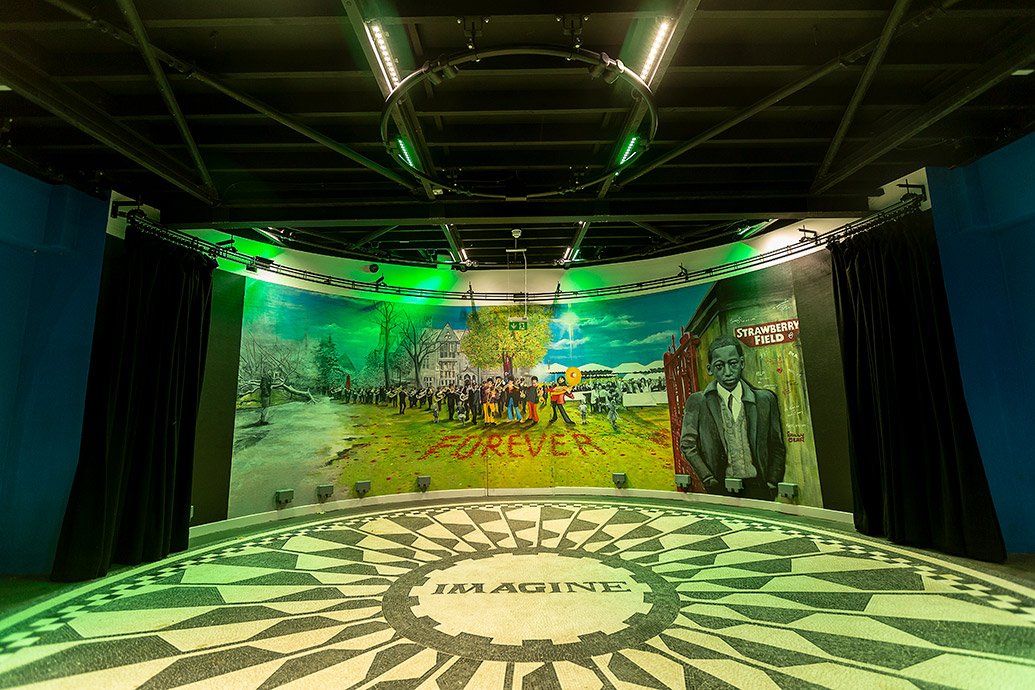

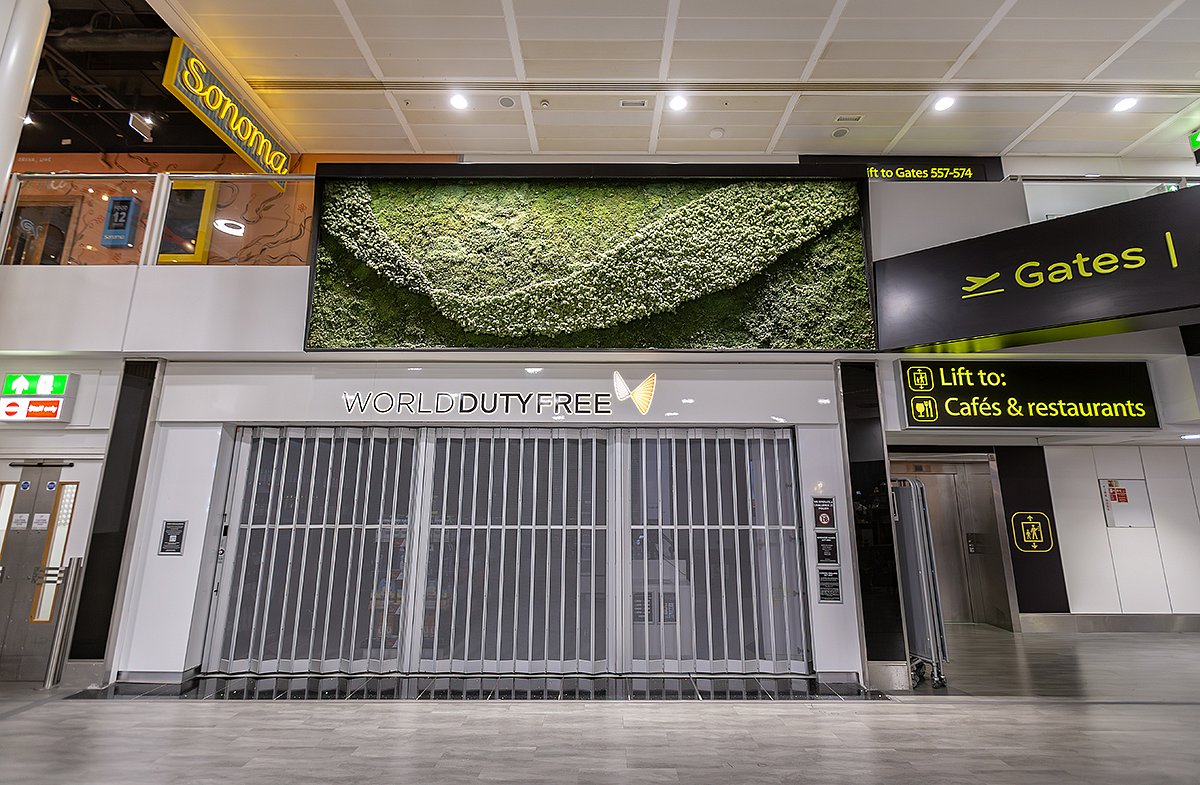

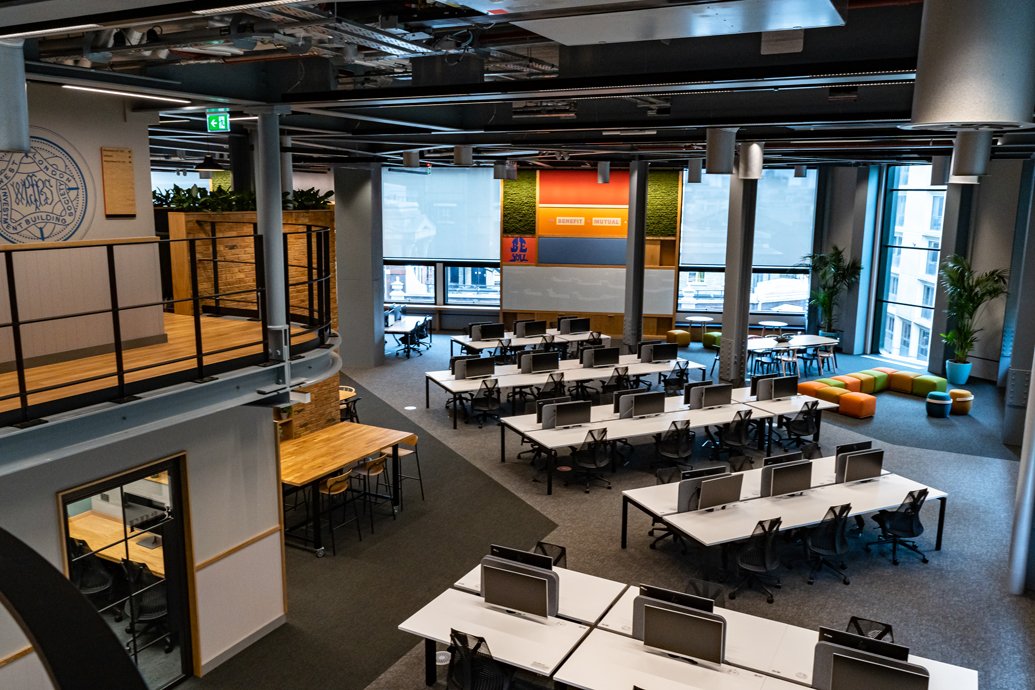

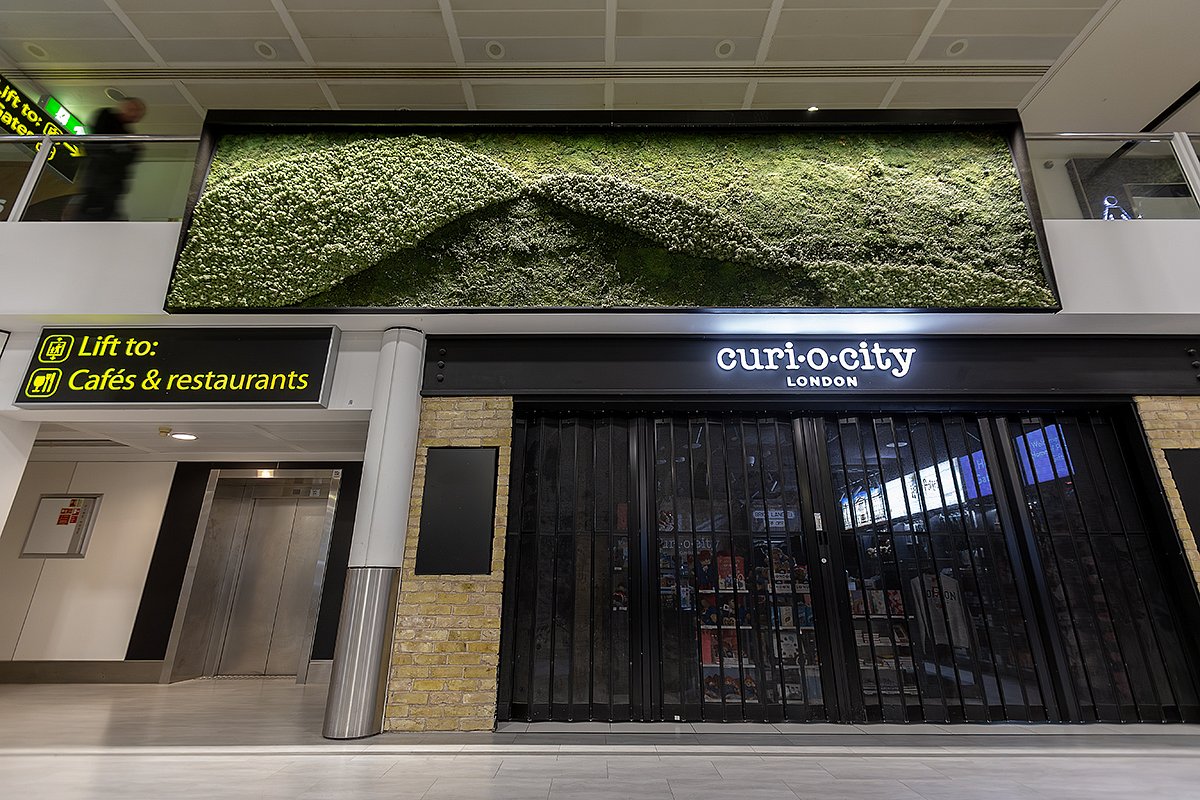

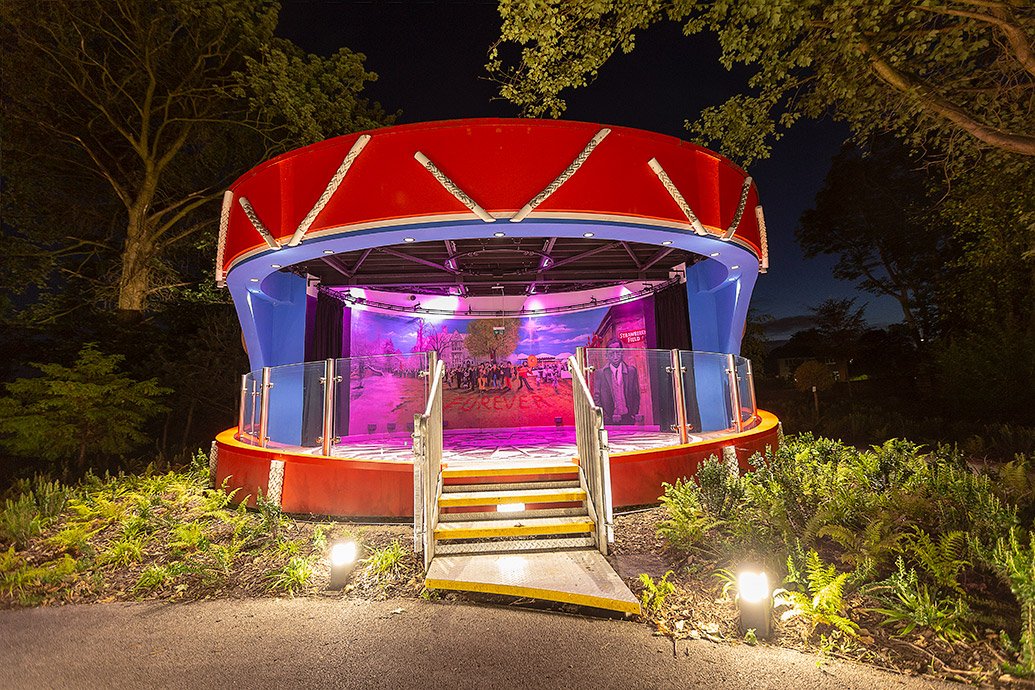

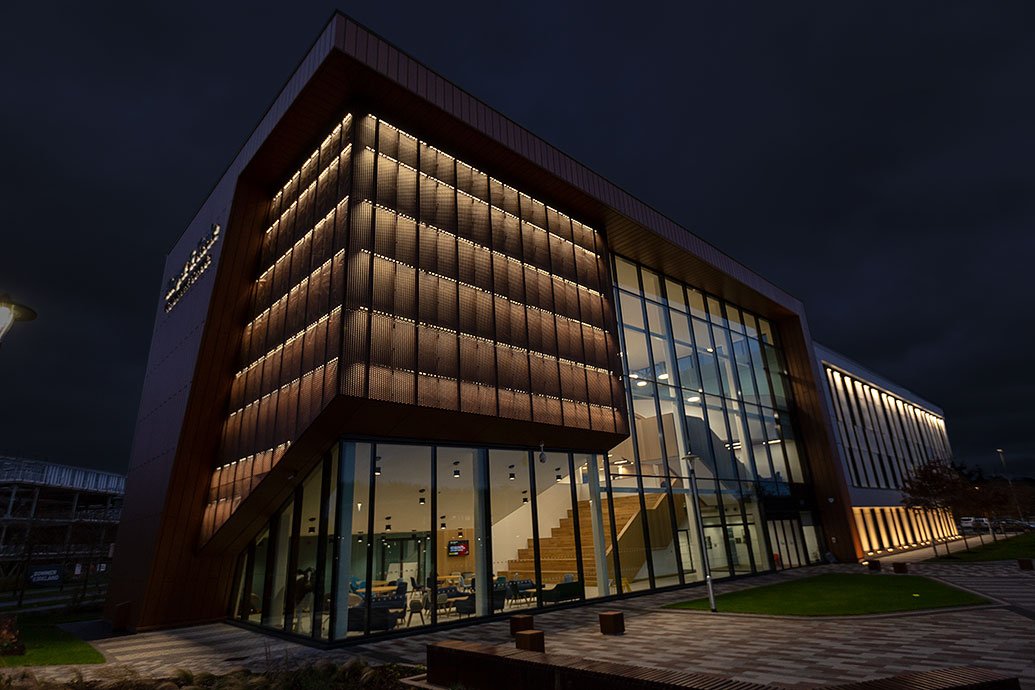

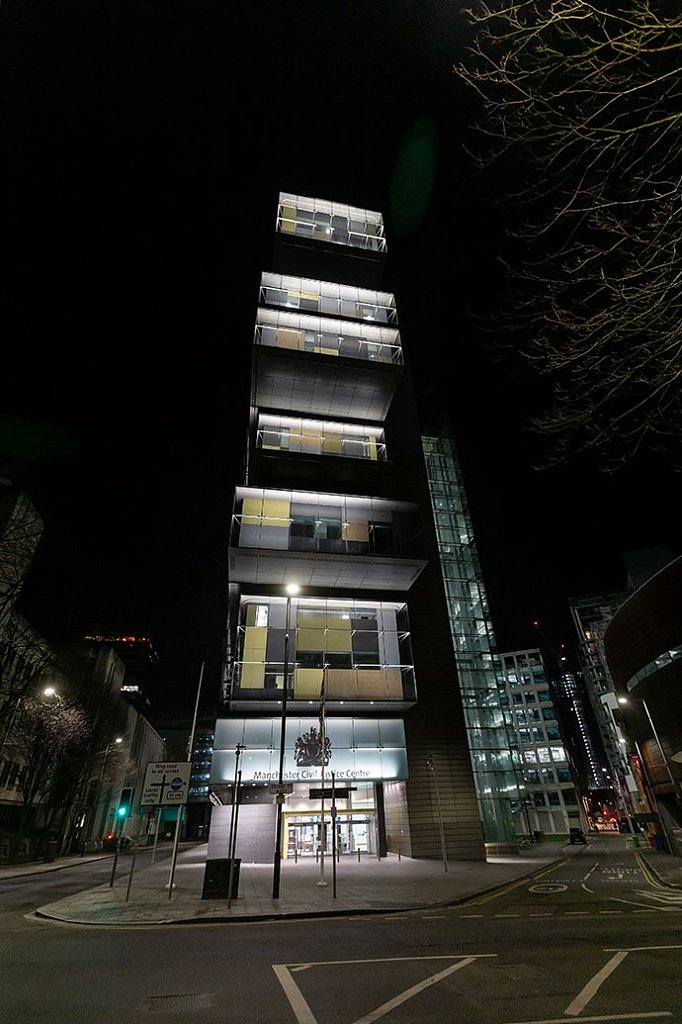

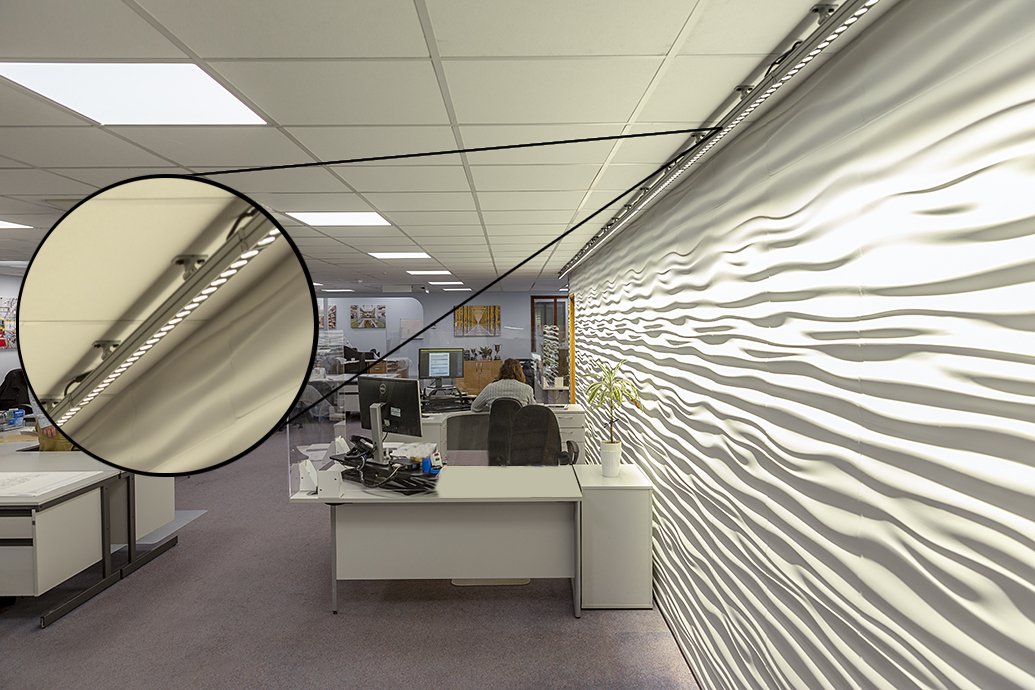

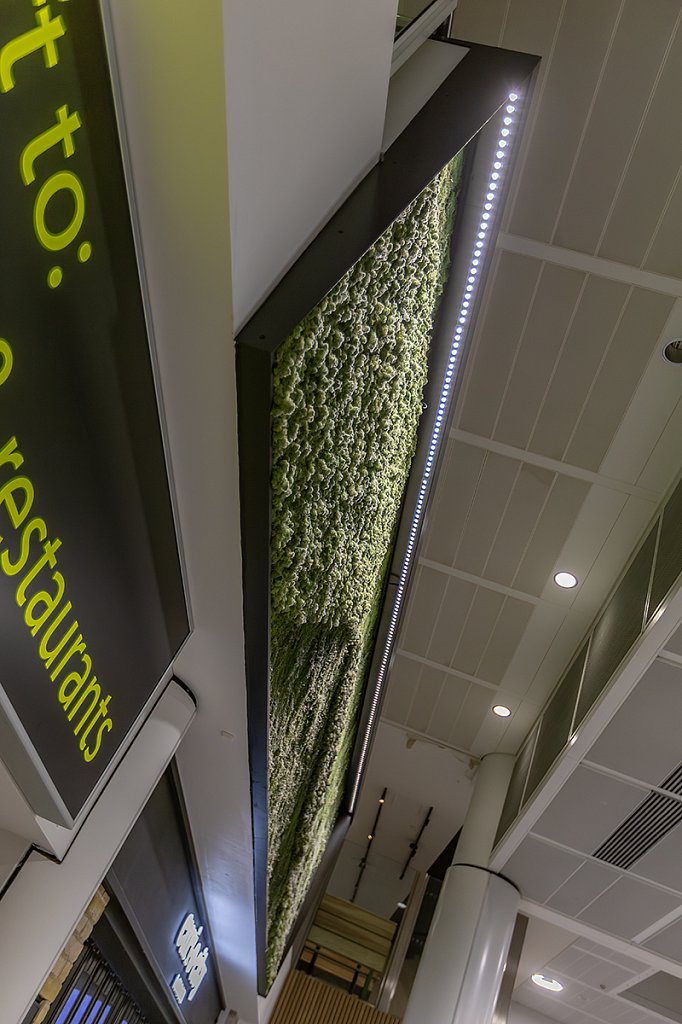

GLIDE MINI in action

Technical

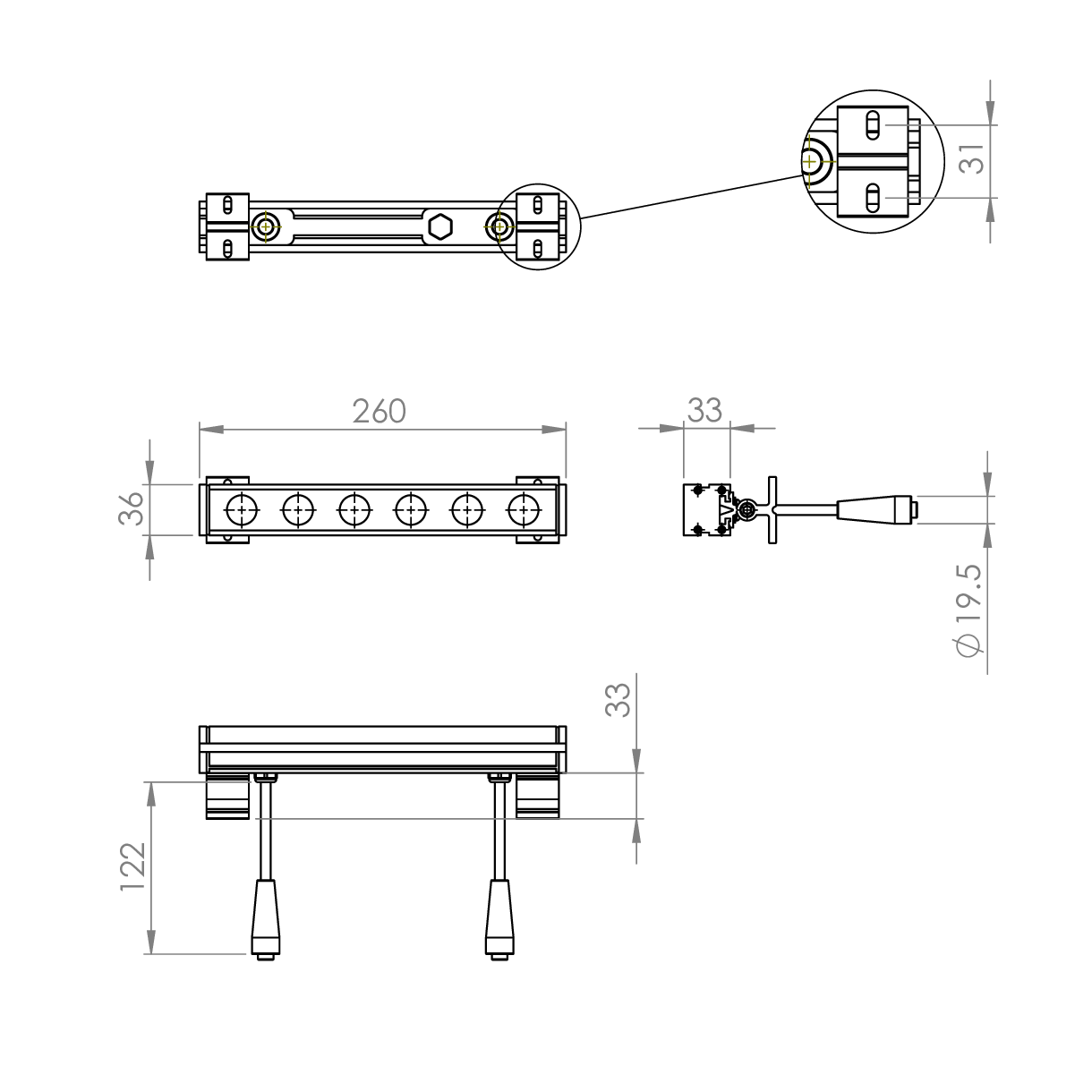

Glide Mini 260mm

Glide Mini 260mm

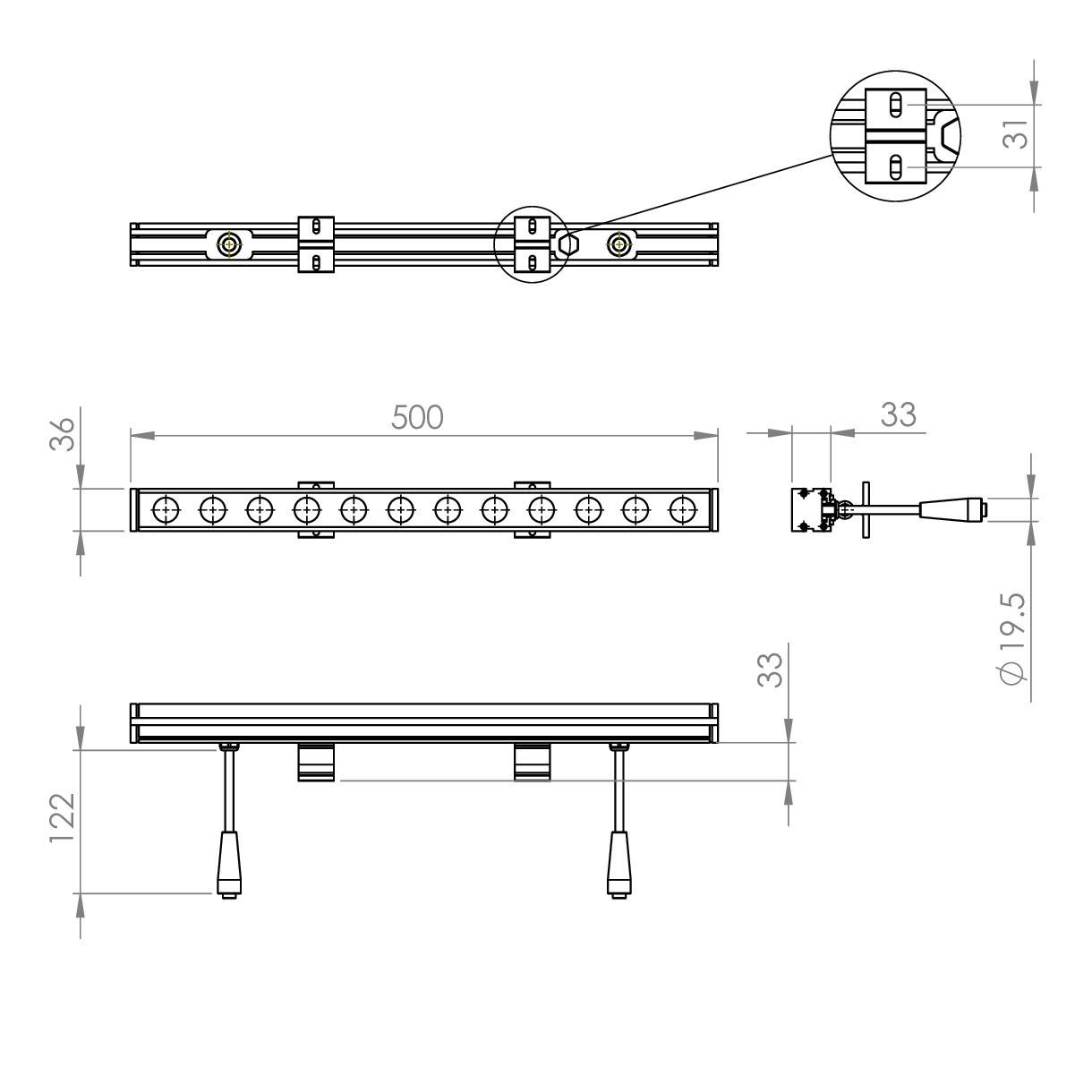

Glide Mini 500mm

Glide Mini 500mm

Glide Mini 1000mm

Glide Mini 1000mm

Ordering

Luminaires

Code Description Power Llm/W
GEM L6 1040 C84 Glide Mini, 260mm, 698llm, 10x40°, IP66, Colour 84 6.0W 116
GEM L6 5050 C84 Glide Mini, 260mm, 667llm, 50x50°, IP66, Colour 84 6.0W 111
GEM L6 1040 C83 Glide Mini, 260mm, 648llm, 10x40°, IP66, Colour 83 6.0W 108
GEM L6 5050 C83 Glide Mini, 260mm, 628llm, 50x50°, IP66, Colour 83 6.0W 105
GEM L12 1040 C84 Glide Mini, 500mm, 1,388llm, 10x40°, IP66, Colour 84 12.0W 116
GEM L12 5050 C84 Glide Mini, 500mm, 1,346llm, 50x50°, IP66, Colour 84 12.0W 112
GEM L12 1040 C83 Glide Mini, 500mm, 1,288llm, 10x40°, IP66, Colour 83 12.0W 107
GEM L12 5050 C83 Glide Mini, 500mm, 1,249llm, 50x50°, IP66, Colour 83 12.0W 104
GEM L24 1040 C84 Glide Mini, 1000mm, 2,767llm, 10x40°, IP66, Colour 84 24.0W 115
GEM L24 5050 C84 Glide Mini, 1000mm, 2,684llm, 50x50°, IP66, Colour 84 24.0W 111
GEM L24 1040 C83 Glide Mini, 1000mm, 2,569llm, 10x40°, IP66, Colour 83 24.0W 107
GEM L24 5050 C83 Glide Mini, 1000mm, 2,492llm, 50x50°, IP66, Colour 83 24.0W 104
For dimming please add suffix of DIM to ordering codes and specify type of dimming by selecting the relevant synchronizer below

Dimming

Code Description
DALI SYNCHRONIZER DALI Synchronizer for DALI dimming
DMX SYNCHRONIZER DMX Synchronizer for DMX dimming

Miscellaneous

Code Description
GLIDE WB Glide Wall Bracket - 350mm - 560mm

Downloads

Installation Guide (Download PDF) Product Datasheet (Download PDF) Revit Files Dialux Files Relux Files
