GLIDE IN-GROUND
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Pellentesque tempor, purus facilisis accumsan luctus, elit metus faucibus sem, ac tempus.
Introduction
The Glide In-Ground provides a discreet wall grazing solution for both internal and external applications. Manufactured with a toughened glass diffuser and stainless steel frame the Glide In-Ground is designed for walk over applications with a 3.5 tonne weight limit and an IK08 impact rating. An IP66 construction and internally potted electronics ensures the Glide In-Ground is designed to withstand all weather conditions and temperatures ranging from -20°C to +40°C.
This robust design combines with a wide range of colour temperatures, luminaire lengths, lumen outputs and 20x20° wall grazing lensed optics ensuring that the Glide In-Ground can be tailored to suit a wide range of applications. RGBW variants are available where decorative effects need to be achieved to create attractive exterior spaces and to highlight architectural features.

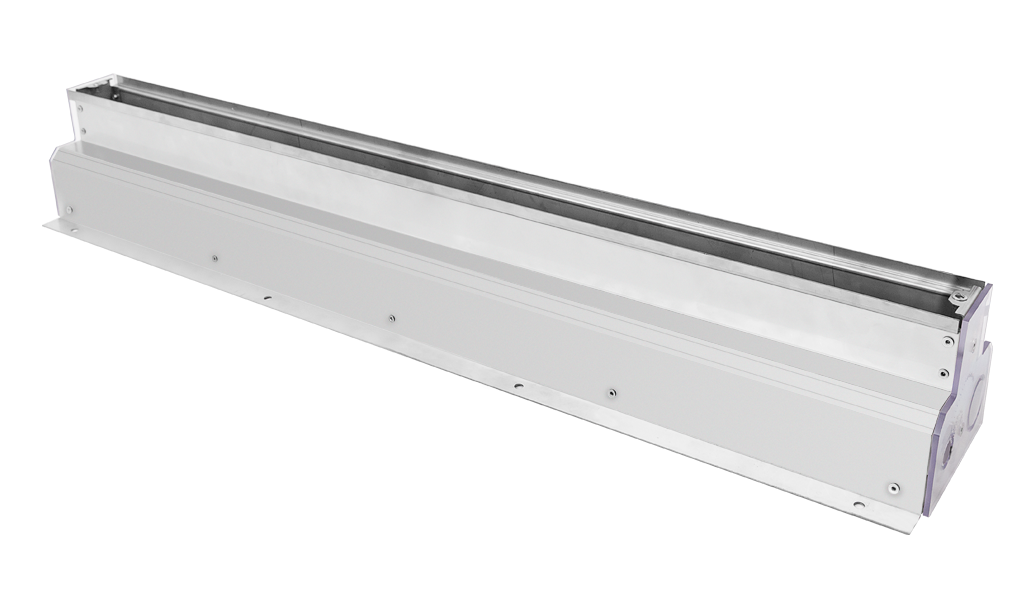

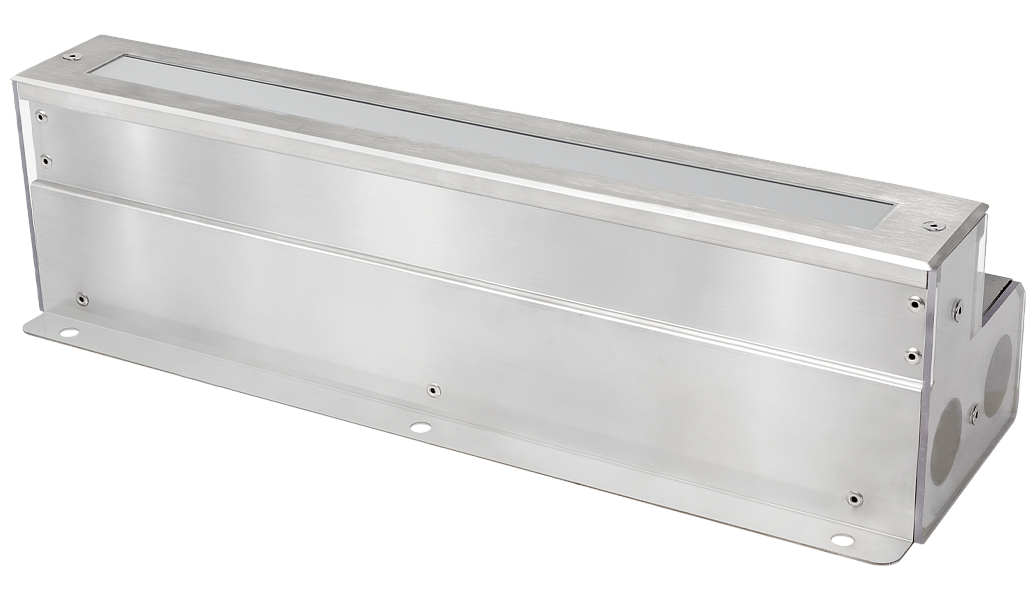

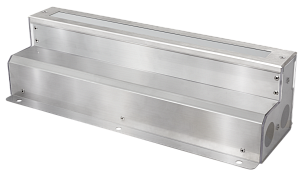

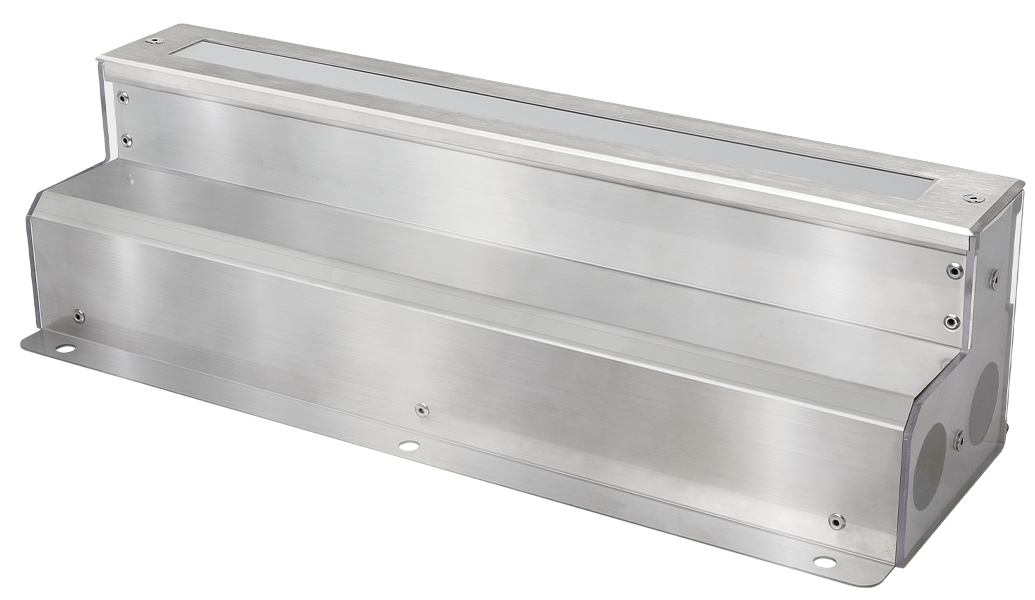

The Glide In-Ground is also available in two housing styles, our standard housing and an L profile housing which allows the luminaire to be installed in closer proximity to walls improving the wall grazing effect.
GLIDE IN-GROUND complies with:
UKCA | CE | IP66 | IK08 | 230V
Recommended applications:
Façade Lighting | Hotel / Leisure | Parking / Exterior | Retail | Shop Front
Specification
Construction
- Housing: Extruded aluminium
- IK08
- IP66 housing and electrical connectors
- Stainless steel cover
- Step tempered glass
- 3.5 tonne weight limit
- Clear glass diffuser with brushed steel frame
- Working temperatures -20 to +40°C
Environmental
- Designed to allow simple replacement of components with commonly available tools in compliance with the Eco Design Directive, please see the installation leaflet for maintenance instructions.
- Powered by European branded drivers and emergency modules ensuring replacement parts are easily sourced.
- Every luminaire is labelled with a unique ID number allowing easy identification of spare parts for the lifetime of the product.
- Contains no single use plastics or polystyrene packaging.
- Supplied in plain card boxes with paper tape ensuring packaging is easily recycled.
- Designed to allow simple disassembly for end of life recycling.
- UK based manufacturing providing local support throughout the product lifetime and minimising transportation miles.
Performance
- 24W power for 505mm / 48W for 930mm
- 20x20° beam angle
- Other beam angles available on request
- 50,000 operating hours
Installation

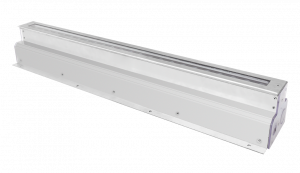

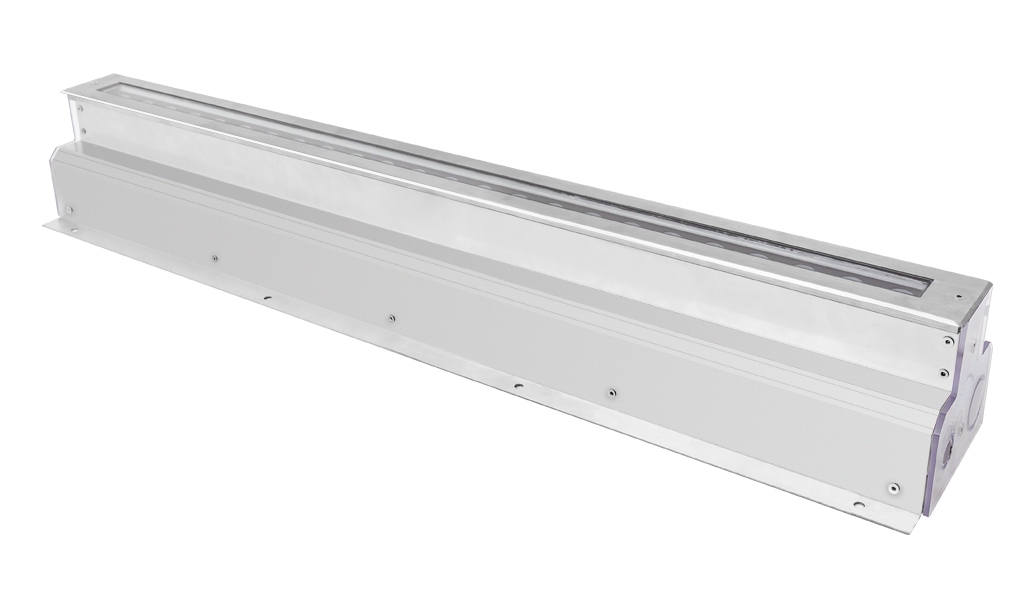

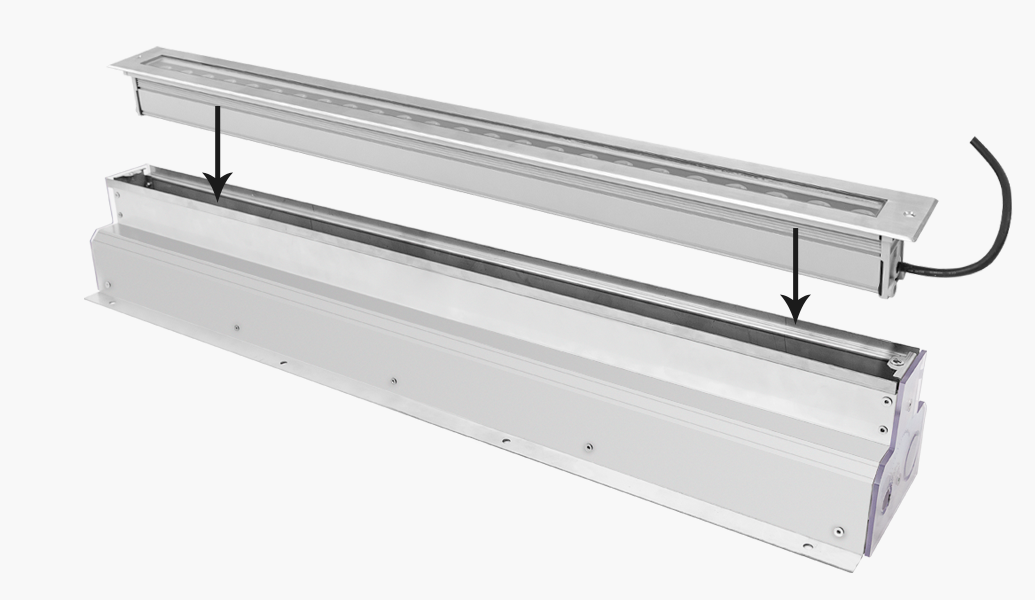

- Available with separately supplied in ground housing for ease of installation
- Available with power and control cables

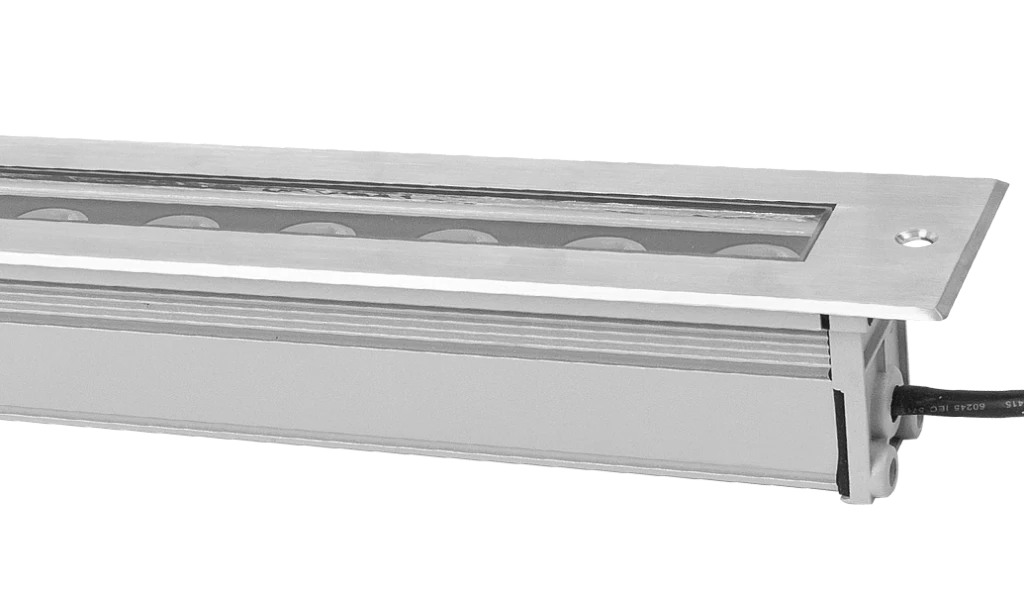

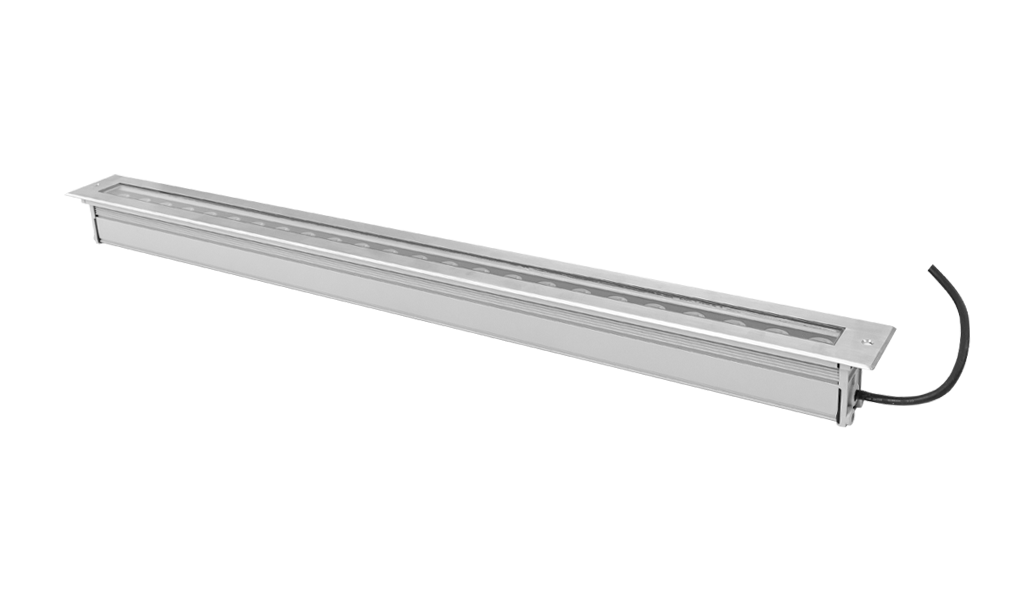

Product Images

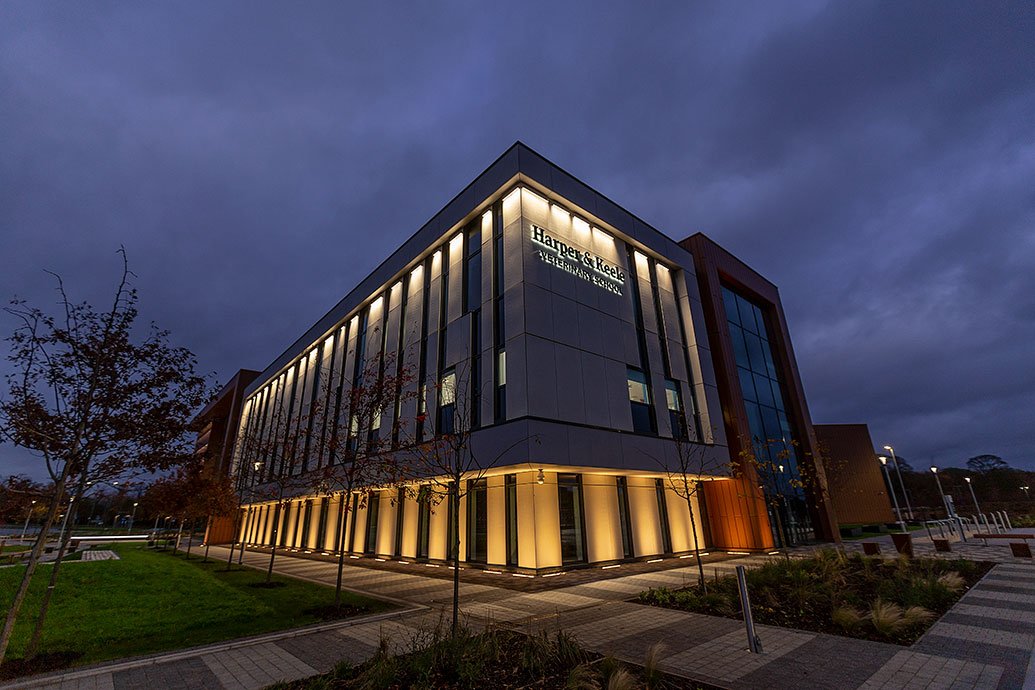

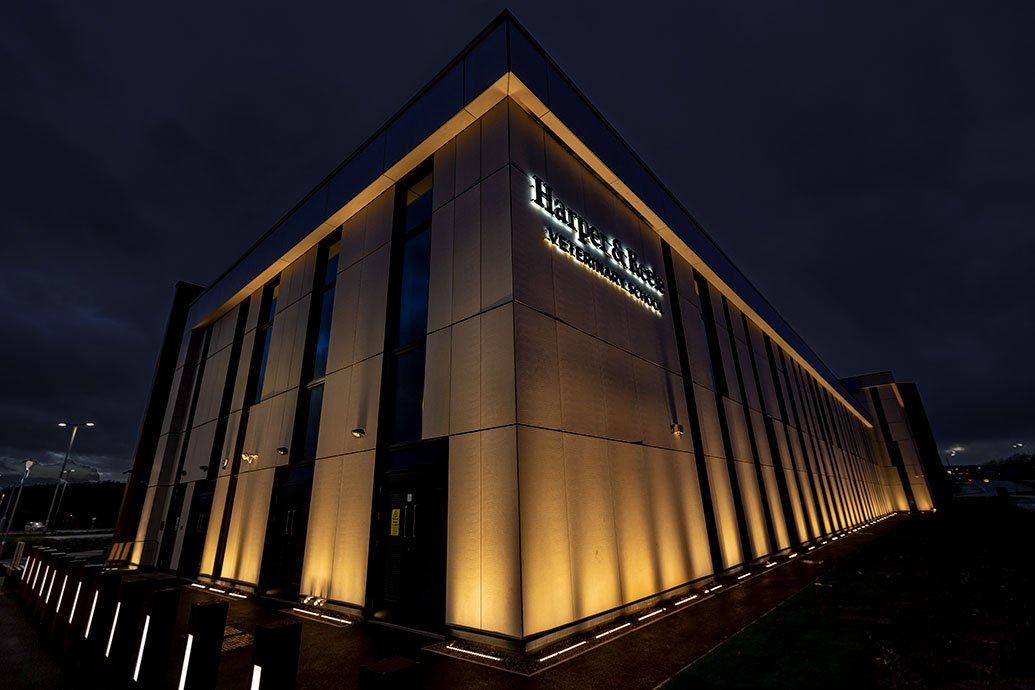

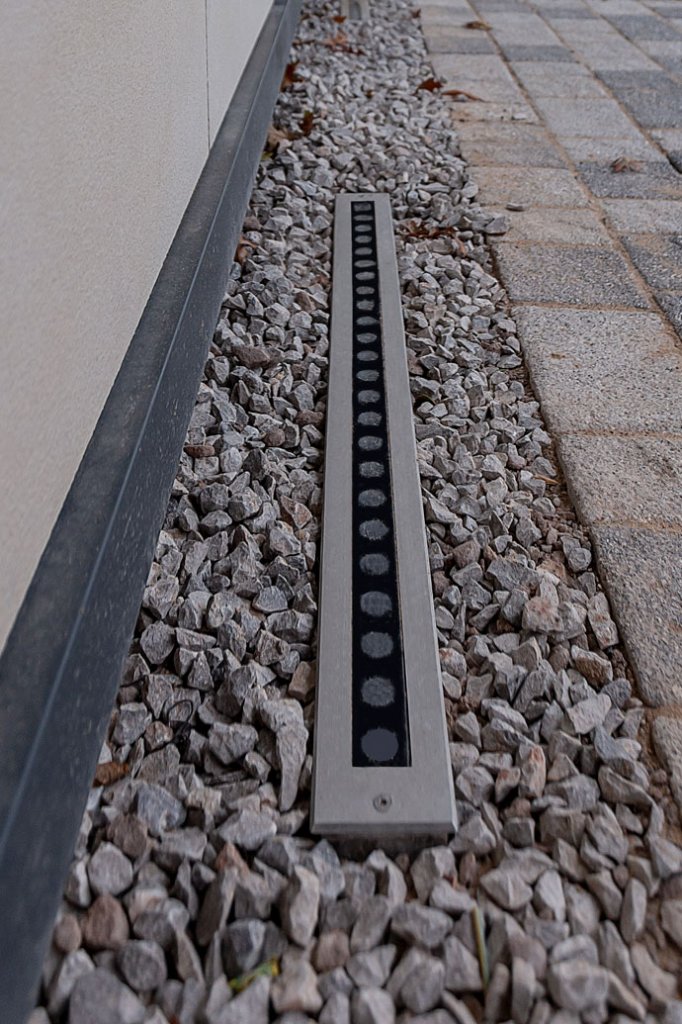

GLIDE IN-GROUND in action
Technical

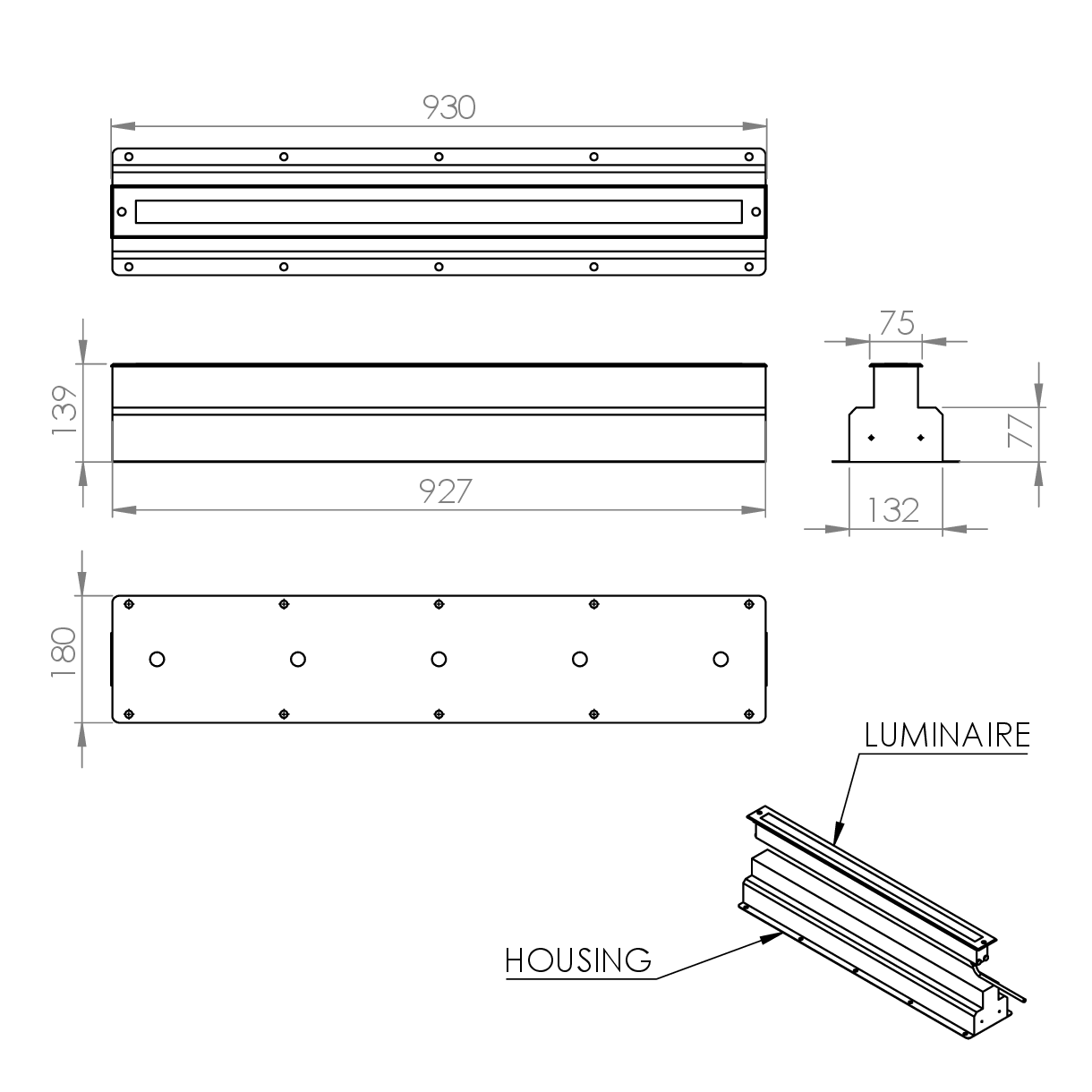

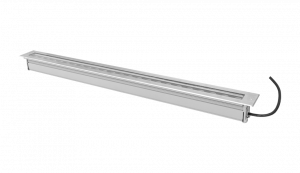

Glide In-Ground 930mm

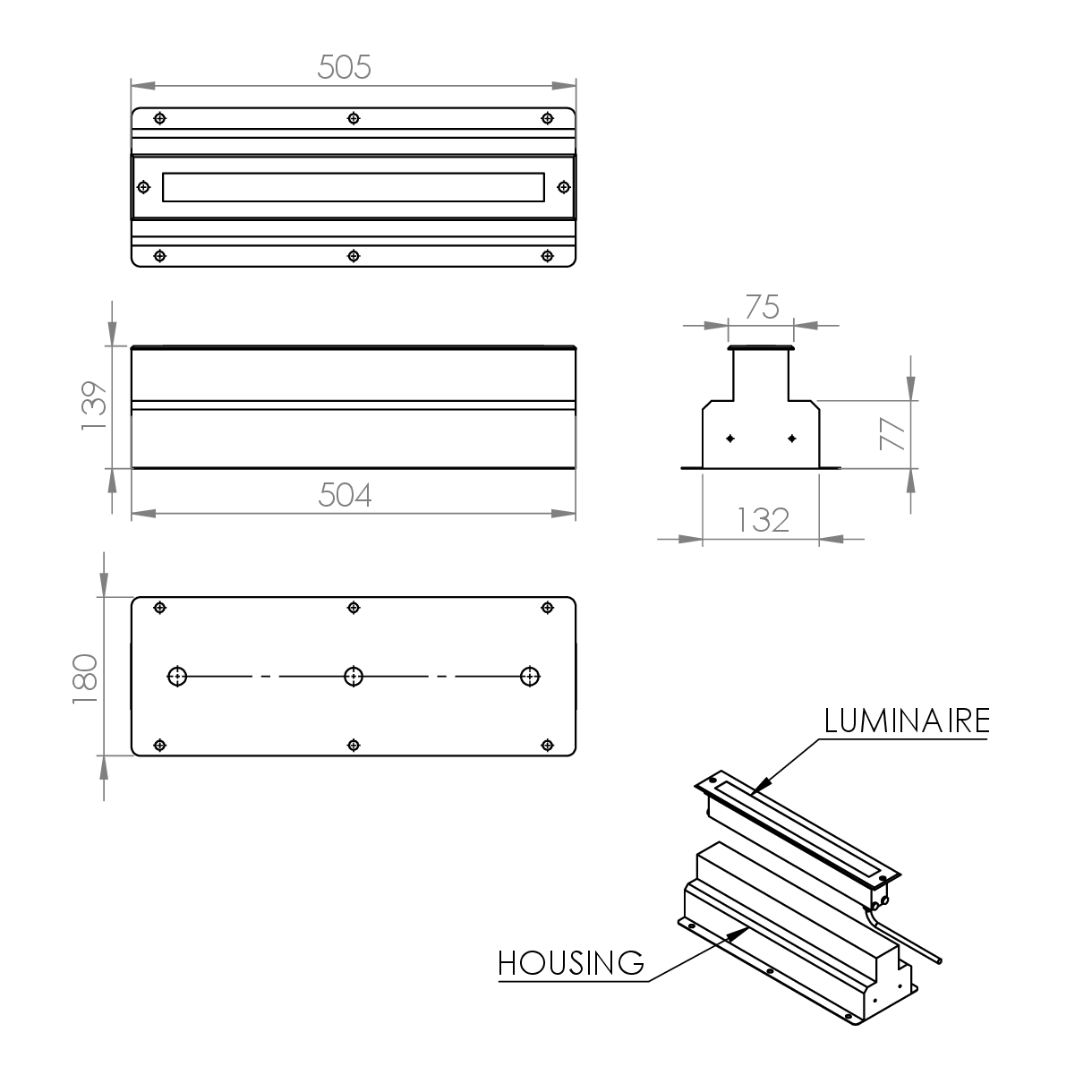

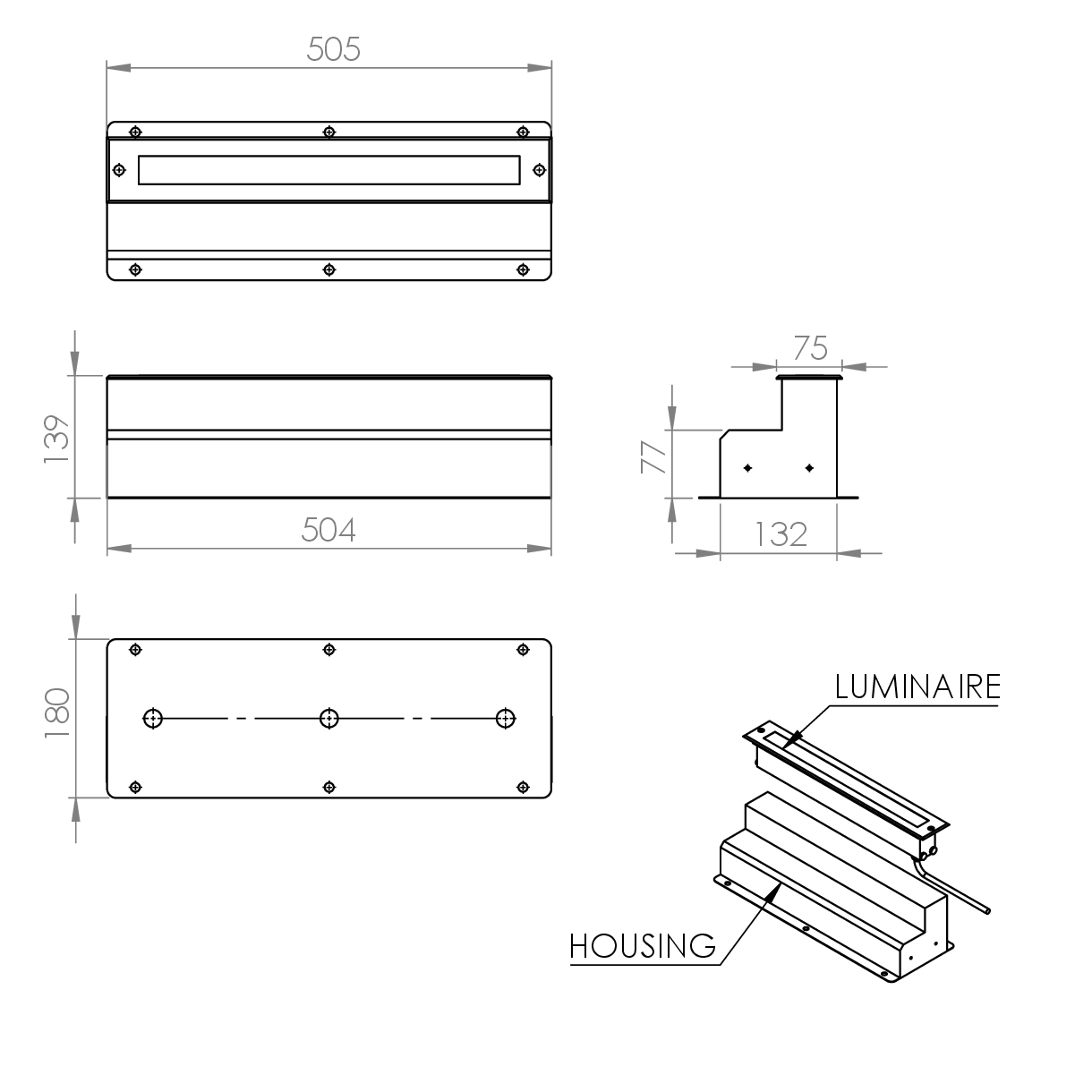

Glide in-Ground 500mm
Glide In-Ground L Housing 500mm

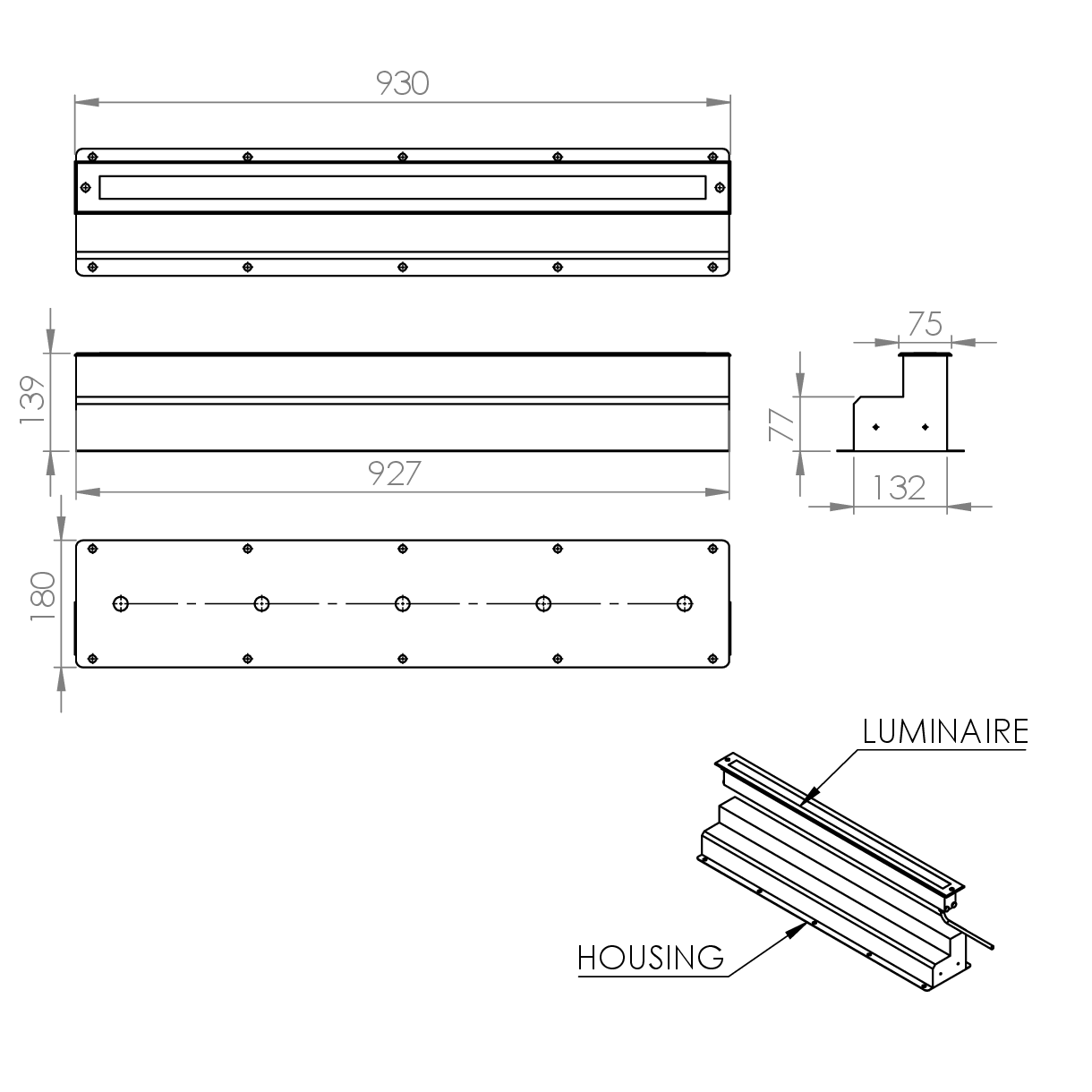

Glide In-Ground L Housing 1000mm
Ordering
Luminaires
|
||||||||||||||||||||||||
Miscellaneous
| Code | Description |
|---|---|
| GIG HOUSING 500MM | Glide In-Ground Housing 500mm |
| GIG HOUSING 1000MM | Glide In-Ground Housing 1000mm |
| GIG HOUSING 500MM L | Glide In-Ground L Housing 500mm |
| GIG HOUSING 1000MM L | Glide In-Ground L Housing 1000mm |
