Introduction

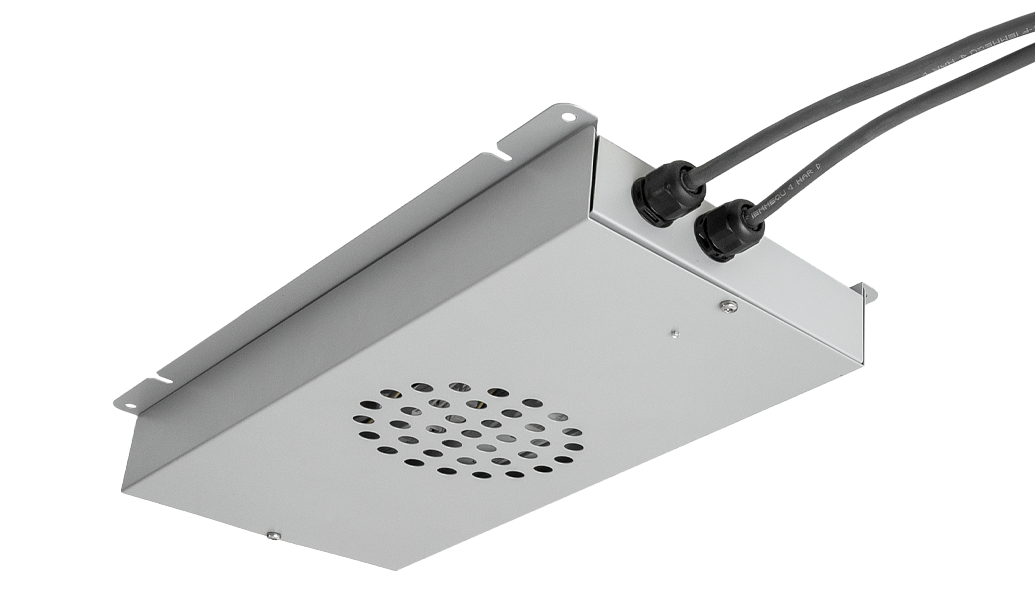

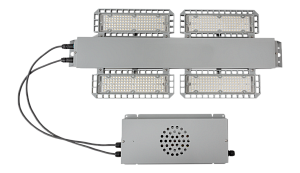

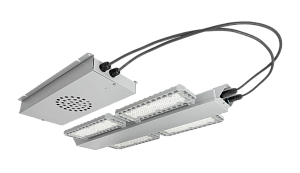

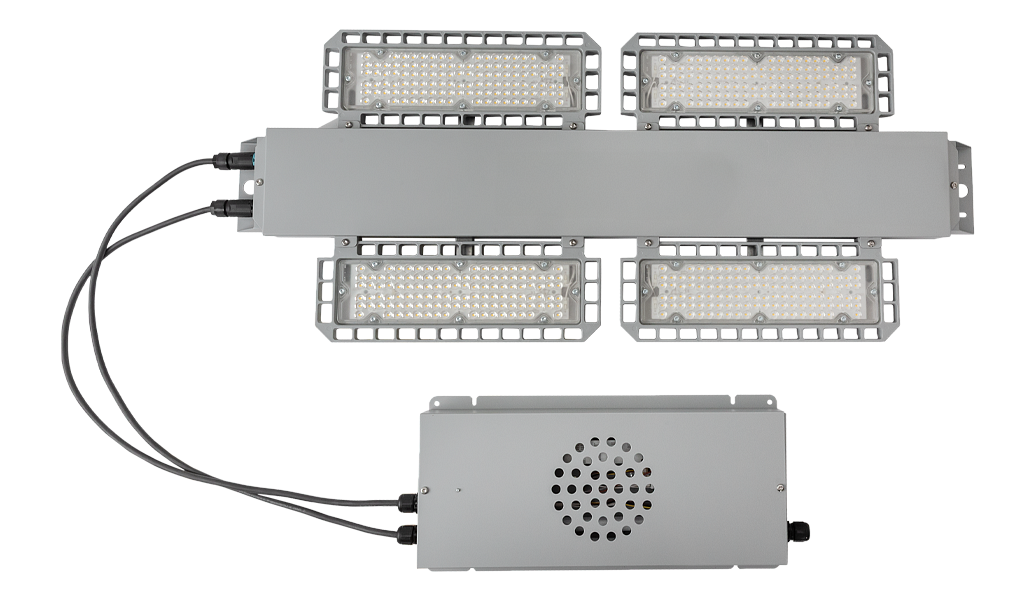

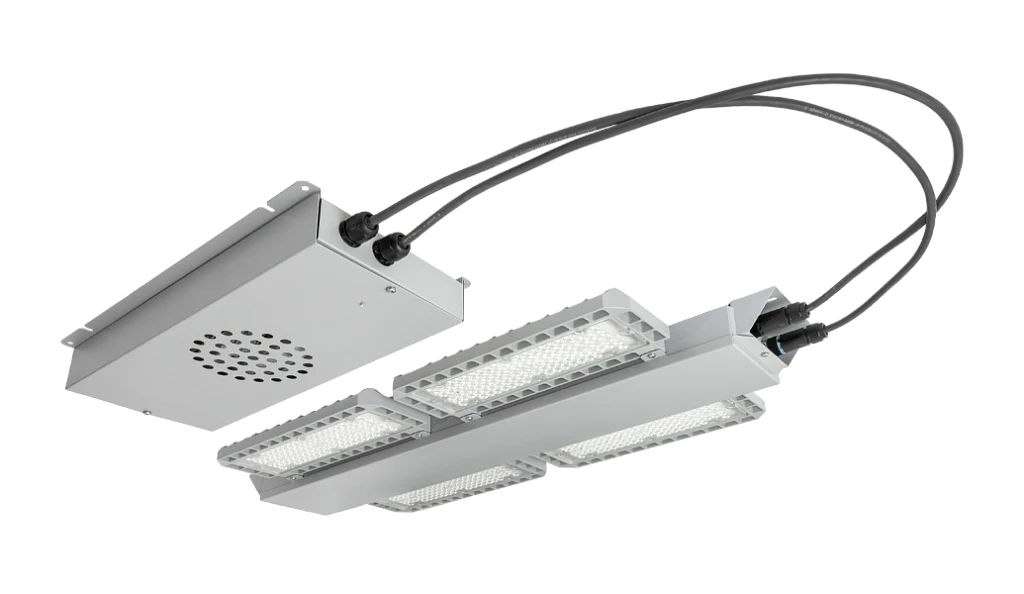

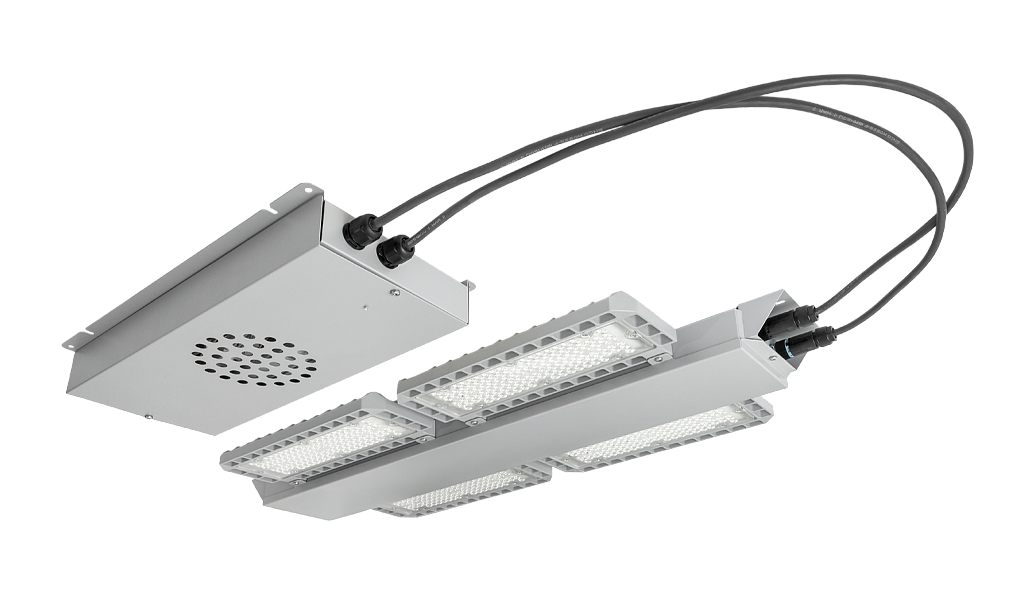

The Forteco Chill offers a powerful, robust and versatile solution designed specifically for cold store and freezer applications operating to temperatures as low as -40°C, but is equally well suited to any installation where it is desirable to house the driver and emergency control gear remotely. With die cast aluminium LED housings and steel spine finished in powder coat grey RAL9006 the Forteco Chill is designed to achieve an IK10 rating combined with IP65 ingress protection. The Forteco Chill can be supplied with an integral R11 presence detection sensor offering significant energy savings in freezer applications ensuring the luminaires only operate during periods of occupancy. With three lens options and 2, 4 or 6 LED circuit variants offering up to 60,000lm output, the Forteco Chill can tailored to suit a wide range of applications, mounting heights and luminaire spacings. The Forteco Chill is also available with a wide range of dimming and emergency options and incorporates lithium batteries as standard for extended warranty and lifetime with two emergency output variants.
FORTECO CHILL complies with:
UKCA | CE | IP65 | IK10 | TM21: L90>60K HOURS / L80>90K HOURS | 3 STEP MACADAM ELLIPSE
Recommended applications:
Cold Store | Freezer
Specification
Construction
- Housing: 0.8mm HC220 steel
- Housing: High pressure die cast aluminium
- Finish: Polyester powder painted RAL 9006 matt grey
- Lens: Injection moulded polycarbonate lens
- IK10 in non sensor variants
- IP65
Performance
- Part L2 compliant
- 3SDCM Three step Macadams ellipse
- TM21: L90>60K Hours / L80>90K Hours
- Up to 159 luminaire lumens per circuit watt
Environmental
- Designed to allow simple replacement of components with commonly available tools in compliance with the Eco Design Directive, please see the installation leaflet for maintenance instructions.
- Powered by European branded drivers and emergency modules ensuring replacement parts are easily sourced.
- Every luminaire is labelled with a unique ID number allowing easy identification of spare parts for the lifetime of the product.
- Contains no single use plastics or polystyrene packaging.
- Supplied in plain card boxes with paper tape ensuring packaging is easily recycled.
- Designed to allow simple disassembly for end of life recycling.
- UK based manufacturing providing local support throughout the product lifetime and minimising transportation miles.
Emergency
- Available with optional standard, self test and autotest integral emergency with lithium batteries for extended warranty and lifetime.
- Optional Reacta-Link wireless emergency for automated centralised reporting.
- Optional Reacta-Control wireless emergency for automated centralised reporting.
- Optional central battery changeover relay
Control
- Optional compatibility with a range of dimming systems including DALI, DSI and Switch Dimming
- Optional Integral R11 presence sensor
Installation
- Suitable for suspended installation
- Suitable for trunking installation
- Suitable for surface installation
Variations
- Available with a wide range of colour temperatures and renderings
- Available in a range of housing sizes and lumen outputs
Technical

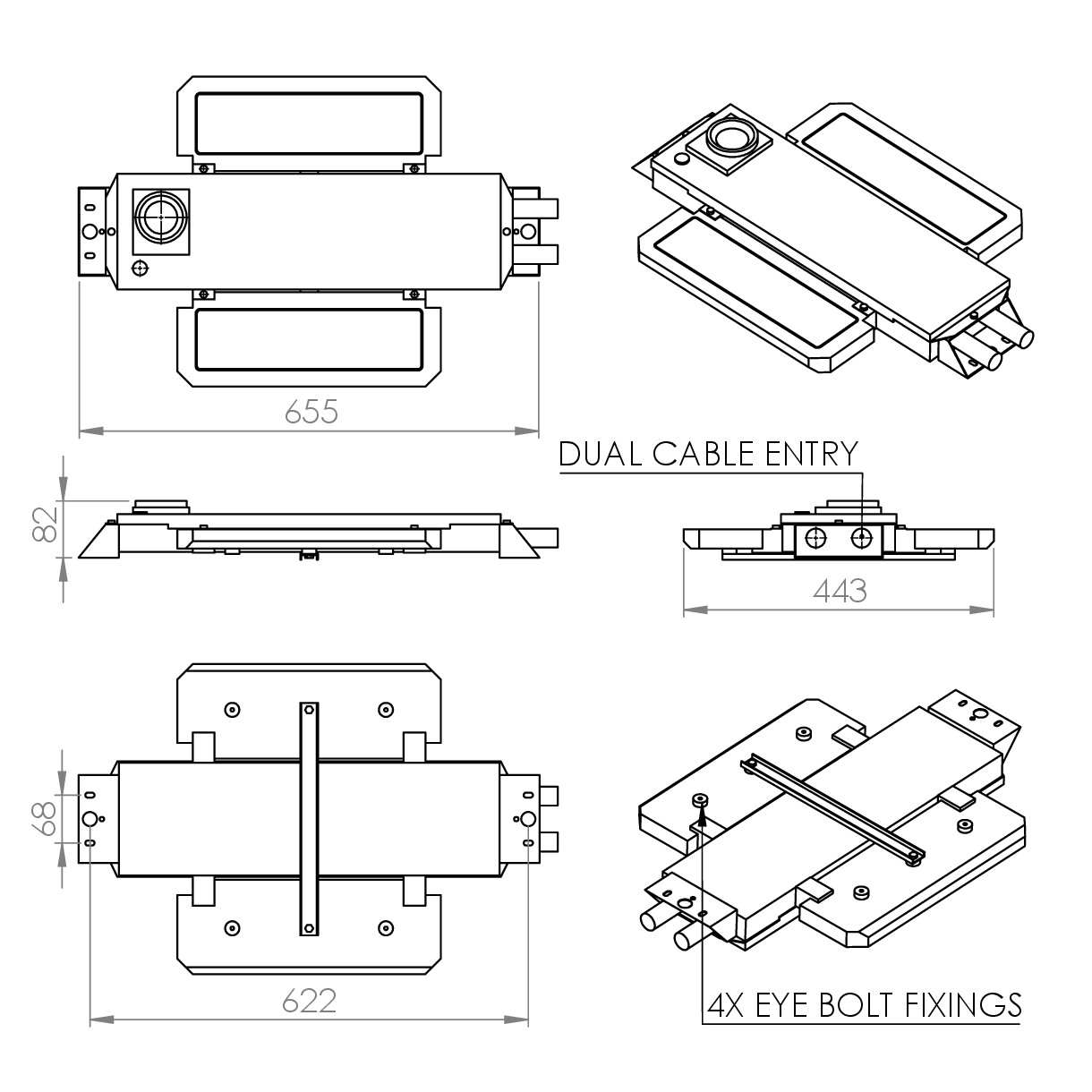

Forteco Chill 2 Circuit
Forteco Chill 4 Circuit

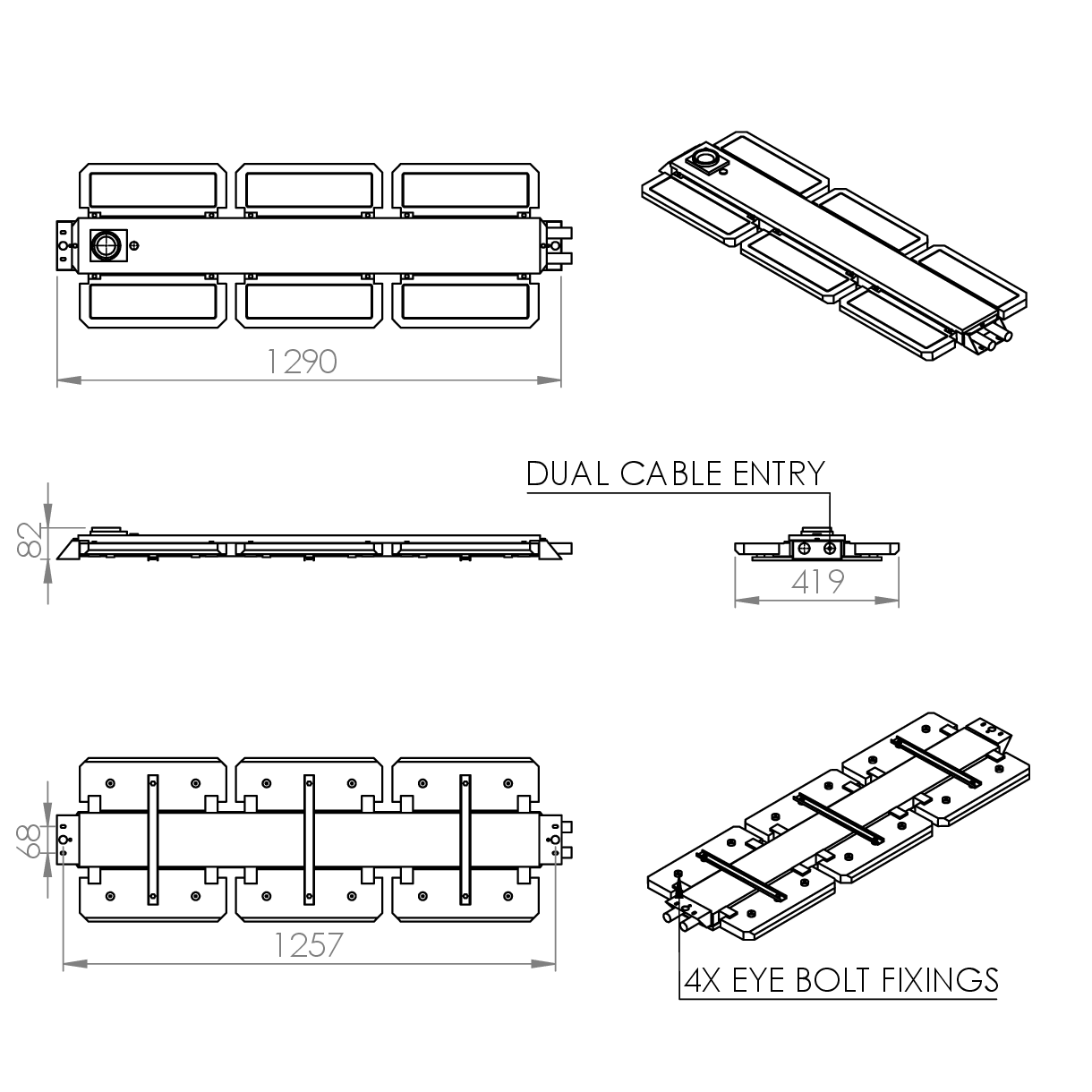

Forteco Chill 6 Circuit

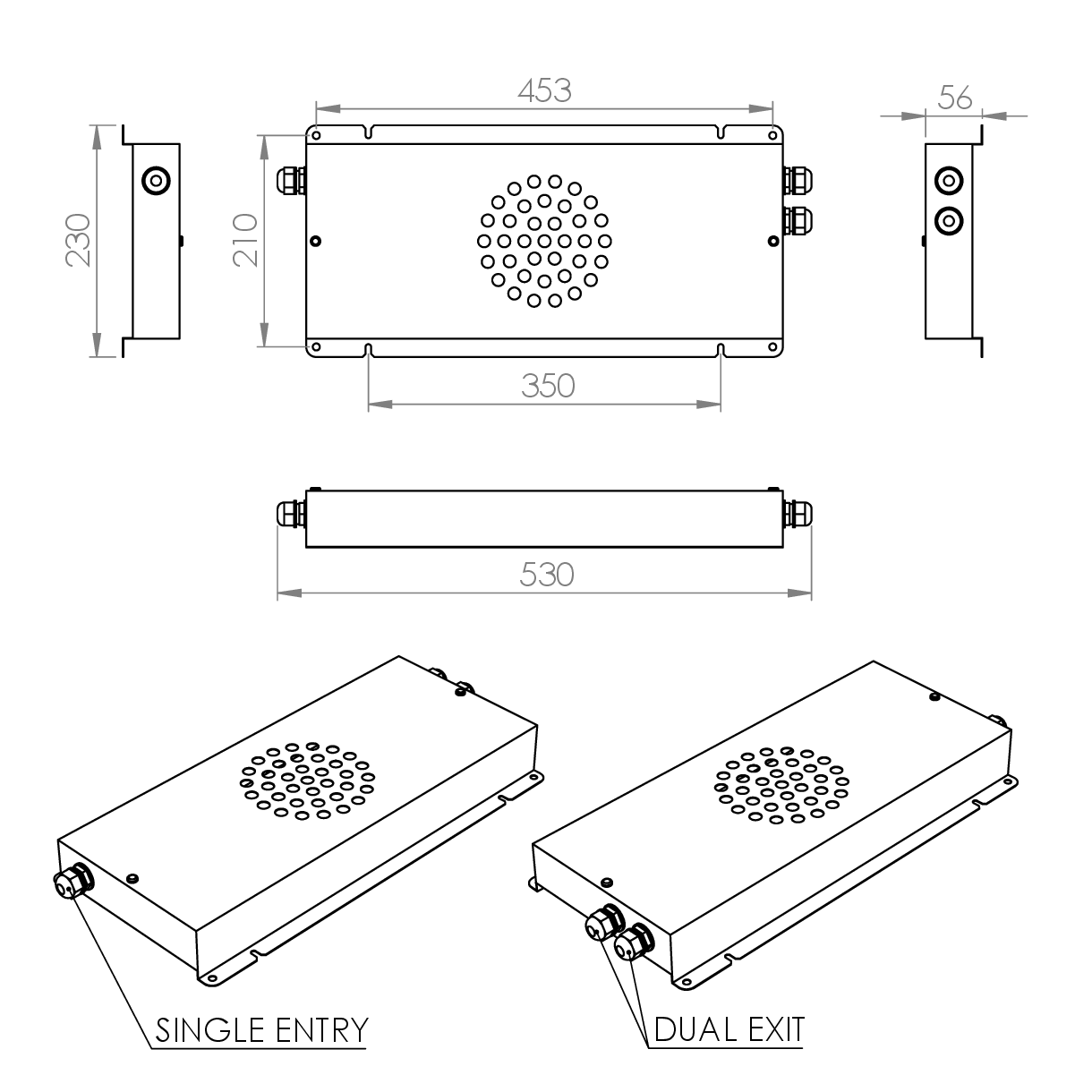

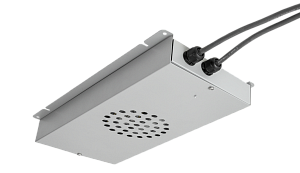

Forteco Chill Remote Gear Housing
Ordering
Luminaires
|
Dimming
| Code | Description |
|---|---|
| A | DALI Digital Addressable Lighting Interface |
| S | Switch Dimming |
| D | DSI Digital Dimming |
| H | HFR Analogue 1-10v |
Control
| Code | Description |
|---|---|
| R11 | Reacta 11, Presence, IP65, Low Temperature, 3-15M |
Emergency
| Code | Description |
|---|---|
| LE3 | Lithium Standard Emergency 3 Hour |
| LS3 | Lithium Selftest Emergency 3 Hour |
| LA3 | Lithium Autotest Emergency 3 Hour |
| LE3H | Lithium Standard Emergency 3 Hour High Output |
| LS3H | Lithium Selftest Emergency 3 Hour High Output |
| LA3H | Lithium Autotest Emergency 3 Hour High Output |
| CB | Central Battery, Please Specify 110V or 230V when Ordering |
Miscellaneous
| Code | Description |
|---|---|
| C** | Select Colour Temperature and Rendering; C827, C83, C85, C865, C93, C94 |
| LSF | Low Smoke Zero Halogen |
