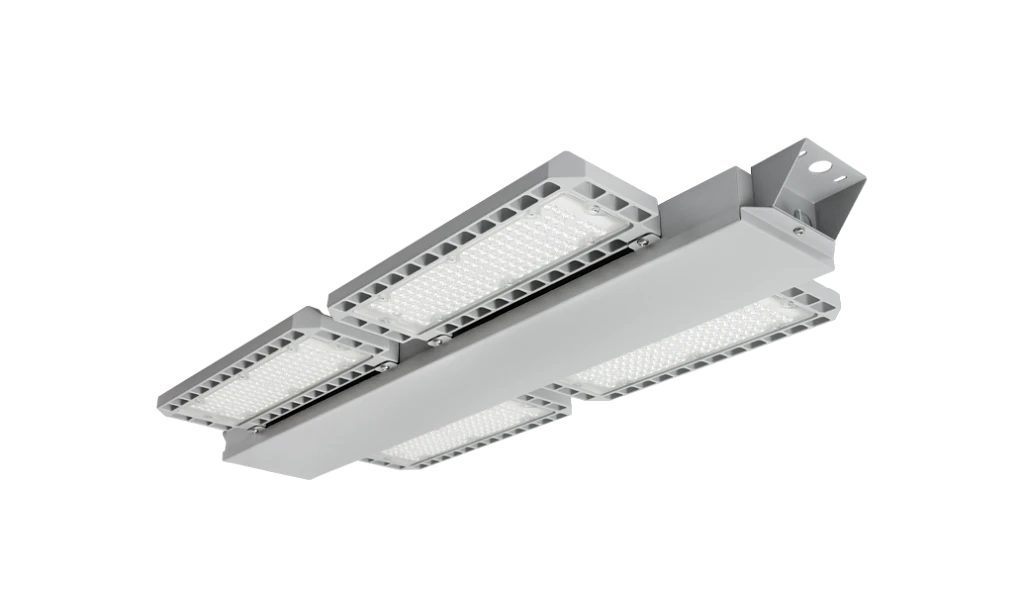

FORTECO
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Pellentesque tempor, purus facilisis accumsan luctus, elit metus faucibus sem, ac tempus.
Introduction
The Forteco offers a powerful, robust and versatile solution for applications ranging from industrial and manufacturing through to food production, logistics and sports halls. With die cast aluminium LED housings and steel spine finished in powder coat grey RAL9006 the Forteco is designed to achieve an IK10 rating offering protection against impacts and ball strikes, whilst the ventilated heat sink design allows this luminaire to offer up to 60,000 lumen outputs. Depending on lumen output and emergency gear selection the Forteco is also designed to operate in ambient temperatures up of up to 50°C.
With three lens options and 2, 4 or 6 LED circuit variants, the Forteco can tailored to suit a wide range of applications, mounting heights and luminaire spacings. This versatility is further enhanced with a range of control options offering integral presence detection and daylight detection as well as compatibility with our wireless systems such as Reacta-Control and Reacta-Link offering centralised control and monitoring. The Forteco can also be specified with all common dimming variants and is available with integral lithium emergency offering extended battery lifetime and warranty.
FORTECO complies with:
UKCA | CE | IP65 | IK10 | TM21: L90>60K HOURS / L80>90K HOURS | 3 STEP MACADAM ELLIPSE
Recommended applications:
Food Production | Industrial / Manufacturing | Retail | Sports Hall | Transport | Warehousing
Specification
Construction
- Housing: 0.8mm HC220 steel
- Housing: High pressure die cast aluminium
- Finish: Polyester powder painted RAL 9006 matt grey
- Lens: Injection moulded polycarbonate lens
- IK10 in non sensor variants
- IP65
Performance
- Part L2 compliant
- 3SDCM Three step Macadams ellipse
- TM21: L90>60K Hours / L80>90K Hours
- Up to 159 luminaire lumens per circuit watt.
Environmental
- Designed to allow simple replacement of components with commonly available tools in compliance with the Eco Design Directive, please see the installation leaflet for maintenance instructions.
- Powered by European branded drivers and emergency modules ensuring replacement parts are easily sourced.
- Every luminaire is labelled with a unique ID number allowing easy identification of spare parts for the lifetime of the product.
- Contains no single use plastics or polystyrene packaging.
- Supplied in plain card boxes with paper tape ensuring packaging is easily recycled.
- Designed to allow simple disassembly for end of life recycling.
- UK based manufacturing providing local support throughout the product lifetime and minimising transportation miles.
Emergency
- Available with optional standard, self test and autotest integral emergency with lithium batteries for extended warranty and lifetime.
- Optional Reacta-Link wireless emergency for automated centralised reporting.
- Optional Reacta-Control wireless emergency for automated centralised reporting.
- Optional central battery changeover relay
Control
- Optional compatibility with a range of dimming systems including DALI, DSI and Switch Dimming
- Optional Integral R18 presence and daylight sensor
- Optional integral Reacta-Link for integration with Reacta-Link wireless installations
Installation
- Suitable for suspended installation
- Suitable for trunking installation
- Suitable for surface installation
Variations
- Available with a wide range of colour temperatures and renderings
- Available in a range of housing sizes and lumen outputs
- Some variants suitable for 50°C ambient temperatures
Product Images

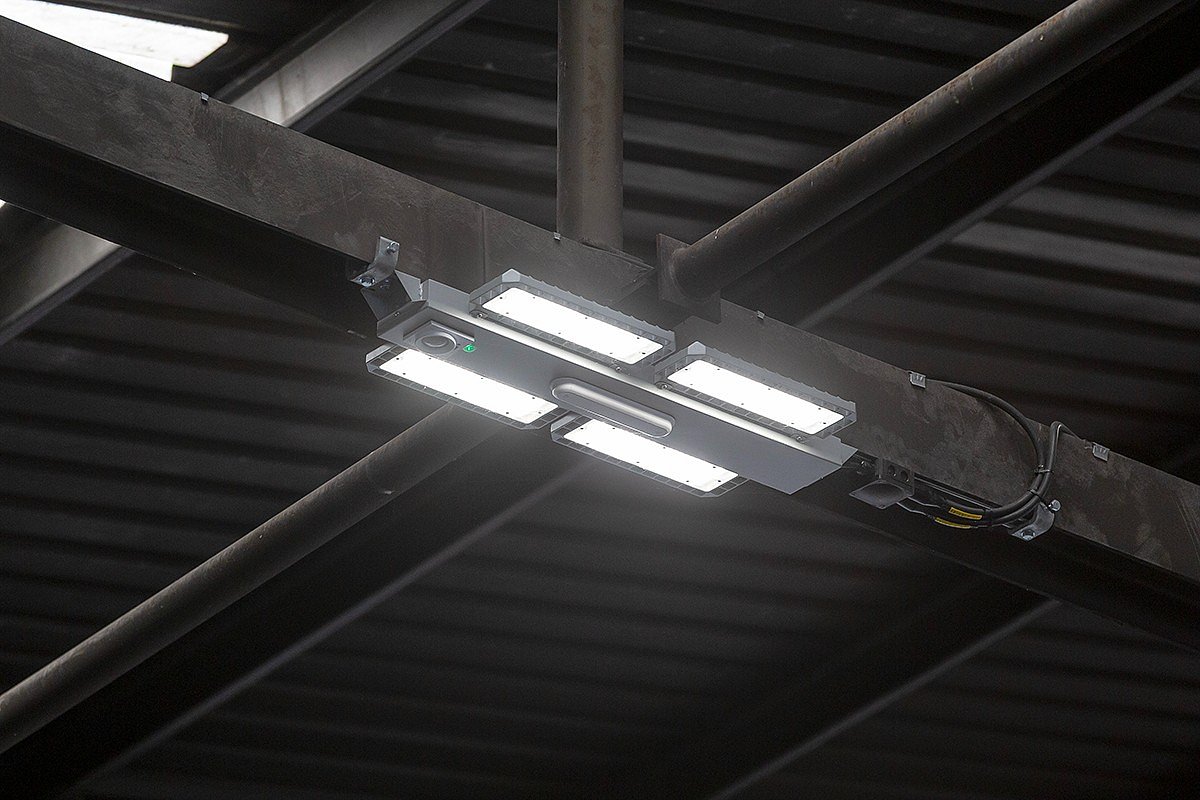

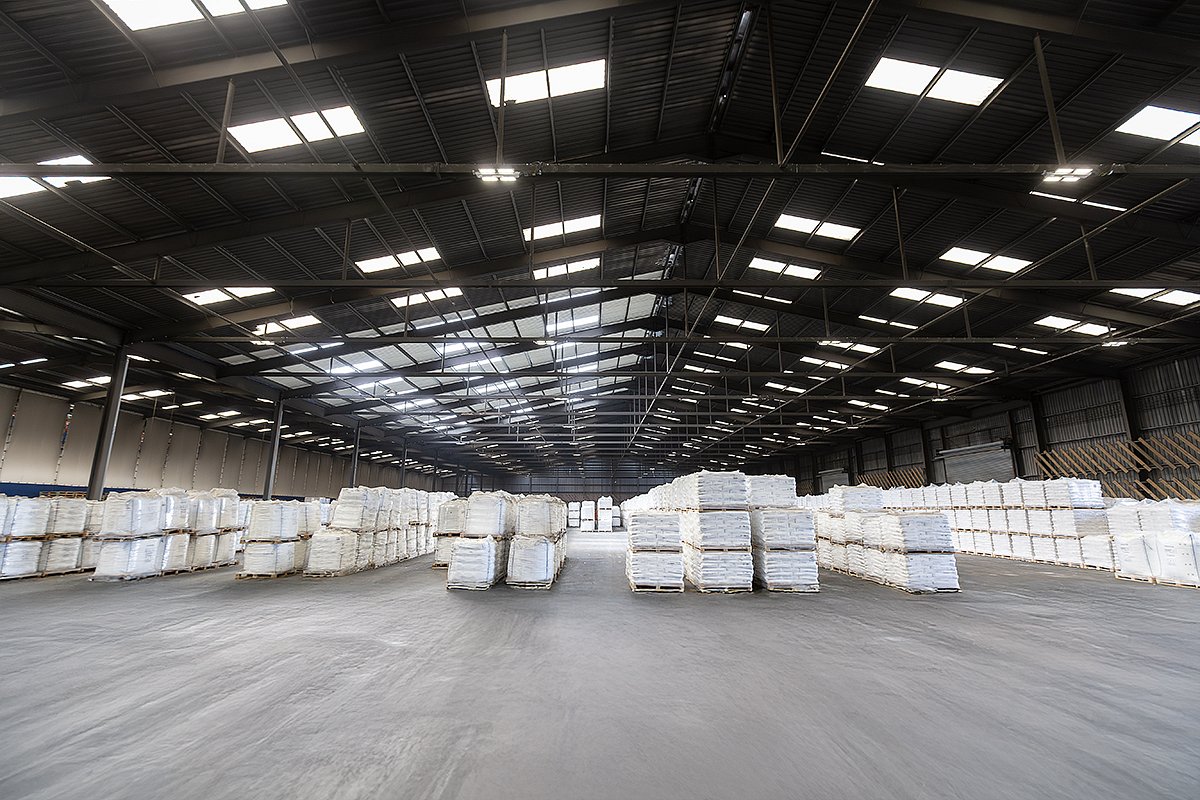

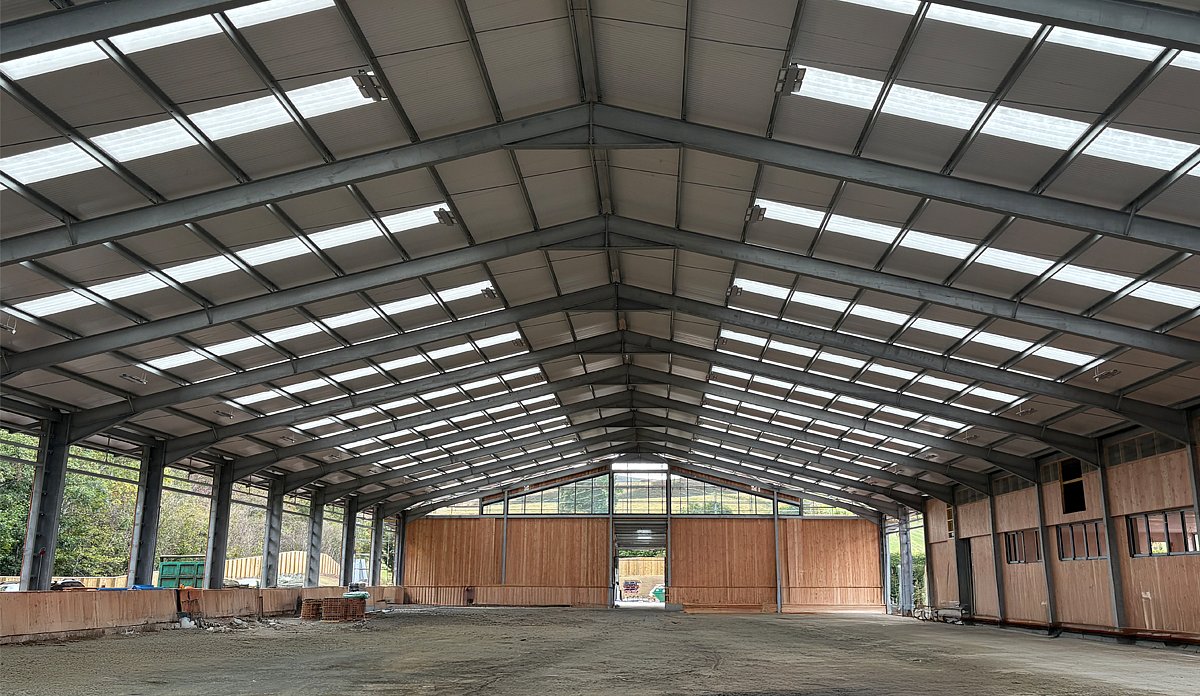

FORTECO in action
.jpg)
.jpg)

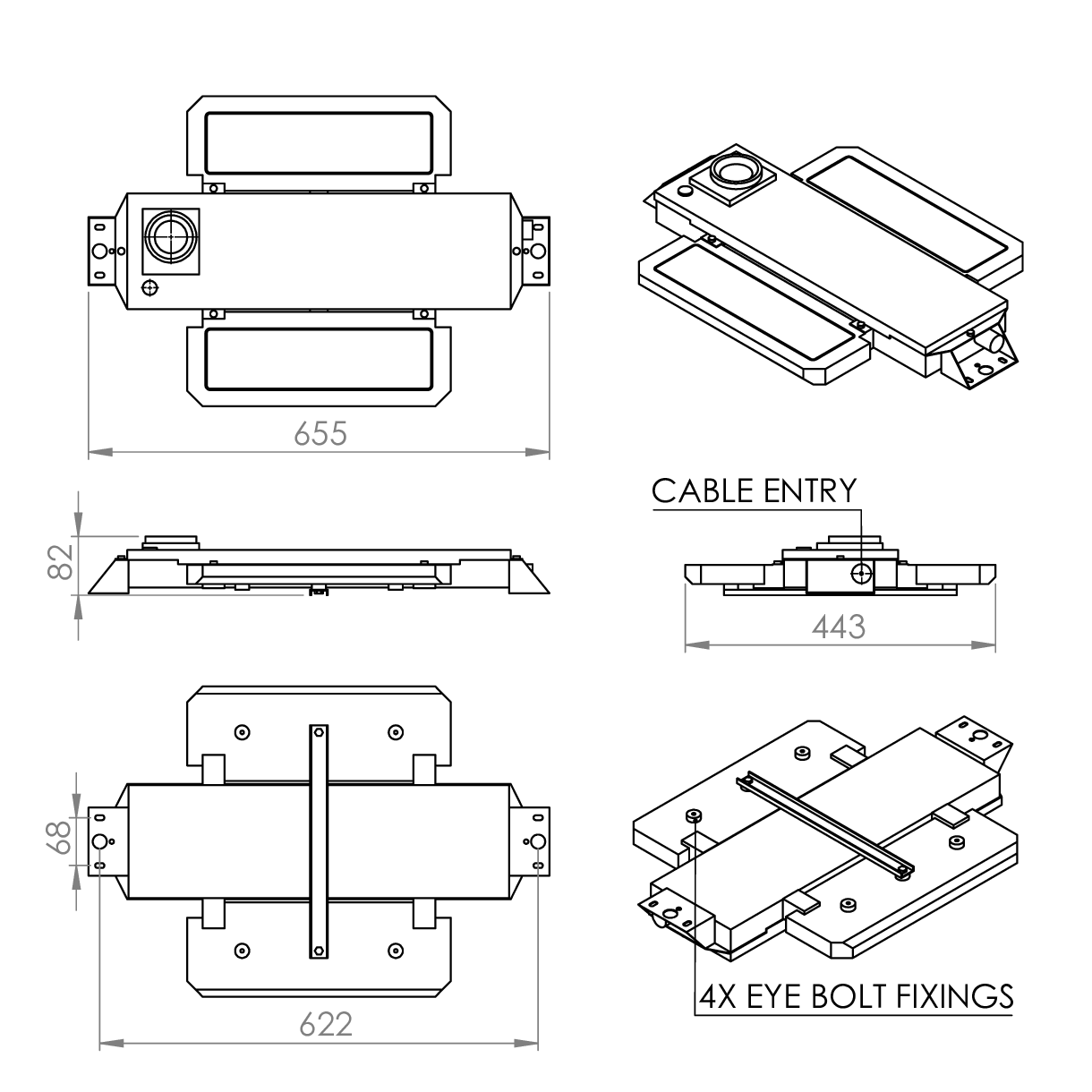

Technical

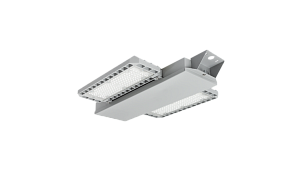

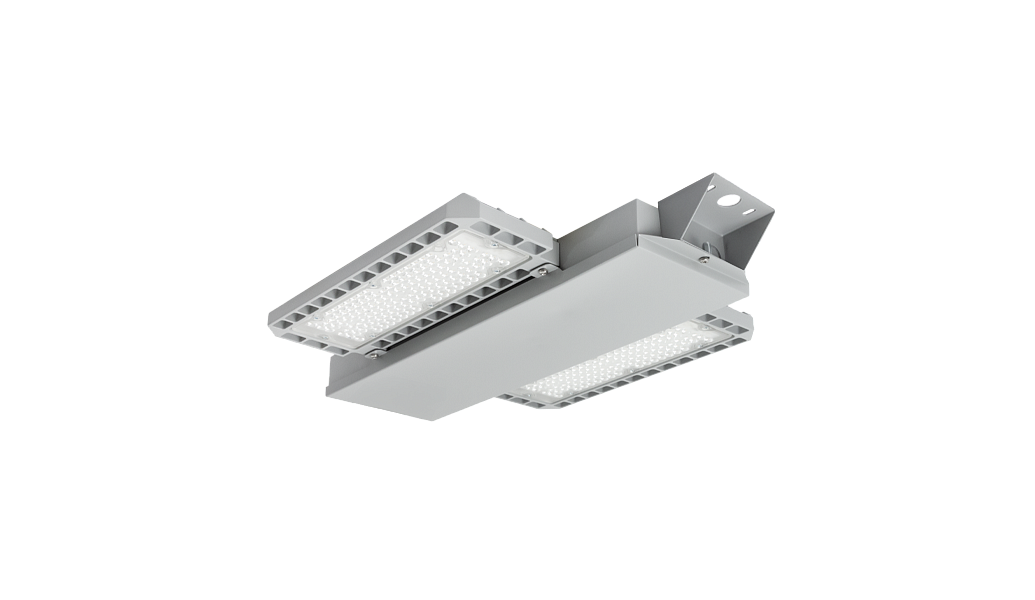

Forteco 2 Cell

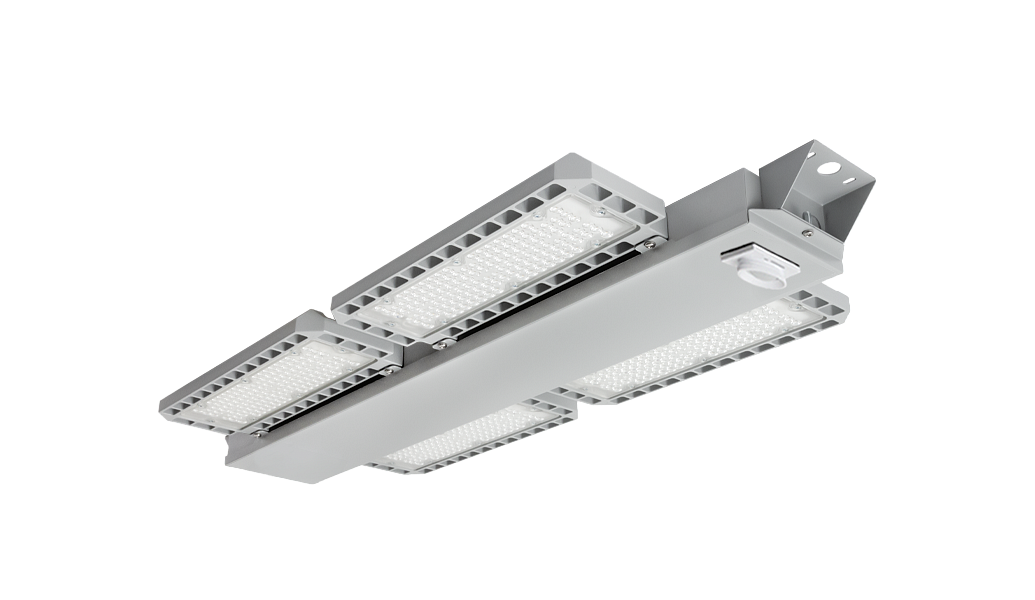

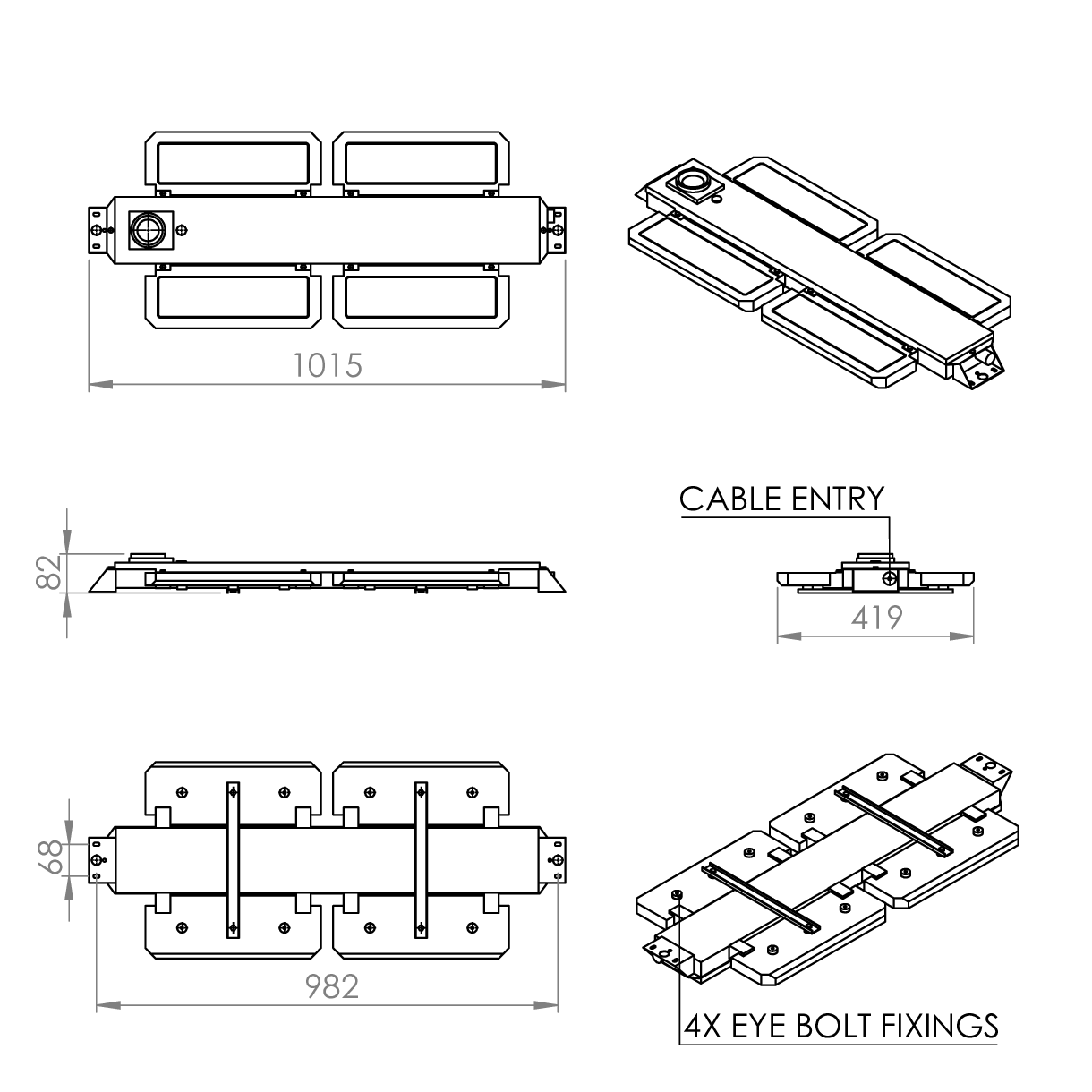

Forteco 4 Cell

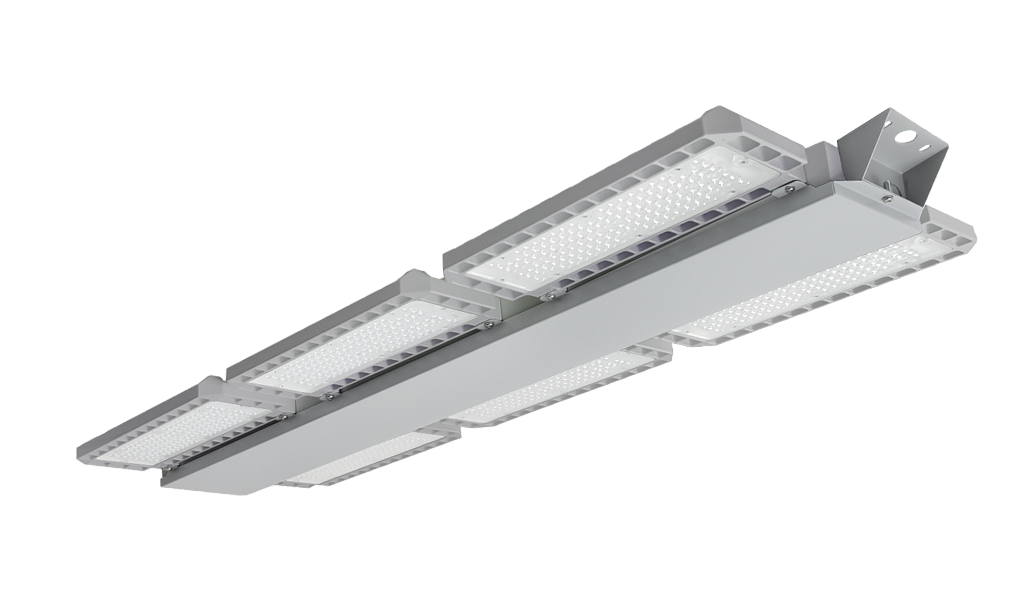

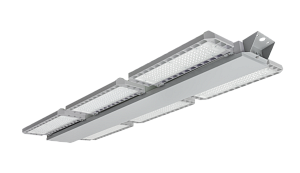

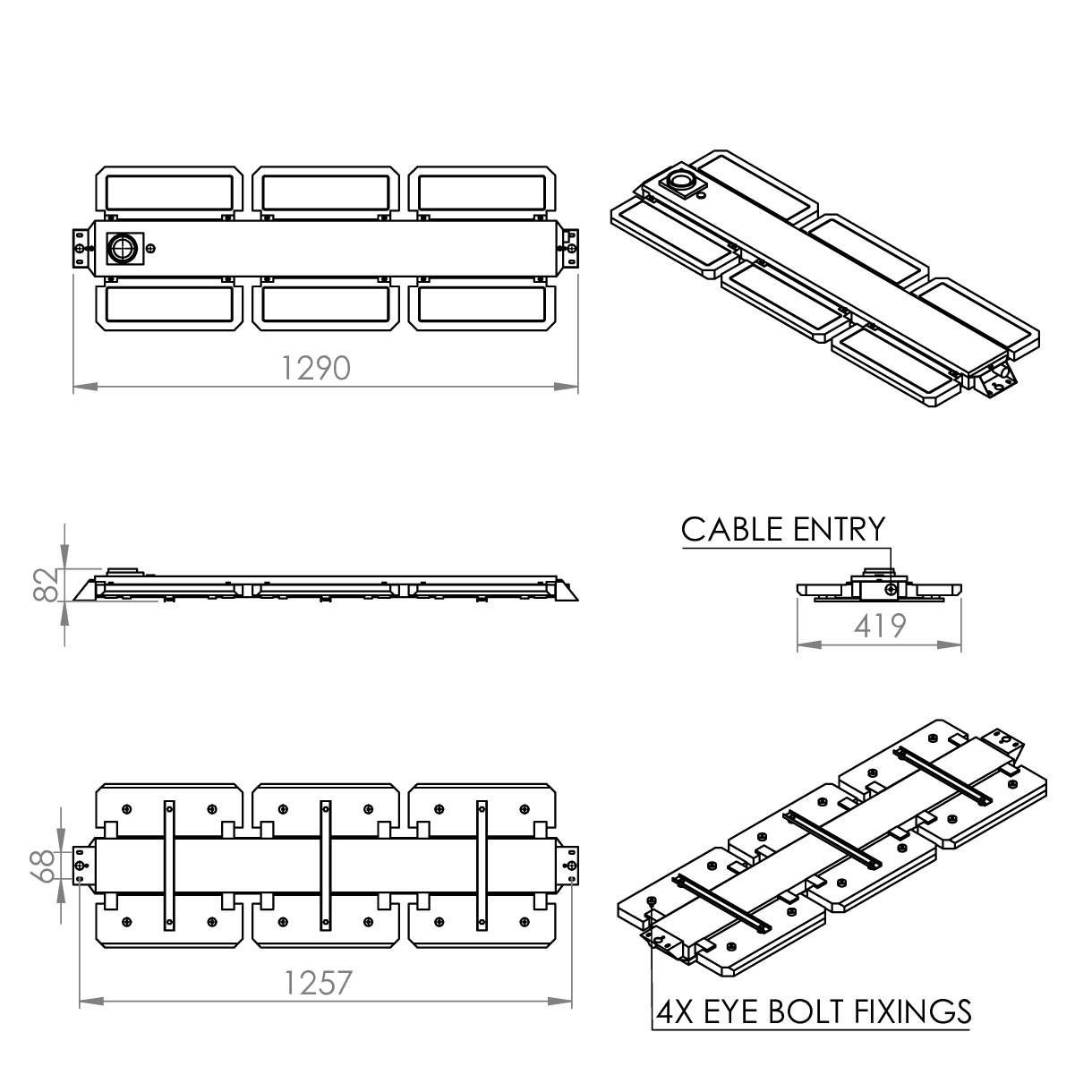

Forteco 6 Cell
Ordering
Luminaires
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Dimming
| Code | Description |
|---|---|
| A | DALI Digital Addressable Lighting Interface |
| S | Switch Dimming |
| D | DSI Digital Dimming |
| H | HFR Analogue 1-10v |
Control
| Code | Description |
|---|---|
| R11 | Reacta 11, Presence, IP65, Low Temperature, 3-15M |
| RLS10 | Reacta-Link Wireless, Presence, 5-10M |
| MS18 | Reacta 18 IP65, Presence and Daylight, 8-18M |
| RC18 | Reacta-Control Wireless 18 IP65, Presence and Daylight, 8-18M |
Emergency
| Code | Description |
|---|---|
| LE3 | Lithium Standard Emergency 3 Hour |
| LS3 | Lithium Selftest Emergency 3 Hour |
| LA3 | Lithium Autotest Emergency 3 Hour |
| LE3H | Lithium Standard Emergency 3 Hour High Output |
| LS3H | Lithium Selftest Emergency 3 Hour High Output |
| LA3H | Lithium Autotest Emergency 3 Hour High Output |
| LSTR | Lithium Reacta-Link Emergency 3 Hour |
| LA3RC | Lithium Reacta-Control Emergency 3 Hour |
| CB | Central Battery, Please Specify 110V or 230V when Ordering |
Miscellaneous
| Code | Description |
|---|---|
| C** | Select Colour Temperature and Rendering; C827, C83, C85, C865, C93, C94 |
| LSF | Low Smoke Zero Halogen |
