EXIXL

Introduction

The EXIXL offers viewing distances of up to 79M providing the ideal solution for applications such as warehouses, factories and airports where standard exit signage does not provide adequate visibility.

The EXIXL is suitable for both top and rear mounting and is available in IP20 and IP65 variants. Low temperature options suitable for ambient temperatures as low as -25°C are available for use in industrial cold stores and freezers. The EXI is supplied with lithium iron phosphate batteries as standard for extended life time and warranty and can be ordered in standard, self test and auto test emergency variants. Central battery compatible variants are available in a range of voltages as well as wireless emergency versions offering compatibility with Reacta-Link and Reacta-Control systems allowing you to automate emergency testing and report failures, minimising the life time maintenance costs of your emergency installation.

EXIXL complies with:

UKCA | CE | IP20 | IP65

Recommended applications:

Canteen | Corridor | Education | Food Production | Healthcare / Social Housing | Hotel / Leisure | Industrial / Manufacturing | Kitchen | Office | Retail | Stairwell | Store Room | Toilet | Transport | Warehousing

Specification

Construction

  • Housing: 0.7mm CR4 steel
  • Finish: Matt white
  • ISO 7010 with all directional arrow options.
  • IP20
  • IP65

Environmental

  • Designed to allow simple replacement of components with commonly available tools in compliance with the Eco Design Directive, please see the installation leaflet for maintenance instructions.
  • Powered by European branded drivers and emergency modules ensuring replacement parts are easily sourced.
  • Every luminaire is labelled with a unique ID number allowing easy identification of spare parts for the lifetime of the product.
  • Contains no single use plastics or polystyrene packaging.
  • Supplied in plain card boxes with paper tape ensuring packaging is easily recycled.
  • Designed to allow simple disassembly for end of life recycling.
  • UK based manufacturing providing local support throughout the product lifetime and minimising transportation miles.

Emergency

  • Available with optional standard, self test and autotest integral emergency with lithium batteries for extended warranty and lifetime.
  • Optional Reacta-Link wireless emergency for automated centralised reporting.
  • Optional Reacta-Control wireless emergency for automated centralised reporting.
  • Optional central battery changeover relay

Installation

  • Suitable for conduit installation
  • Suitable for surface installation
5 year extended warranty available on most products.
Arrow right

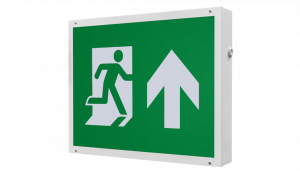

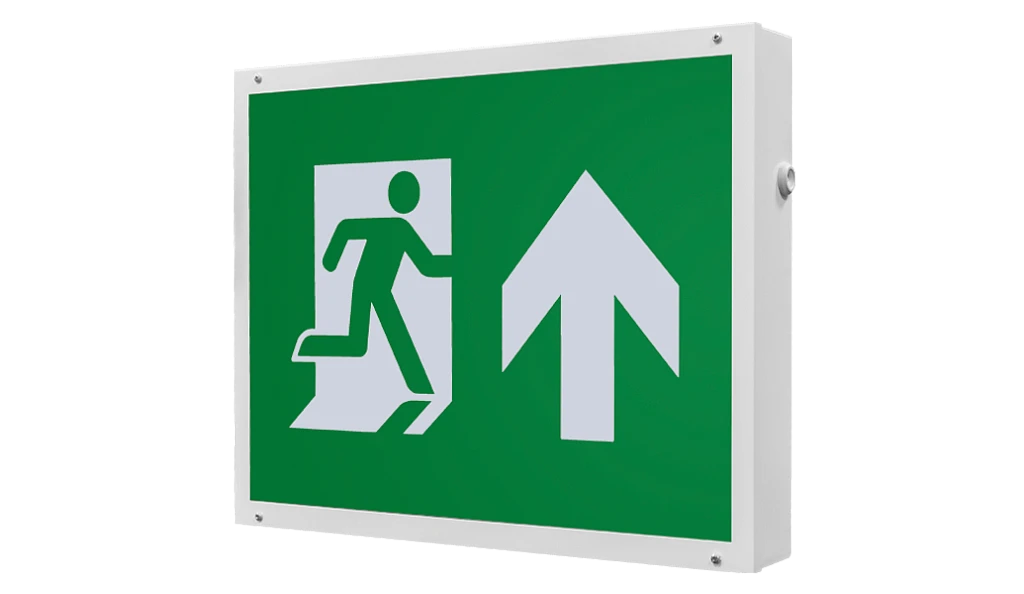

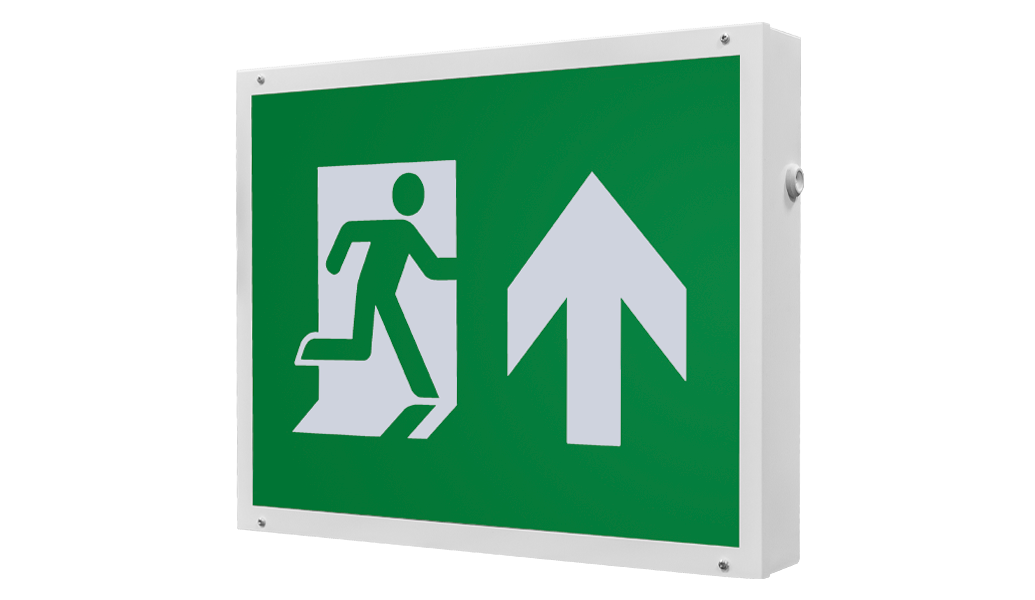

Product Images

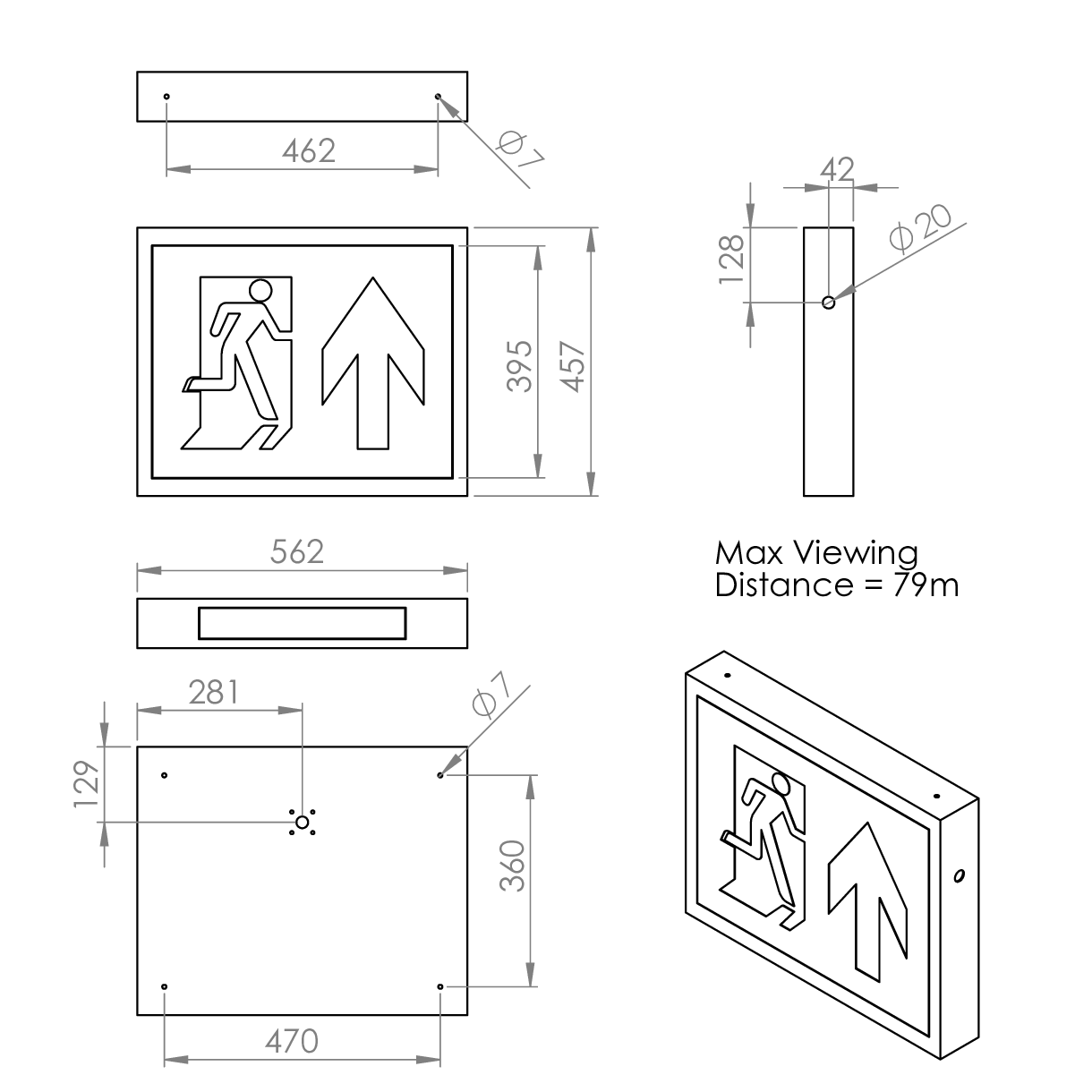

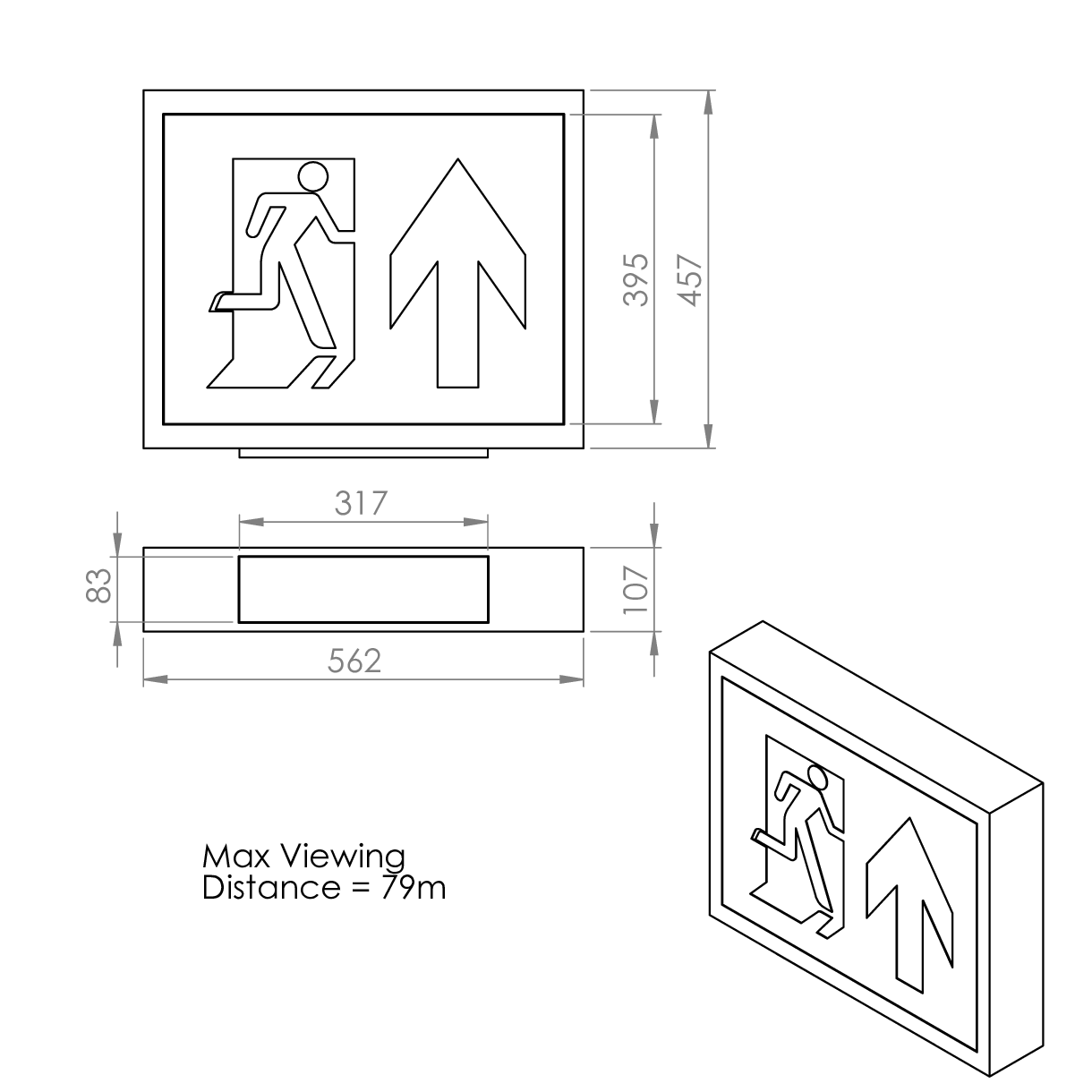

Technical

EXIXL IP65

EXIXL IP65

EXIXL IP20

EXIXL IP20

Ordering

Luminaires

Code Description
EXIXL M3 IP20 LE3 * EXIXL 79M Viewing Distance, Maintained, IP20, Standard Emergency 3 Hour
EXIXL M3 IP20 LS3 * EXIXL 79M Viewing Distance, Maintained, IP20, Self Test Emergency 3 Hour
EXIXL M3 IP20 LA3 * EXIXL 79M Viewing Distance, Maintained, IP20, Autotest Emergency 3 Hour
EXIXL M3 IP65 LE3 * EXIXL 79M Viewing Distance, Maintained, IP65, Standard Emergency 3 Hour
EXIXL M3 IP65 LS3 * EXIXL 79M Viewing Distance, Maintained, IP65, Self Test Emergency 3 Hour
EXIXL M3 IP65 LA3 * EXIXL 79M Viewing Distance, Maintained, IP65, Autotest Emergency 3 Hour
EXIXL M3 IP65 HNE3 * EXIXL 79M Viewing Distance, Maintained, IP65, Standard Emergency 3 Hour, -25°C
EXIXL M3 IP65 HNS3 * EXIXL 79M Viewing Distance, Maintained, IP65, Self Test Emergency 3 Hour, -25°C
EXIXL M3 IP65 HNA3 * EXIXL 79M Viewing Distance, Maintained, IP65, Autotest Emergency 3 Hour, -25°C
EXIXL NM3 IP20 LE3 * EXIXL 79M Viewing Distance, Non Maintained, IP20, Standard Emergency 3 Hour
EXIXL NM3 IP20 LS3 * EXIXL 79M Viewing Distance, Non Maintained, IP20, Self Test Emergency 3 Hour
EXIXL NM3 IP20 LA3 * EXIXL 79M Viewing Distance, Non Maintained, IP20, Autotest Emergency 3 Hour
EXIXL NM3 IP65 LE3 * EXIXL 79M Viewing Distance, Non Maintained, IP65, Standard Emergency 3 Hour
EXIXL NM3 IP65 LS3 * EXIXL 79M Viewing Distance, Non Maintained, IP65, Self Test Emergency 3 Hour
EXIXL NM3 IP65 LA3 * EXIXL 79M Viewing Distance, Non Maintained, IP65, Autotest Emergency 3 Hour
EXIXL NM3 IP65 HNE3 * EXIXL 79M Viewing Distance, Non Maintained, IP65, Standard Emergency 3 Hour, -25°C
EXIXL NM3 IP65 HNS3 * EXIXL 79M Viewing Distance, Non Maintained, IP65, Self Test Emergency 3 Hour, -25°C
EXIXL NM3 IP65 HNA3 * EXIXL 79M Viewing Distance, Non Maintained, IP65, Autotest Emergency 3 Hour, -25°C
*Add legend code required

All products are supplied with a 5 year battery warranty

Emergency

Code Description
LSTR Lithium Reacta-Link Emergency 3 Hour
LA3RC Lithium Reacta-Control Emergency 3 Hour
CB Central Battery, Please Specify 110V or 230V when Ordering

Miscellaneous

Code Description
LSF Low Smoke Zero Halogen
DL Arrow Down Legend ISO7010
LL Arrow Left Legend ISO7010
RL Arrow Right Legend ISO7010
UL Arrow Up Legend ISO7010

Downloads

Installation Guide IP20 (Download PDF) Installation Guide IP65 (Download PDF) Product Datasheet (Download PDF) Revit Files Dialux Files Relux Files

Find out more about
EXIXL

For Sales and Technical Enquires call 01747 858100
