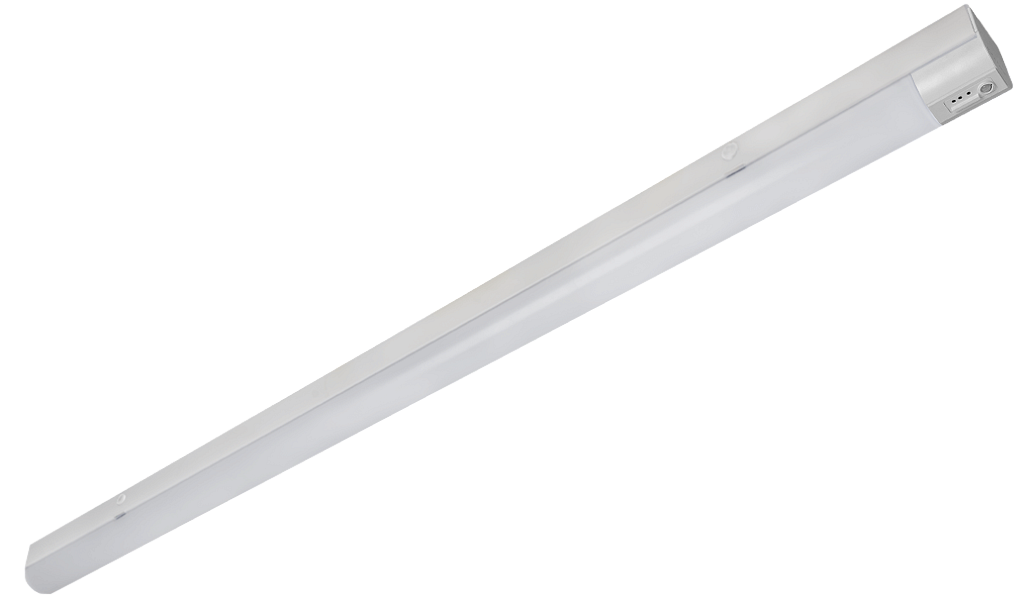

Ecopak R44

Introduction

The Ecopak is a highly versatile and efficient range of LED battens utilising high quality components and mid power LEDs ensuring reliability and long life combined with superb energy efficiency. With sizes ranging from 600mm to 1800mm and lumen outputs from 2,200 up to 12,000 as well as a range of optic designs including our most popular opal diffuser as well as high rack and ultra high rack for higher mounting heights the Ecopak can be tailored to suit applications from warehousing and light industry through to circulation and ancillary areas. This flexibility is further enhanced with a wide range of dimming control gear and integral lithium emergency options. We offer a range of wireless control systems providing localised grouping and control as well as comprehensive wireless solutions allowing both standard and emergency luminaires to be centrally monitored.

Quick and simple installation is key to the success of the Ecopak with a two part construction allowing the housing to be installed before the one piece gear tray and diffuser is connected using quick release spring clips. With drivers rated to 100,000 hour lifetime, LEDs rated to L90 at 60,000 operating hours and efficiency up to 160 luminaire lumens per watt the Ecopak combines superb service life with market leading energy efficiency. The Ecopak Sensor is available with a range of sensors offering presence detection, daylight regulation and remote control programming enabling further energy savings and carbon reductions to be realised.

ECOPAK SENSOR complies with:

UKCA | CE | IP20 | TM21: L90>60K HOURS / L80>90K HOURS | 3 STEP MACADAM ELLIPSE

Recommended applications:

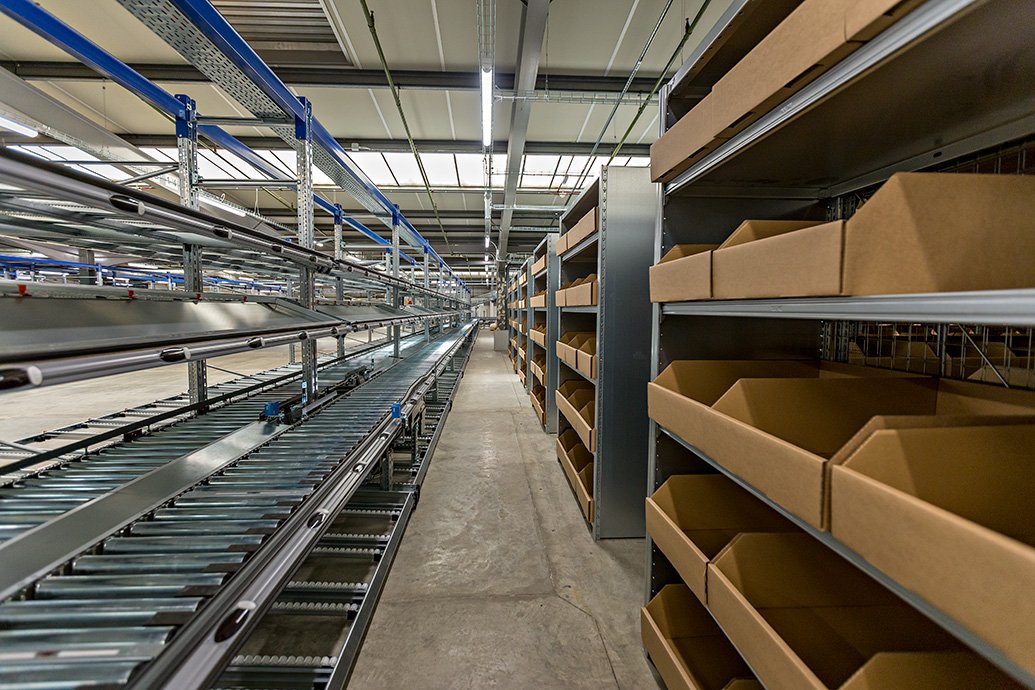

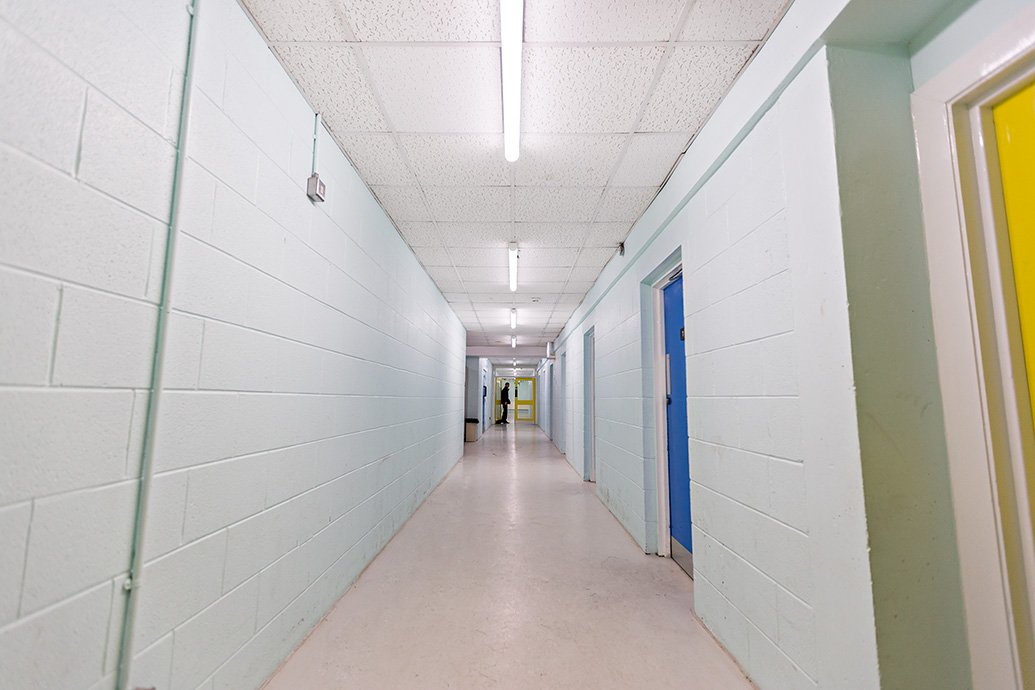

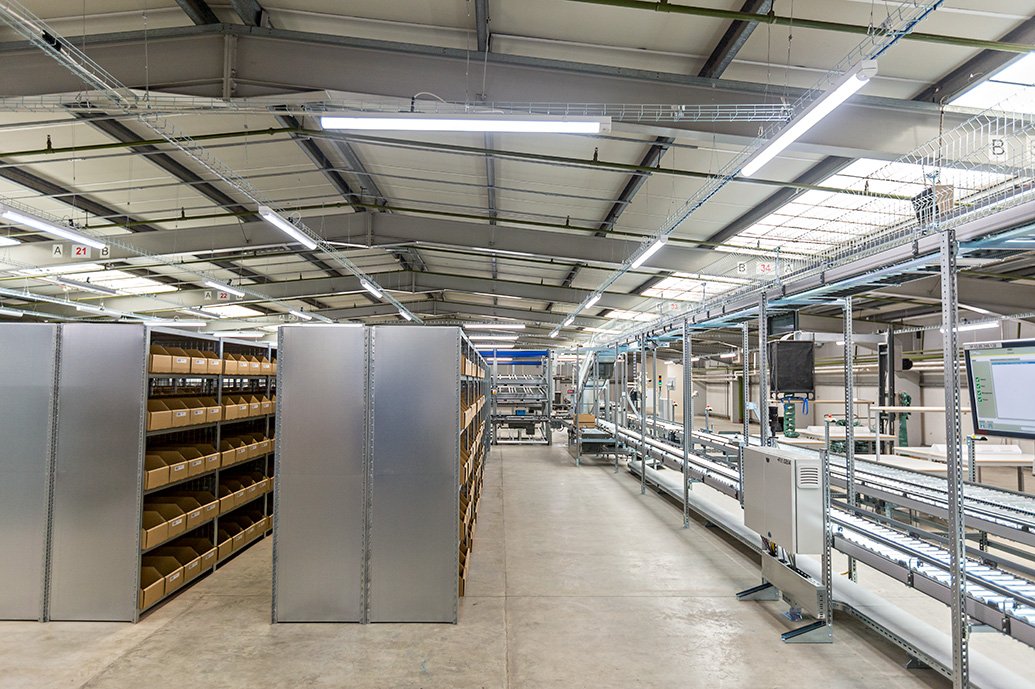

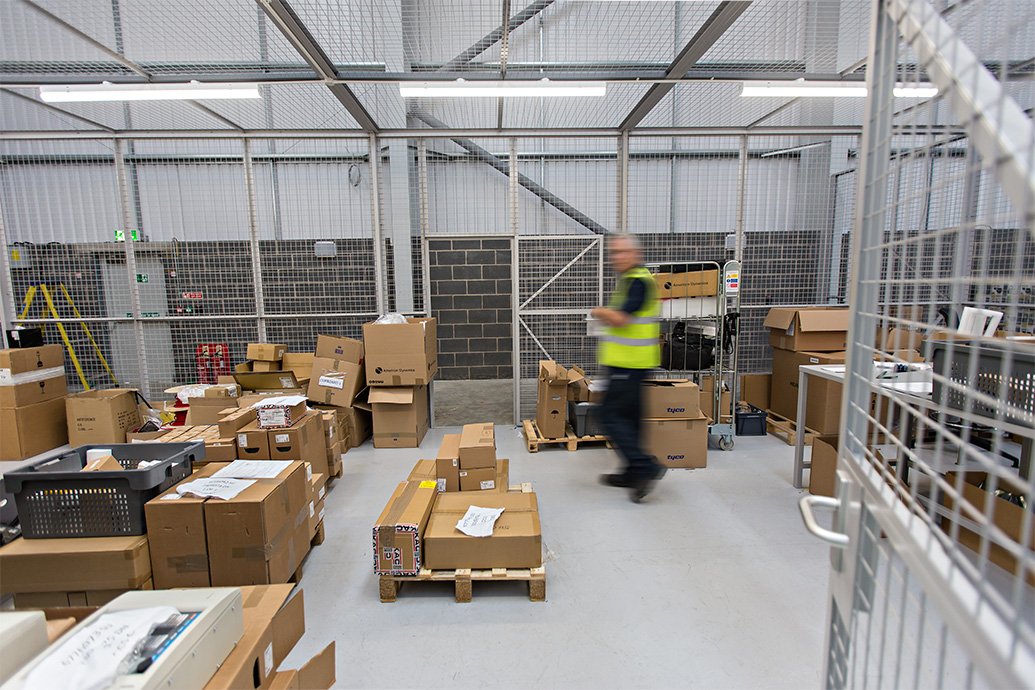

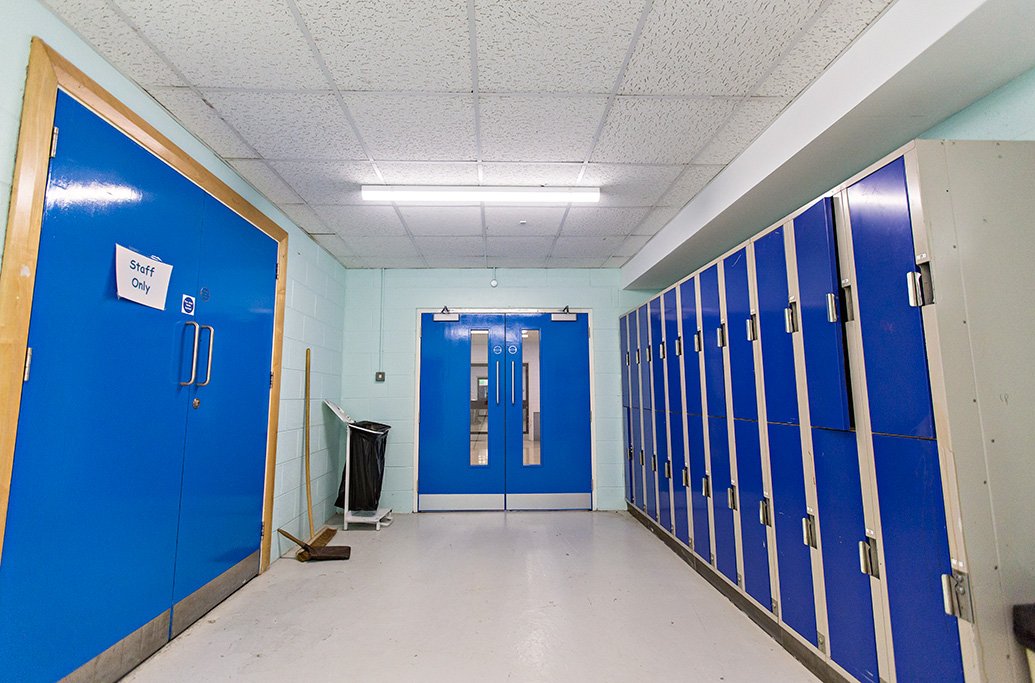

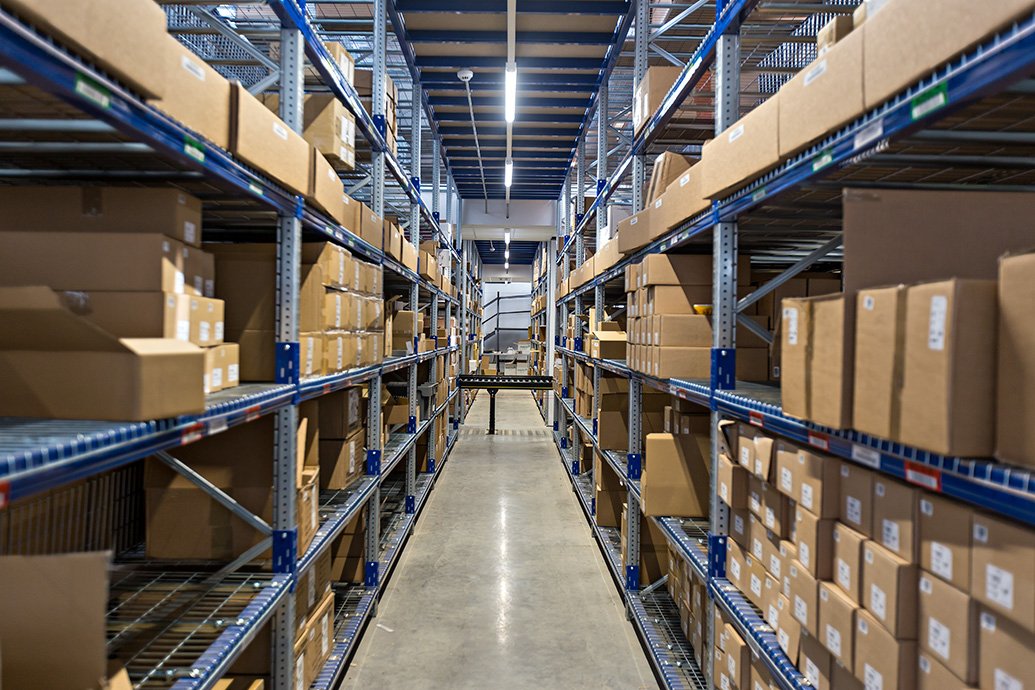

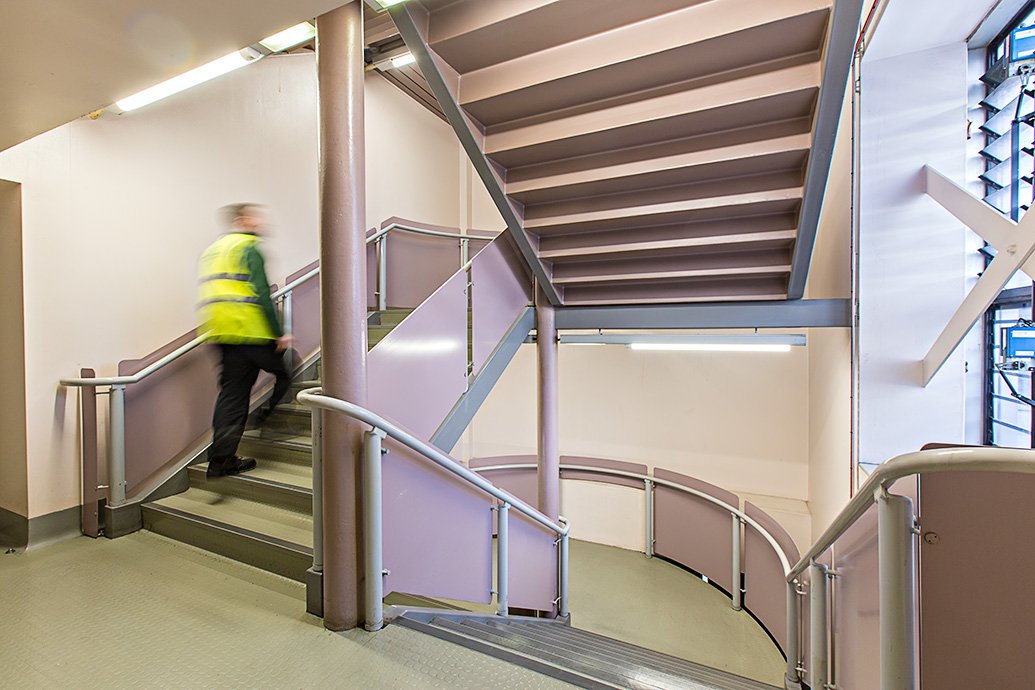

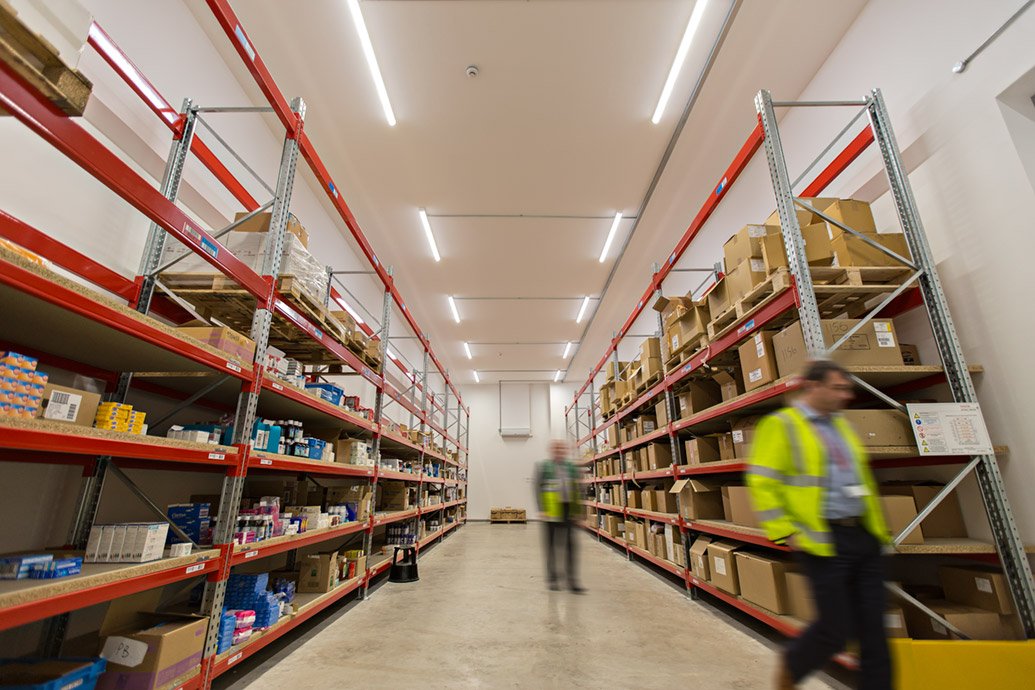

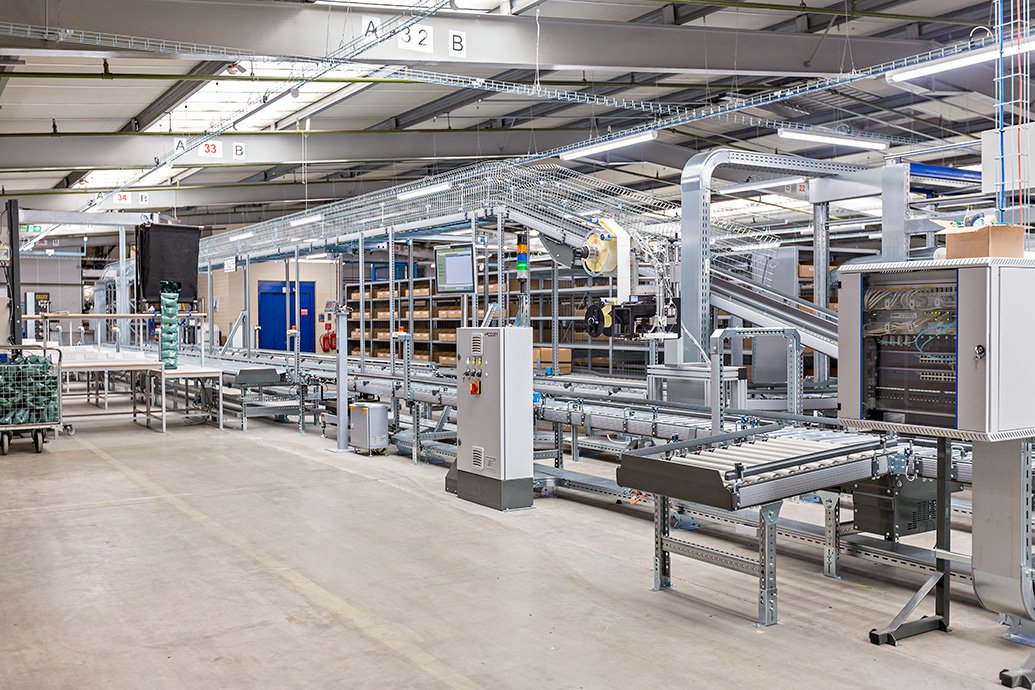

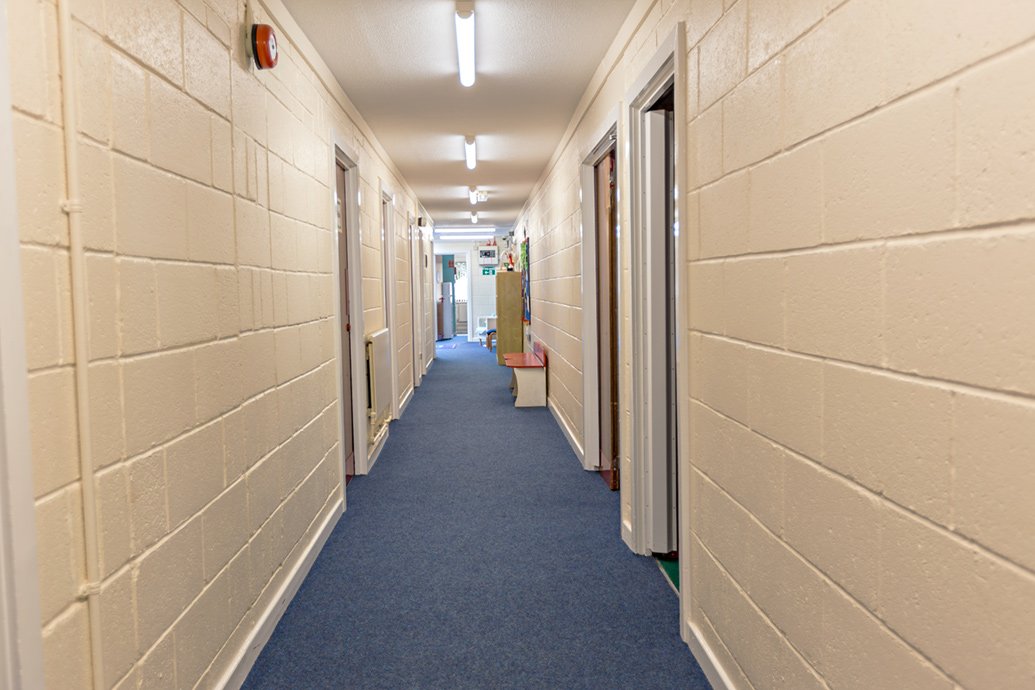

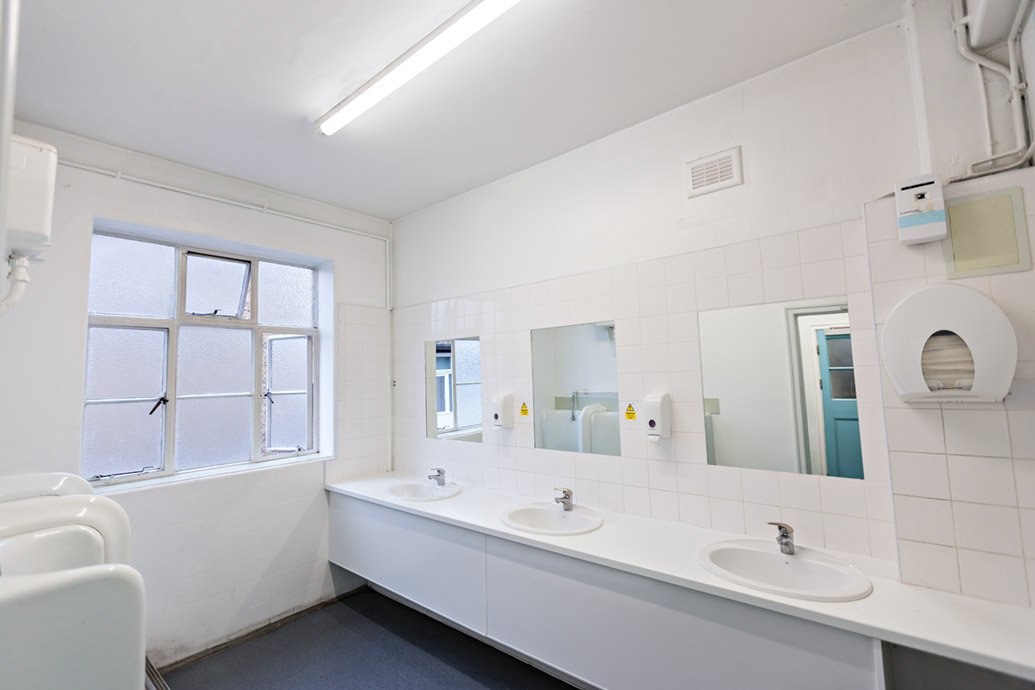

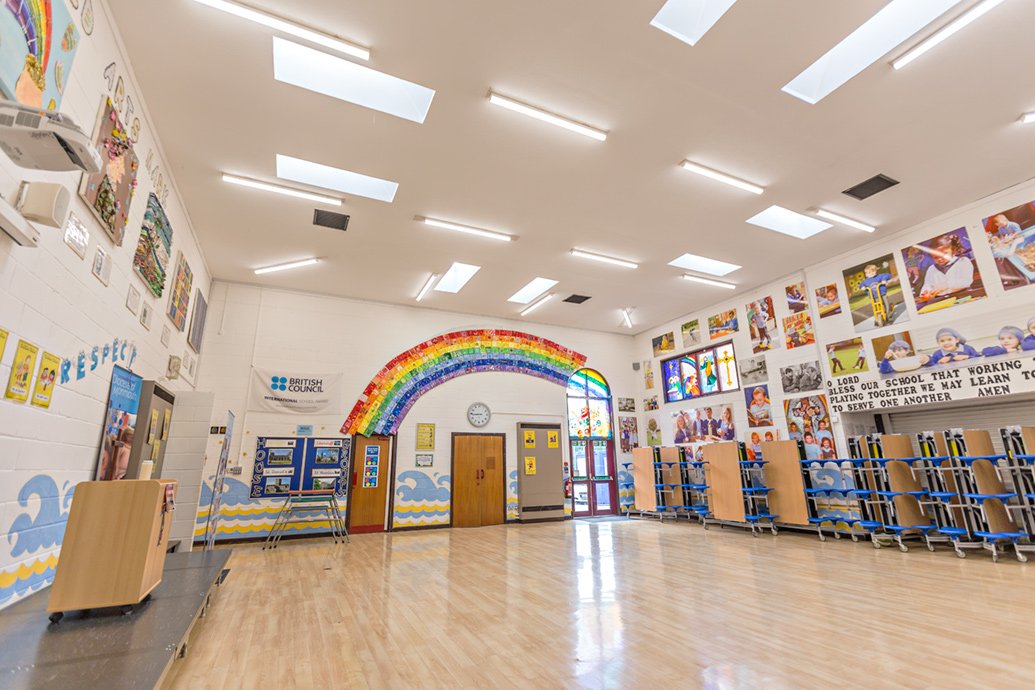

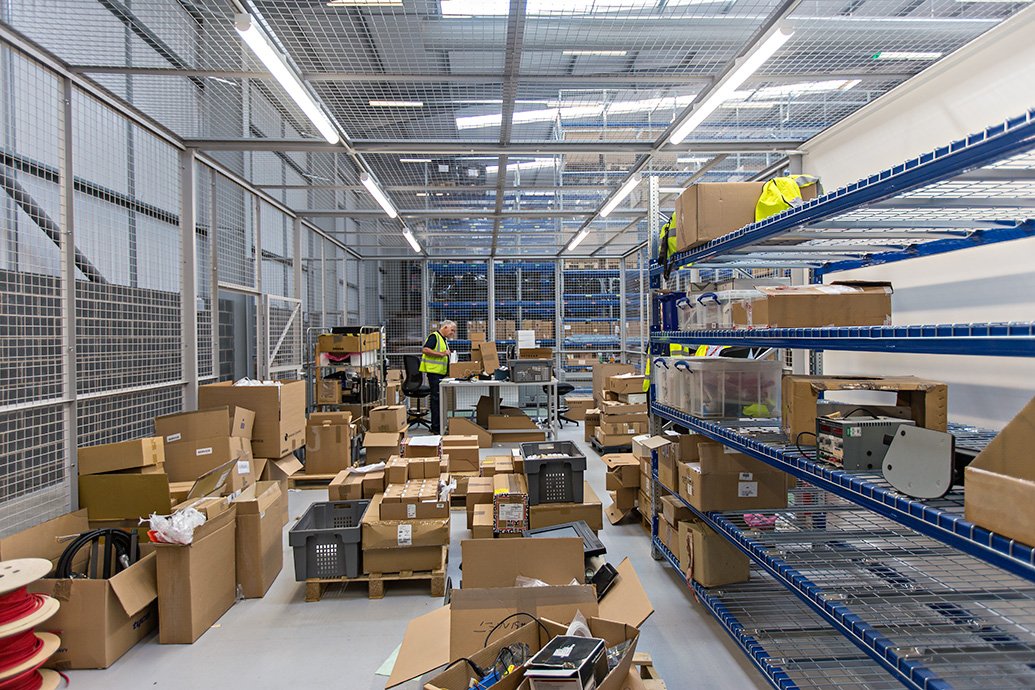

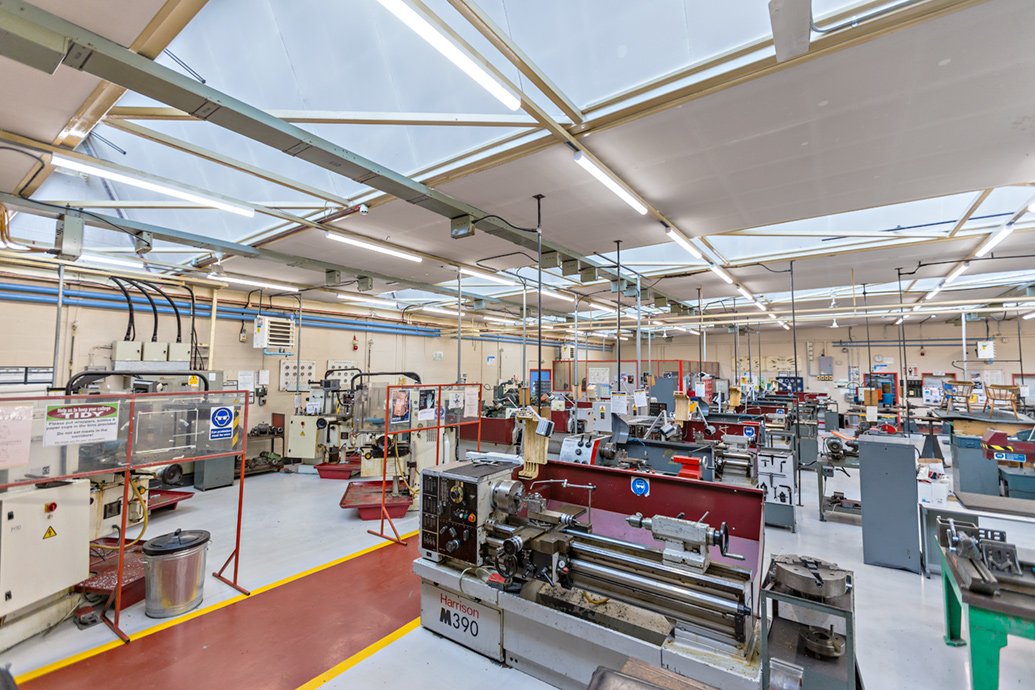

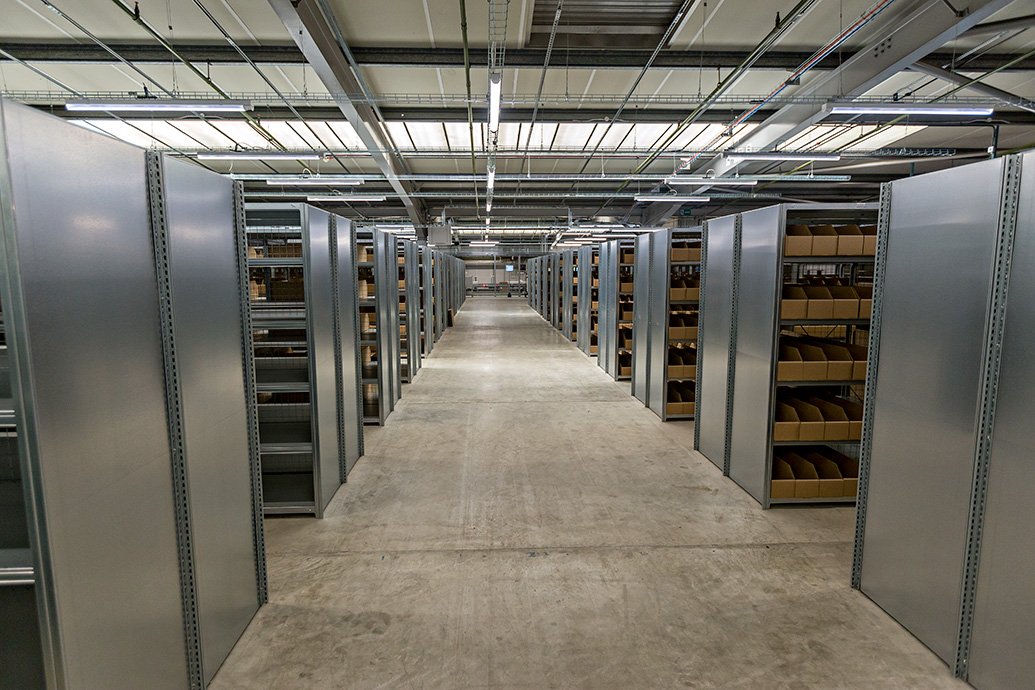

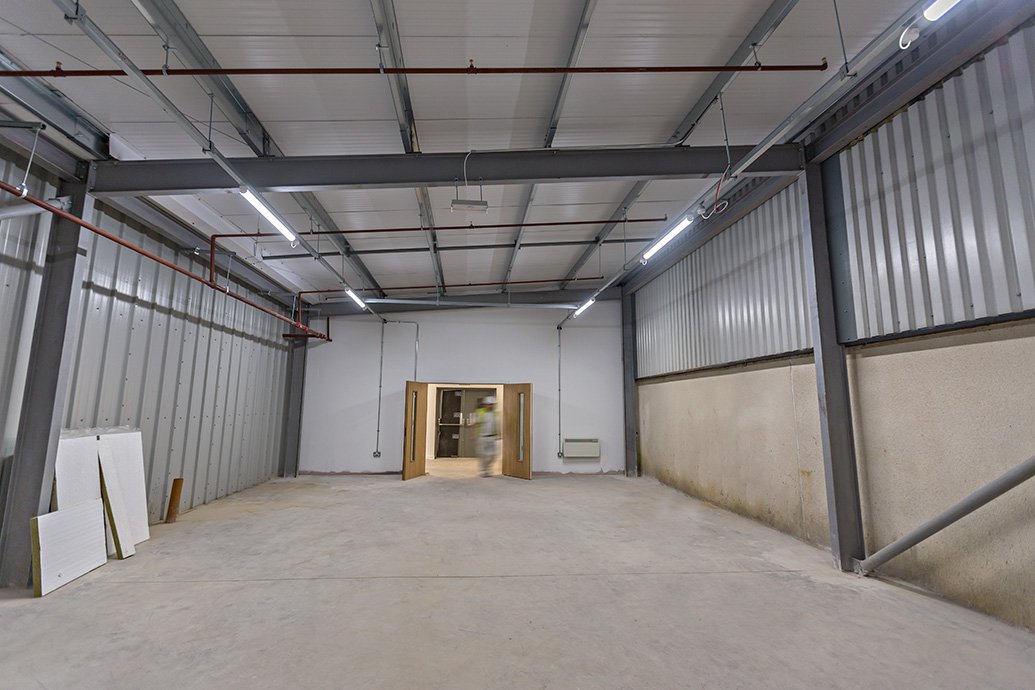

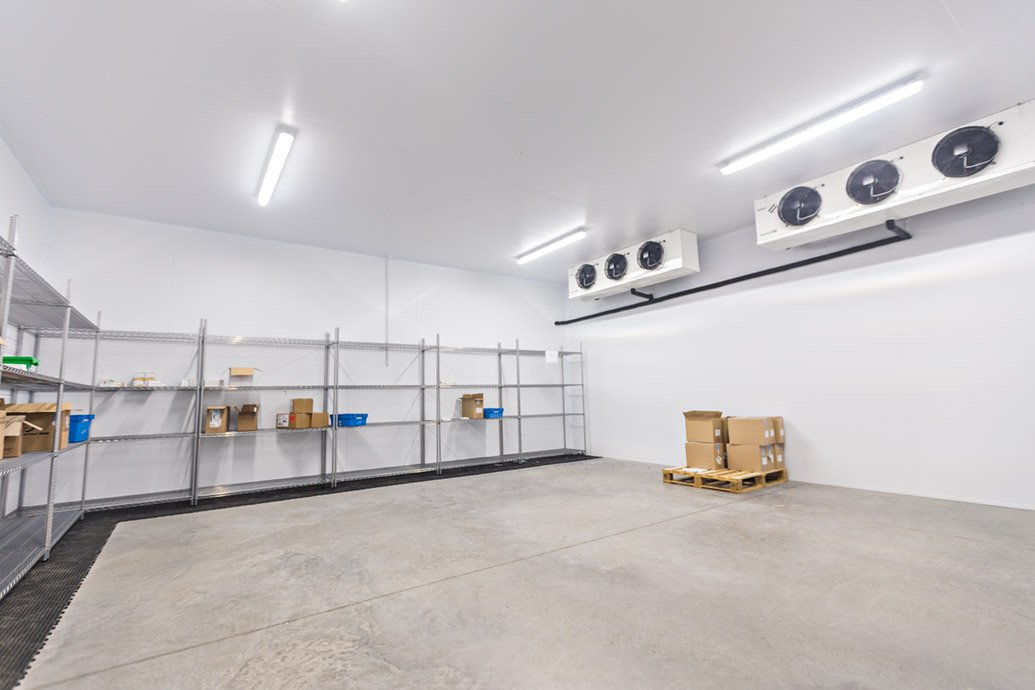

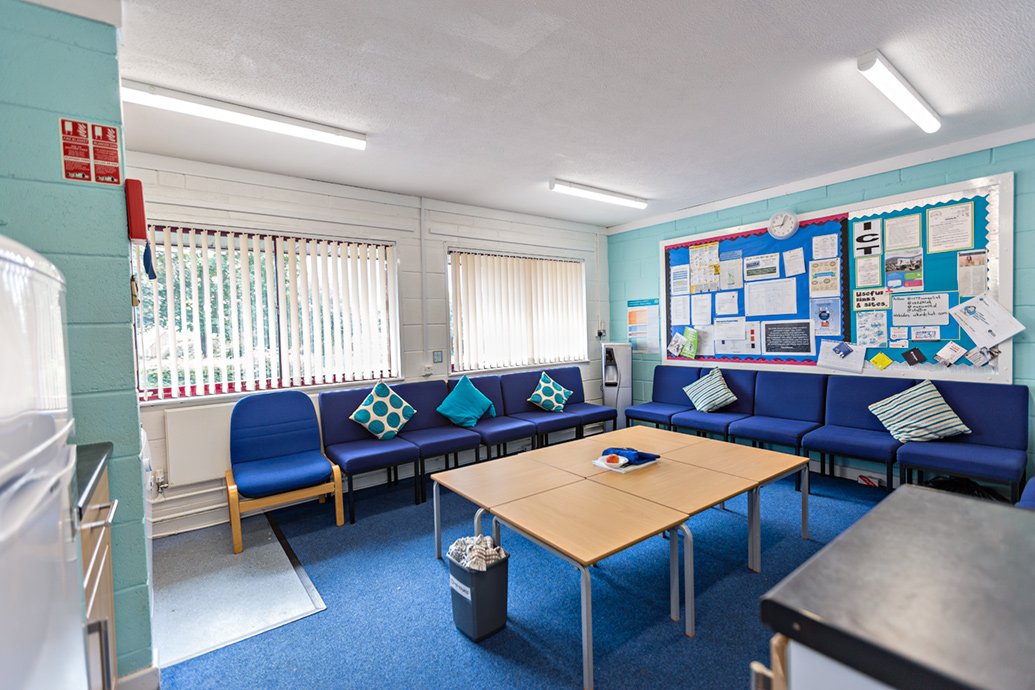

Commercial / Offices | Corridor | Education | Healthcare / Social Housing | Hotel / Leisure | Industrial / Manufacturing | Retail | Stairwell | Store Room | Transport | Warehousing

Specification

Construction

  • Housing: 0.6mm CR4 steel
  • Finish: Polyester powder painted BS 00E55 matt white 60% gloss
  • Endcaps: Injection moulded polycarbonate
  • Diffuser: 2mm extruded high transmission opal polycarbonate
  • IP20

Performance

  • Part L2 compliant
  • 3SDCM Three step Macadams ellipse
  • TM21: L90>60K Hours / L80>90K Hours
  • Up to 161 luminaire lumens per circuit Watt.

Environmental

  • Designed to allow simple replacement of components with commonly available tools in compliance with the Eco Design Directive, please see the installation leaflet for maintenance instructions.
  • Powered by European branded drivers and emergency modules ensuring replacement parts are easily sourced.
  • Every luminaire is labelled with a unique ID number allowing easy identification of spare parts for the lifetime of the product.
  • Contains no single use plastics or polystyrene packaging.
  • Supplied in plain card boxes with paper tape ensuring packaging is easily recycled.
  • Designed to allow simple disassembly for end of life recycling.
  • UK based manufacturing providing local support throughout the product lifetime and minimising transportation miles.

Emergency

  • Available with optional standard, self test and autotest integral emergency with lithium batteries for extended warranty and lifetime.
  • Optional Reacta-Link wireless emergency for automated centralised reporting.
  • Optional Reacta-Control wireless emergency for automated centralised reporting.

Control

  • Optional compatibility with a range of dimming systems including DALI, DSI and Switch Dimming
  • Optional White tunable

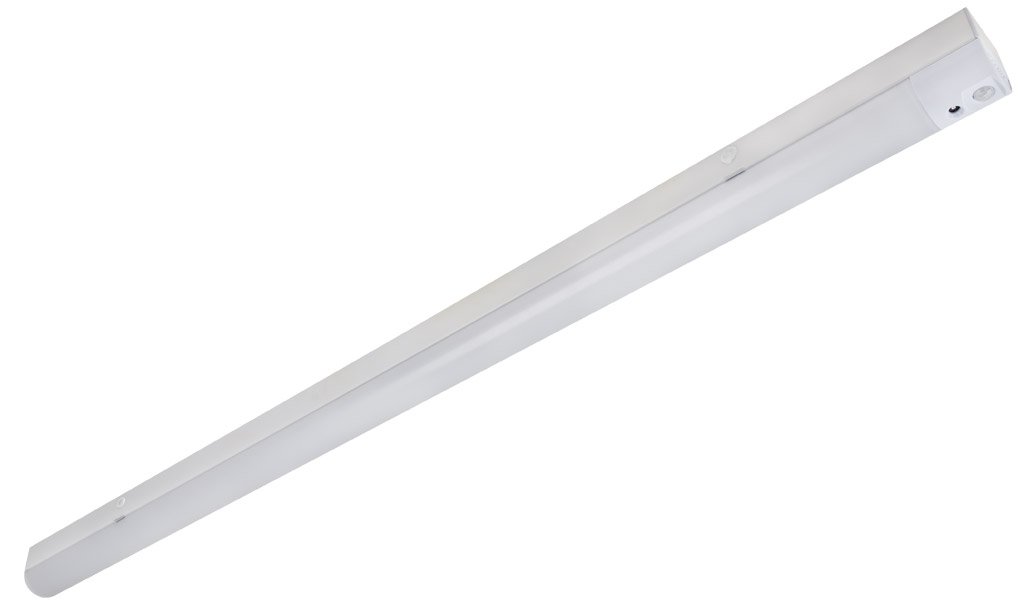

  • Optional Integral R21 presence sensor

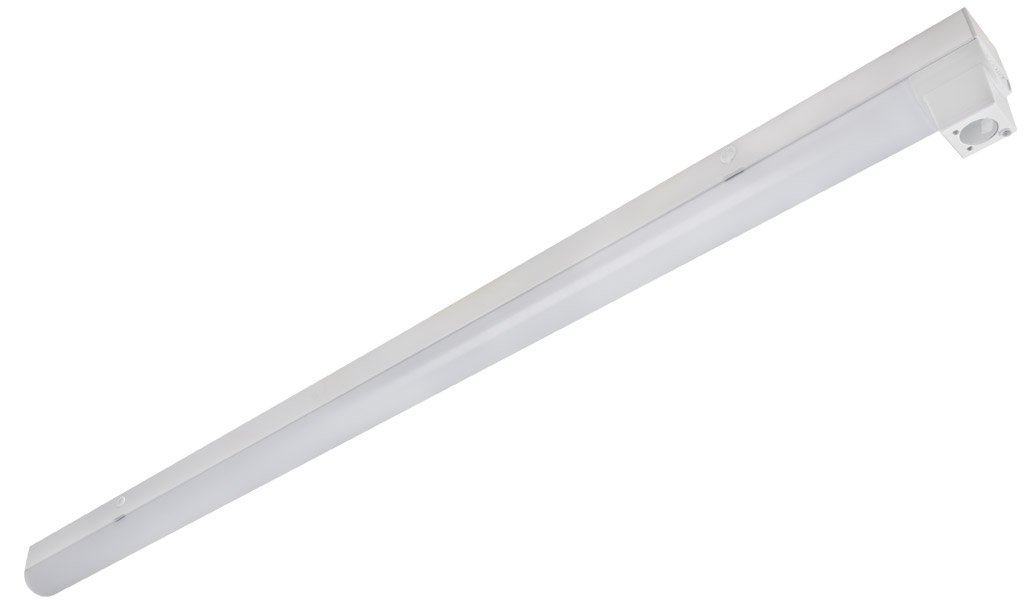

  • Optional Integral R44 presence and daylight sensor
  • Optional Integral Reacta-Air wireless presence and daylight regulations sensor
  • Optional integral Reacta-Link for integration with Reacta-Link wireless installations
  • Optional integral Reacta-Control for integration with Reacta-Control wireless installations
  • Ground level commissioning with REA-AP controller allows quick and simple setting and adjustment of sensors without the need for costly commissioning.

Installation

  • Suitable for suspended installation
  • Suitable for trunking installation
  • Suitable for conduit installation
  • Suitable for surface installation
  • Gear tray retained to spine with 4 quick release spring clips allowing for quick and easy installation.

Variations

  • Available with a wide range of colour temperatures and renderings
  • Available in a range of housing sizes and lumen outputs
  • Available in white or black finishes
5 year extended warranty available on most products.
Arrow right

Technical

Ecopak 600mm

Ecopak 600mm

Ecopak 1200mm

Ecopak 1200mm

Ecopak 1500mm

Ecopak 1500mm

Ecopak 1800mm

Ecopak 1800mm

Ordering

Luminaires

Code Description Power Llm/W
EPK L22 Ecopak, 600mm, 1,933llm, Colour 84 15.8W 122
EPK L26 Ecopak, 1200mm, 2,284llm, Colour 84 16.7W 137
EPK L38 Ecopak, 1200mm, 3,340llm, Colour 84 25.2W 133
EPK L35 Ecopak, 1500mm, 3,060llm, Colour 84 22.4W 137
EPK L45 Ecopak, 1500mm, 3,924llm, Colour 84 27.3W 144
EPK L54 Ecopak, 1500mm, 4,689llm, Colour 84 33.8W 139
EPK L63 Ecopak, 1500mm, 5,520llm, Colour 84 39.6W 139
EPK L80 Ecopak, 1500mm, 7,008llm, Colour 84 43.8W 160
EPK L96 Ecopak, 1500mm, 8,484llm, Colour 84 52.9W 160
EPK L120 Ecopak, 1500mm, 10,560llm, Colour 84 70.1W 151
EPK L45 6FT Ecopak, 1800mm, 3,954llm, Colour 84 27.1W 146
EPK L65 6FT Ecopak, 1800mm, 5,649llm, Colour 84 39.2W 144
EPK L90 6FT Ecopak, 1800mm, 7,821llm, Colour 84 50.4W 155
Luminaire lumens figures based on OA version.

Optic

Code Description
HR High Rack
UHR Ultra High Rack
UHR and HR only available in 1500mm luminaires.

Dimming

Code Description
A DALI Digital Addressable Lighting Interface
S Switch Dimming
D DSI Digital Dimming
H HFR Analogue 1-10v
C Bi-Level Dimming For Standalone Switched Sensor
WT White Tunable (Lumen Outputs Vary from Standard)
Please click here for full details on our white tunable offer.

Control

Code Description
R21C Reacta 21, Presence, Bi-Level Dimming, 2.5-4M
R21E Reacta 21, Presence, On / Off, 2.5-4M
R44 Reacta 44, Presence & Daylight, 2.5-7M
RAS Reacta-Air Bluetooth, Wireless, Presence & Daylight, 2.5-3M
RLI Reacta-Link, Wireless Enabled Luminaire
RLS Reacta-Link Wireless, Presence & Daylight, 2.5M-5M
RCS Reacta-Control Wireless, Presence & Daylight, 2.5-4M
* REA-AP controller required for programming.
R21C sensor not available with L22 variants

Emergency

Code Description
LE3 Lithium Standard Emergency 3 Hour
LS3 Lithium Selftest Emergency 3 Hour
LA3 Lithium Autotest Emergency 3 Hour
LSTR Lithium Reacta-Link Emergency 3 Hour
LA3RC Lithium Reacta-Control Emergency 3 Hour
Emergency not available in L22 versions.

Miscellaneous

Code Description
C** Select Colour Temperature and Rendering; C827, C83, C85, C865, C93, C94
LSF Low Smoke Zero Halogen
