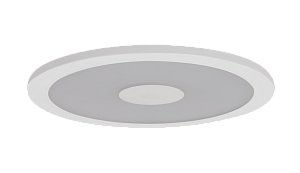

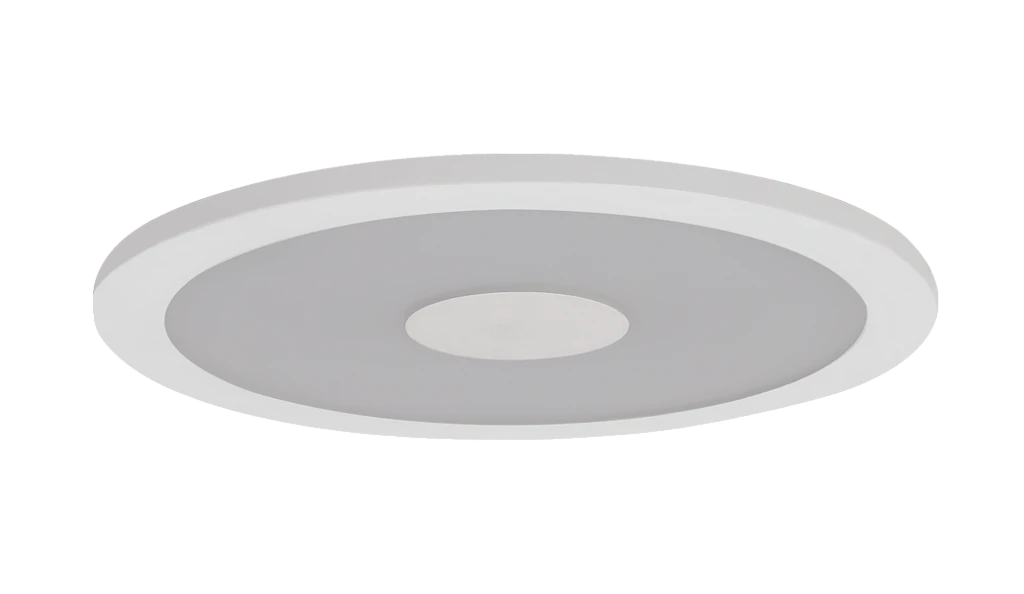

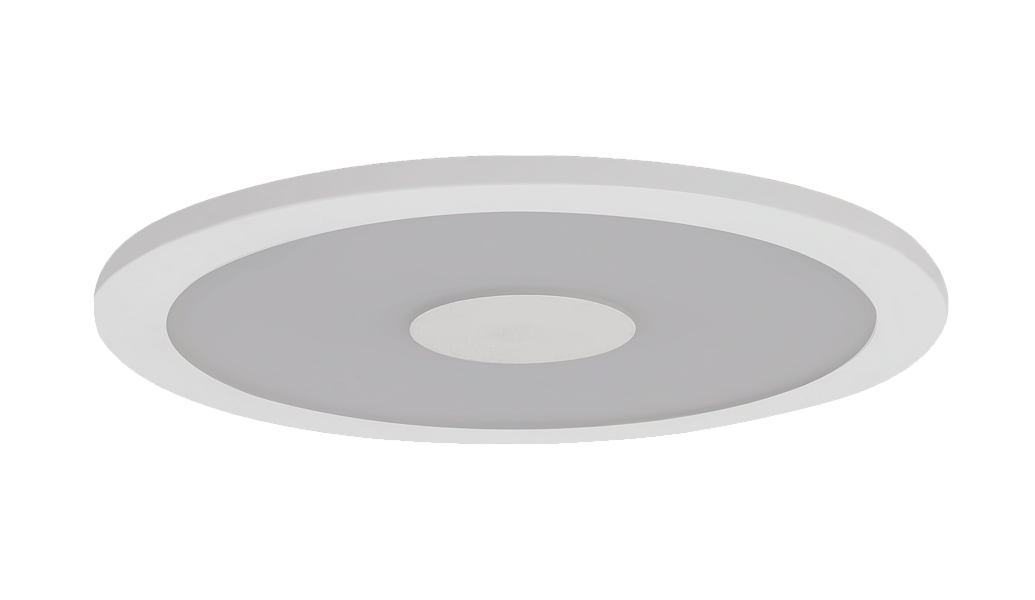

Elisian Medium White

Introduction

The Elisian Medium offers an attractive polo ring design adding visual interest to installations whilst also allowing simple inclusion of sensor controls for both presence detection and daylight regulation incorporated in a smaller housing than our standard Elisian range ensuring it is suitable to replace the most common downlight sizes. With a shallow housing the Elisian Medium is ideal for restricted void spaces whilst the four sprung steel clips allow it to be installed quickly and simply into plasterboard, mineral fibre and metal pan ceiling tiles. The Elisian Medium is available with either an opal diffuser or low glare microprism where compliance to glare requirements is required, as well as offering a range of lumen outputs, colour temperatures and black or white housing options. The Elisian Medium can also include integral lithium emergency where required as well as wireless sensor controls where luminaires need to be grouped for simultaneous operation or for central reporting. A wide range of infill rings are available where the Elisian Medium needs to be retrofitted to suit existing ceiling cut outs.

ELISIAN MEDIUM complies with:

UKCA | CE | IP40 | TM21: L90>60K HOURS / L80>90K HOURS | 3 STEP MACADAM ELLIPSE

Recommended applications:

Canteen | Commercial / Offices | Corridor | Education | Healthcare / Social Housing | Hotel / Leisure | Industrial / Manufacturing | Office | Retail | Toilet | Transport | Warehousing

Specification

Construction

  • Housing: Injection moulded polycarbonate

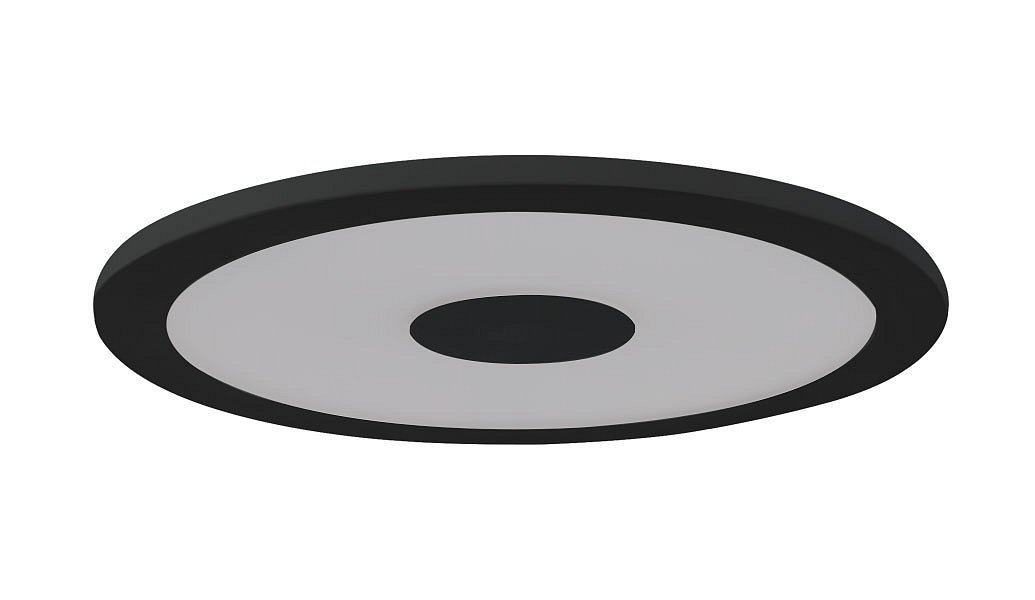

  • Finish: Matt black
  • Finish: Matt white
  • Diffuser: 2mm high transmission opal polycarbonate TP(a) rated
  • Diffuser: Combined 2mm extruded clear polycarbonate and 2mm microprism anti glare PMMA
  • IP40

Performance

  • Part L2 compliant
  • BSEN 12464-1:2011 3000 Candela 65° and UGR 19 compliance
  • 3SDCM Three step Macadams ellipse
  • TM21: L90>60K Hours / L80>90K Hours
  • Up to 132 luminaire lumens per circuit Watt.

Environmental

  • Designed to allow simple replacement of components with commonly available tools in compliance with the Eco Design Directive, please see the installation leaflet for maintenance instructions.
  • Powered by European branded drivers and emergency modules ensuring replacement parts are easily sourced.
  • Every luminaire is labelled with a unique ID number allowing easy identification of spare parts for the lifetime of the product.
  • Contains no single use plastics or polystyrene packaging.
  • Supplied in plain card boxes with paper tape ensuring packaging is easily recycled.
  • Designed to allow simple disassembly for end of life recycling.
  • UK based manufacturing providing local support throughout the product lifetime and minimising transportation miles.

Emergency

  • Available with optional standard, self test and autotest integral emergency with lithium batteries for extended warranty and lifetime.
  • Optional Reacta-Link wireless emergency for automated centralised reporting.
  • Optional Reacta-Control wireless emergency for automated centralised reporting.
  • Optional central battery changeover relay

Control

  • Optional compatibility with a range of dimming systems including DALI, DSI and Switch Dimming
  • Optional Integral R44 presence and daylight sensor
  • Optional Integral Reacta-Air wireless presence and daylight regulations sensor
  • Optional integral Reacta-Control for integration with Reacta-Control wireless installations

Installation

  • Suitable for plasterboard installation
  • Suitable for mineral fibre ceiling tile installation
  • Suitable for metal ceiling tile installation

Variations

  • Available with a wide range of colour temperatures and renderings
  • Available in a range of lumen outputs
5 year extended warranty available on most products.
Arrow right

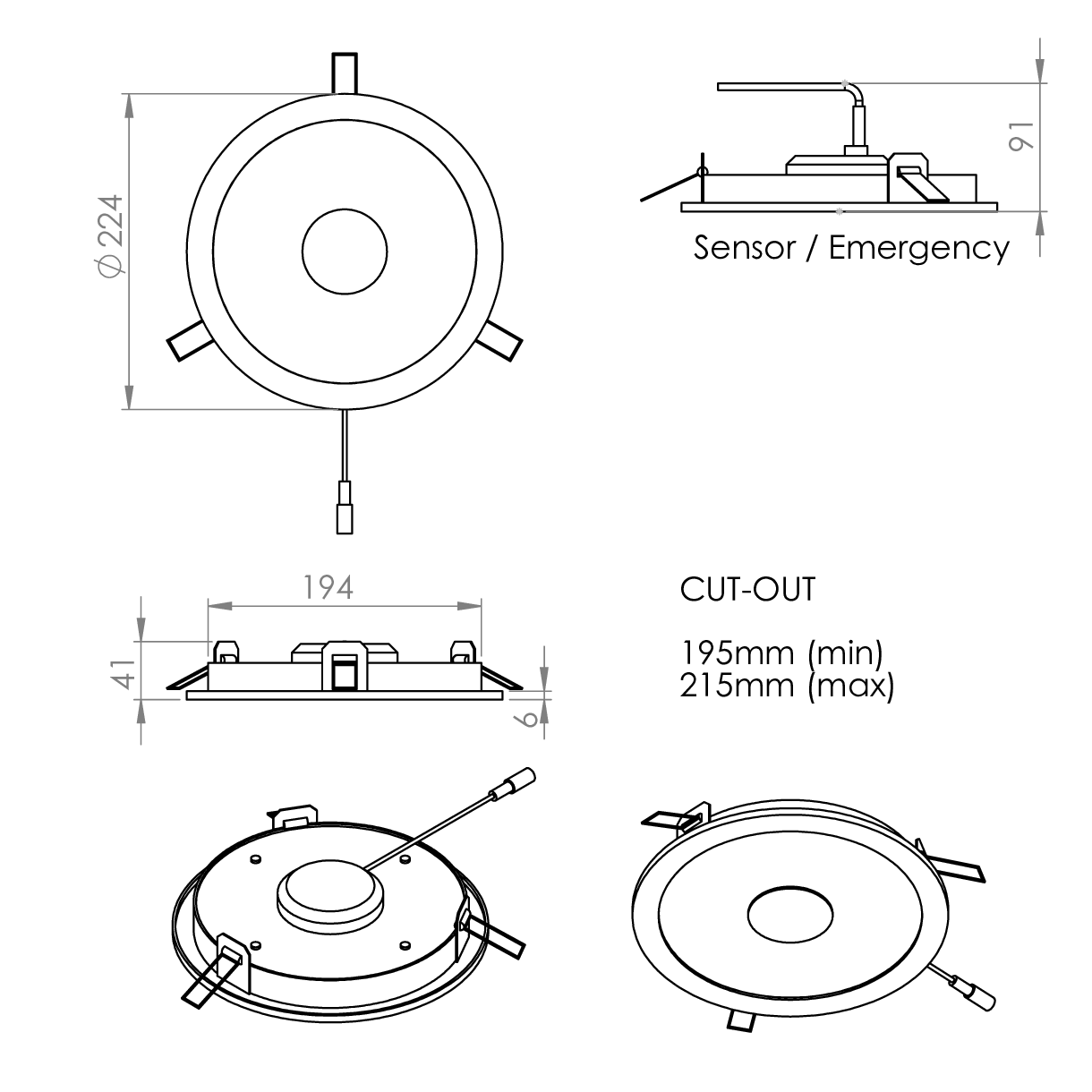

Technical

Elisian Medium

Elisian Medium

Elisian Medium Emergency Gear Pack

Elisian Medium Emergency Gear Pack

Ordering

Luminaires

Code Description Power Llm/W
ELNM L11 ** Elisian Medium, 915llm, Colour 84 7.5W 122
ELNM L20 ** Elisian Medium, 1,664llm, Colour 84 12.8W 130
ELNM L30 ** Elisian Medium, 2,498llm, Colour 84 18.9W 132
Luminaire lumen values are based on Opal diffuser

** Select housing and baffle colour from Options

Colour

Code Description
WH White
BL Black

Optic

Code Description
OP Opal Diffuser
MP Microprism Diffuser

Dimming

Code Description
A DALI Digital Addressable Lighting Interface
S Switch Dimming
D DSI Digital Dimming
C Bi-Level Dimming For Standalone Switched Sensor

Control

Code Description
R44 Reacta 44, Presence & Daylight, 2.5-7M
RAS Reacta-Air Bluetooth, Wireless, Presence & Daylight, 2.5-3M
RLI Reacta-Link, Wireless Enabled Luminaire
RLS Reacta-Link Wireless, Presence, 2.5M-5M
RC Reacta-Control, Wireless Enabled Luminaire
RCS Reacta-Control Wireless, Presence & Daylight, 2.5-4M

Emergency

Code Description
LE3 Lithium Standard Emergency 3 Hour
LS3 Lithium Selftest Emergency 3 Hour
LA3 Lithium Autotest Emergency 3 Hour
LSTR Lithium Reacta-Link Emergency 3 Hour
LA3RC Lithium Reacta-Control Emergency 3 Hour
CB Central Battery, Please Specify 110V or 230V when Ordering

Miscellaneous

Code Description
C** Select Colour Temperature and Rendering; C827, C83, C85, C865, C93, C94
4PM 4 Pole Panel Mount
6PM 6 Pole Panel Mount
INFILL Infill Rings to Suit Over Size Ceiling Cut Out, Please Specify Size when Ordering.
LSF Low Smoke Zero Halogen
