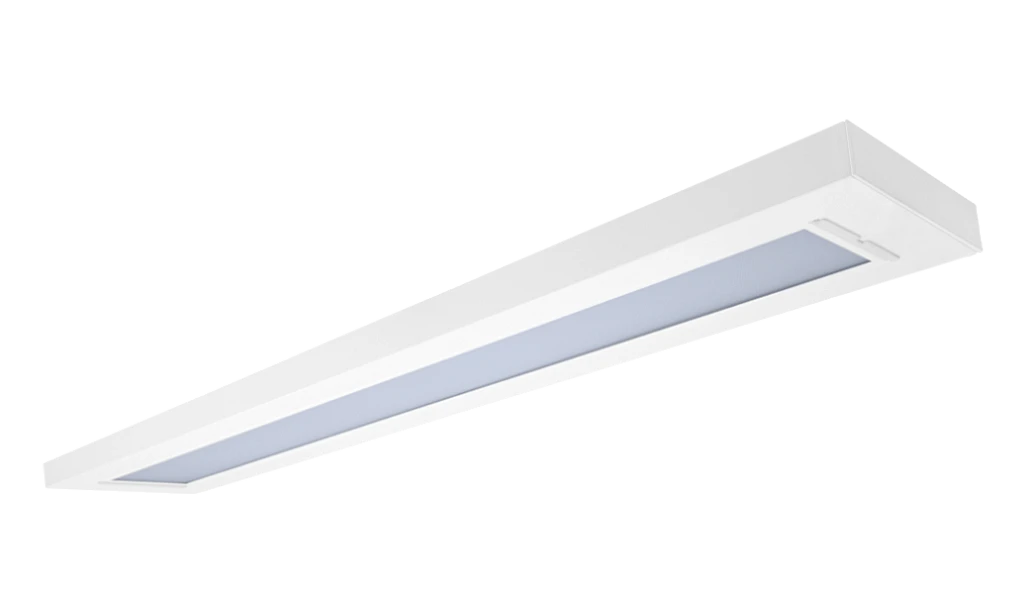

Element Surface

Introduction

The Element Surface is suitable for surface mounting to solid ceilings, suspended ceilings and conduit systems and is available in both standalone or continuous run variants. Offering excellent efficiency with a microprism diffuser, the Element Surface is suitable for applications requiring glare compliance in accordance with BSEN 12464 for use in offices, schools and other areas where computer screens are in constant use.

With a wide range of lumen packages, optional integral daylight and presence detection sensors and wireless variants allowing grouped operation and centralised reporting of emergency and mains faults without the need to install additional cabling, the Element Surface offers flexibility with minimal ongoing maintenance costs. The Element Surface is also available in a range of dimmable and lithium emergency variants as well as white, black or grey housing colours.

We offer a range of wireless control systems providing localised grouping and control as well as comprehensive wireless solutions allowing both standard and emergency luminaires to be centrally monitored.

ELEMENT SURFACE complies with:

UKCA | CE | IP20 | TM21: L90>60K HOURS / L80>90K HOURS | 3 STEP MACADAM ELLIPSE

Recommended applications:

Commercial / Offices | Education | Office

Specification

Construction

  • Housing: 0.7mm CR4 steel
  • Finish: Polyester powder painted BS 00E55 matt white 60% gloss
  • Finish: Polyester powder painted RAL 9006 matt grey
  • Finish: Polyester powder painted RAL 9005 matt black
  • Diffuser: Combined 2mm high transmission opal polycarbonate TP(a) rated and 2mm microprism anti glare PMMA

Performance

  • Part L2 compliant
  • BSEN 12464-1:2011 3000 Candela 65° and UGR 19 compliance
  • 3SDCM Three step Macadams ellipse
  • TM21: L90>60K Hours / L80>90K Hours
  • Up to 118 luminaire lumens per circuit Watt

Environmental

  • Designed to allow simple replacement of components with commonly available tools in compliance with the Eco Design Directive, please see the installation leaflet for maintenance instructions.
  • Powered by European branded drivers and emergency modules ensuring replacement parts are easily sourced.
  • Every luminaire is labelled with a unique ID number allowing easy identification of spare parts for the lifetime of the product.
  • Contains no single use plastics or polystyrene packaging.
  • Supplied in plain card boxes with paper tape ensuring packaging is easily recycled.
  • Designed to allow simple disassembly for end of life recycling.
  • UK based manufacturing providing local support throughout the product lifetime and minimising transportation miles.

Emergency

  • Available with optional standard, self test and autotest integral emergency with lithium batteries for extended warranty and lifetime.
  • Optional Reacta-Link wireless emergency for automated centralised reporting.
  • Optional Reacta-Control wireless emergency for automated centralised reporting.
  • Optional central battery changeover relay

Control

  • Optional Integral R44 presence and daylight sensor
  • Optional Integral Reacta-Air wireless presence and daylight regulations sensor
  • Optional integral Reacta-Link for integration with Reacta-Link wireless installations
  • Optional integral Reacta-Control for integration with Reacta-Control wireless installations

Installation

  • Suitable for conduit installation
  • Suitable for surface installation

Variations

  • Available with a wide range of colour temperatures and renderings
  • Available in a range of housing sizes and lumen outputs
  • Available in white, black or grey finishes
5 year extended warranty available on most products.
Arrow right

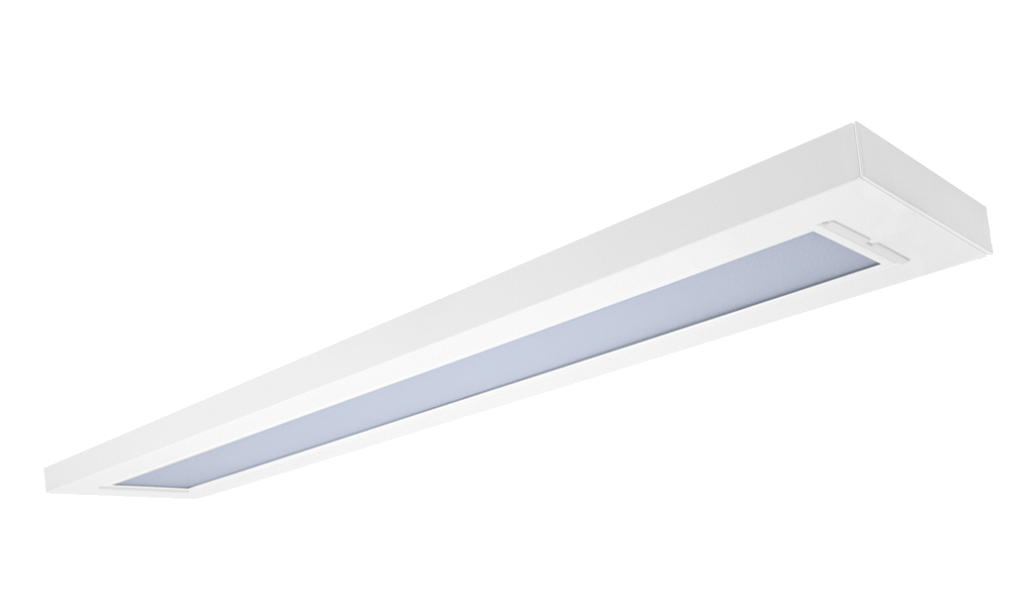

Product Images

Technical

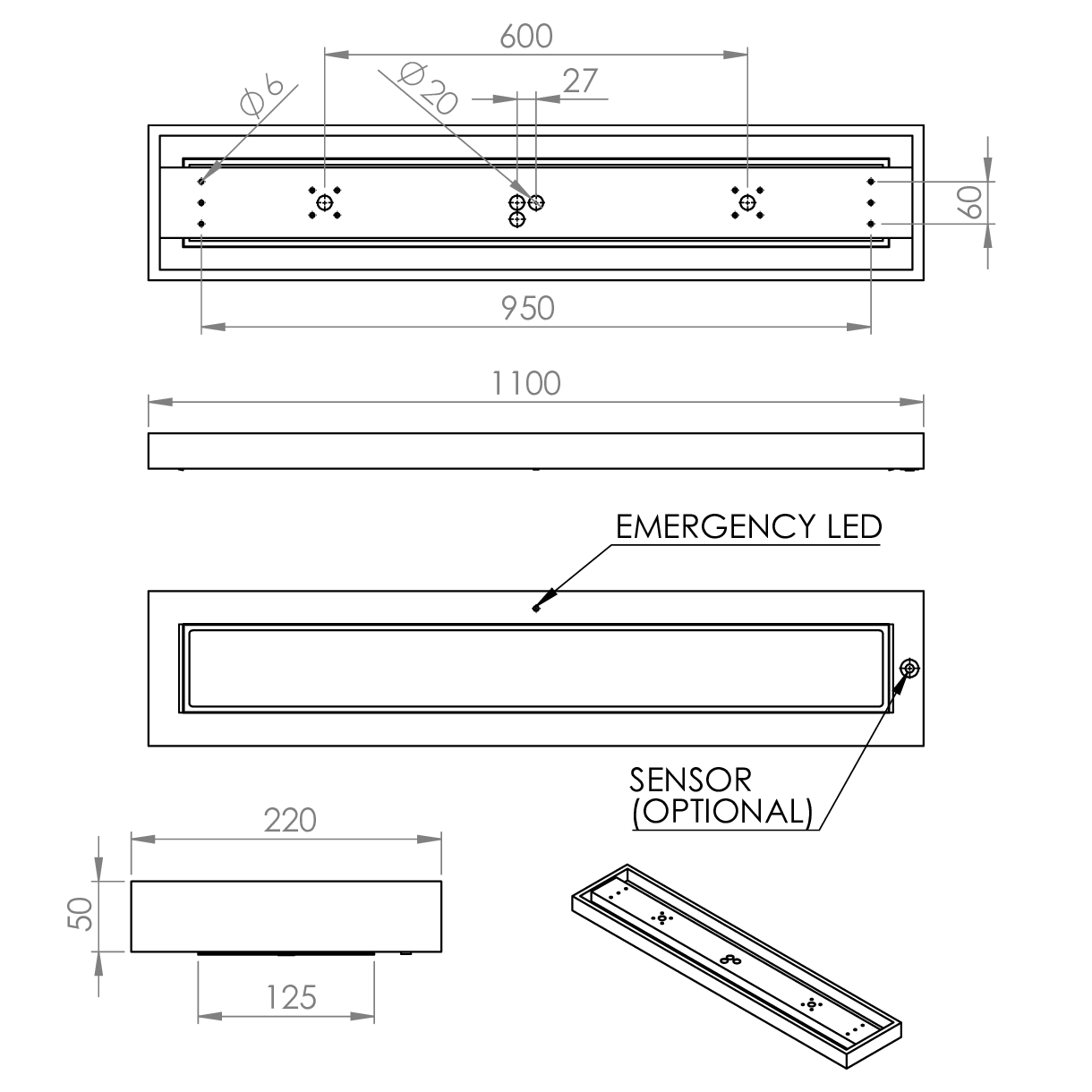

Element Surface 1200

Element Surface 1200

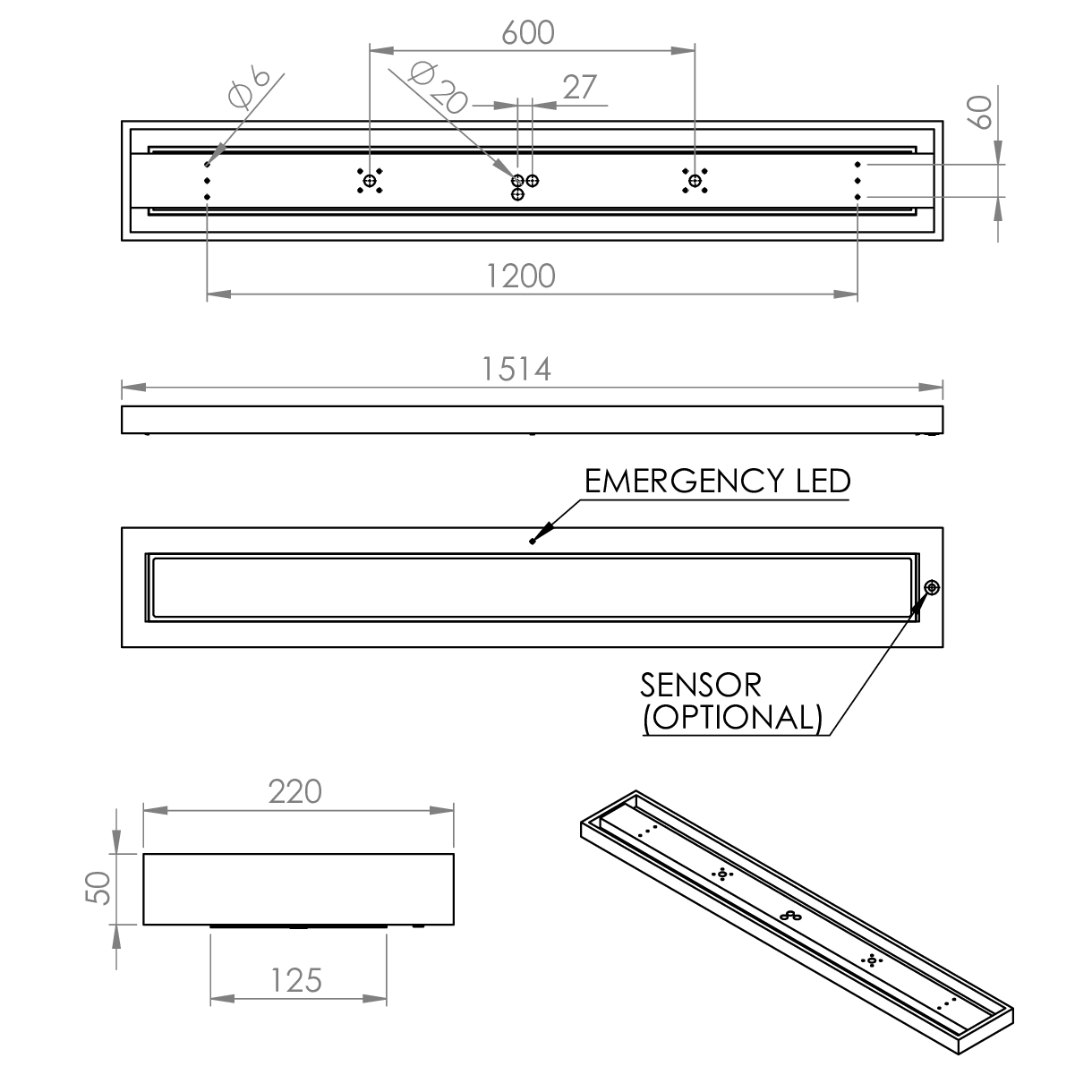

Element Surface 1500

Element Surface 1500

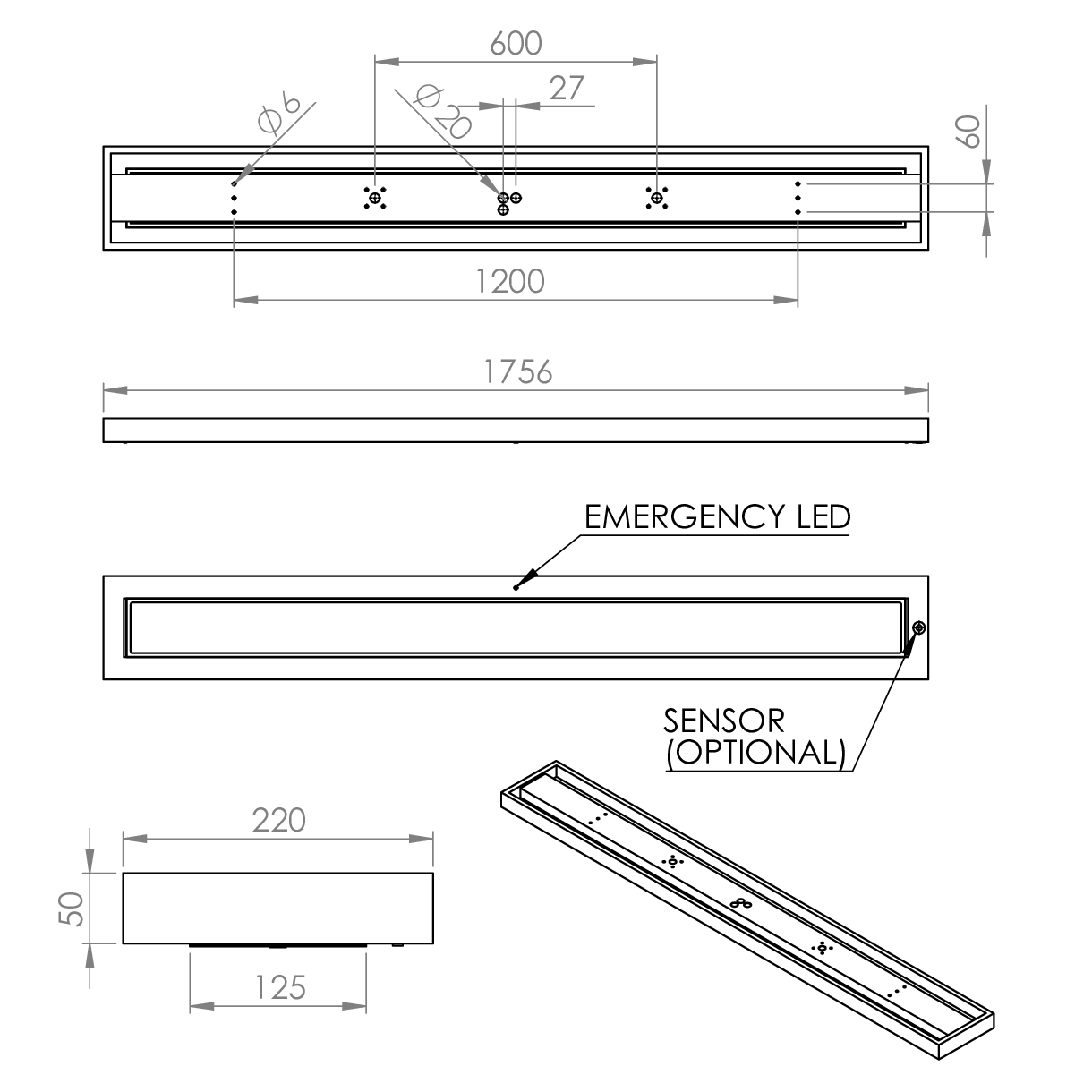

Element Surface 1800

Element Surface 1800

Ordering

Luminaires

Element Surface Standalone
Code Description Power Llm/W
ELS 12L30 Element Surface, 1200mm, 2,328llm, Microprism, Colour 84 17.7W 131
ELS 12L40 Element Surface, 1200mm, 3,104llm, Microprism, Colour 84 24.5W 127
ELS 15L37 Element Surface, 1500mm, 2,871llm, Microprism, Colour 84 20.1W 143
ELS 15L50 Element Surface, 1500mm, 3,879llm, Microprism, Colour 84 27.2W 143
ELS 15L55 Element Surface, 1500mm, 4,270llm, Microprism, Colour 84 29.8W 143
ELS 15L60 Element Surface, 1500mm, 4,656llm, Microprism, Colour 84 35.6W 131
ELS 18L45 Element Surface, 1800mm, 3,492llm, Microprism, Colour 84 25.3W 138
ELS 18L60 Element Surface, 1800mm, 4,656llm, Microprism, Colour 84 32.9W 142
ELS 18L75 Element Surface, 1800mm, 5,820llm, Microprism, Colour 84 41.6W 140
Element Surface Continuous Run
Code Description Power Llm/W
ELS 12L30 ST Element Surface Start, 1200mm, 2,328llm, Microprism, Colour 84 17.7W 131
ELS 12L30 TW Element Surface Through, 1200mm, 2,328llm, Microprism, Colour 84 17.7W 131
ELS 12L30 ER Element Surface End, 1200mm, 2,328llm, Microprism, Colour 84 17.7W 131
ELS 12L40 ST Element Surface Start, 1200mm, 3,104llm, Microprism, Colour 84 24.5W 127
ELS 12L40 TW Element Surface Through, 1200mm, 3,104llm, Microprism, Colour 84 24.5W 127
ELS 12L40 ER Element Surface End, 1200mm, 3,104llm, Microprism, Colour 84 24.5W 127
ELS 15L37 ST Element Surface Start, 1500mm, 2,871llm, Microprism, Colour 84 20.1W 143
ELS 15L37 TW Element Surface Through, 1500mm, 2,871llm, Microprism, Colour 84 20.1W 143
ELS 15L37 ER Element Surface End, 1500mm, 2,871llm, Microprism, Colour 84 20.1W 143
ELS 15L50 ST Element Surface Start, 1500mm, 3,879llm, Microprism, Colour 84 27.2W 143
ELS 15L50 TW Element Surface Through, 1500mm, 3,879llm, Microprism, Colour 84 27.2W 143
ELS 15L50 ER Element Surface End, 1500mm, 3,879llm, Microprism, Colour 84 27.2W 143
ELS 15L55 ST Element Surface Start, 1500mm, 4,270llm, Microprism, Colour 84 29.8W 143
ELS 15L55 TW Element Surface Through, 1500mm, 4,270llm, Microprism, Colour 84 29.8W 143
ELS 15L55 ER Element Surface End, 1500mm, 4,270llm, Microprism, Colour 84 29.8W 143
ELS 15L60 ST Element Surface Start, 1500mm, 4,656llm, Microprism, Colour 84 35.6W 131
ELS 15L60 TW Element Surface Through, 1500mm, 4,656llm, Microprism, Colour 84 35.6W 131
ELS 15L60 ER Element Surface End, 1500mm, 4,656llm, Microprism, Colour 84 35.6W 131
ELS 18L45 ST Element Surface Start, 1800mm, 3,492llm, Microprism, Colour 84 25.3W 138
ELS 18L45 TW Element Surface Through, 1800mm, 3,492llm, Microprism, Colour 84 25.3W 138
ELS 18L45 ER Element Surface End, 1800mm, 3,492llm, Microprism, Colour 84 25.3W 138
ELS 18L60 ST Element Surface Start, 1800mm, 4,656llm, Microprism, Colour 84 32.9W 142
ELS 18L60 TW Element Surface Through, 1800mm, 4,656llm, Microprism, Colour 84 32.9W 142
ELS 18L60 ER Element Surface End, 1800mm, 4,656llm, Microprism, Colour 84 32.9W 142
ELS 18L75 ST Element Surface Start, 1800mm, 5,820llm, Microprism, Colour 84 41.6W 140
ELS 18L75 TW Element Surface Through, 1800mm, 5,820llm, Microprism, Colour 84 41.6W 140
ELS 18L75 ER Element Surface End, 1800mm, 5,820llm, Microprism, Colour 84 41.6W 140
Please refer to the Element Design Consideration notes in the Technical section prior to placing your order.

Dimming

Code Description
A DALI Digital Addressable Lighting Interface

Control

Code Description
R44 Reacta 44, Presence & Daylight, 2.5-7M
RAS Reacta-Air Bluetooth, Wireless, Presence & Daylight, 2.5-3M
RLI Reacta-Link, Wireless Enabled Luminaire
RLS Reacta-Link Wireless, Presence & Daylight, 2.5M-5M
RC Reacta-Control, Wireless Enabled Luminaire
RCS Reacta-Control Wireless, Presence & Daylight, 2.5-4M

Emergency

Code Description
LE3 Lithium Standard Emergency 3 Hour
LS3 Lithium Selftest Emergency 3 Hour
LA3 Lithium Autotest Emergency 3 Hour
LSTR Lithium Reacta-Link Emergency 3 Hour
LA3RC Lithium Reacta-Control Emergency 3 Hour
CB Central Battery, Please Specify 110V or 230V when Ordering

Miscellaneous

Code Description
C** Select Colour Temperature and Rendering; C827, C83, C85, C865, C93, C94
BL Black Finish
GY Grey Finish
LSF Low Smoke Zero Halogen
