Ecopak Lens

Introduction

The Ecopak Lens is a versatile LED batten available in two sizes and a wide range of lumen outputs. The lensed optic provides premium energy efficiency with three lens types suited to applications including open area, high rack and ultra high rack. This flexibility is further enhanced with a wide range of dimming control gear and integral lithium emergency options. We offer a range of wireless control systems providing localised grouping and control as well as comprehensive wireless solutions allowing both standard and emergency luminaires to be centrally monitored.

Quick and simple installation is key to the success of the Ecopak with a two part construction allowing the housing to be installed before the one piece gear tray and lens assembly is connected using quick release spring clips. With drivers rated to 100,000 hour lifetime, LEDs rated to L90 at 60,000 operating hours and excellent energy efficiency the Ecopak provides a long lasting solution with low lifetime operating costs.

ECOPAK LENS complies with:

UKCA | CE | IP20 | TM21: L90>60K HOURS / L80>90K HOURS | 3 STEP MACADAM ELLIPSE

Recommended applications:

Commercial / Offices | Corridor | Education | Healthcare / Social Housing | Hotel / Leisure | Industrial / Manufacturing | Retail | Stairwell | Store Room | Transport | Warehousing

Specification

Construction

  • Housing: 0.6mm CR4 steel
  • Finish: Polyester powder painted BS 00E55 matt white 60% gloss
  • Lens: Injection moulded polycarbonate lens
  • IP20

Performance

  • Part L2 compliant
  • 3SDCM Three step Macadams ellipse
  • TM21: L90>60K Hours / L80>90K Hours

Environmental

  • Designed to allow simple replacement of components with commonly available tools in compliance with the Eco Design Directive, please see the installation leaflet for maintenance instructions.
  • Powered by European branded drivers and emergency modules ensuring replacement parts are easily sourced.
  • Every luminaire is labelled with a unique ID number allowing easy identification of spare parts for the lifetime of the product.
  • Contains no single use plastics or polystyrene packaging.
  • Supplied in plain card boxes with paper tape ensuring packaging is easily recycled.
  • Designed to allow simple disassembly for end of life recycling.
  • UK based manufacturing providing local support throughout the product lifetime and minimising transportation miles.

Emergency

  • Available with optional standard, self test and autotest integral emergency with lithium batteries for extended warranty and lifetime.
  • Optional Reacta-Link wireless emergency for automated centralised reporting.

Control

  • Optional compatibility with a range of dimming systems including DALI, DSI and Switch Dimming
  • Optional integral Reacta-Link for integration with Reacta-Link wireless installations
  • Optional integral Reacta-Control for integration with Reacta-Control wireless installations

Installation

  • Suitable for suspended installation
  • Suitable for trunking installation
  • Suitable for conduit installation
  • Suitable for surface installation

Variations

  • Available with a wide range of colour temperatures and renderings
  • Available in a range of housing sizes and lumen outputs
5 year extended warranty available on most products.
Arrow right

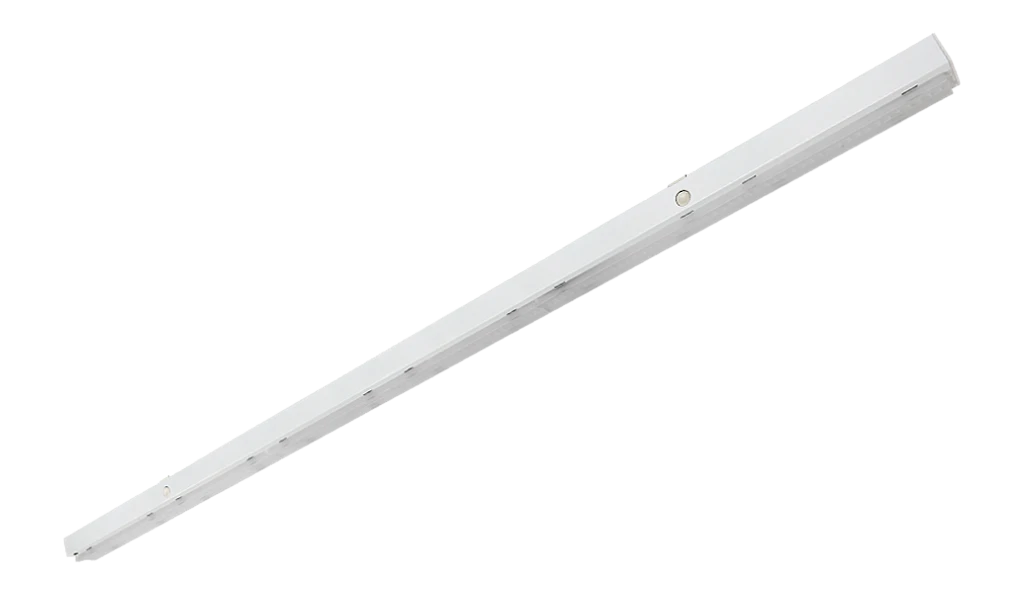

Product Images

Technical

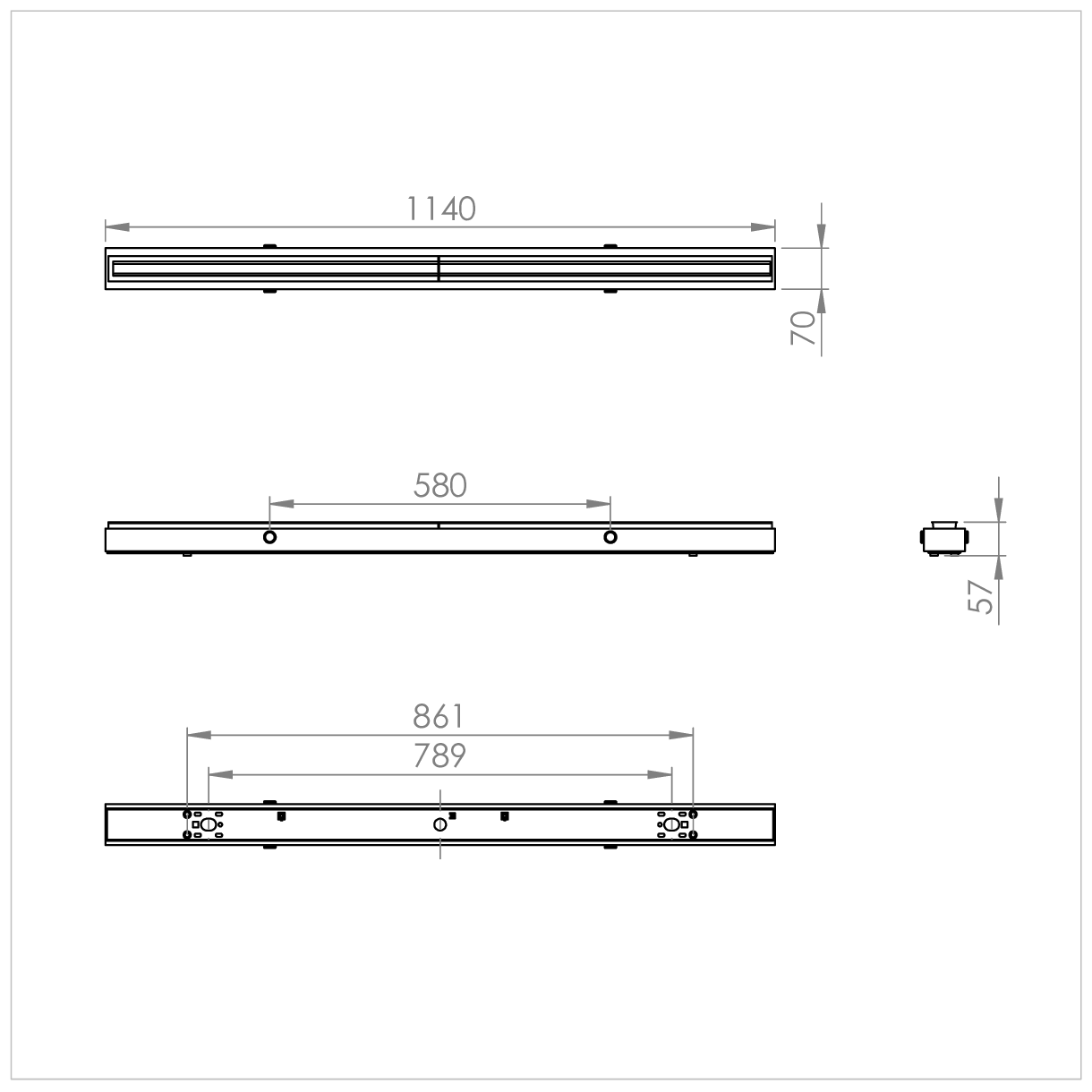

EPK Lens 1200mm

EPK Lens 1200mm

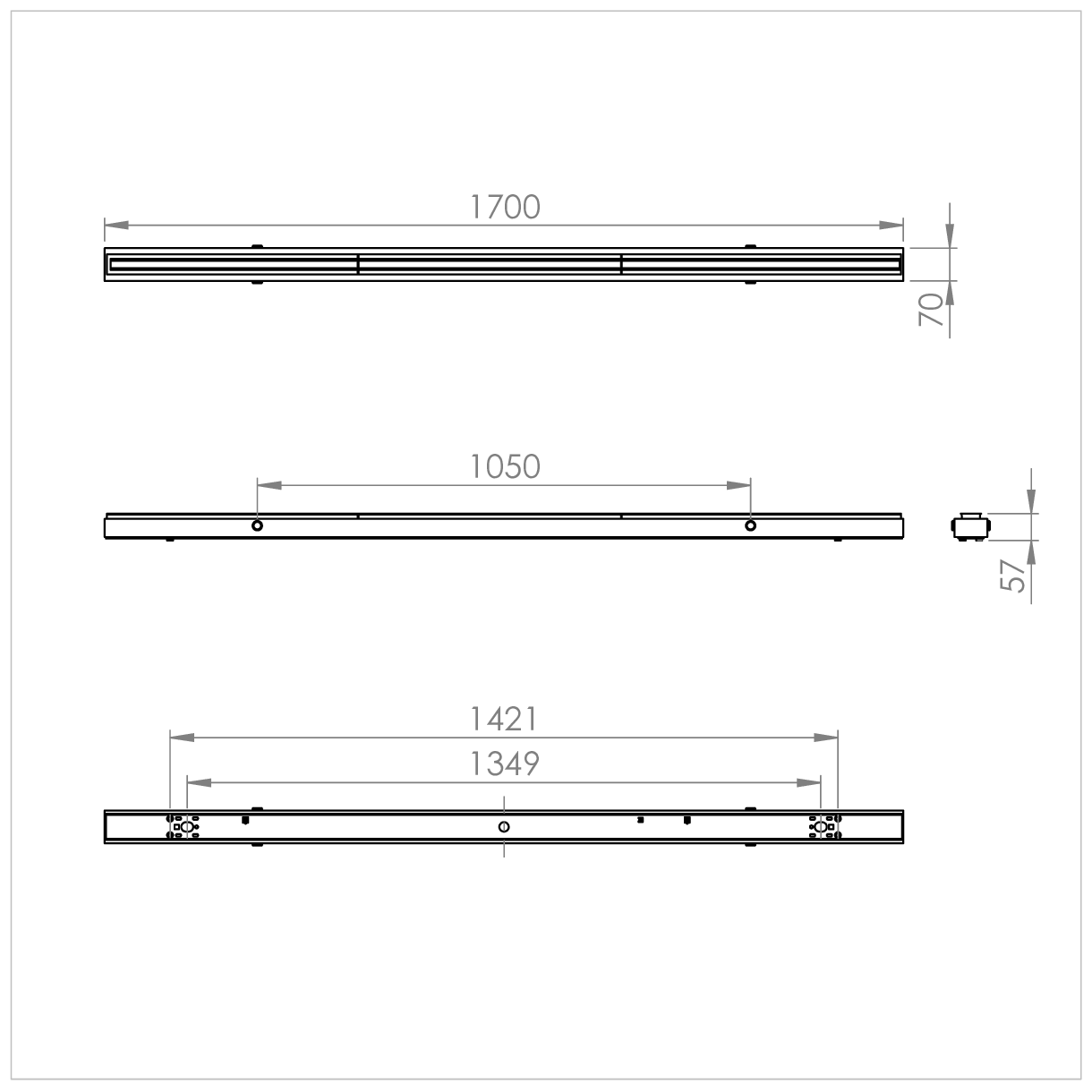

EPK Lens 1700mm

EPK Lens 1700mm

Ordering

Luminaires

Code Description Power Llm/W
EPKL L26 ** Ecopak Lens, 1200mm, 2,470llm, Colour 84 15.8W 156
EPKL L38 ** Ecopak Lens, 1200mm, 3,610llm, Colour 84 22.7W 159
EPKL L35 ** Ecopak Lens, 1700mm, 3,324llm, Colour 84 22.4W 148
EPKL L45 ** Ecopak Lens, 1700mm, 4,275llm, Colour 84 26.1W 164
EPKL L54 ** Ecopak Lens, 1700mm, 5,130llm, Colour 84 30.6W 168
EPKL L63 ** Ecopak Lens, 1700mm, 5,985llm, Colour 84 36.3W 165
EPKL L80 ** Ecopak Lens, 1700mm, 7,599llm, Colour 84 43.7W 174
EPKL L96 ** Ecopak Lens, 1700mm, 9,120llm, Colour 84 55.3W 165
EPKL L120 ** Ecopak Lens, 1700mm, 11,400llm, Colour 84 72.7W 157
Luminaire lumens figures based on OA version.

** Please select Optic

Optic

Code Description
OA Open Area
HR High Rack
UHR Ultra High Rack

Dimming

Code Description
A DALI Digital Addressable Lighting Interface
S Switch Dimming
D DSI Digital Dimming
H HFR Analogue 1-10v
C Bi-Level Dimming For Standalone Switched Sensor

Control

Code Description
RLI Reacta-Link, Wireless Enabled Luminaire
RC Reacta-Control, Wireless Enabled Luminaire

Emergency

Code Description
LE3 Lithium Standard Emergency 3 Hour
LS3 Lithium Selftest Emergency 3 Hour
LA3 Lithium Autotest Emergency 3 Hour
LSTR Lithium Reacta-Link Emergency 3 Hour
LA3RC Lithium Reacta-Control Emergency 3 Hour

Miscellaneous

Code Description
C** Select Colour Temperature and Rendering; C827, C83, C85, C865, C93, C94
LSF Low Smoke Zero Halogen

Downloads

Installation Guide (Download PDF) Product Datasheet (Download PDF) Revit Files Dialux Files Relux Files
