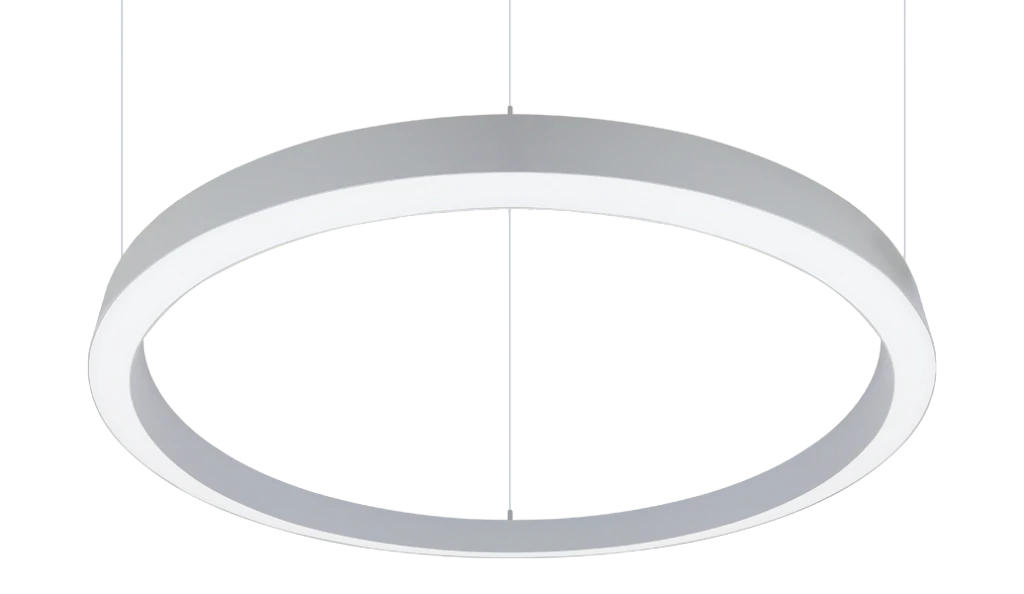

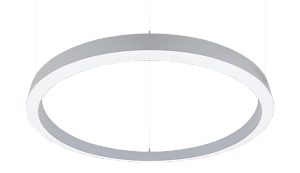

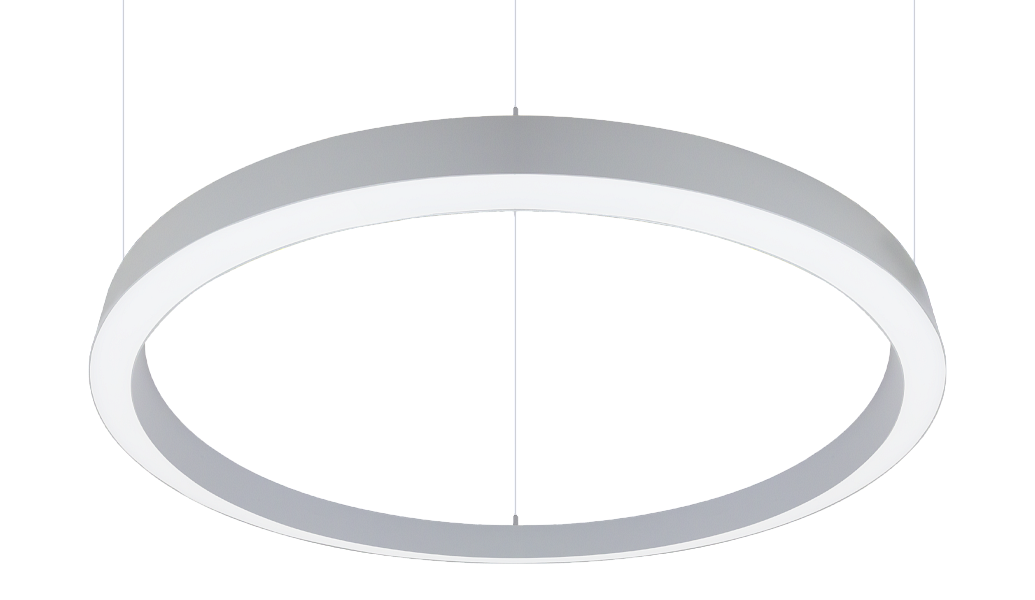

DexRing - Grey

Introduction

The DexRing is the quintessential product for atriums, receptions, high-end retail and office applications where the lighting must fulfil both functional and decorative purposes. With three housing sizes up to two metres in diameter the DexRing can create dramatic statement pieces, especially when multiple luminaires of varying diameters are combined in a collage installation. The DexRing is manufactured with a powder painted extruded aluminium housing and polycarbonate diffusers to ensure a high quality finish, whilst black, grey or white housing finishes allow it to be tailored to suit a range of architectural styles. To ensure that practical considerations are also met the DexRing is available in a wide range of lumen outputs, optional dimming and emergency compatibility as well as bi-directional variants. On special request the DexRing can also be manufactured in custom colours and RGBW variants.

DEXRING complies with:

UKCA | CE | IP20 | TM21: L90>50K HOURS | 3 STEP MACADAM ELLIPSE

Recommended applications:

Education | Office | Retail

Specification

Construction

  • Housing: Extruded aluminium
  • Diffuser: 2mm extruded high transmission opal polycarbonate
  • Finish: Polyester powder painted matt white gloss
  • Finish: Polyester powder painted matt grey

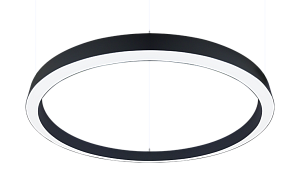

  • Finish: Polyester powder painted matt black

Performance

  • Part L2 compliant
  • 3SDCM Three step Macadams ellipse
  • TM21: L90 at >50,000 Operating Hours

Environmental

  • Designed to allow simple replacement of components with commonly available tools in compliance with the Eco Design Directive, please see the installation leaflet for maintenance instructions.
  • Powered by European branded drivers and emergency modules ensuring replacement parts are easily sourced.
  • Designed to allow simple disassembly for end of life recycling.
  • UK based manufacturing providing local support throughout the product lifetime and minimising transportation miles.

Emergency

  • Available with optional standard, self test and autotest integral emergency with lithium batteries for extended warranty and lifetime.

Installation

  • Suitable for suspended installation
  • Surface mounting is available on request.

Variations

  • Available with a wide range of colour temperatures and renderings
  • Available in a range of housing sizes and lumen outputs
  • Available in white, black or grey finishes

Control

  • Optional compatibility with a range of dimming systems including DALI, HFR and DMX.
5 year extended warranty available on most products.
Arrow right

Product Images

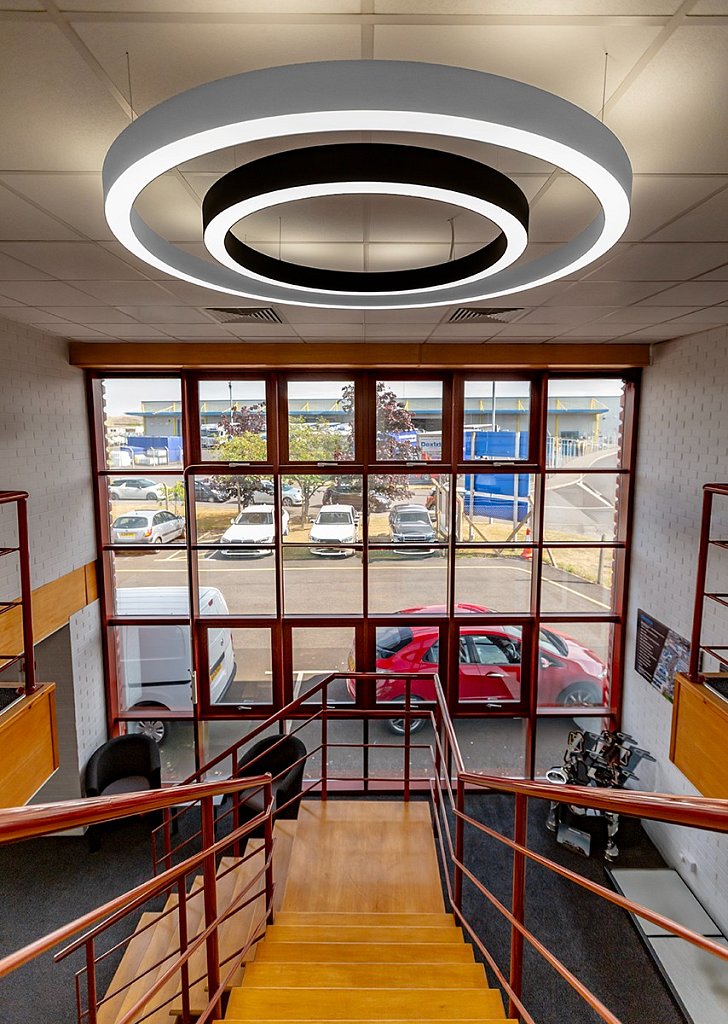

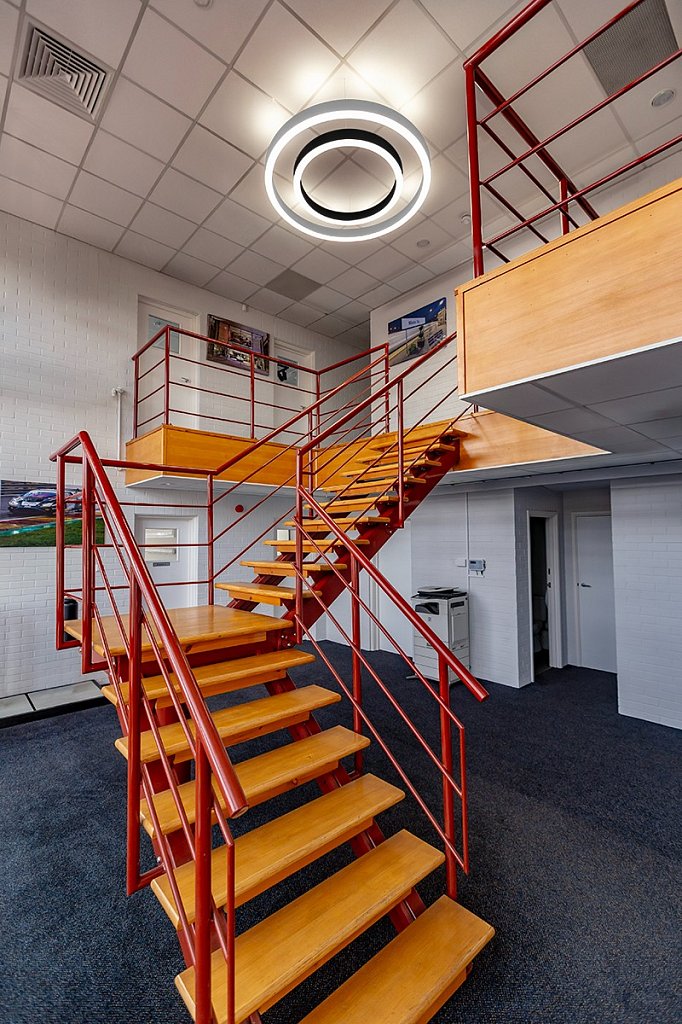

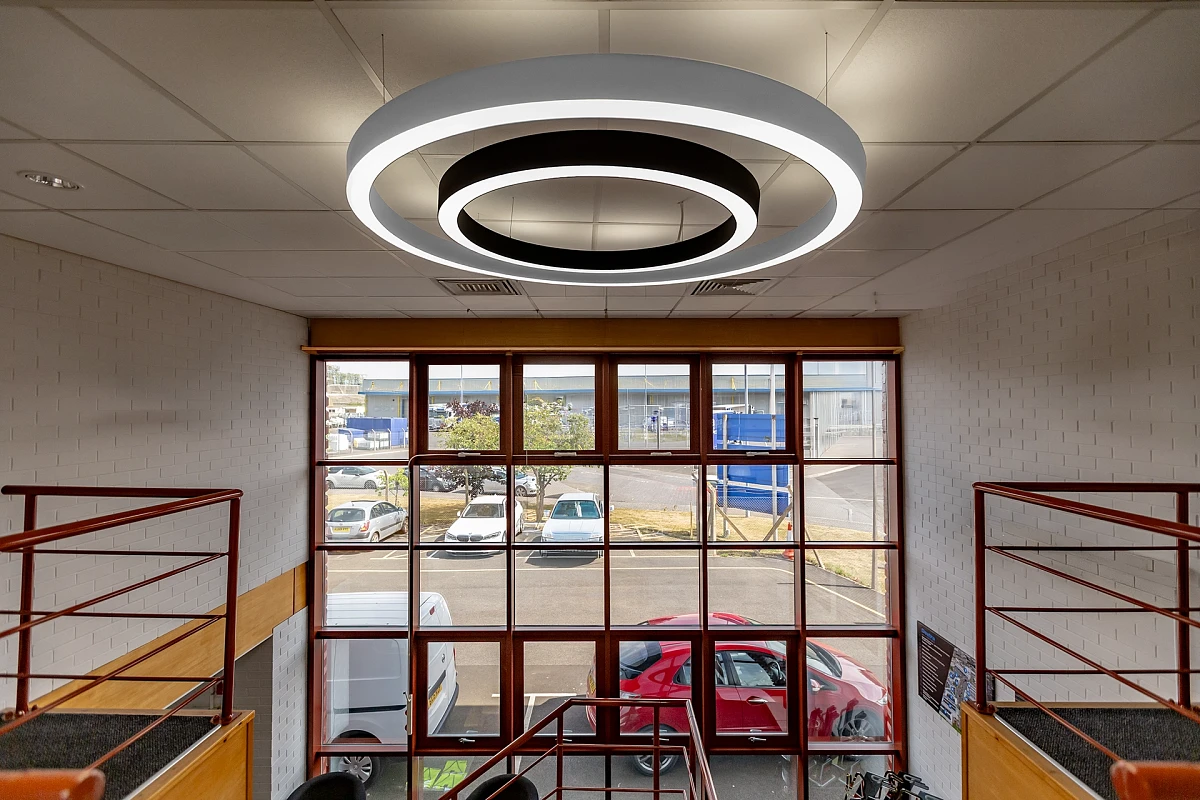

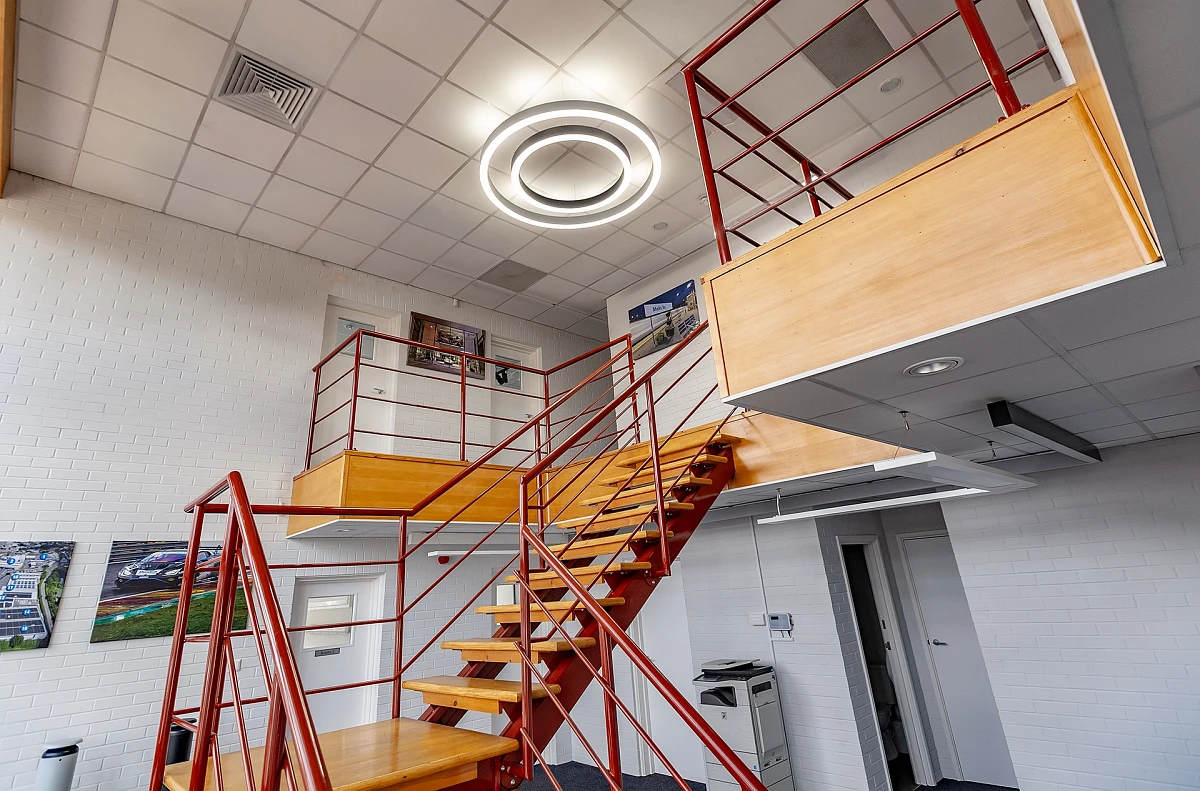

DEXRING in action

Technical

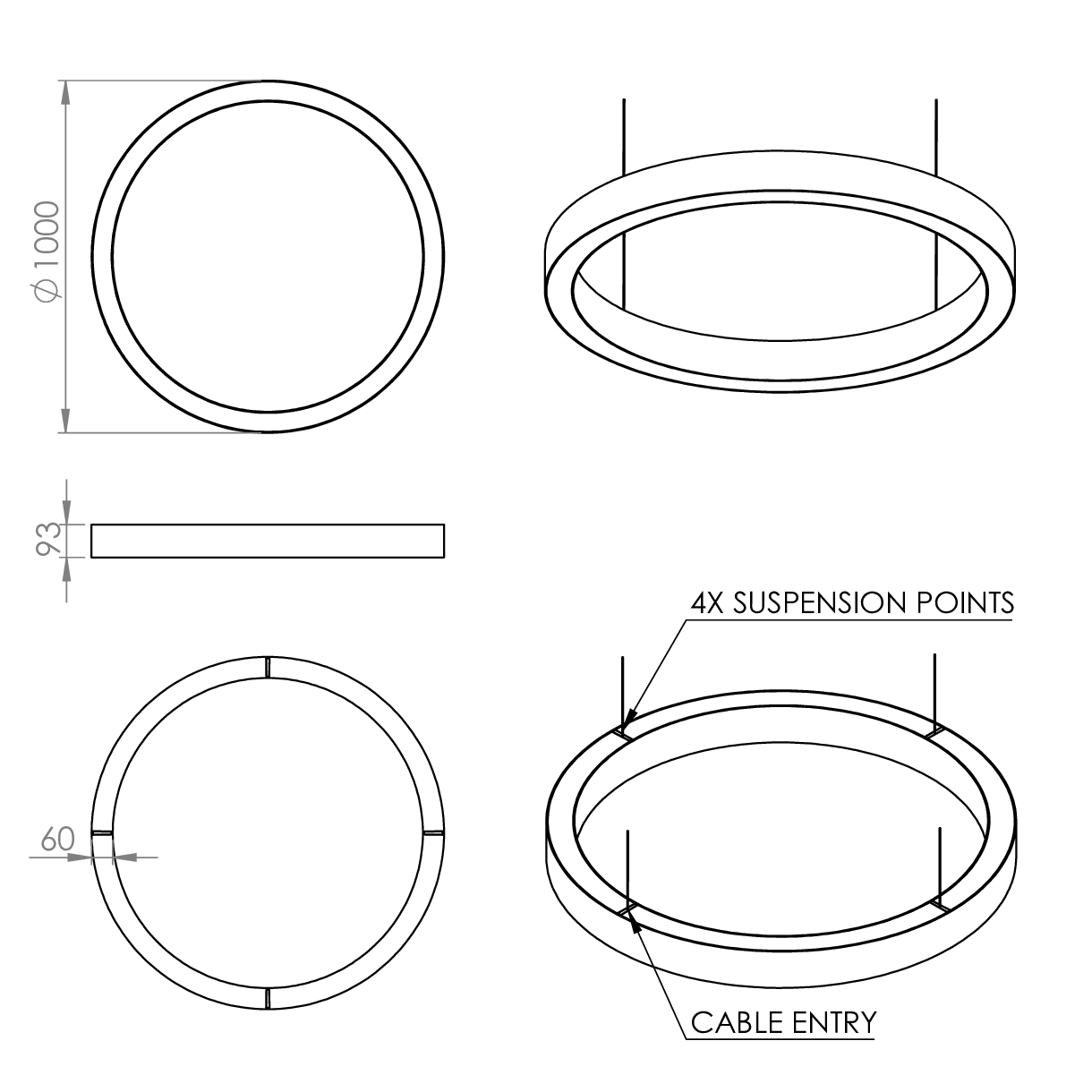

DexRing 1000mm

DexRing 1000mm

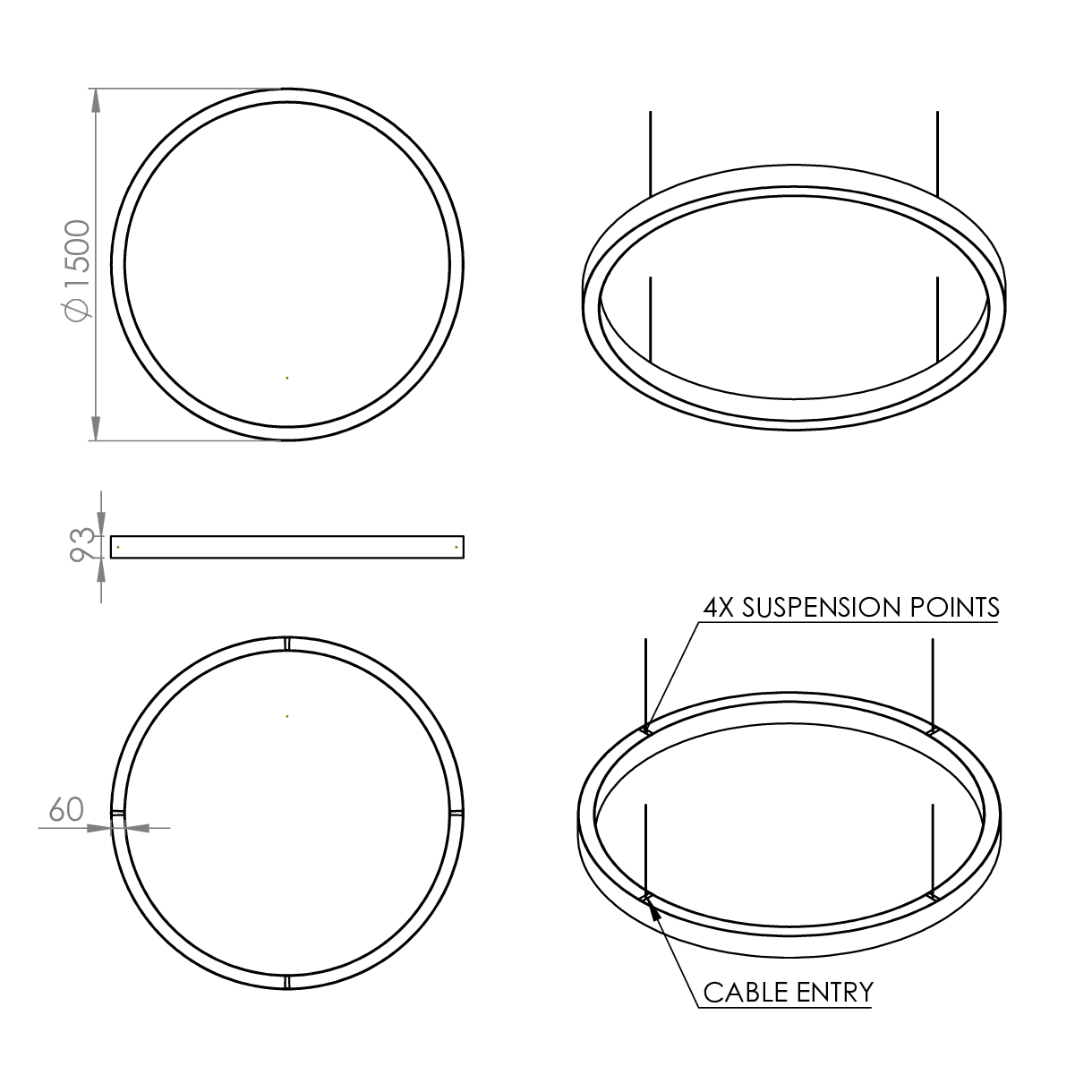

DexRing 1500mm

DexRing 1500mm

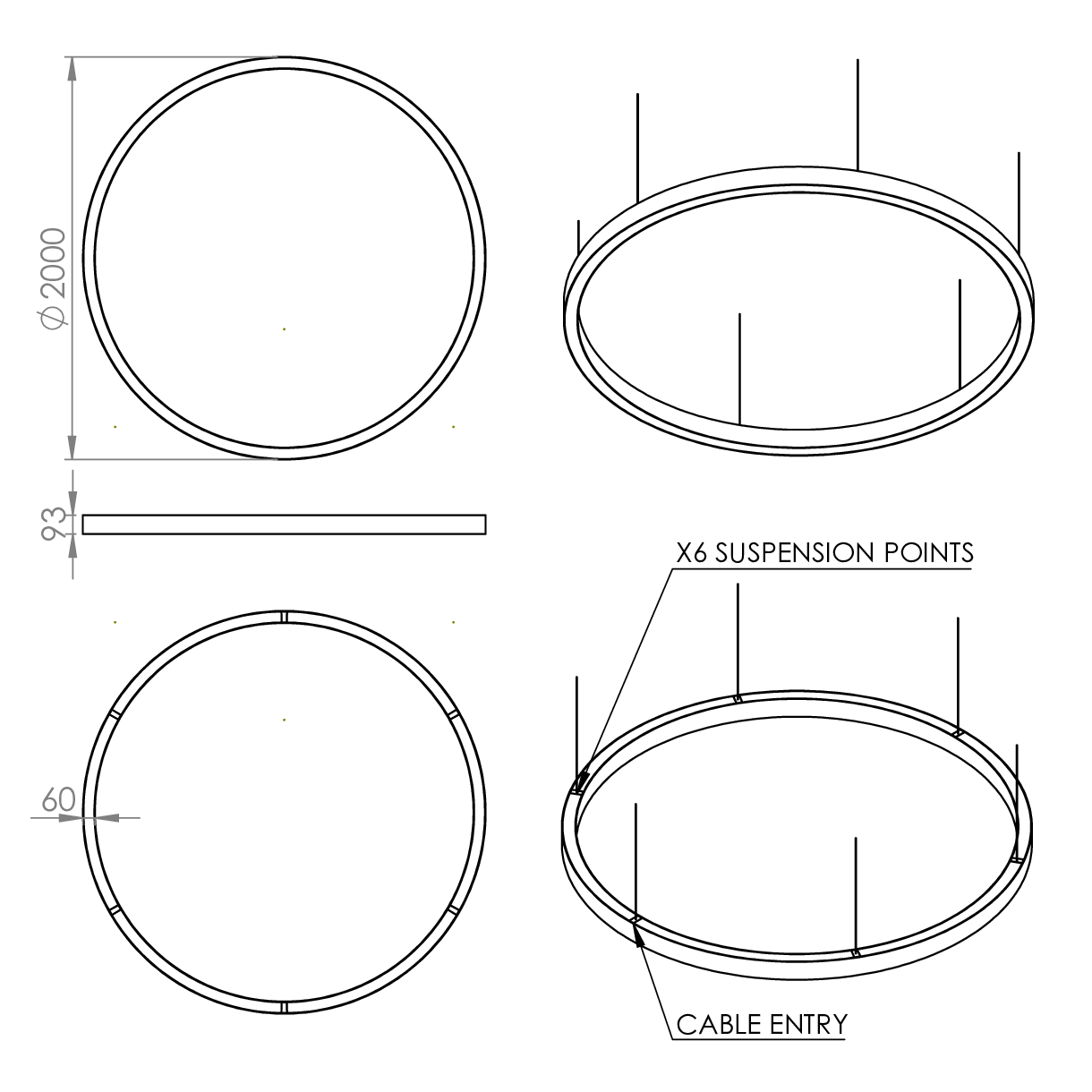

DexRing 2000mm

DexRing 2000mm

Ordering

Luminaires

Downlight
Code Description Power Llm/W
DXR 1000 L99 A DexRing 1000mm Downlight, 4,266llm, DALI, Colour 84 50W 85.32
DXR 1500 L148 A DexRing 1500mm Downlight, 6,400llm, DALI, Colour 84 75W 85.33
DXR 2000 L198 A DexRing 2000mm Downlight, 8,532llm, DALI, Colour 84 100W 85.32
<br>
DXR 1000 L145 A DexRing 1000mm Downlight, 6,703llm, DALI, Colour 84 79W 84.84
DXR 1500 L215 A DexRing 1500mm Downlight, 10,057llm, DALI, Colour 84 118W 85.22
DXR 2000 L291 A DexRing 2000mm Downlight, 13,400llm, DALI, Colour 84 158W 84.81
<br>
DXR 1000 L183 A DexRing 1000mm Downlight, 8,532llm, DALI, Colour 84 100W 85.32
DXR 1500 L274 A DexRing 1500mm Downlight, 12,800llm, DALI, Colour 84 150W 85.33
DXR 2000 L366 A DexRing 2000mm Downlight, 17,064llm, DALI, Colour 84 200W 85.32
Bi-Directional
Code Description Power Llm/W
DXR 1000 L198 A BD DexRing 1000mm Bi-Directional, 8,532llm, DALI, Colour 84 TBC TBC
DXR 1500 L297 A BD DexRing 1500mm Bi-Directional, 12,800llm, DALI, Colour 84 TBC TBC
DXR 2000 L396 A BD DexRing 2000mm Bi-Directional, 17,064llm, DALI, Colour 84 TBC TBC
<br>
DXR 1000 L289 A BD DexRing 1000mm Bi-Directional, 13,406llm, DALI, Colour 84 TBC TBC
DXR 1500 L432 A BD DexRing 1500mm Bi-Directional, 20,114llm, DALI, Colour 84 TBC TBC
DXR 2000 L578 A BD DexRing 2000mm Bi-Directional, 26,800llm, DALI, Colour 84 TBC TBC
<br>
DXR 1000 L366 A BD DexRing 1000mm Bi-Directional, 17,064llm, DALI, Colour 84 TBC TBC
DXR 1500 L549 A BD DexRing 1500mm Bi-Directional, 25,600llm, DALI, Colour 84 TBC TBC
DXR 2000 L732 A BD DexRing 2000mm Bi-Directional, 34,128llm, DALI, Colour 84 TBC TBC
<br>

The luminaire lumen and luminaire lumen per watt values are based on the white finish product. Black and grey finishes will differ, please contact LEDextra for more information.

Dimming

Code Description
S Switch Dimming
H HFR Analogue 1-10v
RGBW RGBW Colour Change available on request
DMX Digital Multiplex available on request

All luminaires are supplied with DALI dimming as standard

Control

Code Description
RLI Reacta Link, Wireless Enabled Luminaire*
RC Reacta Control, Wireless Enabled Luminaire
*RLI  is subject to limitations. Please contact LEDextra for information.

Emergency

Code Description
LE3 Lithium Standard Emergency 3 Hour
LS3 Lithium Selftest Emergency 3 Hour
LA3 Lithium Autotest Emergency 3 Hour

Miscellaneous

Code Description
WH White Finish
BL Black Finish
GY Grey Finish
C** Select Colour Temperature and Rendering; C83, C84 (other options available on request)
MP Microprism diffuser available on request. Please contact LEDextra for more information.

Please note power cable to be supplied by others
