COULIS 90
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Pellentesque tempor, purus facilisis accumsan luctus, elit metus faucibus sem, ac tempus.
Introduction

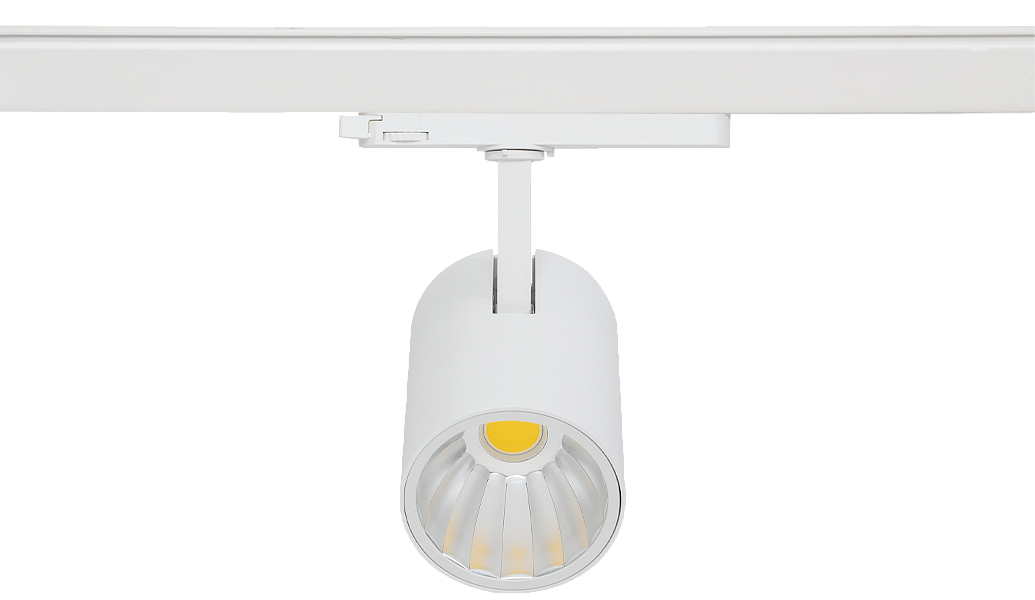

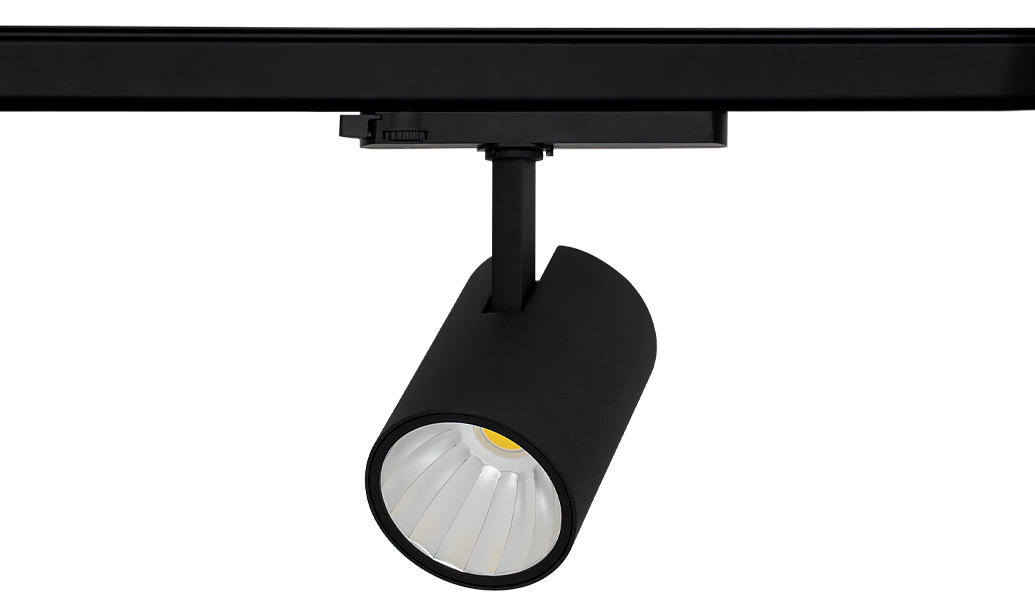

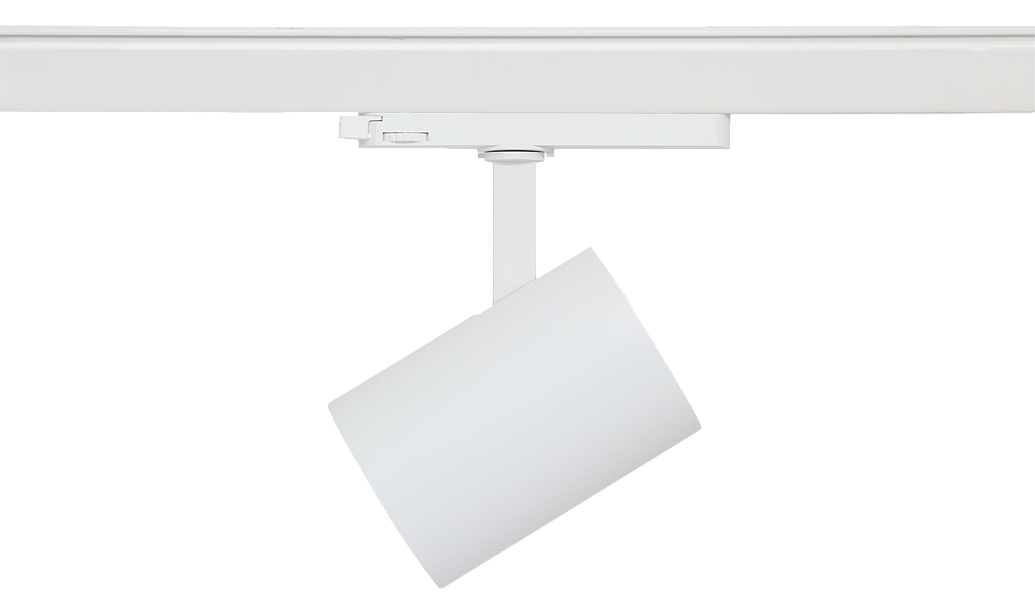

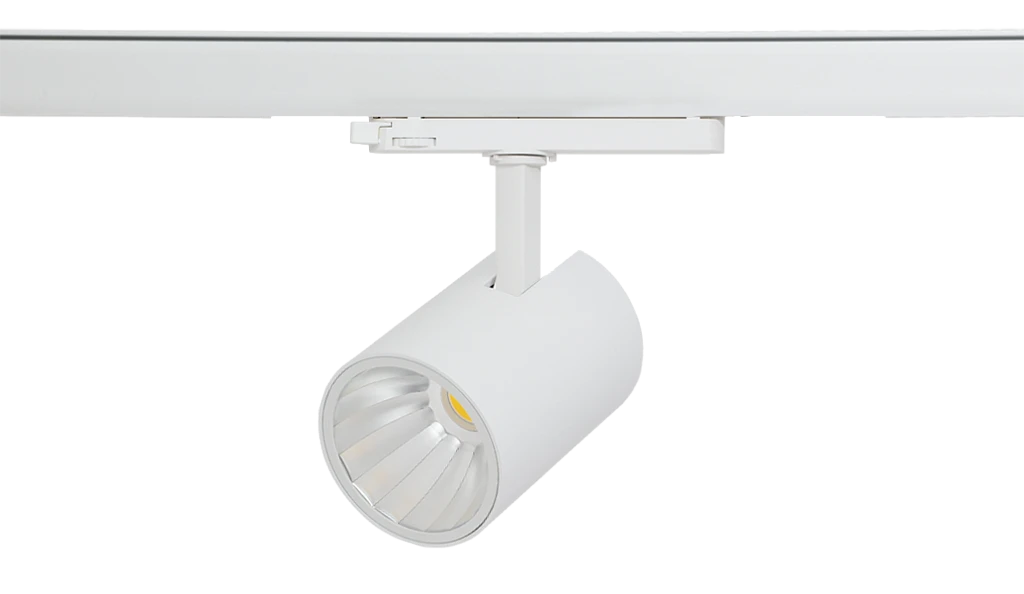

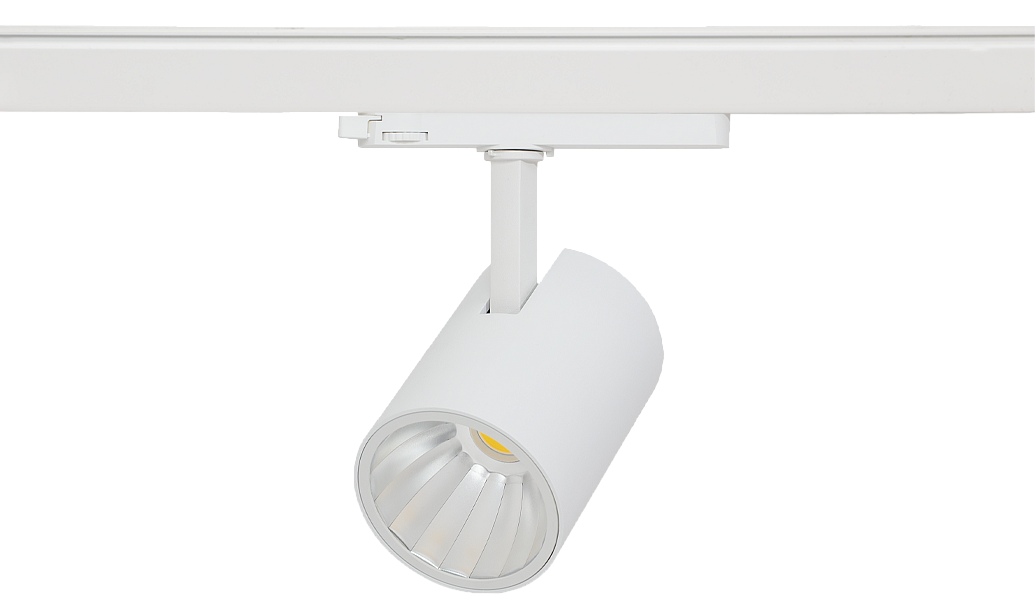

The Coulis 90 brings next generation efficiency to our track mounted range with an all new housing and reflector in a discreet, minimalist design offering outputs up to 4700lm. The combination of a premium high efficiency COB and our latest reflector design provide state of the art efficiency in three beam angles, 16°, 36° and 60°. The Coulis 90 includes a high quality CRI 90 light source in 3,000 and 4,000 kelvin as standard. All Coulis 90 models are supplied complete with a discree in track driver and are available in black or white colour options.
COULIS 90 complies with:
UKCA | CE | IP20 | 3 STEP MACADAM ELLIPSE
Recommended applications:
Accent Lighting | Display Lighting | Retail
Specification
Construction
- Housing: High pressure die cast aluminium
- Finish: Polyester powder painted BS 00E55 matt white 60% gloss
- Finish: Polyester powder painted RAL 9005 matt black
- Reflector: Aluminium in a range of beam angles
- IP20
Performance
- Part L2 compliant
- 3SDCM Three step Macadams ellipse
- TM21: L90>60K Hours / L80>90K Hours
- Up to 157 luminaire lumens per circuit Watt
- CRI90
Environmental
- Designed to allow simple replacement of components with commonly available tools in compliance with the Eco Design Directive, please see the installation leaflet for maintenance instructions.
- Powered by European branded drivers and emergency modules ensuring replacement parts are easily sourced.
- Every luminaire is labelled with a unique ID number allowing easy identification of spare parts for the lifetime of the product.
- Contains no single use plastics or polystyrene packaging.
- Supplied in plain card boxes with paper tape ensuring packaging is easily recycled.
- Designed to allow simple disassembly for end of life recycling.
- UK based manufacturing providing local support throughout the product lifetime and minimising transportation miles.
Emergency
- Not available with emergency
Control
- Optional DALI dimming
Installation
- Suitable for three circuit track installation
Variations
- Available with a wide range of colour temperatures and renderings
- Available in a range of lumen outputs

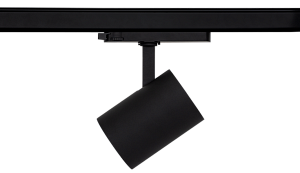

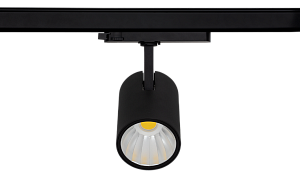

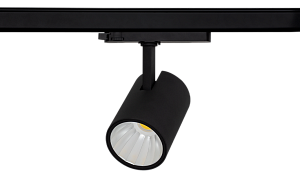

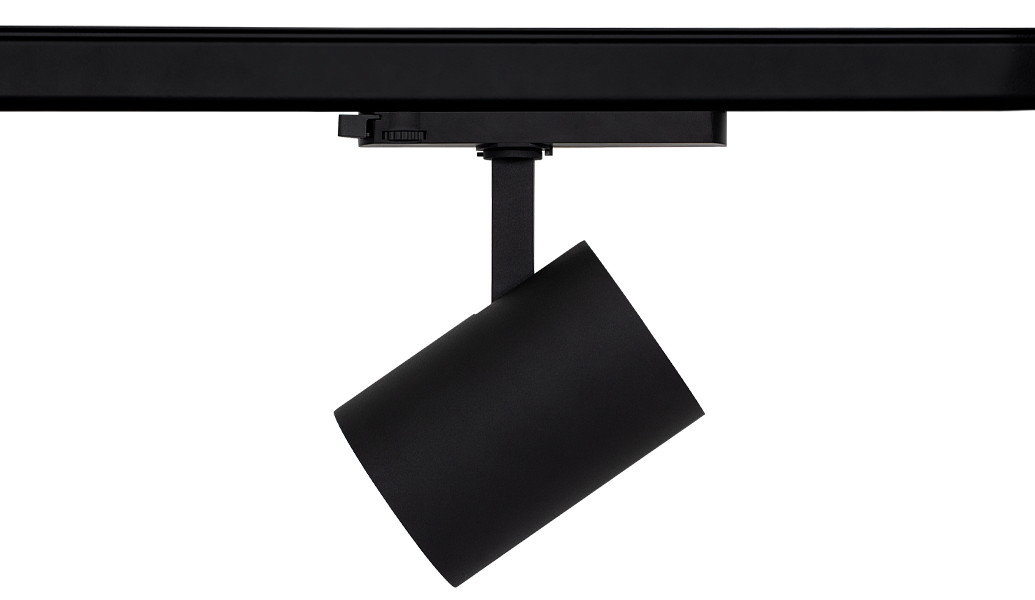

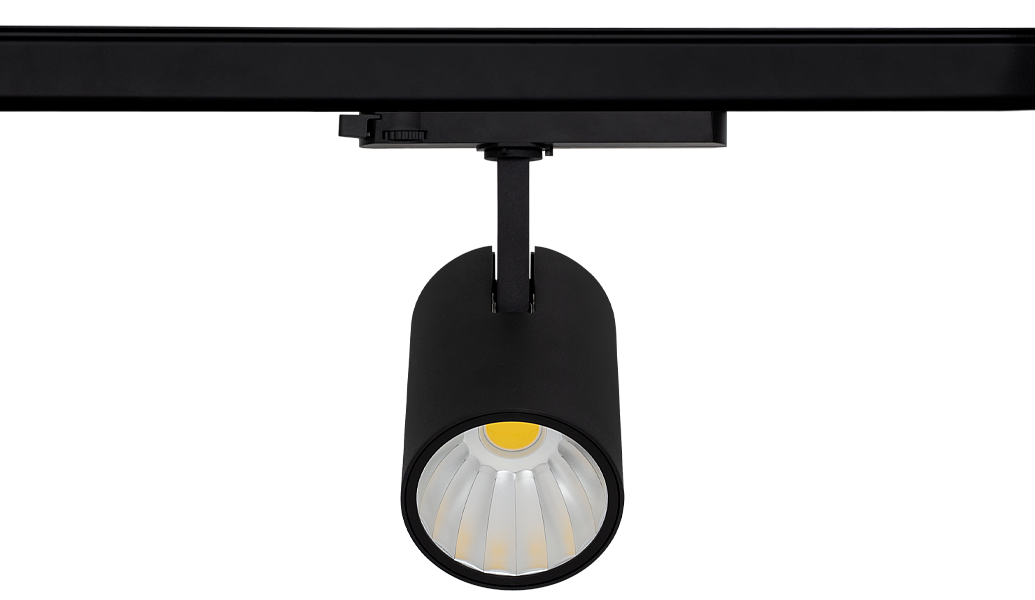

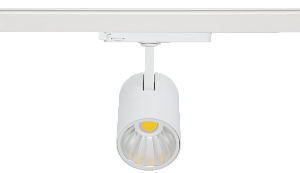

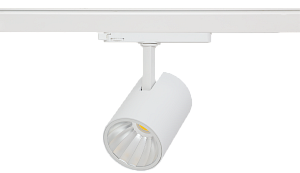

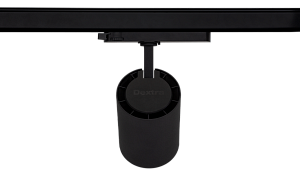

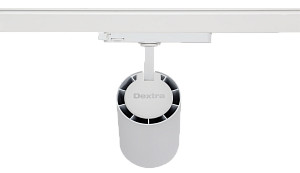

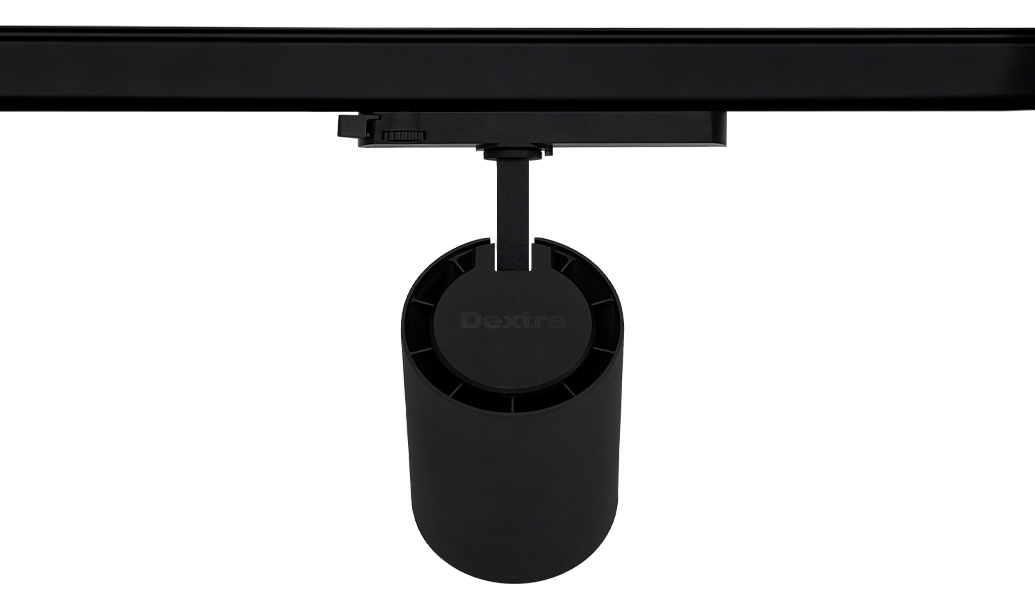

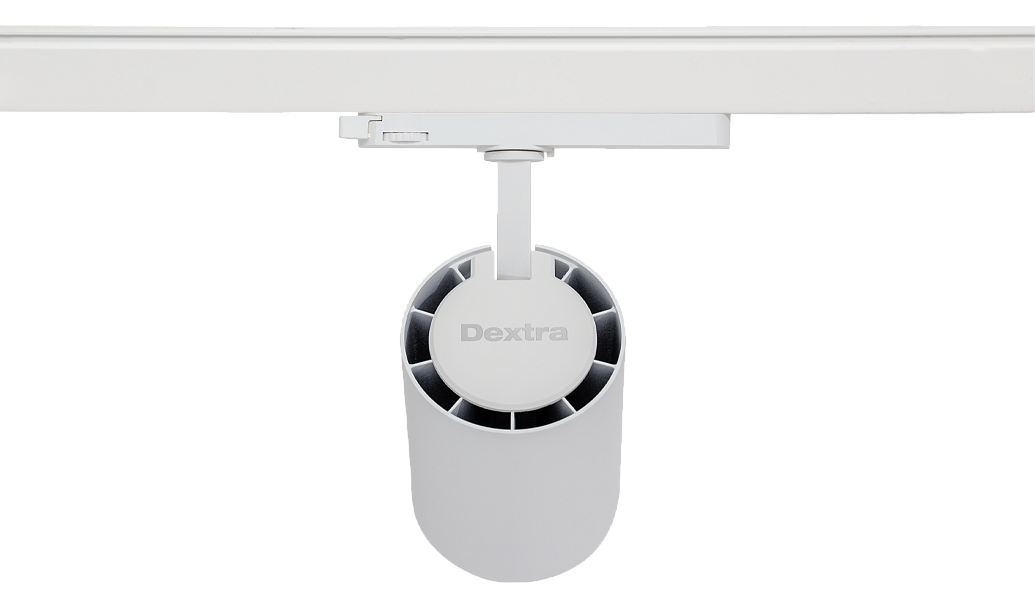

- Available in white or black finishes

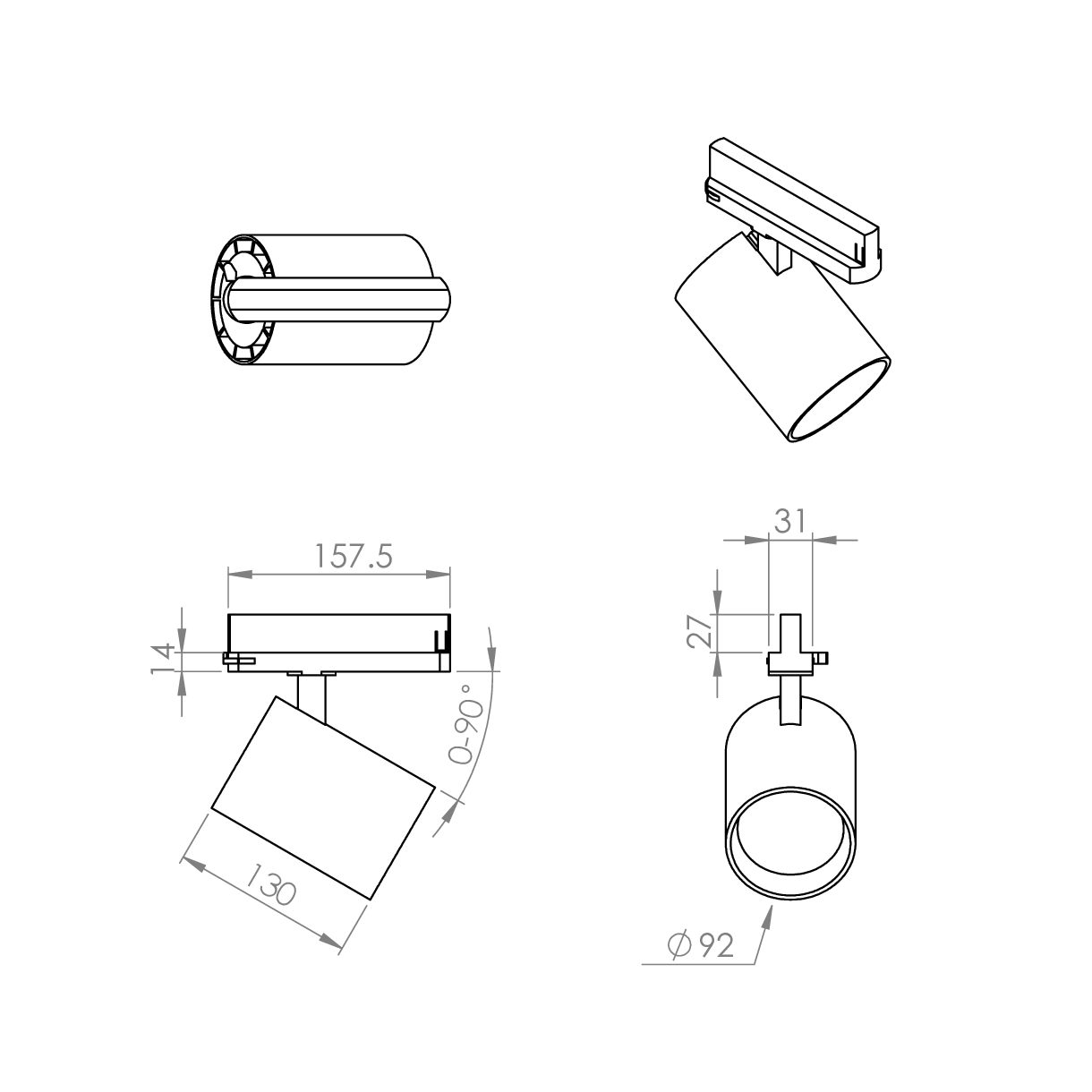

Technical
Coulis 90
Ordering
Luminaires
|
||||||||||||||||
Optic
| Code | Description |
|---|---|
| 16 | 16° Beam |
| 36 | 36° Beam |
| 60 | 60° Lens |
Miscellaneous
| Code | Description |
|---|---|
| C93 | Colour 93 |
| BL | Black Finish |
| HT FIX-POINT GLOBAL | Single point surface mount track white fixed output |
| HT BL FIX-POINT GLOBAL | Single point surface mount track black fixed output |
