COLUMN ADAPTORS AND BRACKETS

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Pellentesque tempor, purus facilisis accumsan luctus, elit metus faucibus sem, ac tempus.

Introduction

We are pleased to introduce a range of column adaptors to complement our column mounted luminaire ranges. Our column adaptors are available in both base mount and out reach allowing for quick and simple adjustment of columns where diameters are not compatible with our standard luminaire spigot sizes. As well as adaptors this range incorporates wall brackets, floodlight brackets, out reach arms and T adaptors to configure your column or installation as required. Whilst we have listed the most commonly used adaptor types a wide range of sizes and styles are available on request.

COLUMN ADAPTORS AND BRACKETS complies with:

Recommended applications:

Specification

Construction

Environmental

Designed to allow simple replacement of components with commonly available tools in compliance with the Eco Design Directive, please see the installation leaflet for maintenance instructions.
Powered by European branded drivers and emergency modules ensuring replacement parts are easily sourced.
Every luminaire is labelled with a unique ID number allowing easy identification of spare parts for the lifetime of the product.
Contains no single use plastics or polystyrene packaging.
Supplied in plain card boxes with paper tape ensuring packaging is easily recycled.
Designed to allow simple disassembly for end of life recycling.
UK based manufacturing providing local support throughout the product lifetime and minimising transportation miles.

5 year extended warranty available on most products.

Product Images

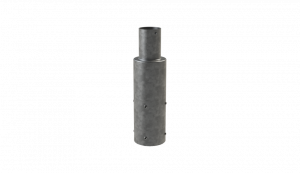

ADAB Adaptor Base Mount

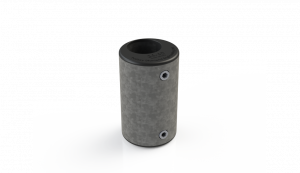

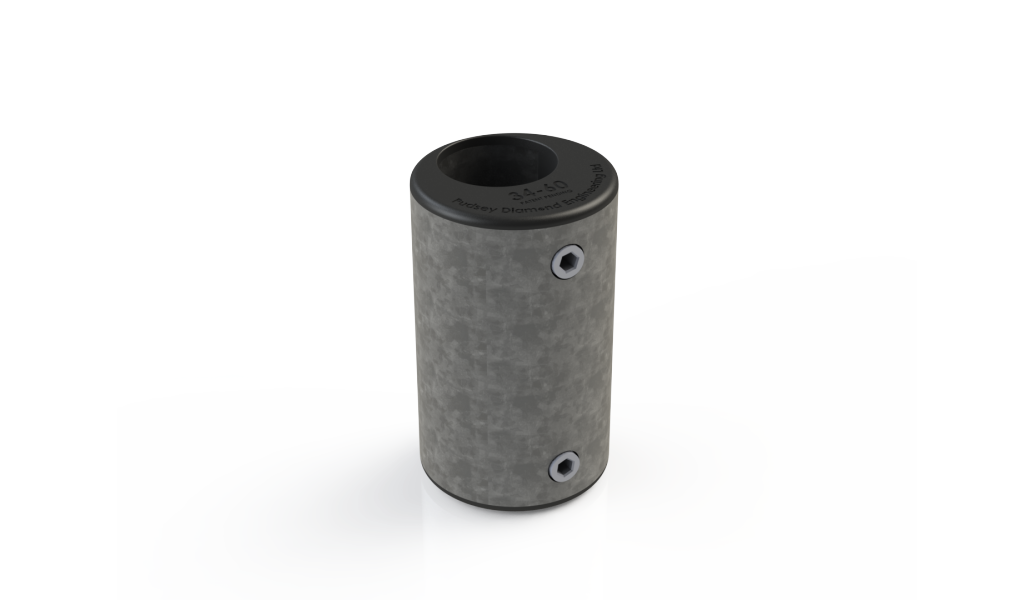

ADAO Adaptor Out Reach

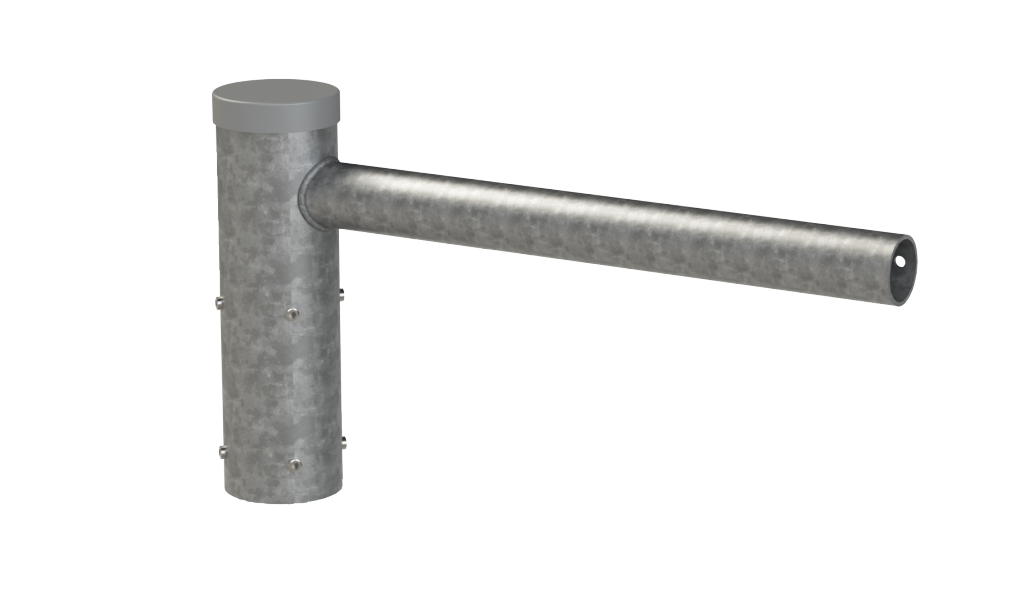

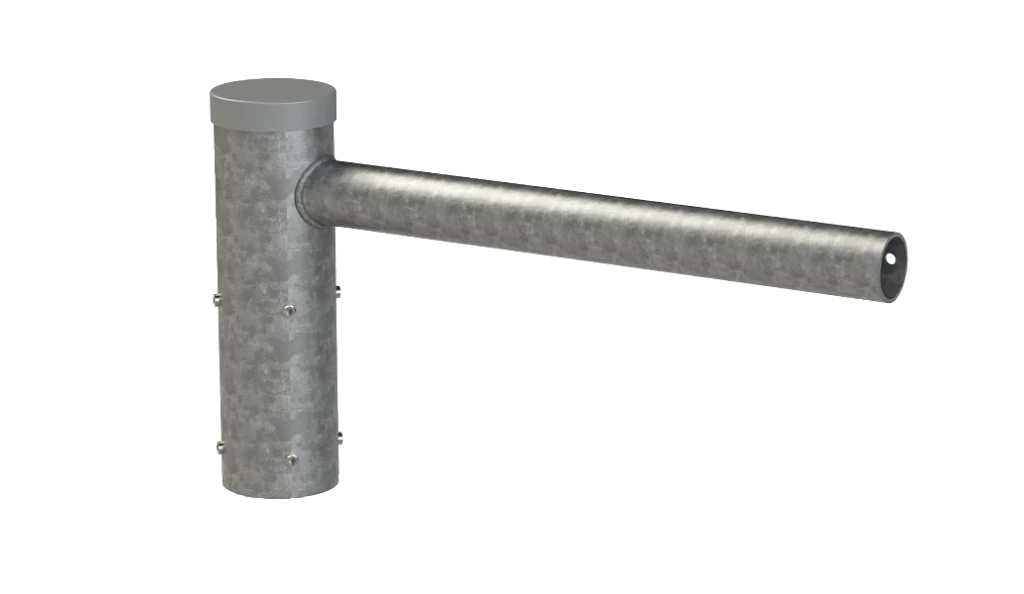

ADABO Out Reach Arm

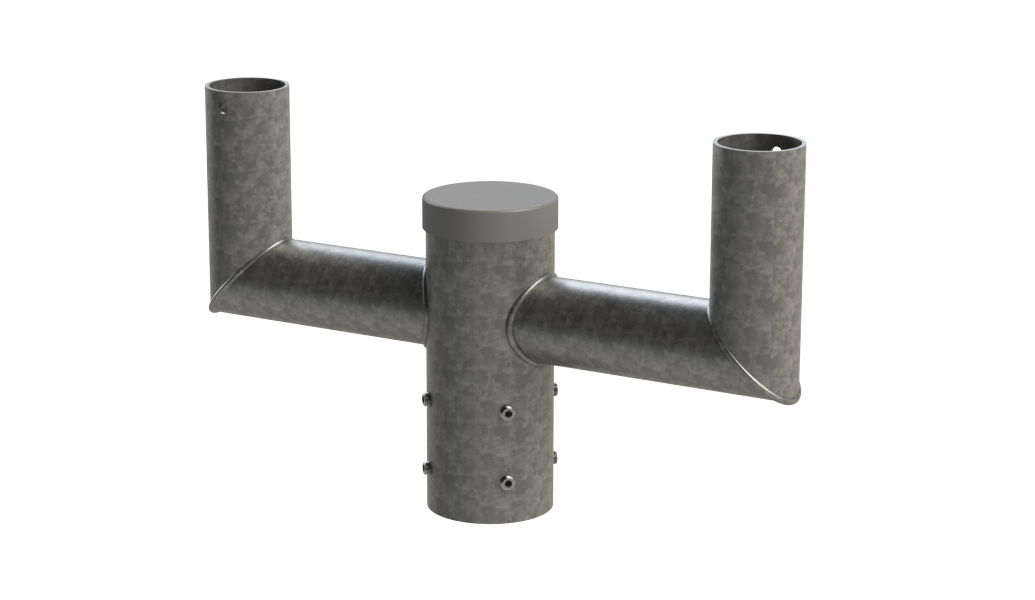

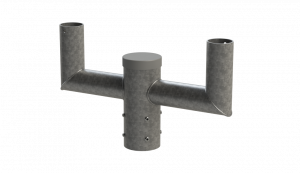

ADAT T Adaptor

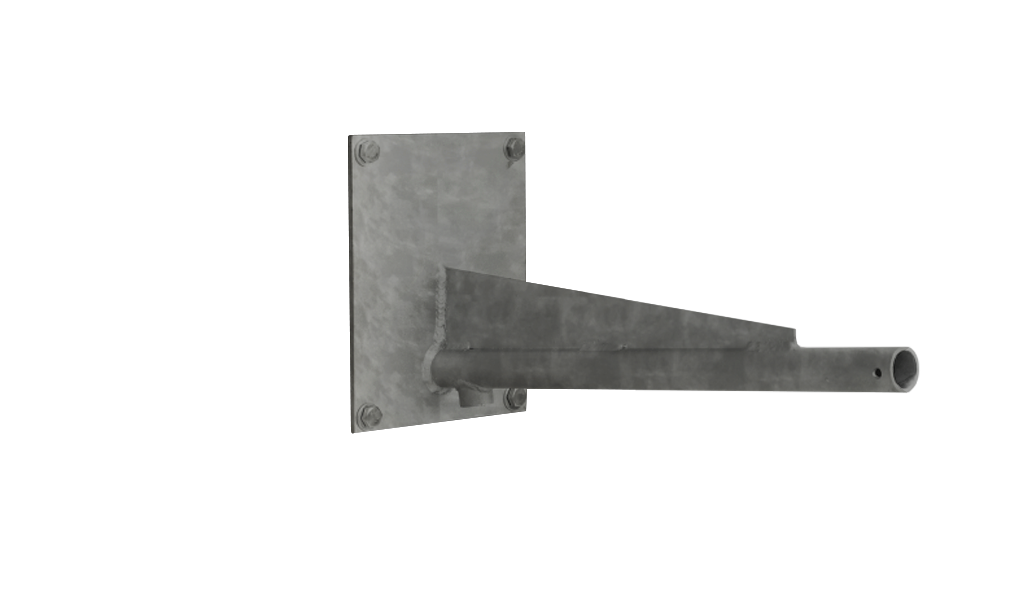

ADAW Wall Bracket

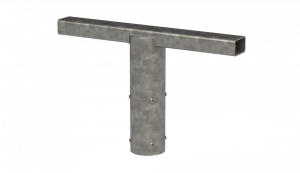

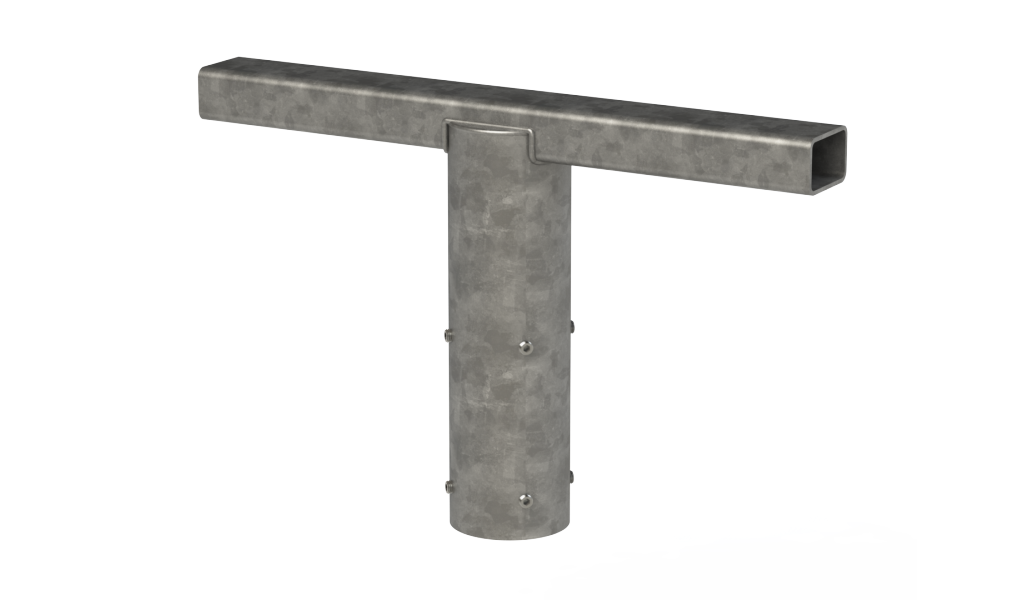

ADAF Floodlight Adaptor

Technical

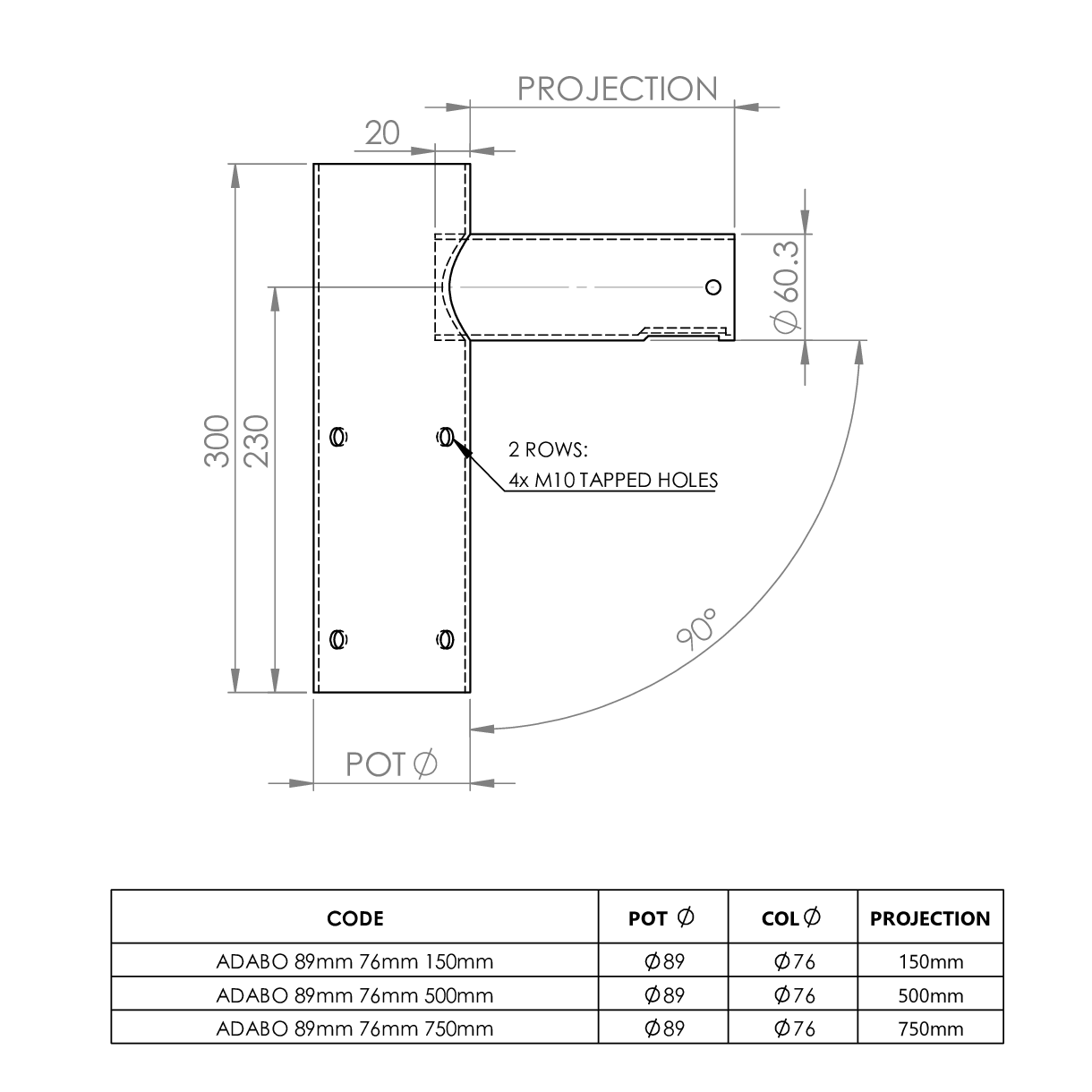

ADABO Column Adaptor Out Reach

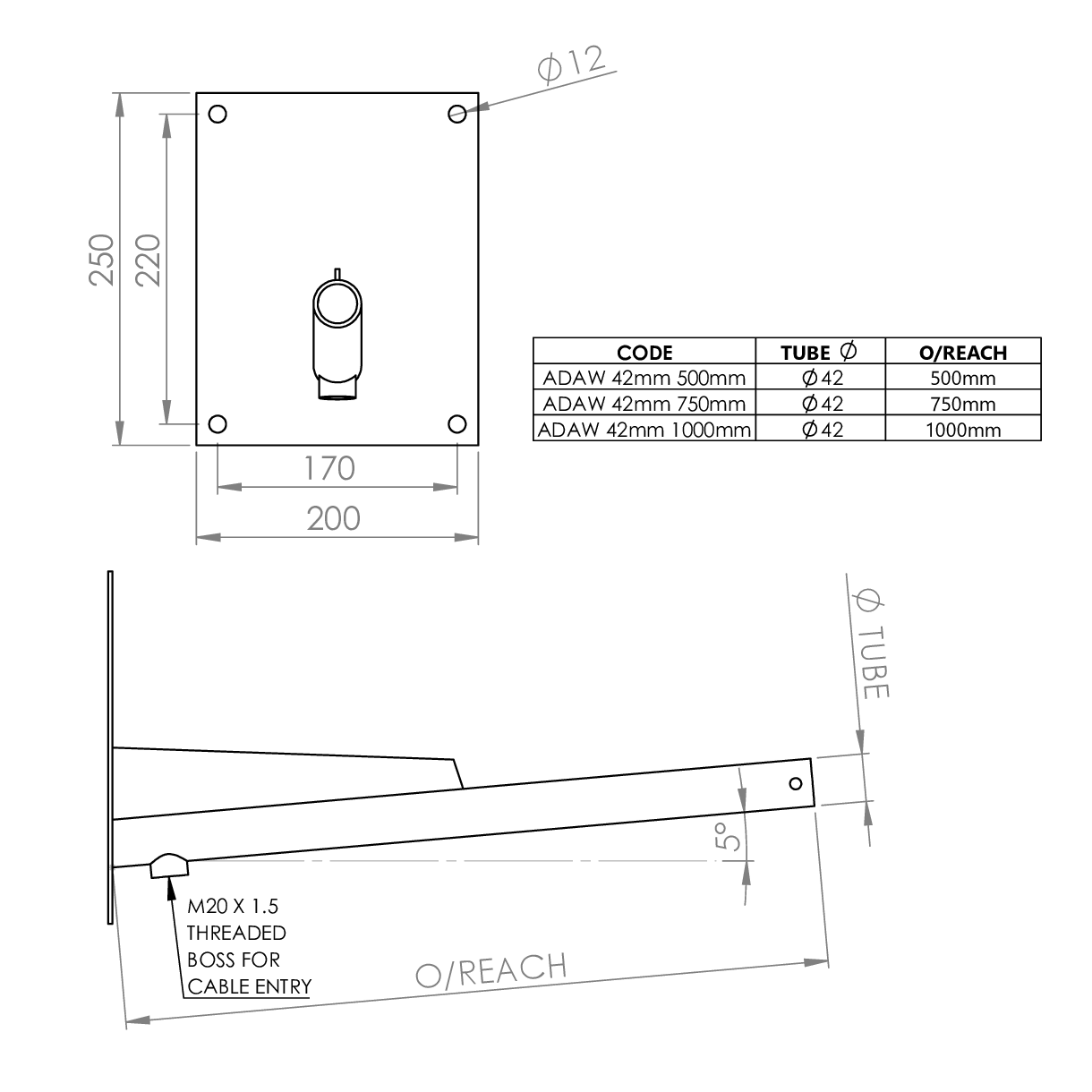

ADAW Wall Bracket

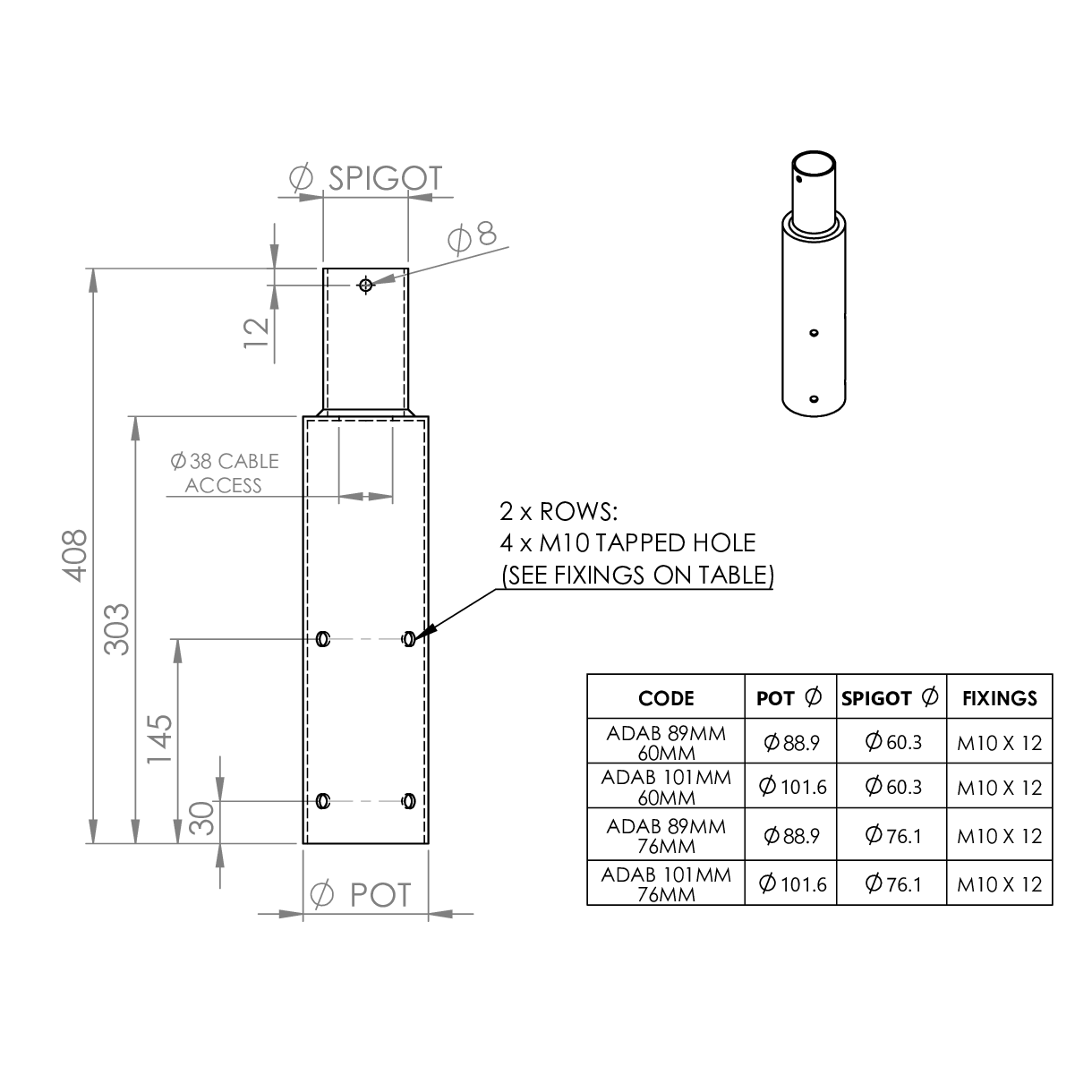

ADAB Column Adaptor Base Mount

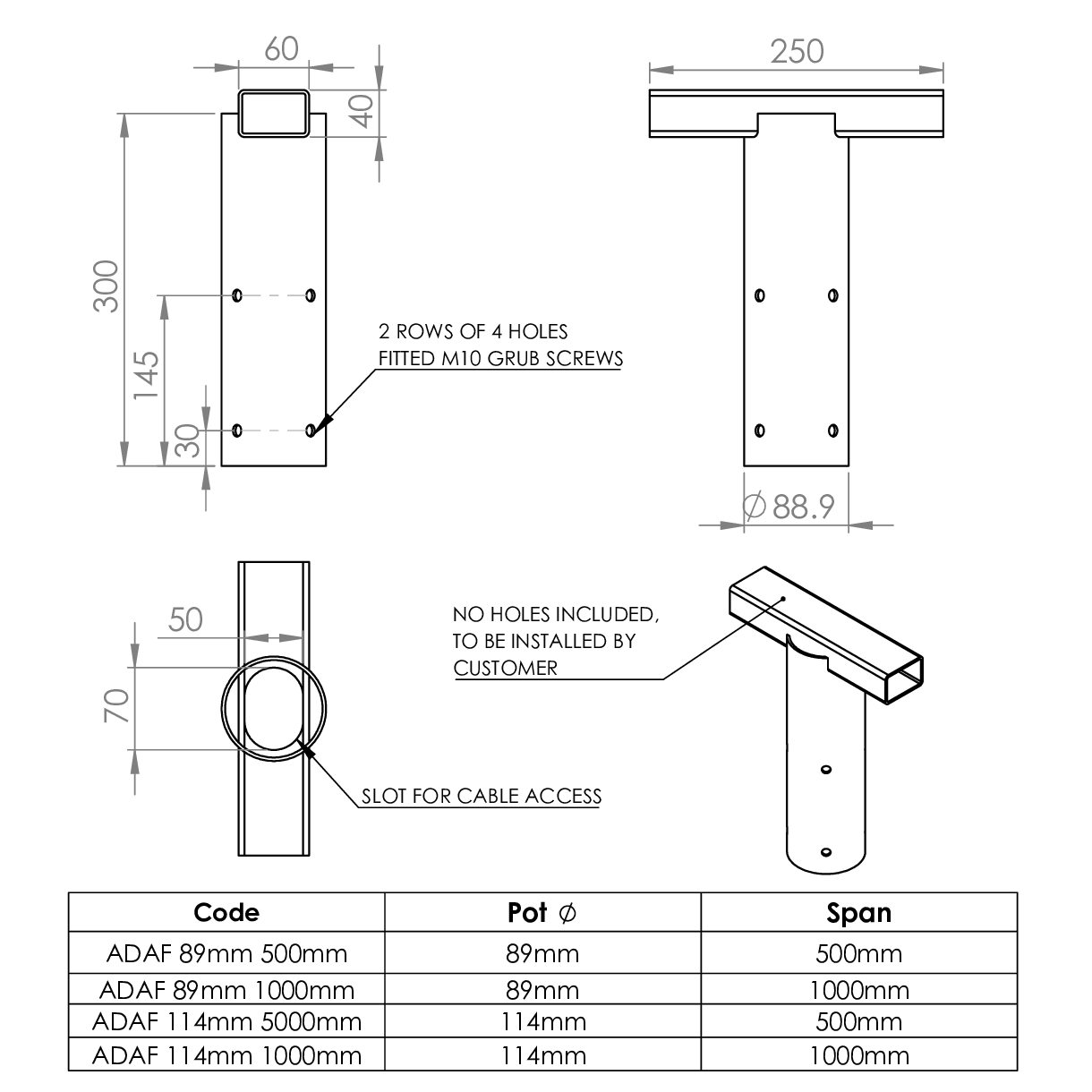

ADAF Floodlighting Bracket

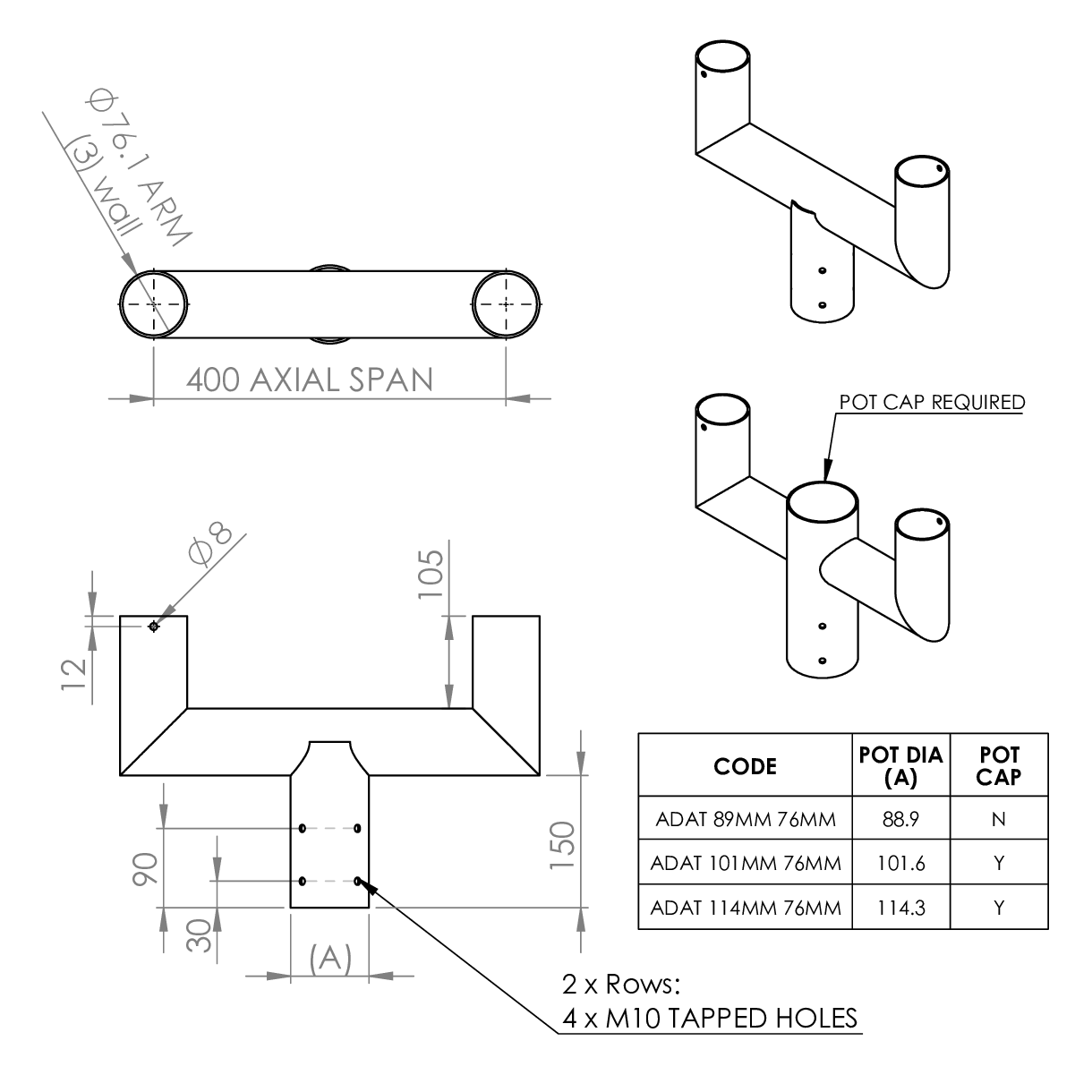

ADAT Column T Adaptor

Ordering

Luminaires

Code	Description
ADAB 89MM 76MM	Adaptor Base Mount, 89mm Column Diameter, 76mm Luminaire Spigot
ADAB 101MM 76MM	Adaptor Base Mount, 101mm Column Diameter, 76mm Luminaire Spigot
Code	Description
ADAO 42MM 60MM	Adaptor Out Reach, 42mm Column Diameter, 60mm Luminaire Spigot
Code	Description
ADABO 89MM 76MM 150MM	Column Base Mount Out Reach Arm, 89mm Column Diameter, 76mm Out Reach Arm, 150mm Projection
ADABO 89MM 76MM 500MM	Column Base Mount Out Reach Arm, 89mm Column Diameter, 76mm Out Reach Arm, 500mm Projection
ADABO 89MM 76MM 750MM	Column Base Mount Out Reach Arm, 89mm Column Diameter, 76mm Out Reach Arm, 750mm Projection
Code	Description
ADAT 89MM 76MM	Column Base Mount Adaptor T, 89mm Column Diameter, 76mm Luminaire Spigot
ADAT 101MM 76MM	Column Base Mount Adaptor T, 101mm Column Diameter, 76mm Luminaire Spigot
ADAT 114MM 76MM	Column Base Mount Adaptor T, 114mm Column Diameter, 76mm Luminaire Spigot
Code	Description
ADAW 42MM 500MM	Wall Bracket, 42mm Luminaire Spigot, 500mm Projection
ADAW 42MM 750MM	Wall Bracket, 42mm Luminaire Spigot, 750mm Projection
ADAW 42MM 1000MM	Wall Bracket, 42mm Luminaire Spigot, 1000mm Projection
Code	Description
ADAF 89MM 250MM	Column Base Mount Flood Bracket, 89mm Column Diameter, 250mm Span
ADAF 89MM 500MM	Column Base Mount Flood Bracket, 89mm Column Diameter, 500mm Span
ADAF 89MM 1000MM	Column Base Mount Flood Bracket, 89mm Column Diameter, 1000mm Span
ADAF 114MM 5000MM	Column Base Mount Flood Bracket, 114mm Column Diameter, 500mm Span
ADAF 114MM 1000MM	Column Base Mount Flood Bracket, 114mm Column Diameter, 1000mm Span
All adaptors are available in multiple sizes and projection lengths, please enquire with our sales department if your requirement is not shown above. Please ensure that your column is suitable for the adaptor or bracket selected and will not result in safe loading of the column being exceeded.

Downloads

Product Datasheet Revit Files Dialux Files Relux Files
