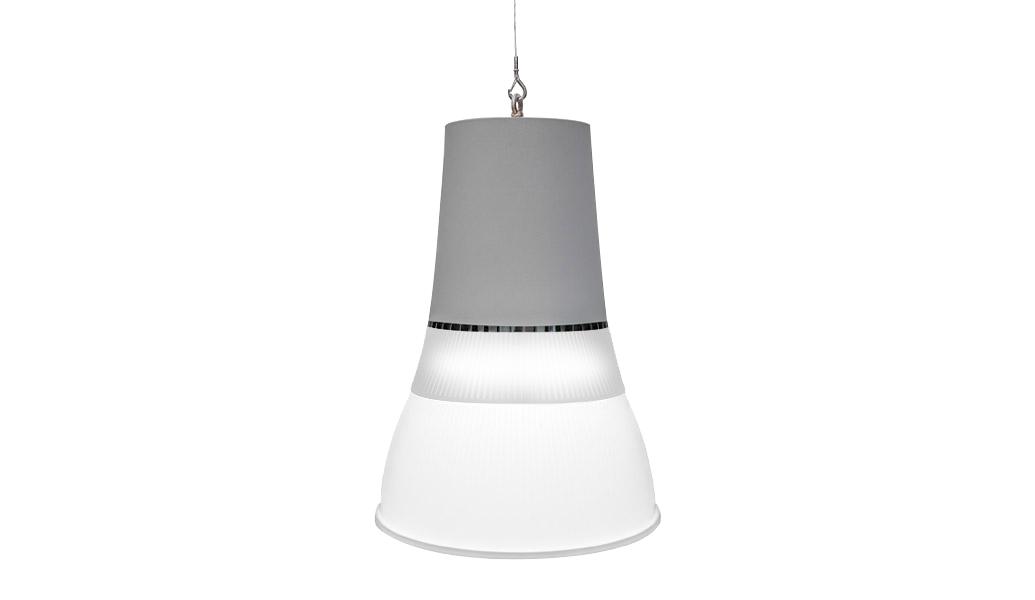

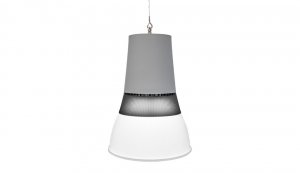

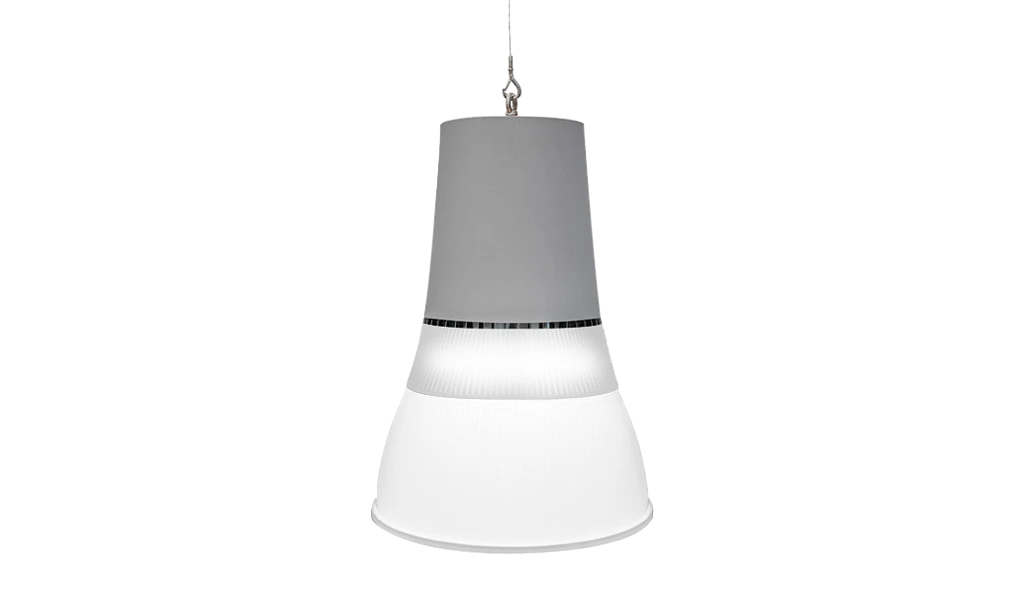

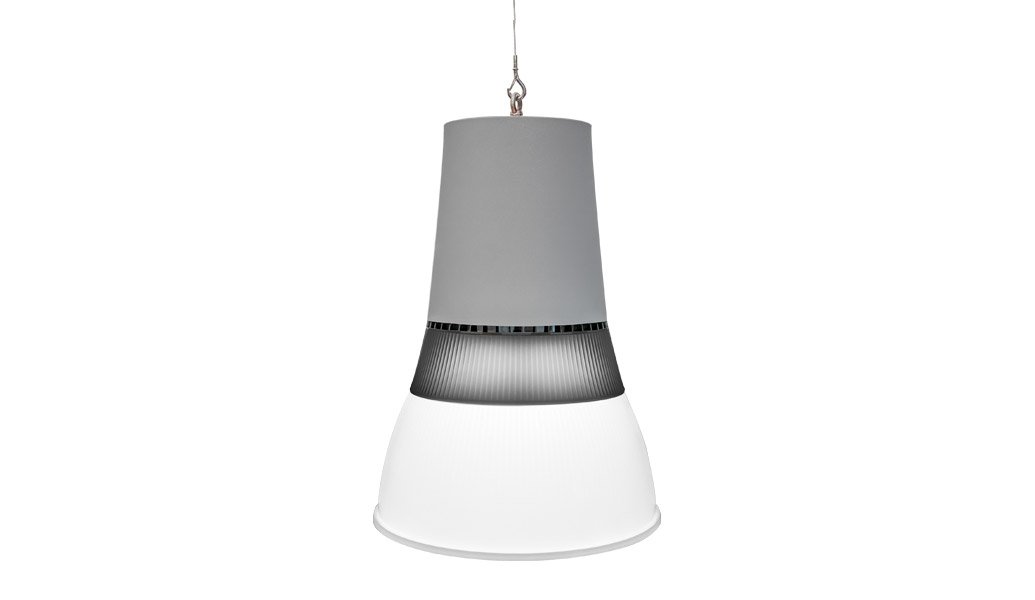

Capo XL Grey Housing

Introduction

The Capo XL is a modern take on the classic Highbay luminaire used in countless warehouse, manufacturing and retail applications around the country. The Capo XL provides a modern and attractive appearance with similar lumen output to traditional 250W and 400W HID luminaires with typically half the energy consumption and minimal maintenance requirements ensuring that the Capo XL provides rapid return on investment in the vast majority of applications. With a matt grey or white aluminium rear housing, a translucent collar available in a range of colours and opal refractor the Capo XL can also be customised to suit any corporate theme.

The Capo XL is available in three lumen outputs, 6,513llm, 12,676llm and 17,718llm luminaire lumens ensuring it can be used as an effective replacement for the majority of HID sources and is also available in dimming and lithium emergency variants eliminating the need for costly separate emergency lighting systems. We offer a range of wireless control systems providing localised grouping and control as well as comprehensive wireless solutions allowing both standard and emergency luminaires to be centrally monitored.

CAPO XL complies with:

UKCA | CE | IP20 | TM21: L90>60K HOURS / L80>90K HOURS | 3 STEP MACADAM ELLIPSE

Recommended applications:

Industrial / Manufacturing | Retail | Warehousing

Specification

Construction

  • Housing: Spun aluminium
  • Finish: Matt grey
  • Diffuser: Injection moulded high transmission opal polycarbonate
  • IP20
  • Translucent collar available in a range of colour options.

Performance

  • Part L2 compliant
  • 3SDCM Three step Macadams ellipse
  • TM21: L90>60K Hours / L80>90K Hours
  • Up to 85 luminaire lumens per circuit Watt.

Environmental

  • Designed to allow simple replacement of components with commonly available tools in compliance with the Eco Design Directive, please see the installation leaflet for maintenance instructions.
  • Powered by European branded drivers and emergency modules ensuring replacement parts are easily sourced.
  • Every luminaire is labelled with a unique ID number allowing easy identification of spare parts for the lifetime of the product.
  • Contains no single use plastics or polystyrene packaging.
  • Supplied in plain card boxes with paper tape ensuring packaging is easily recycled.
  • Designed to allow simple disassembly for end of life recycling.
  • UK based manufacturing providing local support throughout the product lifetime and minimising transportation miles.

Emergency

  • Available with optional standard, self test and autotest integral emergency with lithium batteries for extended warranty and lifetime.
  • Optional Reacta-Link wireless emergency for automated centralised reporting.
  • Optional Reacta-Control wireless emergency for automated centralised reporting.

Control

  • Optional compatibility with a range of dimming systems including DALI, DSI and Switch Dimming
  • Optional integral Reacta-Link for integration with Reacta-Link wireless installations
  • Optional integral Reacta-Control for integration with Reacta-Control wireless installations

Installation

  • Suitable for suspended installation
  • Supplied complete with single point suspension kit allowing for simple replacement of traditional highbay luminaires.

Variations

  • Available with a wide range of colour temperatures and renderings
  • Available in a range of lumen outputs
  • Available with a range of collar colours
5 year extended warranty available on most products.
Arrow right

Product Images

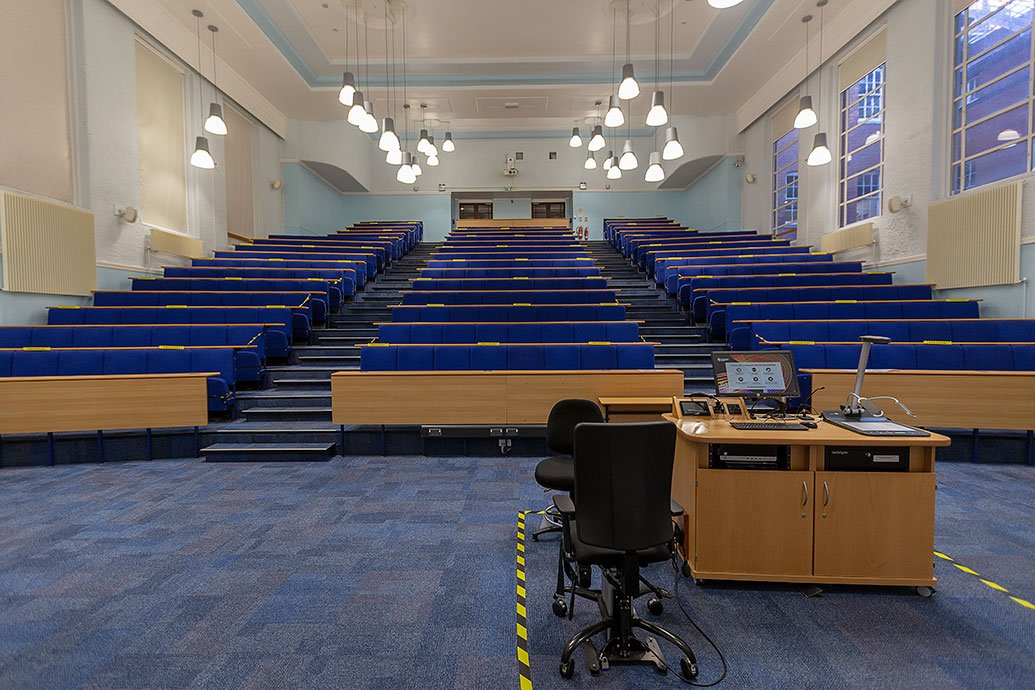

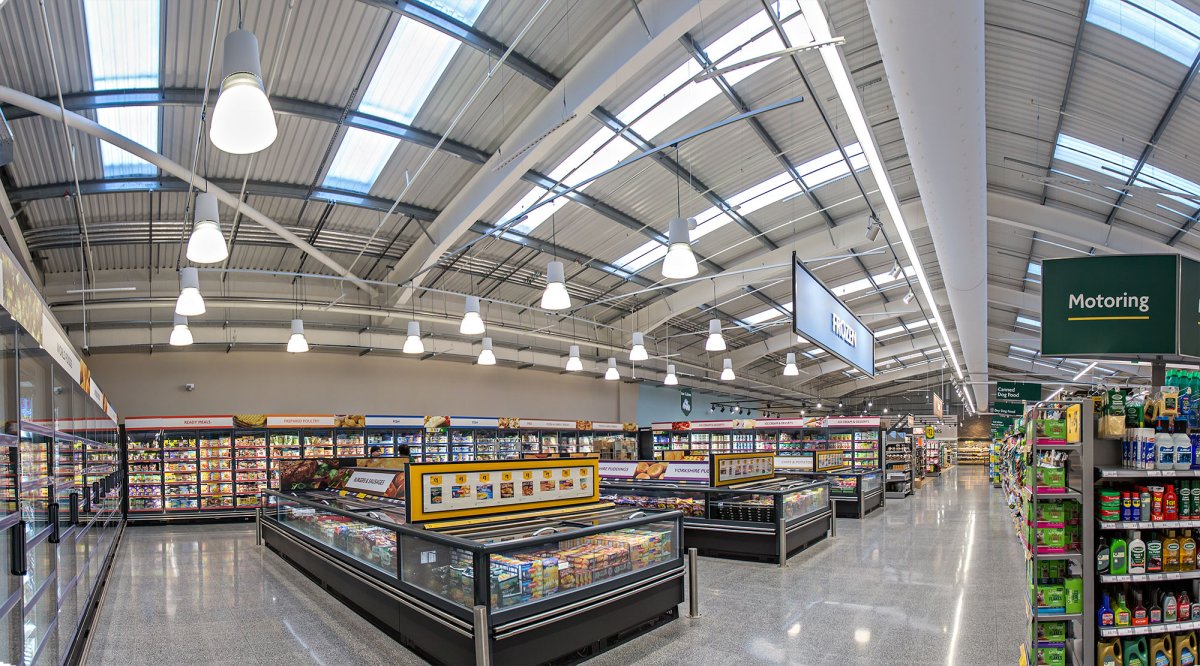

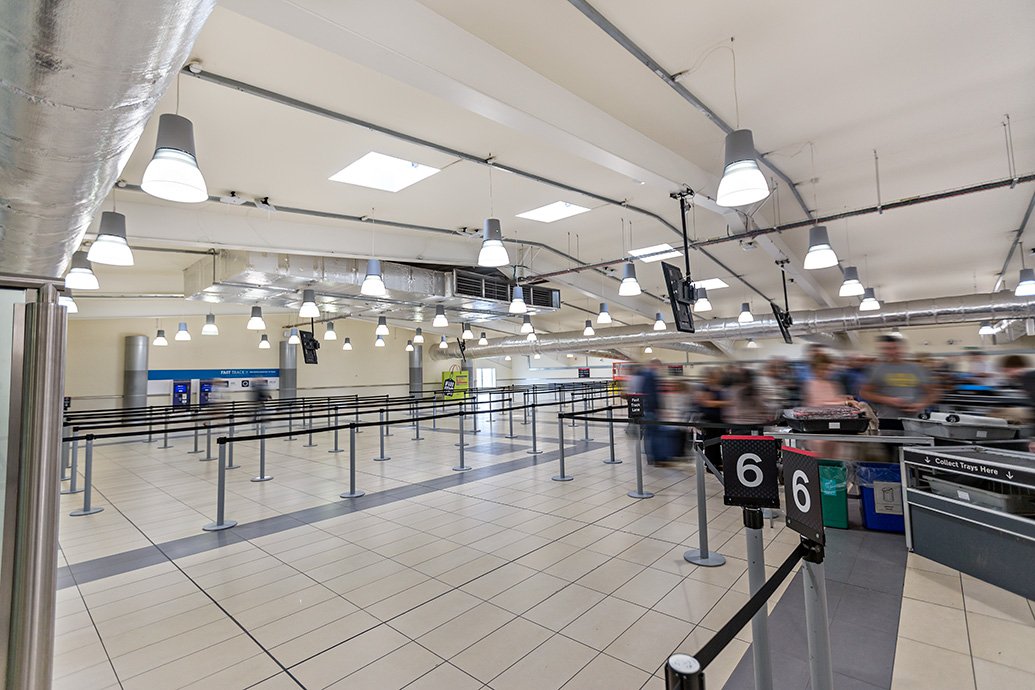

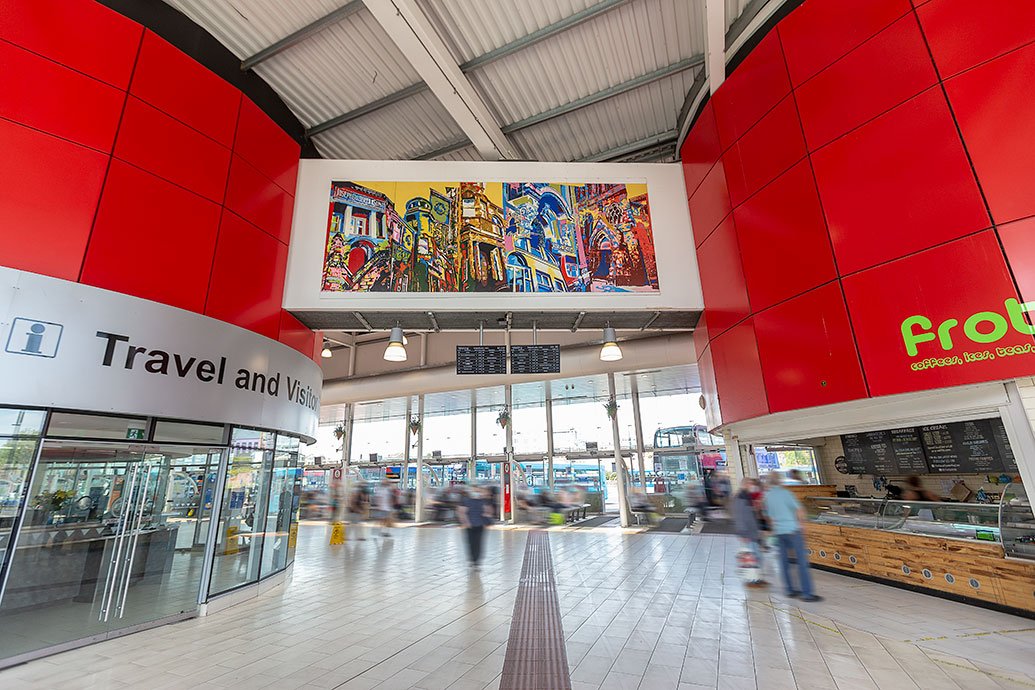

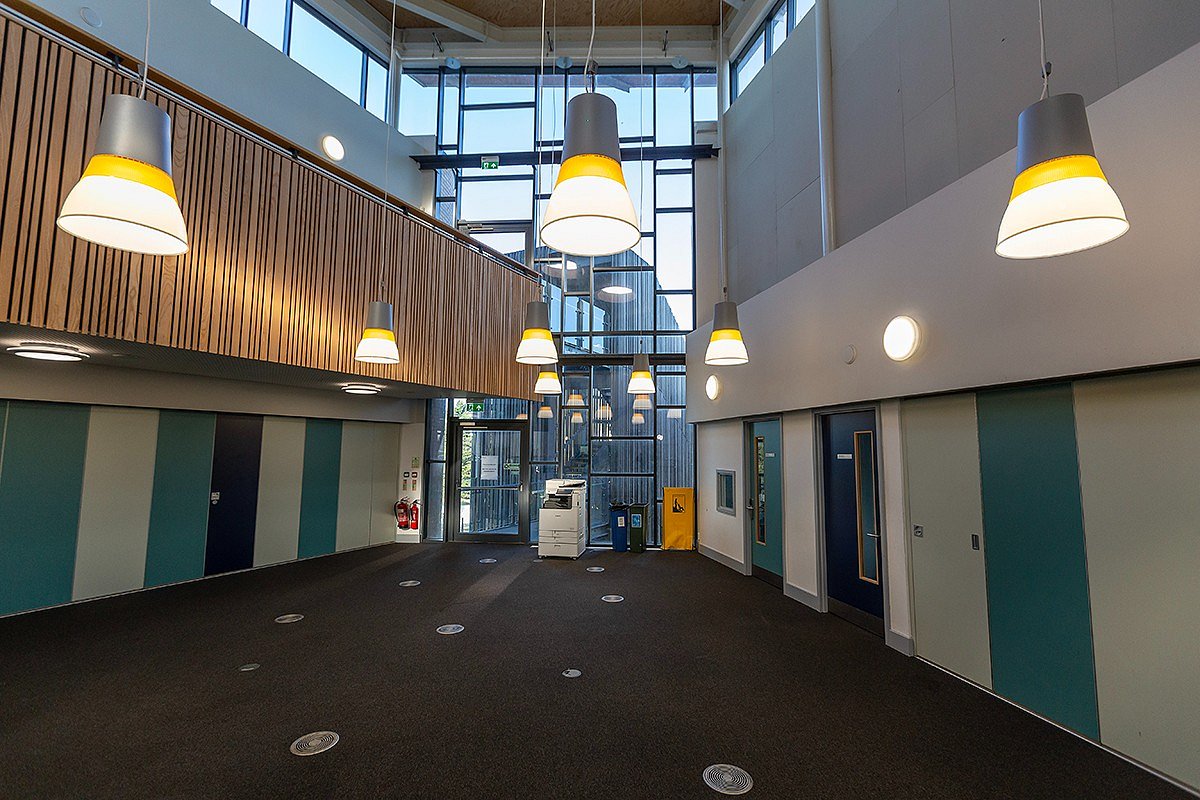

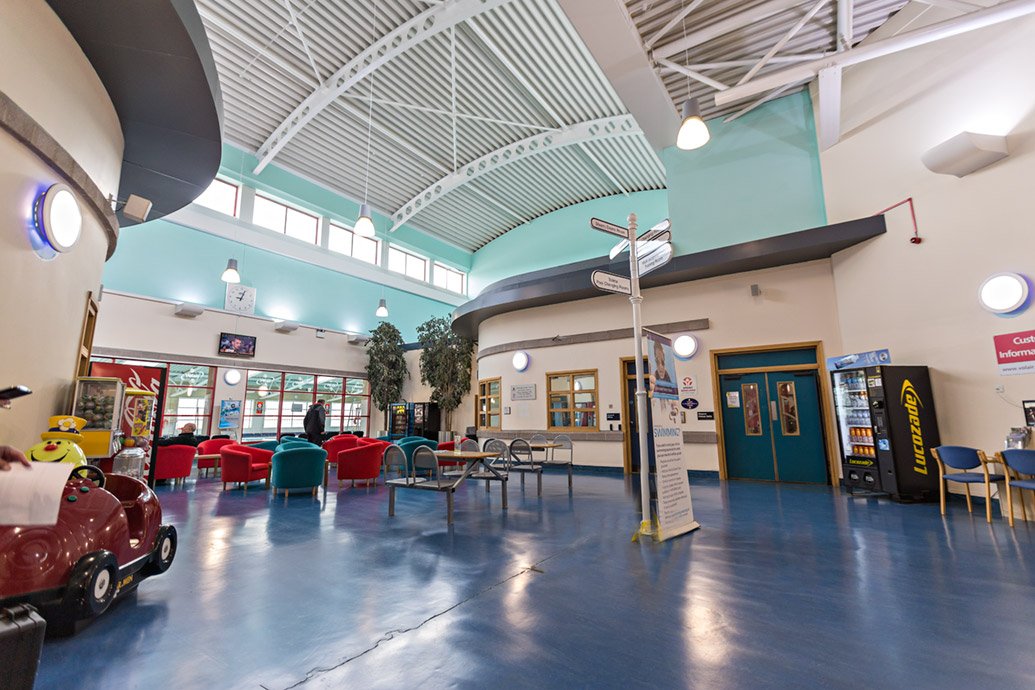

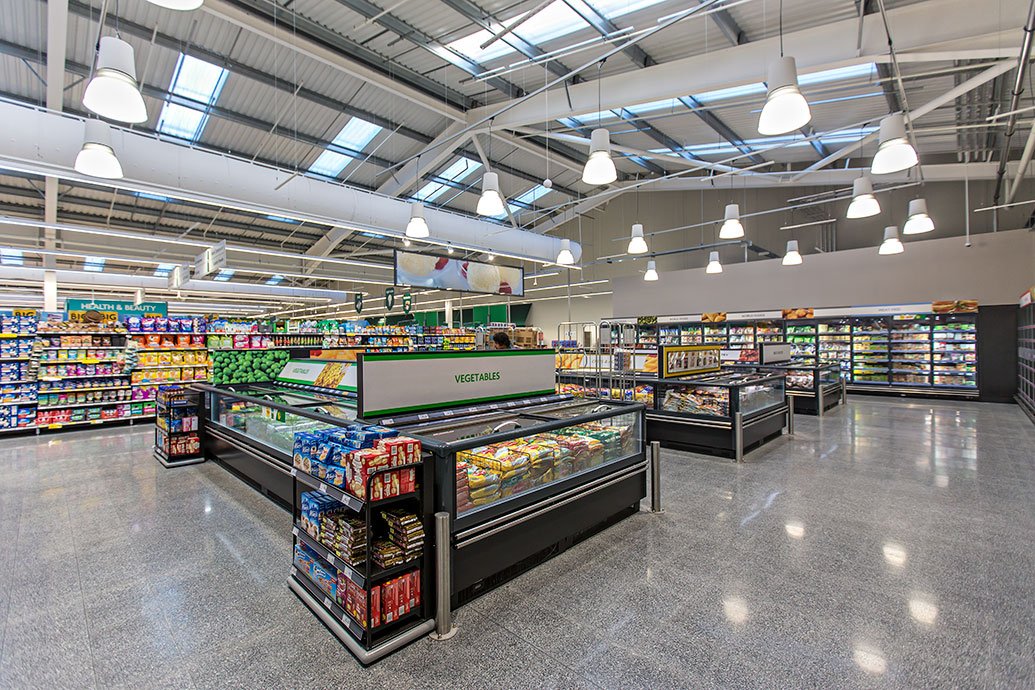

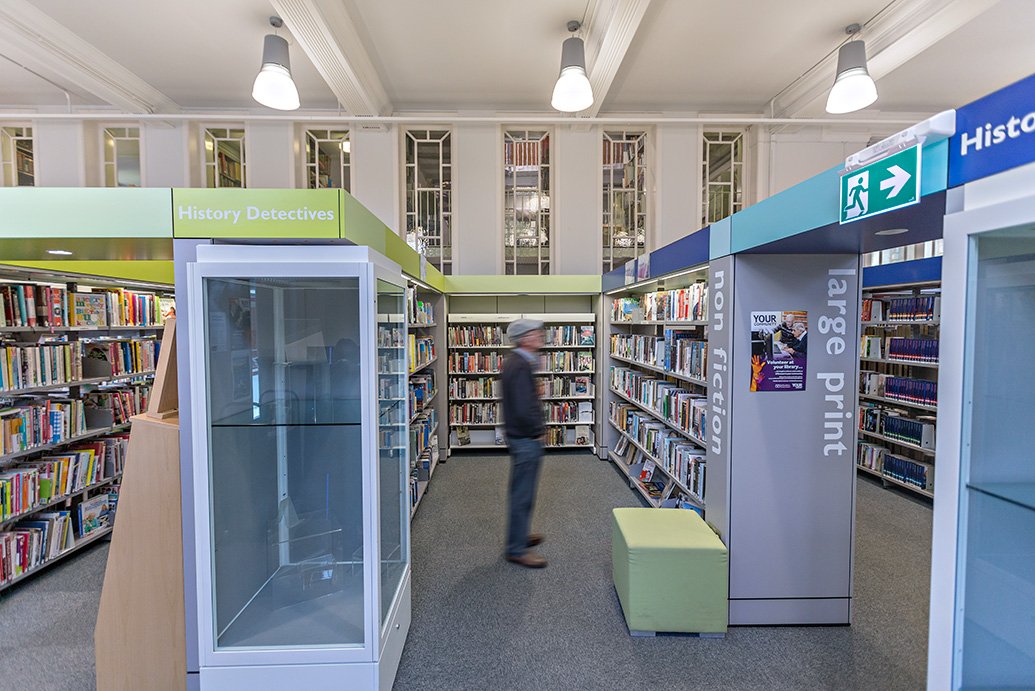

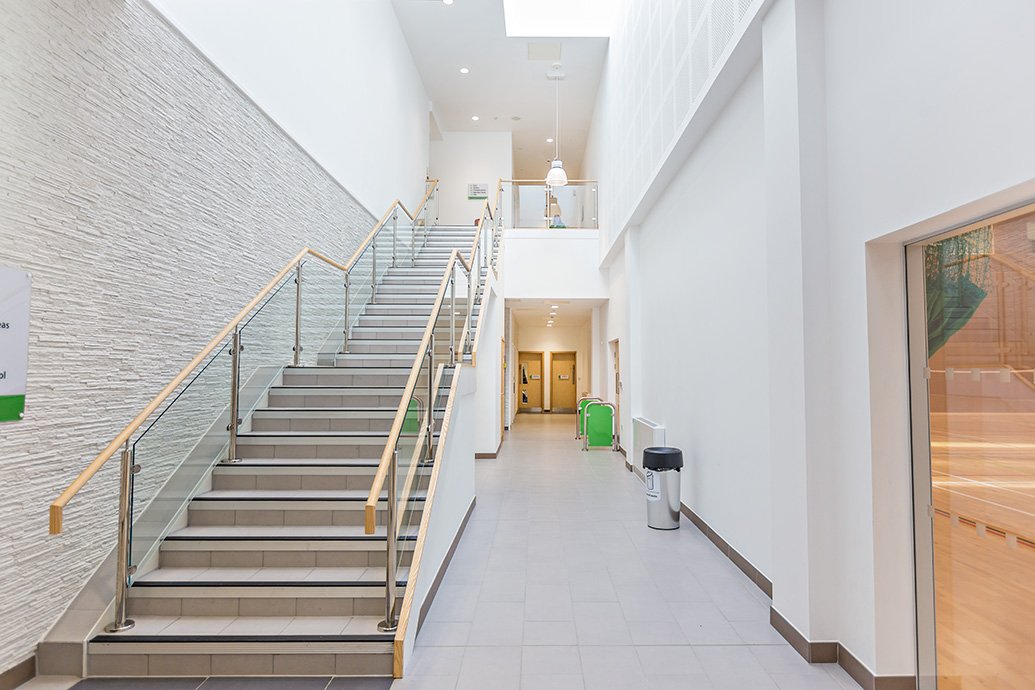

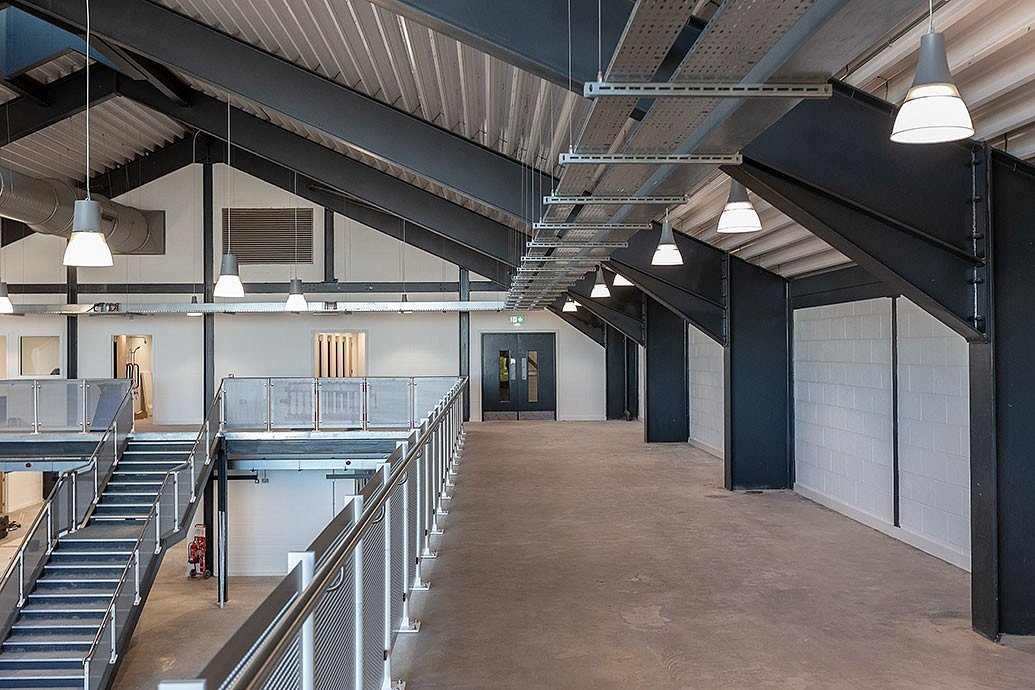

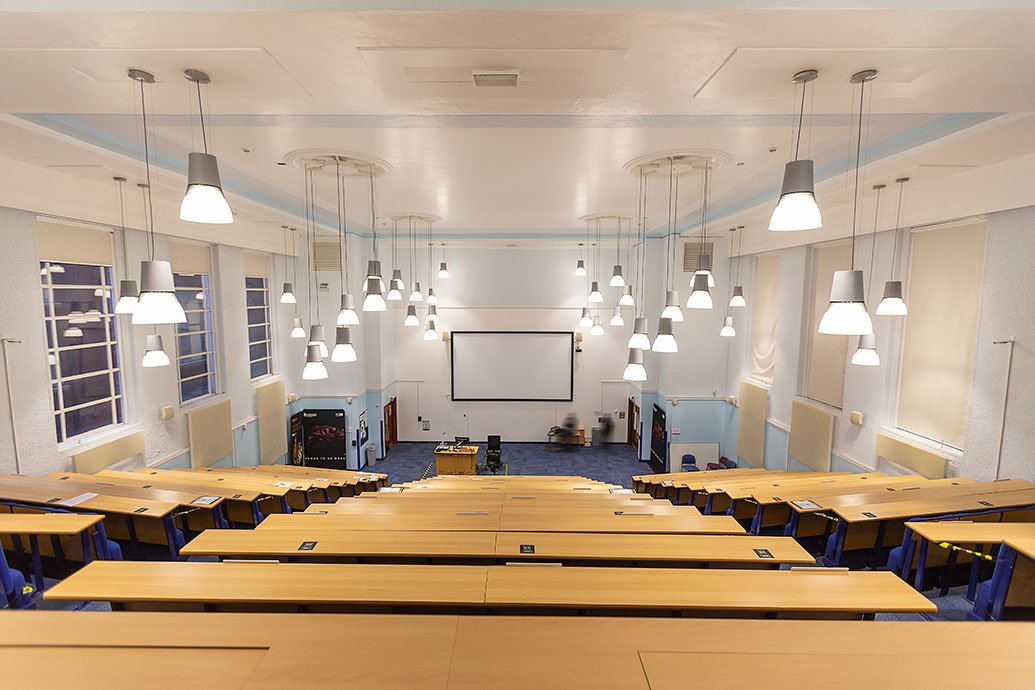

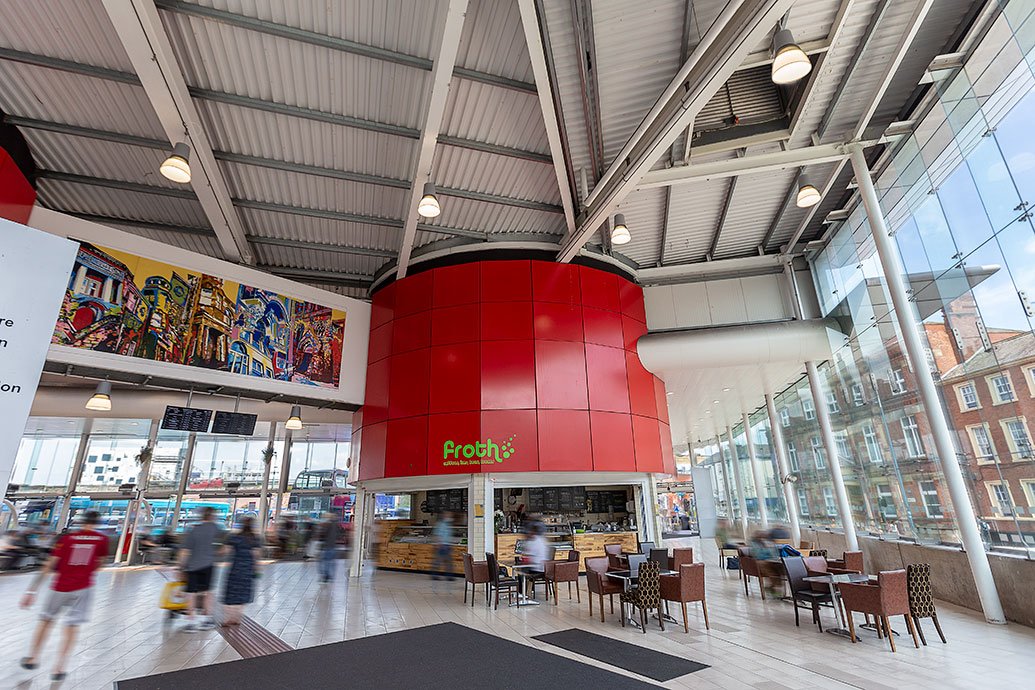

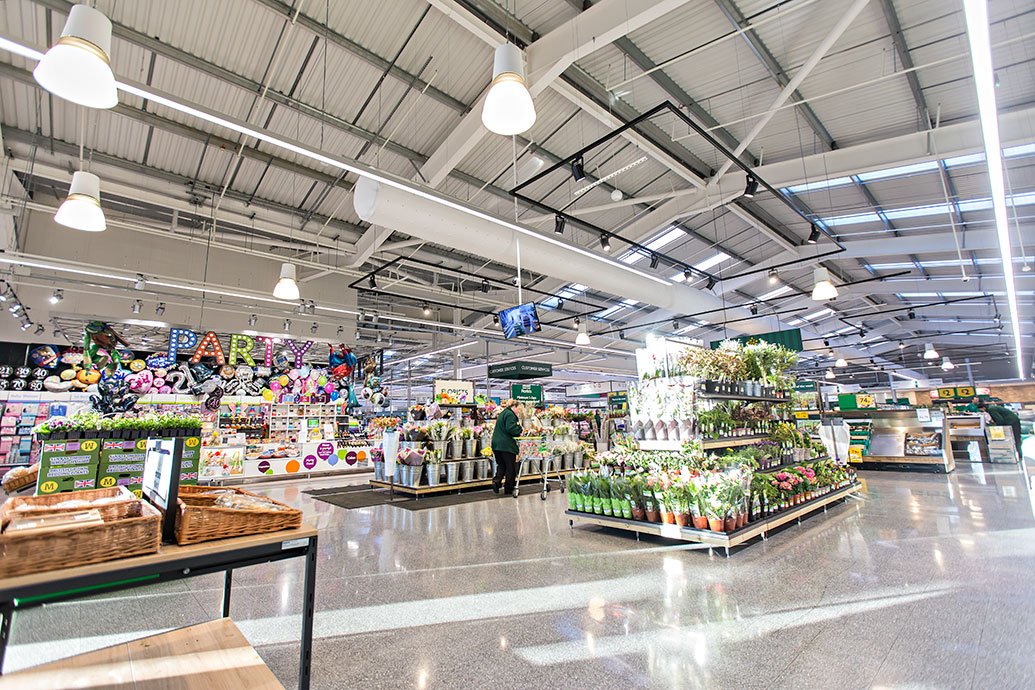

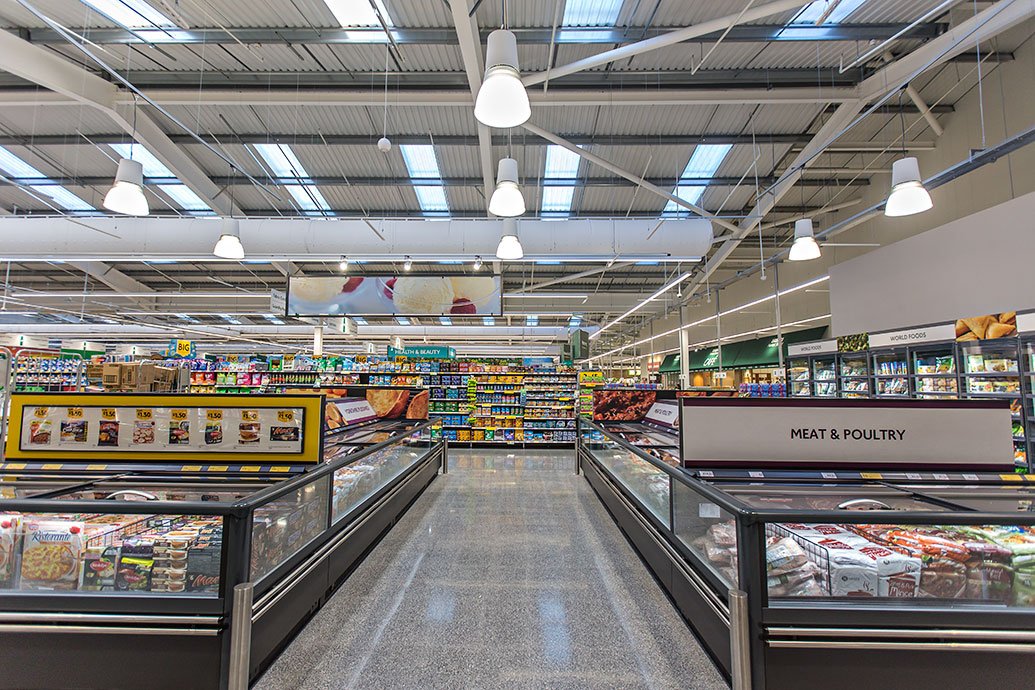

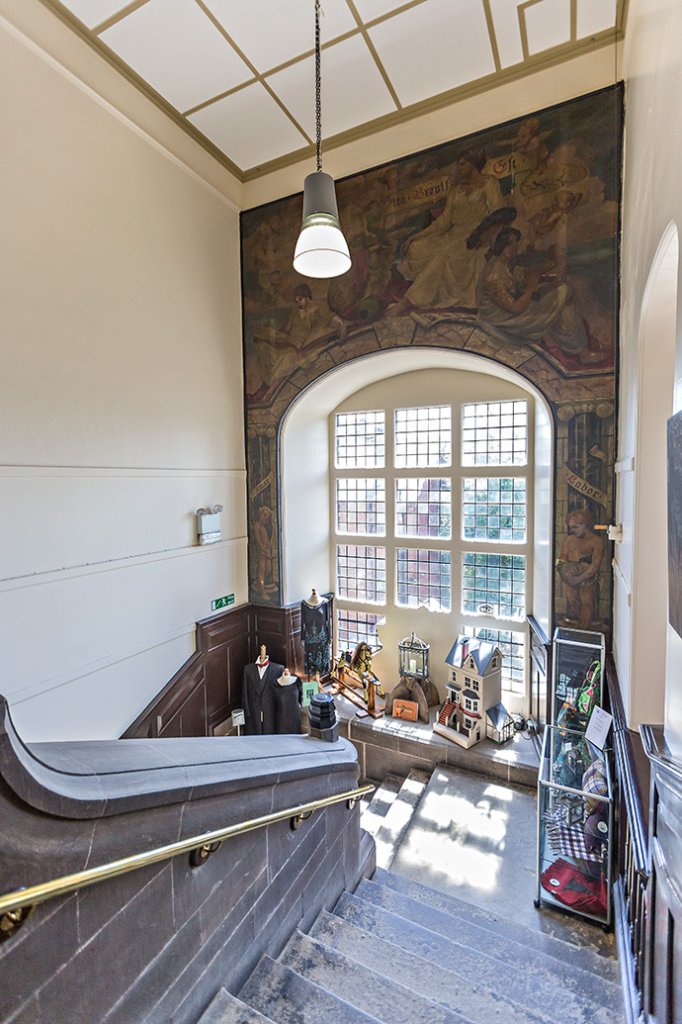

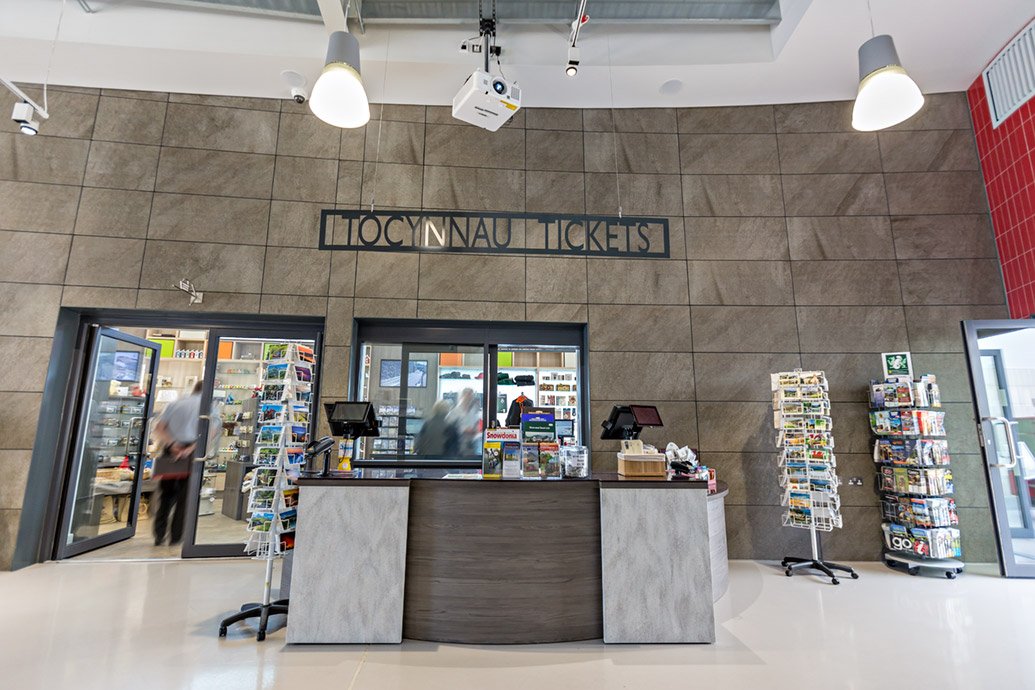

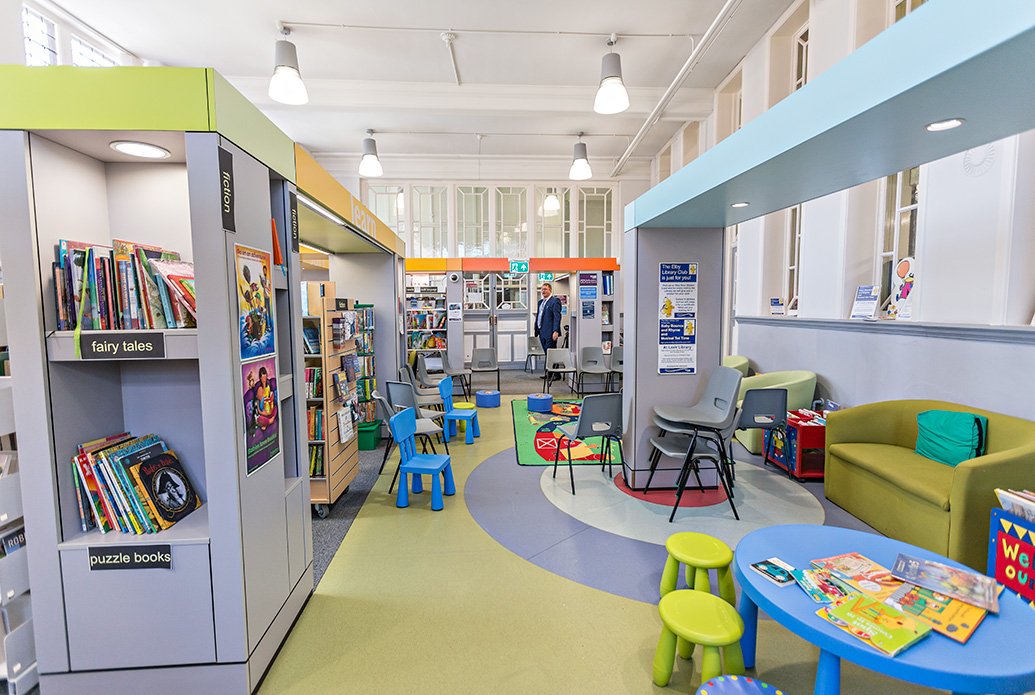

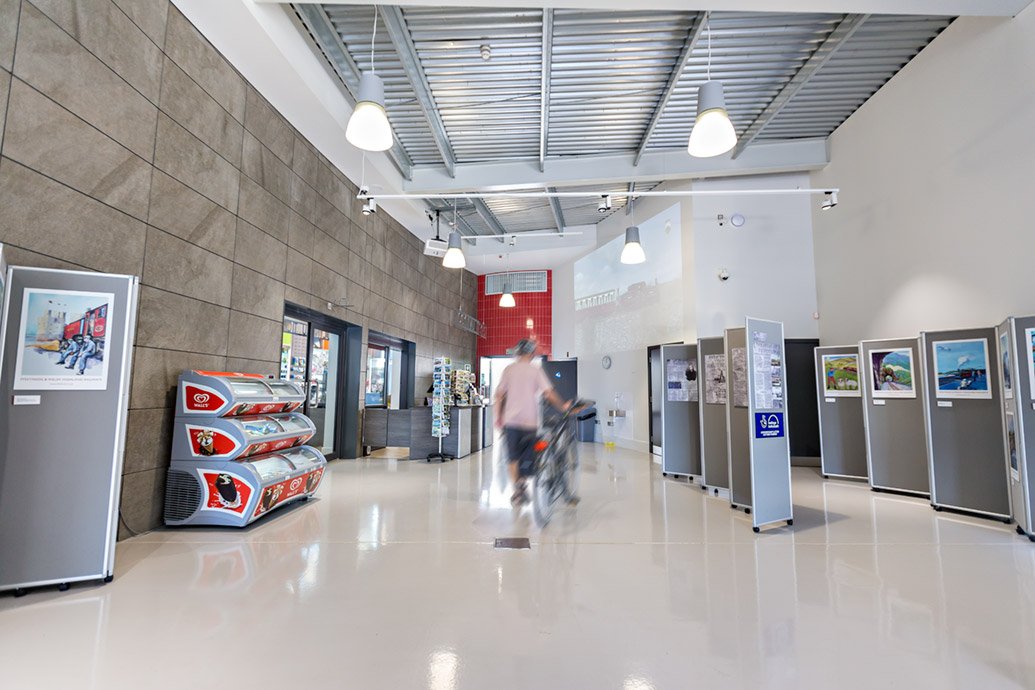

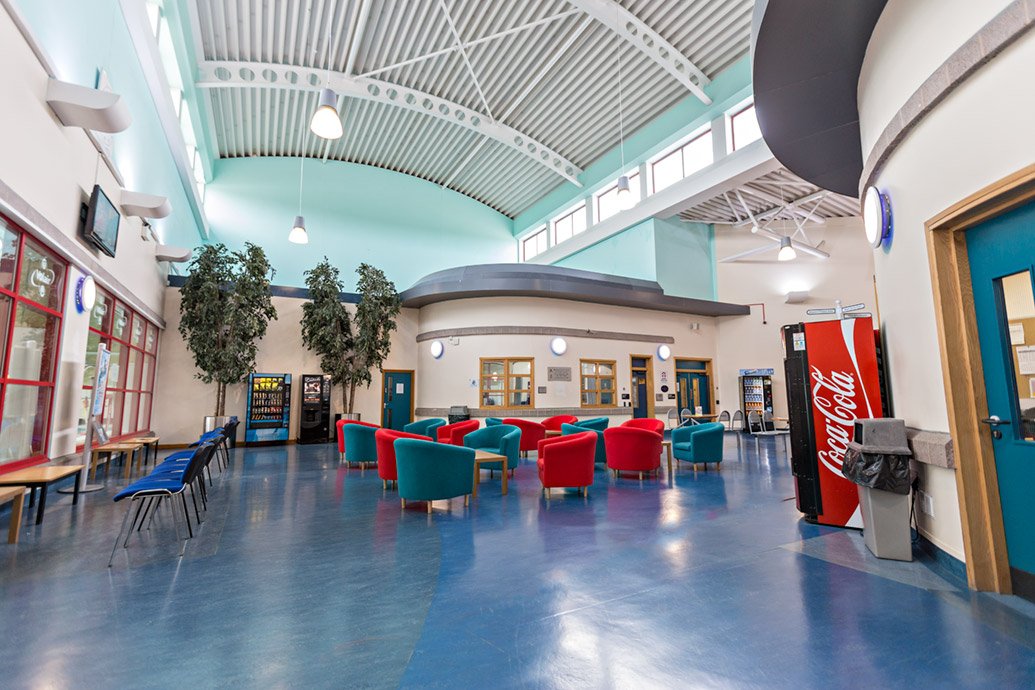

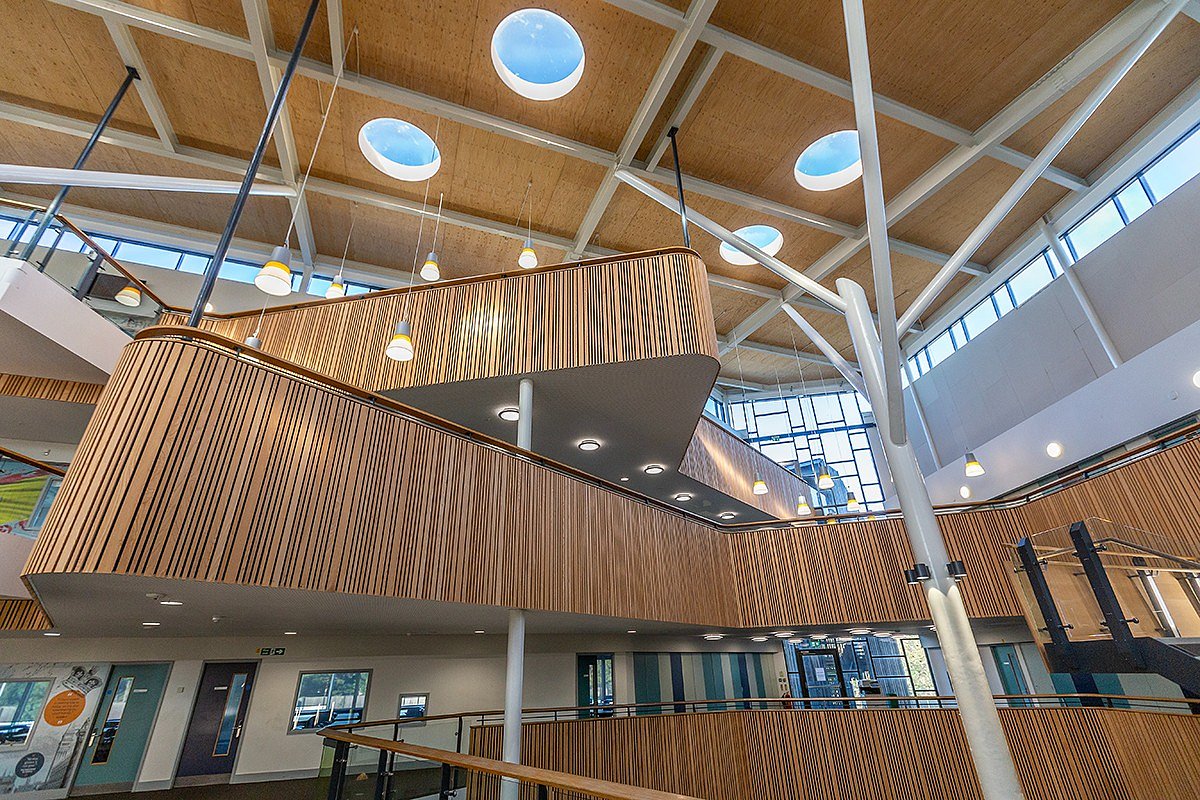

CAPO XL in action

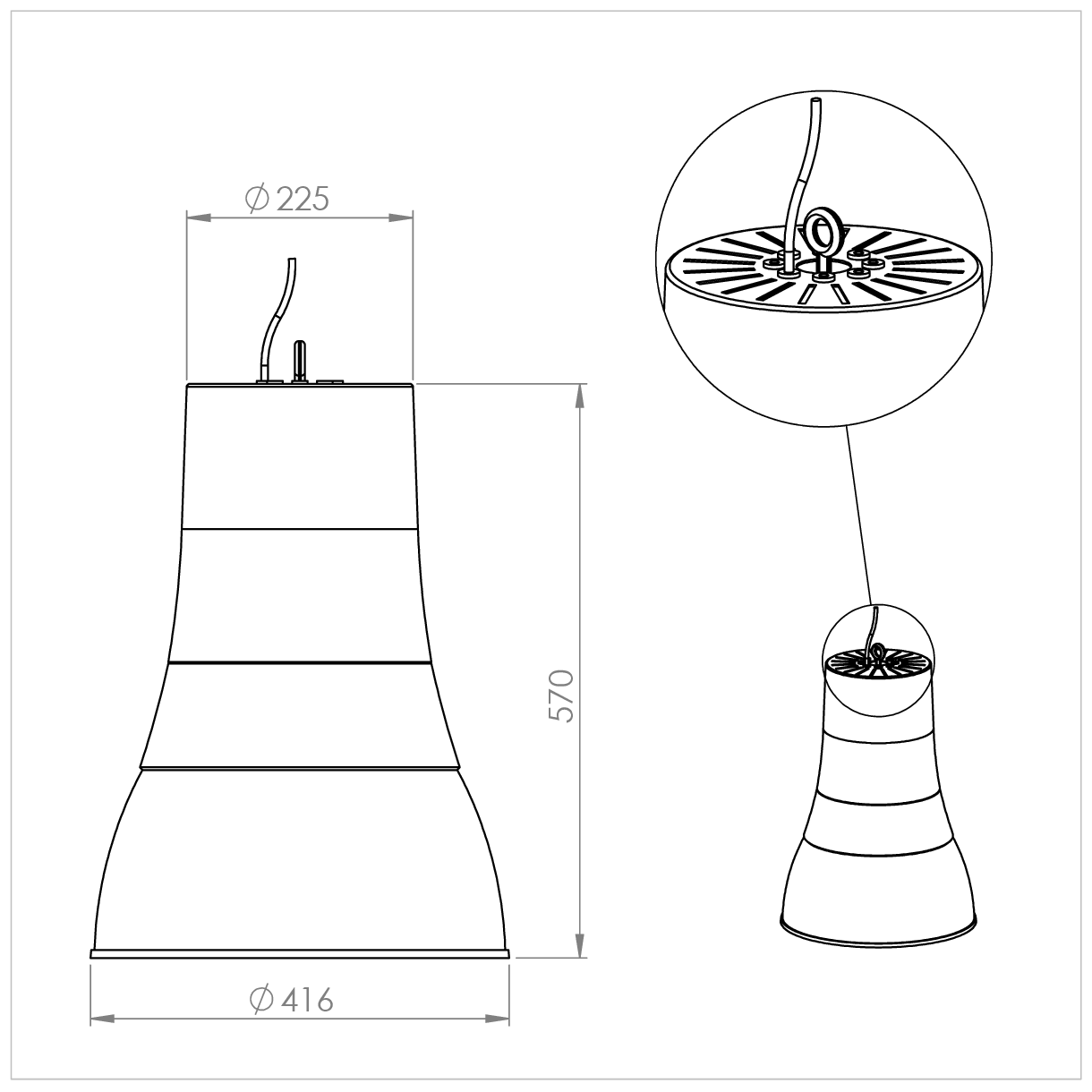

Technical

Capo XL

Capo XL

Ordering

Luminaires

Code Description Power Llm/W
CAP XL L80 Capo XL, 6,513llm, Grey Housing, Colour 84 52.2W 125
CAP XL L160 Capo XL, 12,676llm, Grey Housing, Colour 84 104.5W 121
CAP XL L240 Capo XL, 17,718llm, Grey Housing, Colour 84 153.0W 116
Supplied with suspension kit

Dimming

Code Description
A DALI Digital Addressable Lighting Interface
S Switch Dimming
D DSI Digital Dimming
C Bi-Level Dimming For Standalone Switched Sensor
The Capo XL L160 uses two drivers and the L240 uses three drivers requiring an address per driver on the DALI network.
DSI is not available in L80 variants.

Control

Code Description
RLI Reacta-Link, Wireless Enabled Luminaire
RC Reacta-Control, Wireless Enabled Luminaire
Please click here for full details on our wireless controls.

Emergency

Code Description
LE3 Lithium Standard Emergency 3 Hour
LS3 Lithium Selftest Emergency 3 Hour
LA3 Lithium Autotest Emergency 3 Hour
LSTR Lithium Reacta-Link Emergency 3 Hour
LA3RC Lithium Reacta-Control Emergency 3 Hour

Miscellaneous

Code Description
C** Select Colour Temperature and Rendering; C83, C865, C93, C94

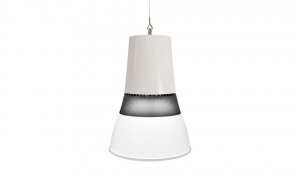

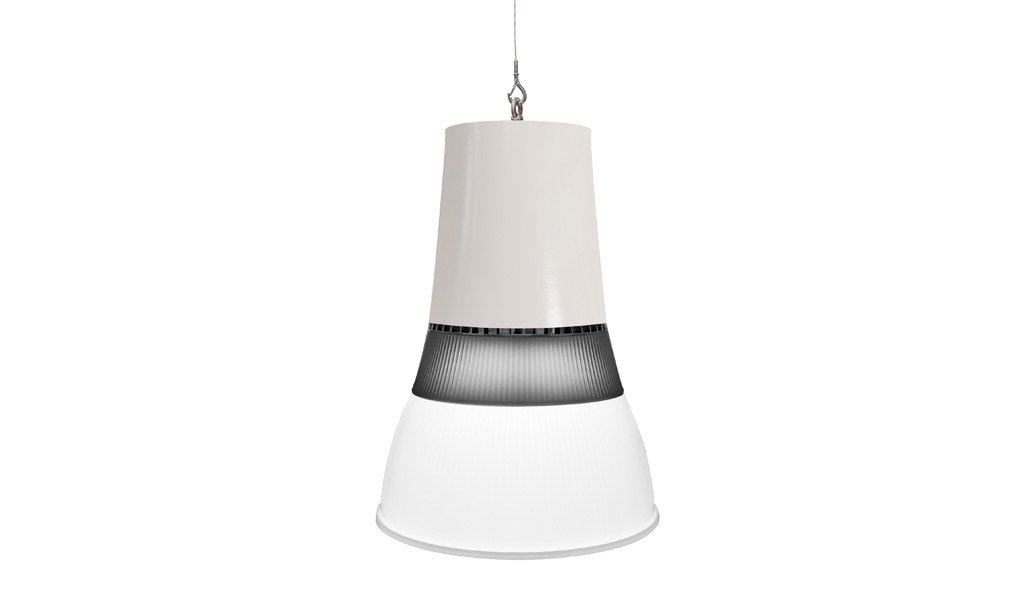

WH White Finish

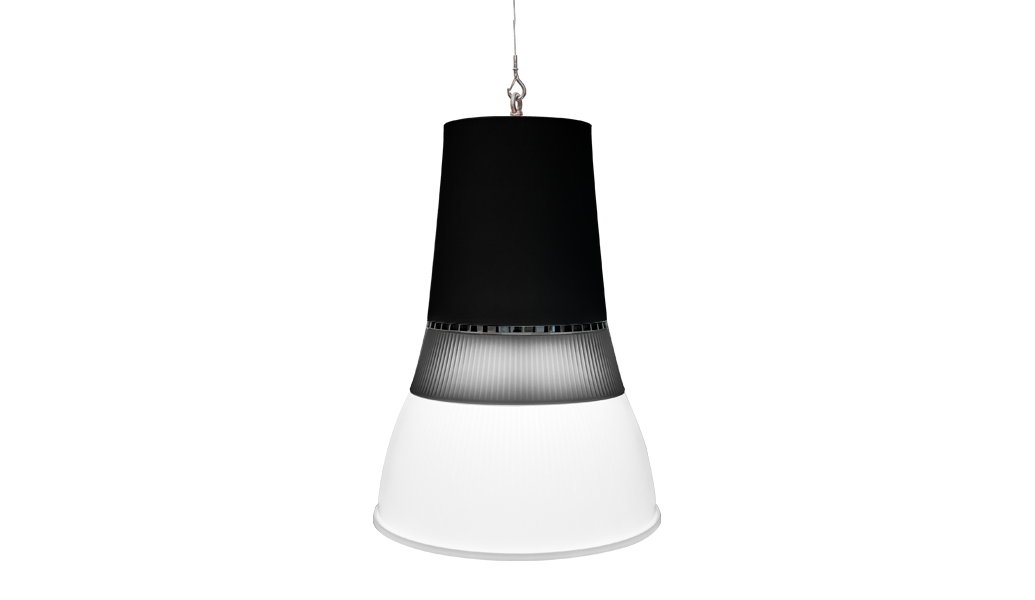

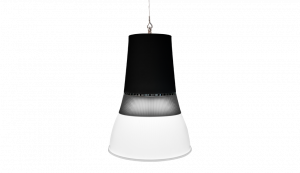

BL Black Finish

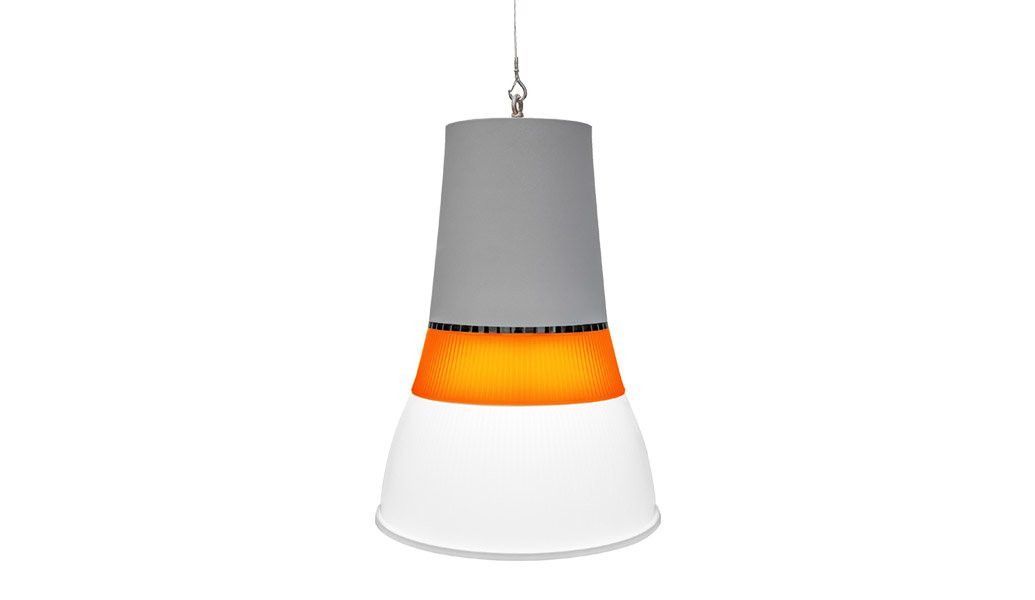

RED Red Collar

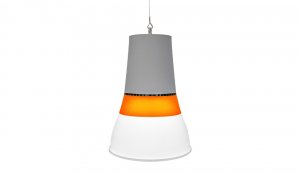

ORA Orange Collar

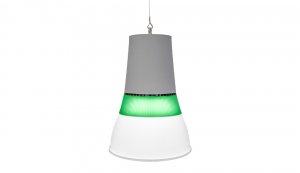

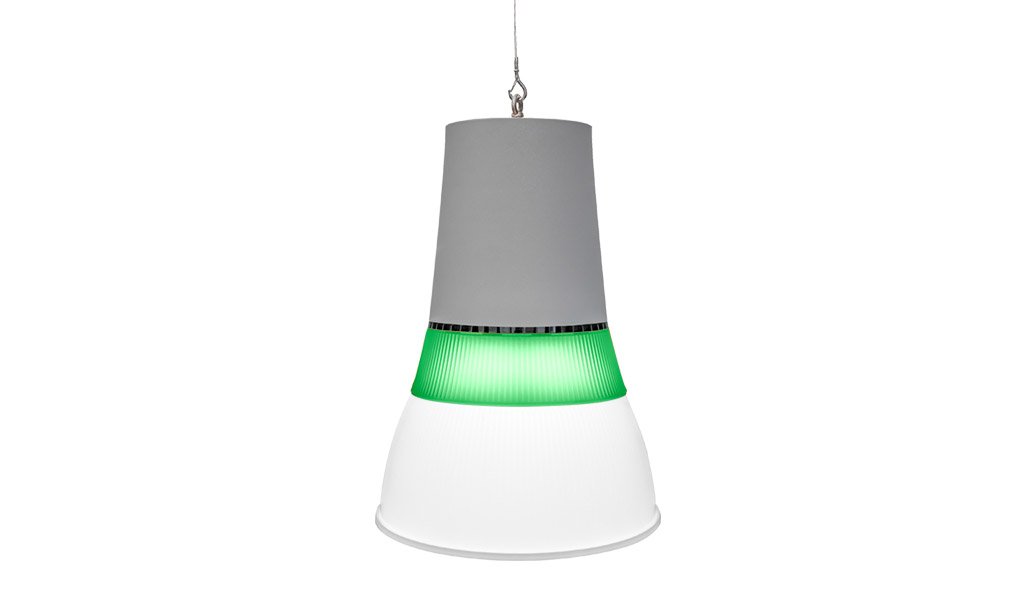

GRN Green Collar
BLE Blue Collar

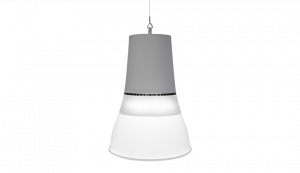

OP Opal Collar
LSF Low Smoke Zero Halogen
Collar colours may be subject to minimum order quantity

Downloads

Installation guide (Download PDF) Product Datasheet (Download PDF) Revit Files Dialux Files Relux Files
