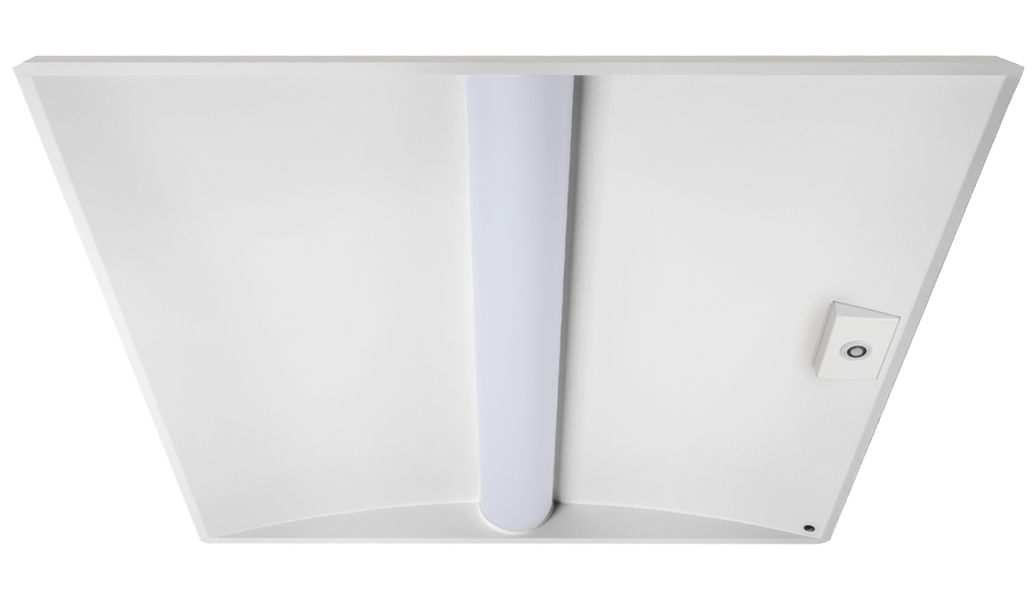

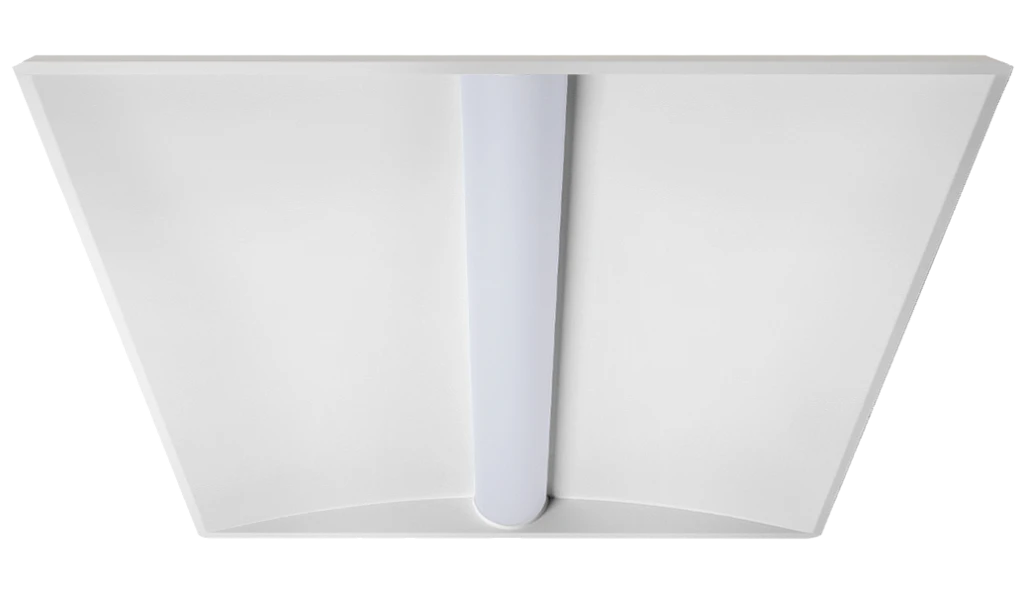

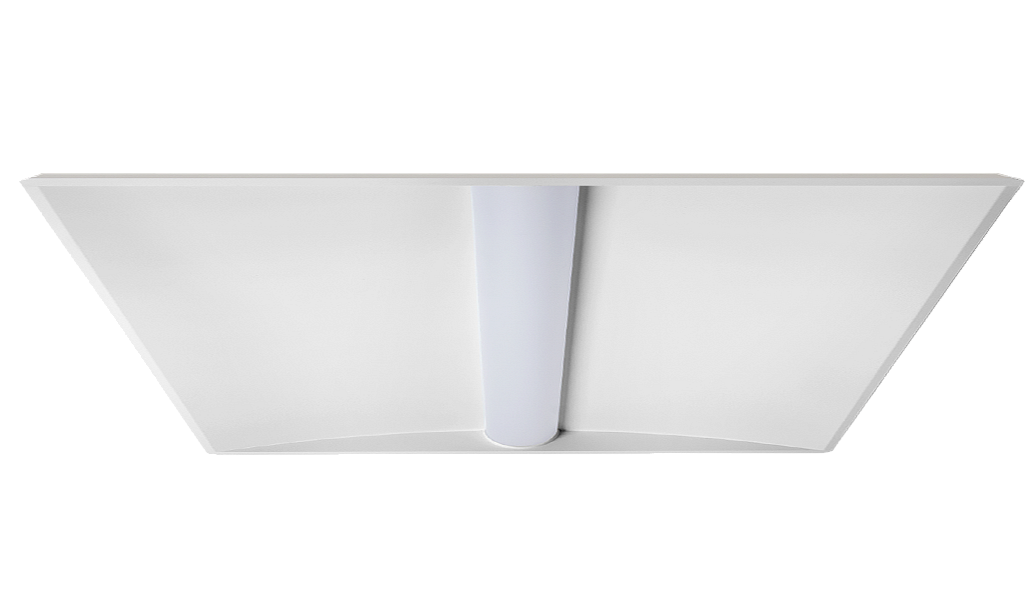

Arcus Mono 600x600

Introduction

The Arcus Mono brings a new aesthetic to our range of LED modular luminaires with a gullwing design with a single high transmission extruded opal diffuser providing excellent efficiency. The Arcus Mono is available in 1200x600, 1200x300 and 600x600 options for lay in installation in exposed T ceiling systems and can also be ordered in dimming, white tunable and lithium emergency options ensuring it can be easily tailored to suit your needs. With lumen outputs ranging from 2100llm to 5880llm the Arcus Mono is ideally suited to applications such as retail, receptions and corridors. We offer a range of wireless control systems providing localised grouping and control as well as comprehensive wireless solutions allowing both standard and emergency luminaires to be centrally monitored.

ARCUS MONO complies with:

UKCA | CE | IP30 | TM21: L90>60K HOURS / L80>90K HOURS | 3 STEP MACADAM ELLIPSE | TP(a)

Recommended applications:

Canteen | Commercial / Offices | Corridor | Education | Hotel / Leisure | Industrial / Manufacturing | Retail

Specification

Construction

  • Housing: 0.7mm CR4 steel
  • Finish: Polyester powder painted BS 00E55 matt white 60% gloss
  • Diffuser: 2mm extruded high transmission opal polycarbonate
  • IP20

Performance

  • Part L2 compliant
  • 3SDCM Three step Macadams ellipse
  • TM21: L90>60K Hours / L80>90K Hours
  • Up to 133 luminaire lumens per circuit Watt.

Environmental

  • Designed to allow simple replacement of components with commonly available tools in compliance with the Eco Design Directive, please see the installation leaflet for maintenance instructions.
  • Powered by European branded drivers and emergency modules ensuring replacement parts are easily sourced.
  • Every luminaire is labelled with a unique ID number allowing easy identification of spare parts for the lifetime of the product.
  • Contains no single use plastics or polystyrene packaging.
  • Supplied in plain card boxes with paper tape ensuring packaging is easily recycled.
  • Designed to allow simple disassembly for end of life recycling.
  • UK based manufacturing providing local support throughout the product lifetime and minimising transportation miles.

Emergency

  • Available with optional standard, self test and autotest integral emergency with lithium batteries for extended warranty and lifetime.
  • Optional Reacta-Link wireless emergency for automated centralised reporting.
  • Optional Reacta-Control wireless emergency for automated centralised reporting.
  • Optional central battery changeover relay

Control

  • HFR 1-10V analogue dimming
  • Optional compatibility with a range of dimming systems including DALI, DSI and Switch Dimming
  • Optional White tunable

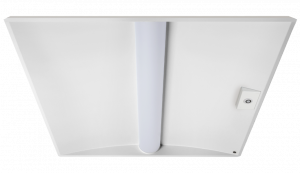

  • Optional Integral R44 presence and daylight sensor
  • Optional integral Reacta-Link for integration with Reacta-Link wireless installations
  • Optional integral Reacta-Control for integration with Reacta-Control wireless installations

Installation

  • Suitable for lay-in installation in exposed T ceilings
  • Suitable for pull-up installation in concealed grid ceilings
  • Suitable for plasterboard installation when purchased with the appropriate plasterboard kit

Variations

  • Available with a wide range of colour temperatures and renderings
  • Available in a range of lumen outputs
5 year extended warranty available on most products.
Arrow right

Product Images

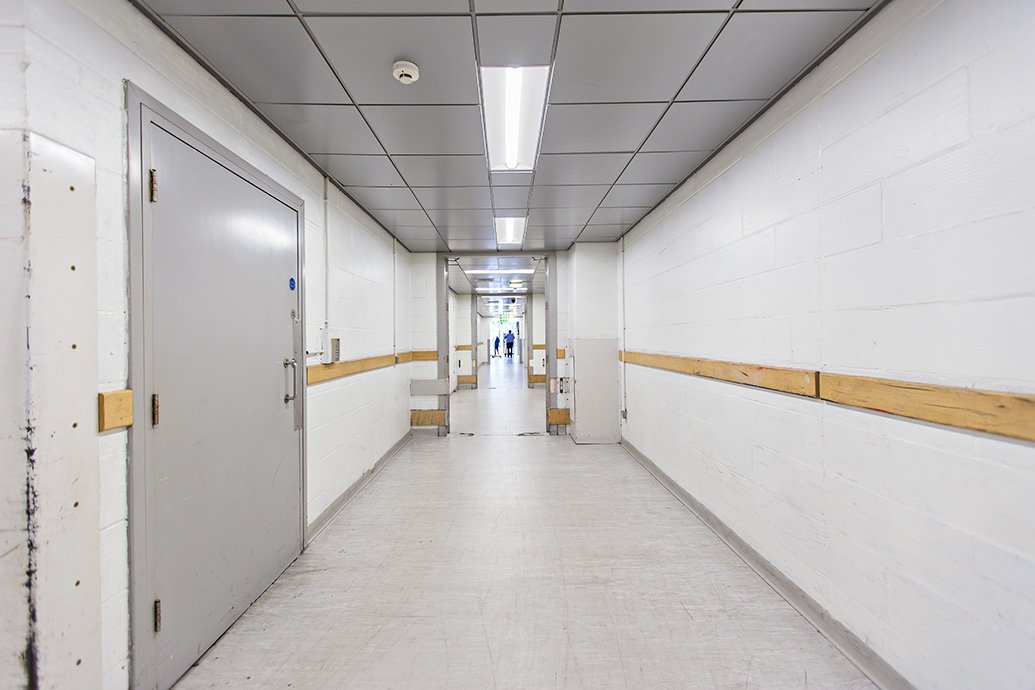

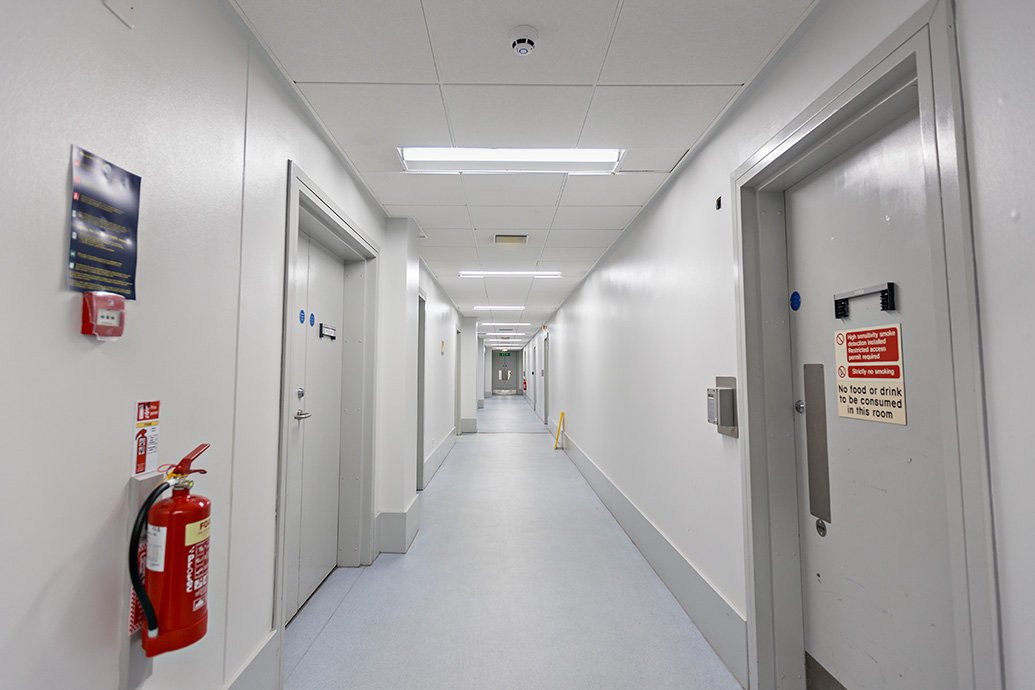

ARCUS MONO in action

Technical

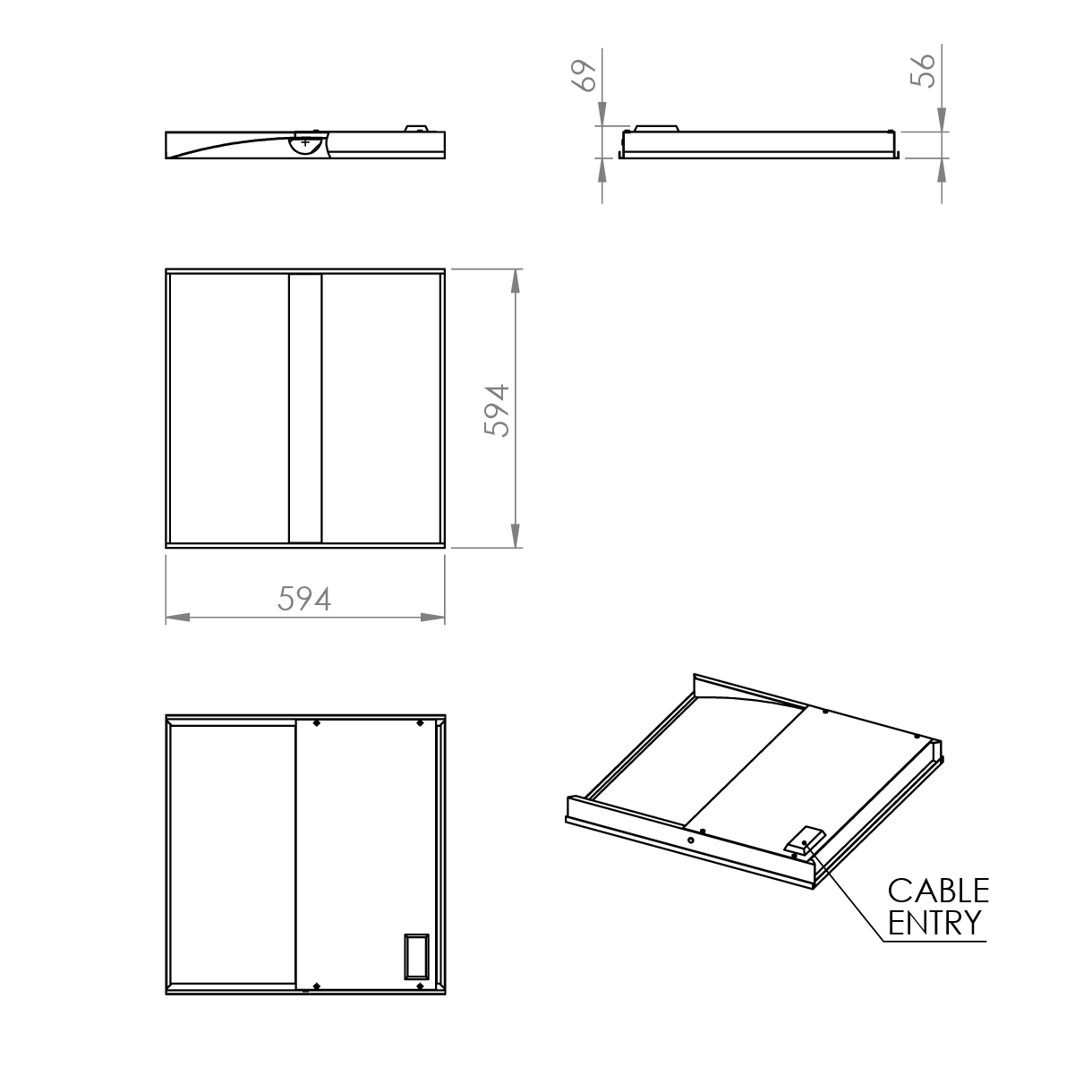

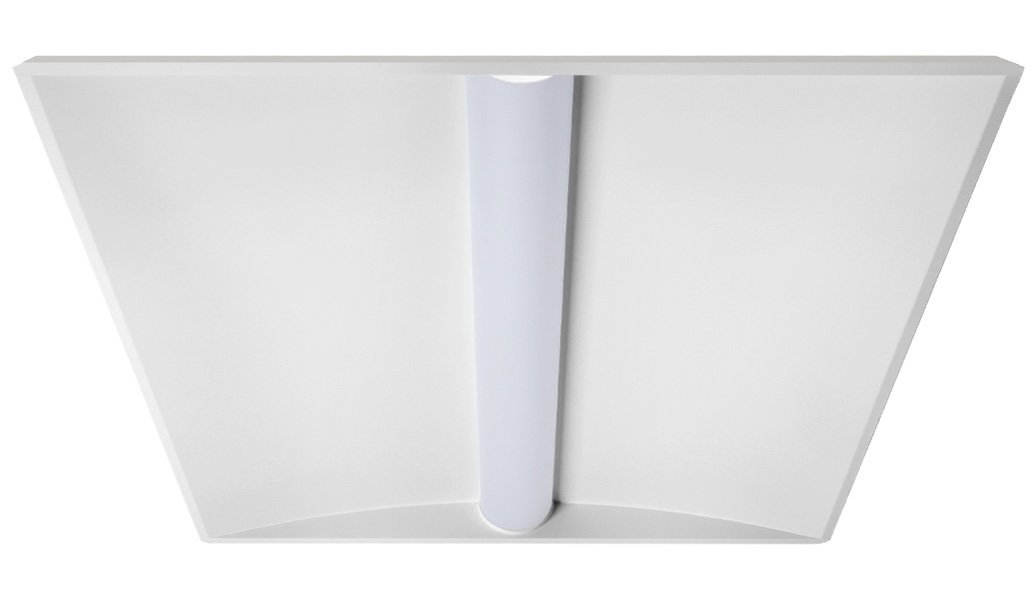

Arcus Mono Lay-In 600x600

Arcus Mono Lay-In 600x600

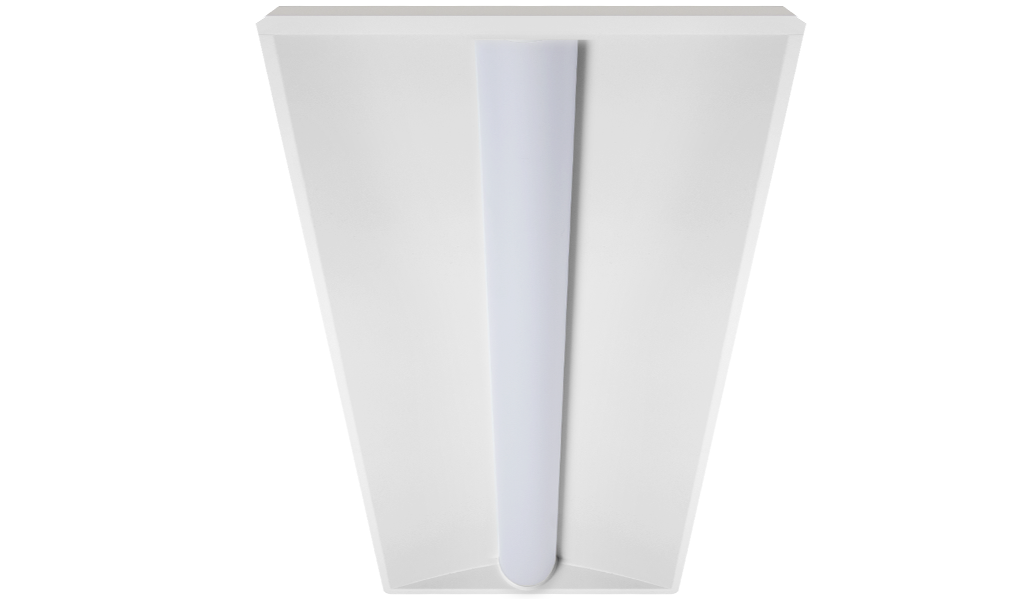

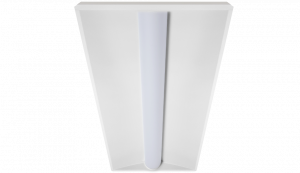

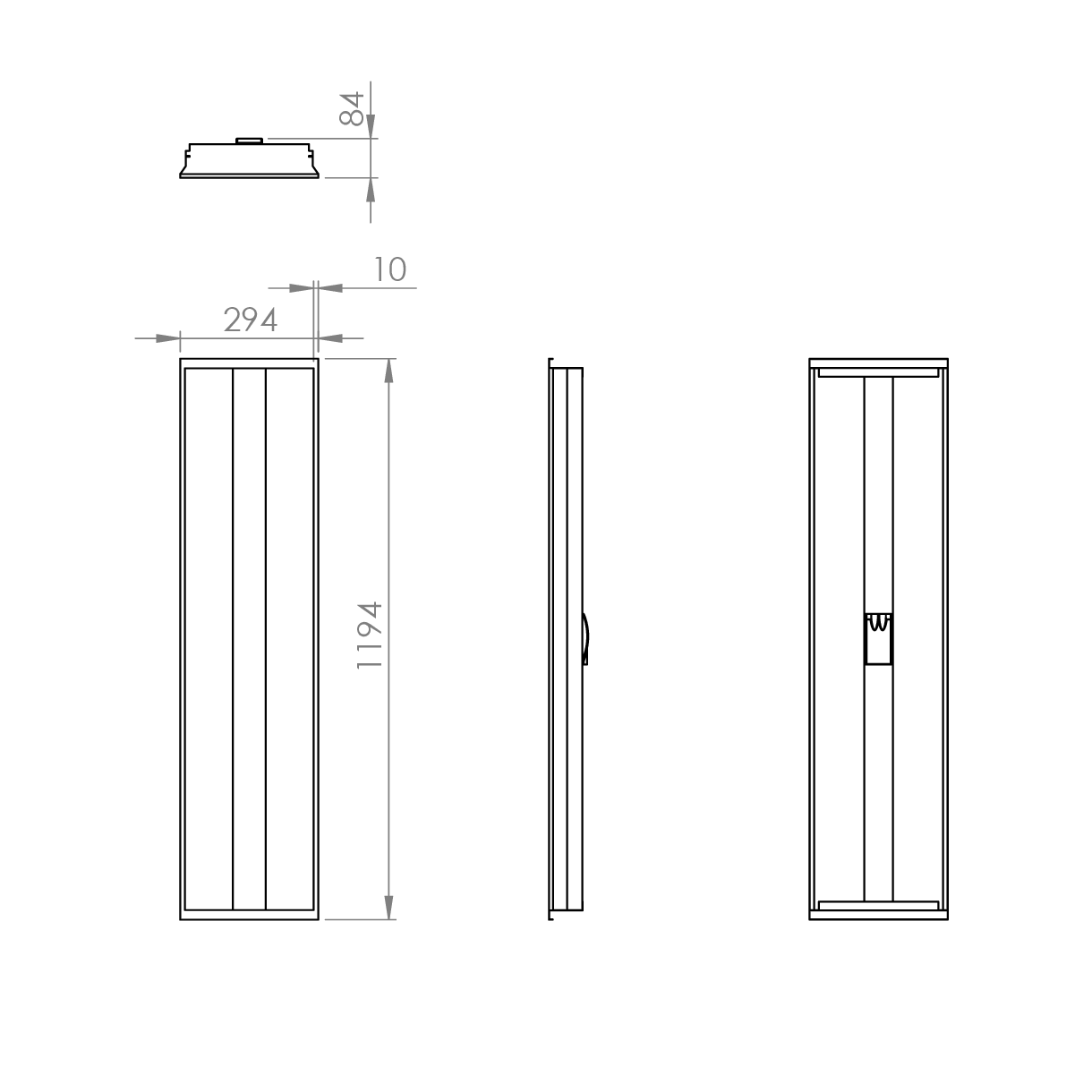

Arcus Mono Lay-In 1200x300

Arcus Mono Lay-In 1200x300

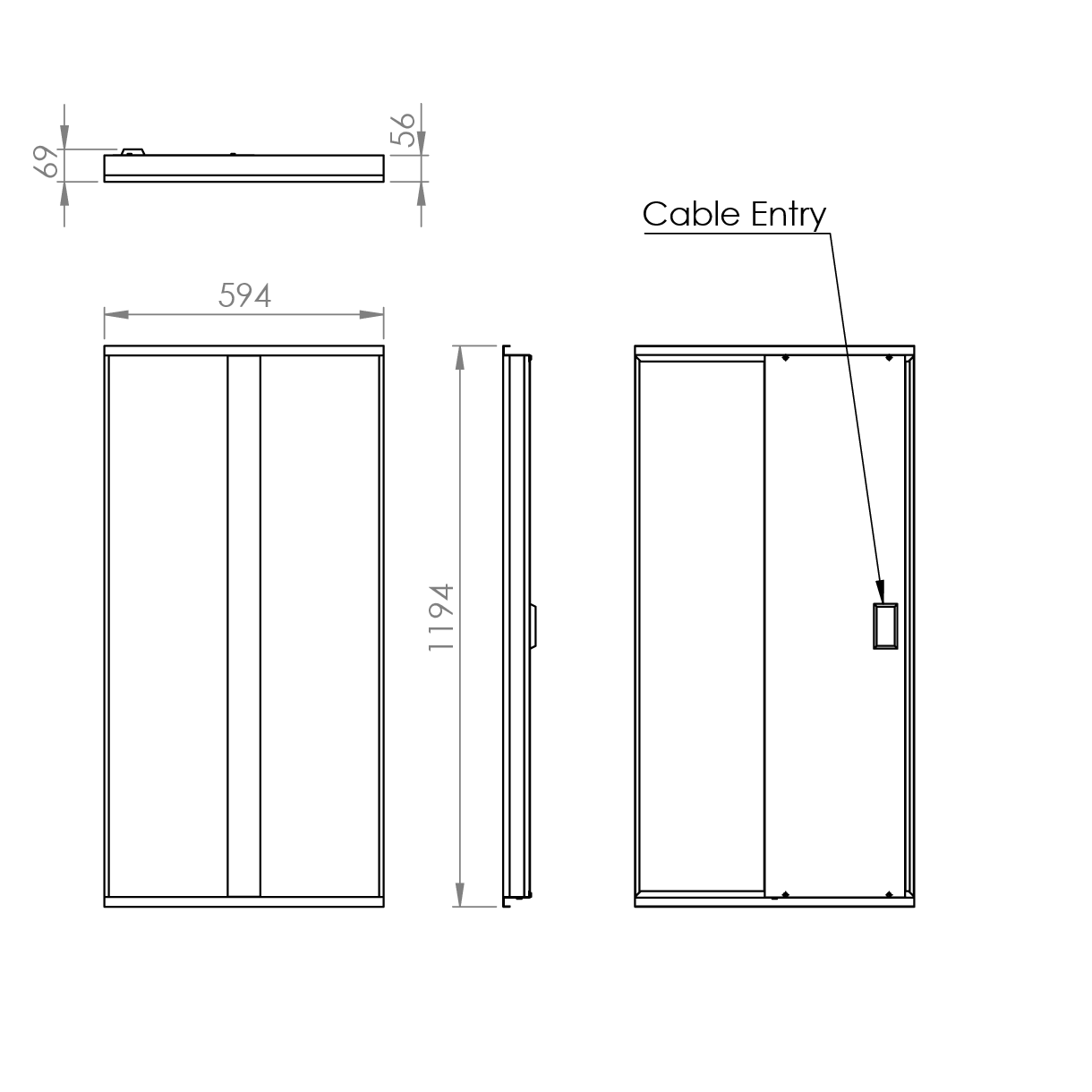

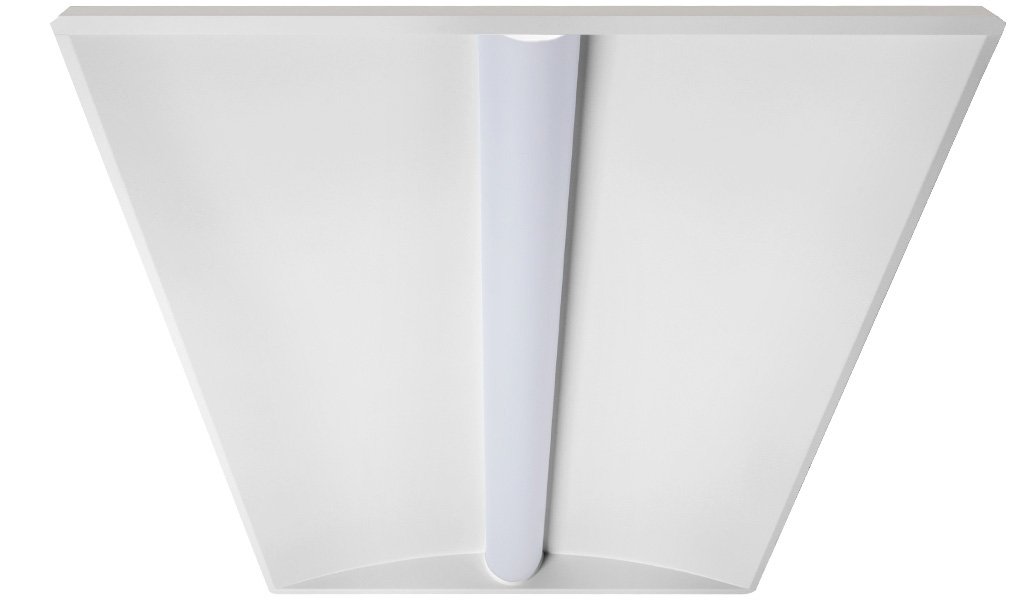

Arcus Mono Lay-In 1200x600

Arcus Mono Lay-In 1200x600

Ordering

Luminaires

Code Description Power Llm/W
ARCR L25 1D Arcus Mono, Lay-In, 600x600, 2,100llm, Single Diffuser, Colour 84 17.4W 120
ARCR L35 1D Arcus Mono, Lay-In, 600x600, 2,940llm, Single Diffuser, Colour 84 24.7W 119
ARCR 126 L50 1D Arcus Mono, Lay-In, 1200x600, 4,200llm, Single Diffuser, Colour 84 33.7W 124
ARCR 126 L70 1D Arcus Mono, Lay-In, 1200x600, 5,880llm, Single Diffuser, Colour 84 46.8W 125
ARCR 123 L35 1D Arcus Mono, Lay-In, 1200x300, 2,940llm, Single Diffuser, Colour 84 22.1W 133
ARCR 123 L50 1D Arcus Mono, Lay-In, 1200x300, 4,200llm, Single Diffuser, Colour 84 33.7W 124
ARCR 123 L70 1D Arcus Mono, Lay-In, 1200x300, 5,880llm, Single Diffuser, Colour 84 46.8W 125

For plasterboard ceilings please specify lay-in luminaire and appropriate plasterboard kit.

Dimming

Code Description
A DALI Digital Addressable Lighting Interface
S Switch Dimming
D DSI Digital Dimming
H HFR Analogue 1-10v
C Bi-Level Dimming For Standalone Switched Sensor
WT White Tunable (Lumen Outputs Vary from Standard)
Please click here for full details on our white tunable offer.
HFR Dimming is not available in L25 variants

Control

Code Description
R44M Reacta 44 Mini Integral Sensor
RAS Reacta-Air Bluetooth, Wireless, Presence & Daylight, 2.5-3M
RLI Reacta-Link, Wireless Enabled Luminaire
RLS Reacta-Link Wireless, Presence & Daylight, 2.5M-5M
RC Reacta-Control, Wireless Enabled Luminaire
RCS Reacta-Control Wireless, Presence & Daylight, 2.5-4M
Please click here for full details on our wireless controls.

Emergency

Code Description
LE3 Lithium Standard Emergency 3 Hour
LS3 Lithium Selftest Emergency 3 Hour
LA3 Lithium Autotest Emergency 3 Hour
LSTR Lithium Reacta-Link Emergency 3 Hour
LA3RC Lithium Reacta-Control Emergency 3 Hour
CB Central Battery, Please Specify 110V or 230V when Ordering

Miscellaneous

Code Description
C** Select Colour Temperature and Rendering; C827, C83, C85, C865, C93, C94
PBK 66 600x600 Plasterboard Kit
LSF Low Smoke Zero Halogen

Downloads

Installation guide (Download PDF) Product Datasheet (Download PDF) Revit Files Dialux Files Relux Files
