ARCUS FLUSH DUO

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Pellentesque tempor, purus facilisis accumsan luctus, elit metus faucibus sem, ac tempus.

Arcus Flush Duo 600 x 600

Introduction

The Arcus Flush Duo brings a new aesthetic to the Arcus family bringing the high transmission extruded opal diffuser below the ceiling line offering improved distribution of light on vertical planes and creating additional visual interest on the ceiling. The Arcus Flush Duo can be ordered in a wide range of lumen outputs, dimming types, white tunable and lithium emergency options and is suitable for lay-in installation in exposed T ceilings. The Arcus Flush Duo is ideally suited to applications such as retail, receptions and corridors. Wireless dimming and control can be offered with both Reacta-Control and Reacta-Link where centralised control and reporting of luminaires is required.

ARCUS FLUSH DUO complies with:

UKCA | CE | NEW | IP30 | TM21: L90>60K HOURS / L80>90K HOURS | 3 STEP MACADAM ELLIPSE | TP(a)

Recommended applications:

Canteen | Commercial / Offices | Corridor | Education | Hotel / Leisure | Industrial / Manufacturing | Retail

Specification

Construction

  • Housing: 0.7mm CR4 steel
  • Finish: Polyester powder painted BS 00E55 matt white 60% gloss
  • Diffuser: 2mm extruded high transmission opal polycarbonate
  • IP20

Performance

  • Part L2 compliant
  • 3SDCM Three step Macadams ellipse
  • TM21: L90>60K Hours / L80>90K Hours
  • Up to 137 luminaire lumens per circuit Watt.

Environmental

  • Designed to allow simple replacement of components with commonly available tools in compliance with the Eco Design Directive, please see the installation leaflet for maintenance instructions.
  • Powered by European branded drivers and emergency modules ensuring replacement parts are easily sourced.
  • Every luminaire is labelled with a unique ID number allowing easy identification of spare parts for the lifetime of the product.
  • Contains no single use plastics or polystyrene packaging.
  • Supplied in plain card boxes with paper tape ensuring packaging is easily recycled.
  • Designed to allow simple disassembly for end of life recycling.
  • UK based manufacturing providing local support throughout the product lifetime and minimising transportation miles.

Emergency

  • Available with optional standard, self test and autotest integral emergency with lithium batteries for extended warranty and lifetime.

Control

  • Optional compatibility with a range of dimming systems including DALI, DSI and Switch Dimming

Installation

  • Suitable for lay-in installation in exposed T ceilings
  • Suitable for pull-up installation in concealed grid ceilings
  • Suitable for plasterboard installation when purchased with the appropriate plasterboard kit

Variations

  • Available with a wide range of colour temperatures and renderings
  • Available in a range of housing sizes and lumen outputs
5 year extended warranty available on most products.
Arrow right

Product Images

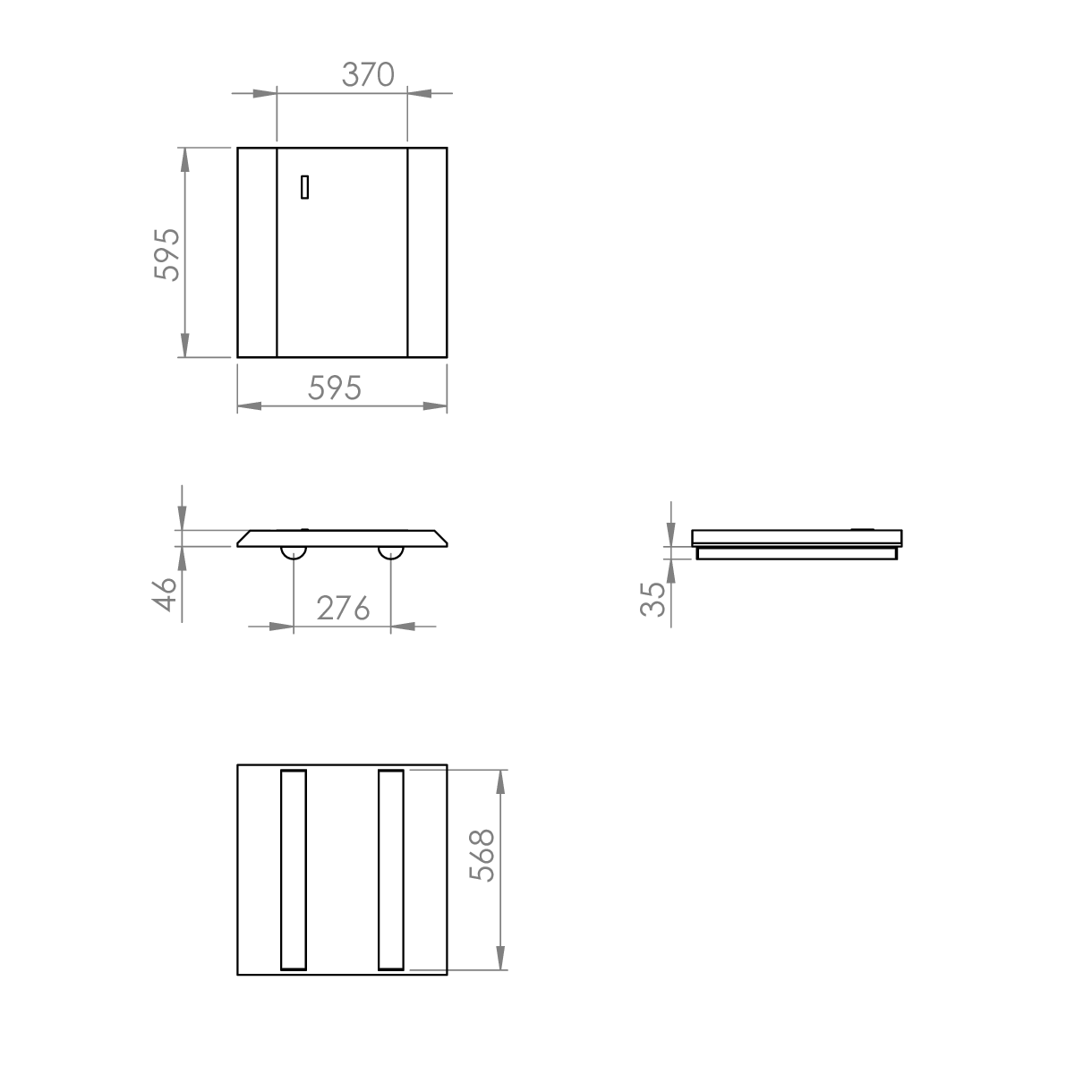

Technical

Arcus Flush Duo 600 x 600

Arcus Flush Duo 600 x 600

Ordering

Luminaires

Code Description Power Llm/W
ARCRF L35 2D Arcus Flush Duo, Lay-In, 600x600, 3,037llm, Twin Diffuser, Colour 84 22.1W 137
ARCRF L44 2D Arcus Flush Duo, Lay-In, 600x600, 3,818llm, Twin Diffuser, Colour 84 29.2W 131
ARCRF L60 2D Arcus Flush Duo, Lay-In, 600x600, 5,206llm, Twin Diffuser, Colour 84 38.6W 135
ARCRF L72 2D Arcus Flush Duo, Lay-In, 600x600, 6,247llm, Twin Diffuser, Colour 84 48.4W 129
For plasterboard ceilings please specify lay-in luminaire and appropriate plasterboard kit.

Dimming

Code Description
A DALI Digital Addressable Lighting Interface
S Switch Dimming
D DSI Digital Dimming
H HFR Analogue 1-10v
C Bi-Level Dimming For Standalone Switched Sensor

Control

Code Description
R44 Reacta 44, Presence & Daylight, 2.5-7M
RLI Reacta-Link, Wireless Enabled Luminaire
RLS Reacta-Link Wireless, Presence & Daylight, 2.5M-5M
RC Reacta-Control, Wireless Enabled Luminaire
RCS Reacta-Control Wireless, Presence & Daylight, 2.5-4M
Please click here for full details on our wireless controls.

Emergency

Code Description
LE3 Lithium Standard Emergency 3 Hour
LS3 Lithium Selftest Emergency 3 Hour
LA3 Lithium Autotest Emergency 3 Hour
LSTR Lithium Reacta-Link Emergency 3 Hour
LA3RC Lithium Reacta-Control Emergency 3 Hour
CB Central Battery, Please Specify 110V or 230V when Ordering

Miscellaneous

Code Description
C** Select Colour Temperature and Rendering; C827, C83, C85, C865, C93, C94
PBK 66 600x600 Plasterboard Kit
LSF Low Smoke Zero Halogen

Downloads

Installation Guide (Download PDF) Plasterboard Kit Guide (Download PDF) Product Datasheet (Download PDF) Revit Files Dialux Files Relux Files
