AMENITY EXTERIOR – EYELID

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Pellentesque tempor, purus facilisis accumsan luctus, elit metus faucibus sem, ac tempus.

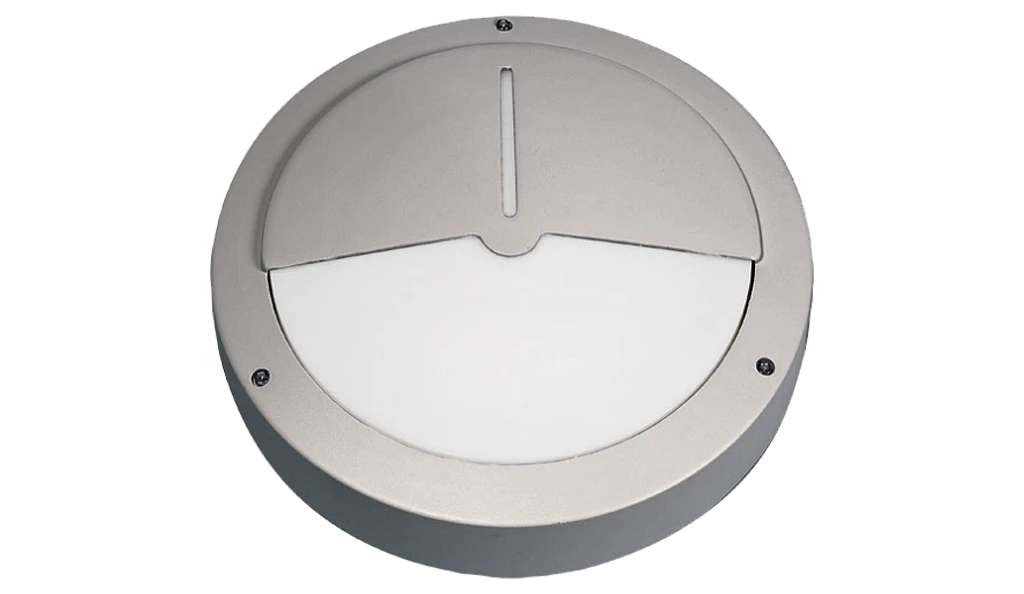

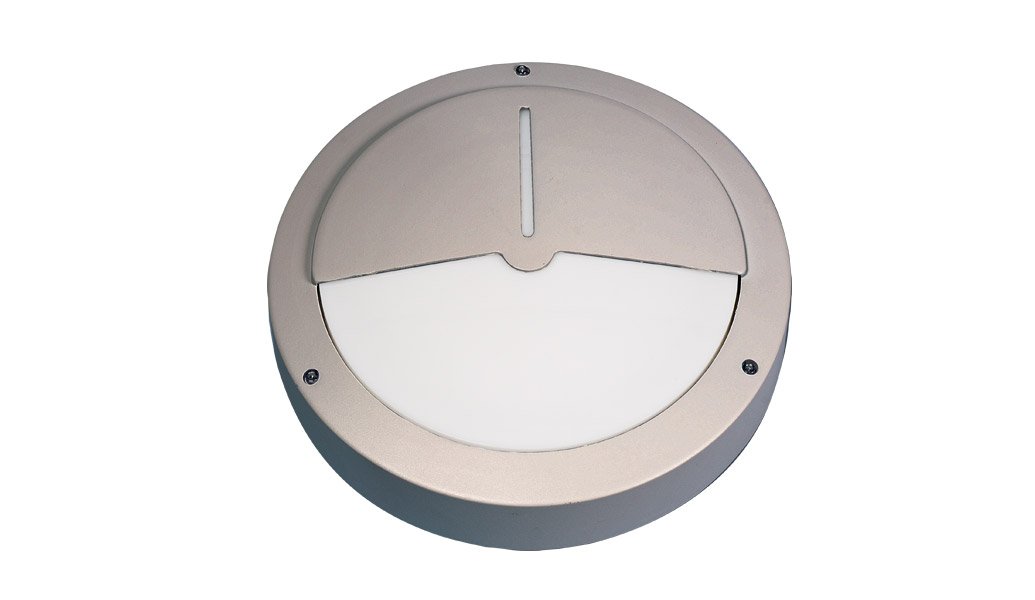

Amenity Exterior With Silver Eyelid

Introduction

The Amenity Exterior Eyelid is manufactured with a tough and durable die cast aluminium housing and injection moulded polycarbonate diffuser that is suited a wide range of internal and external applications whilst maintaining an attractive and modern appearance in three colour options. With 800 and 1600 lumen outputs, integral lithium emergency and a wide range of dimming types the Amenity Exterior is easily specified to suit a wide range of applications.

The Amenity Exterior includes premium mid power LEDs offering excellent efficiency and longevity with a lifetime of L90 at 60,000 operating hours. Energy savings can be further enhanced with a selection of integral presence detection and bright out microwave sensors including on / off, bi level dimming and wireless variants allowing luminaires to be grouped for simultaneous operation.

AMENITY EXTERIOR – EYELID complies with:

UKCA | CE | IP65 | IK08 | TM21: L90>60K HOURS / L80>90K HOURS | 3 STEP MACADAM ELLIPSE

Recommended applications:

Canteen | Commercial / Offices | Corridor | Education | Exterior | Healthcare / Social Housing | Hotel / Leisure | Industrial / Manufacturing | Parking / Exterior | Retail | Stairwell | Store Room | Toilet | Transport | Warehousing

Specification

Construction

  • Housing: High pressure die cast aluminium
  • Finish: Matt black
  • Finish: Matt white
  • Finish: Matt grey
  • Diffuser: Injection moulded high transmission opal polycarbonate
  • IK08
  • IP65

Performance

  • Part L2 compliant
  • 3SDCM Three step Macadams ellipse
  • TM21: L90>60K Hours / L80>90K Hours
  • Up to 61 luminaire lumens per circuit Watt.

Environmental

  • Designed to allow simple replacement of components with commonly available tools in compliance with the Eco Design Directive, please see the installation leaflet for maintenance instructions.
  • All critical components are mounted on a single tray for simple end of life repair or upgrade.
  • Powered by European branded drivers and emergency modules ensuring replacement parts are easily sourced.
  • Every luminaire is labelled with a unique ID number allowing easy identification of spare parts for the lifetime of the product.
  • Contains no single use plastics or polystyrene packaging.
  • Supplied in plain card boxes with paper tape ensuring packaging is easily recycled.
  • Designed to allow simple disassembly for end of life recycling.
  • UK based manufacturing providing local support throughout the product lifetime and minimising transportation miles.

Emergency

  • Available with optional standard, self test and autotest integral emergency with lithium batteries for extended warranty and lifetime.
  • Optional Reacta-Link wireless emergency for automated centralised reporting.
  • Optional Reacta-Control wireless emergency for automated centralised reporting.

Control

  • Optional compatibility with a range of dimming systems including DALI, DSI and Switch Dimming
  • Optional Integral R25 microwave presence and bright out sensor
  • Optional integral Reacta-Link for integration with Reacta-Link wireless installations
  • Optional integral Reacta-Control for integration with Reacta-Control wireless installations

Installation

  • Suitable for surface installation
  • Retrofit in existing luminaires
  • Suitable for rear cable entry only

Variations

  • Available with a wide range of colour temperatures and renderings
  • Available in a range of lumen outputs
  • Available in white, black or grey finishes
5 year extended warranty available on most products.
Arrow right

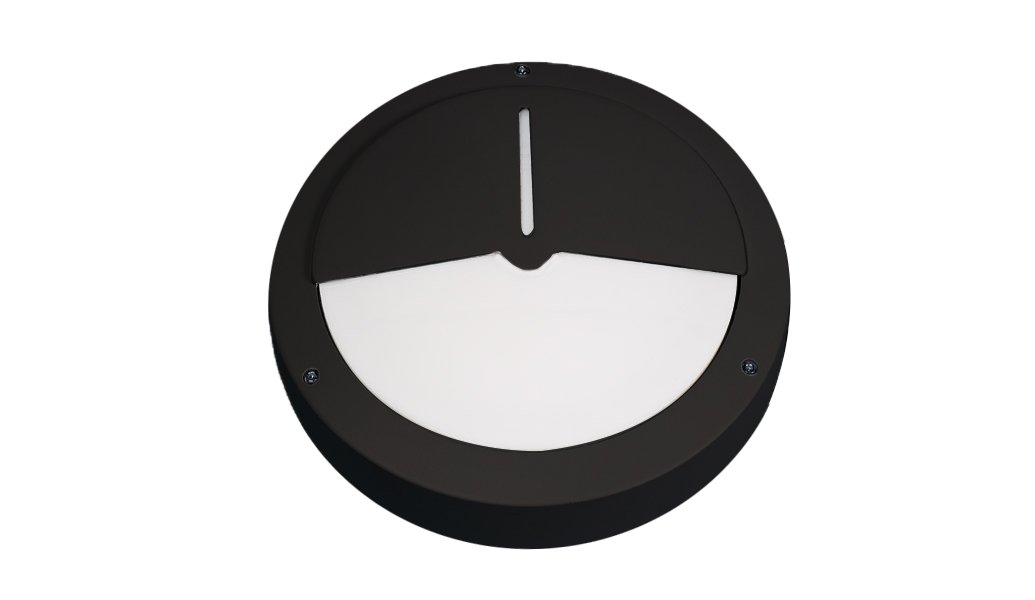

Product Images

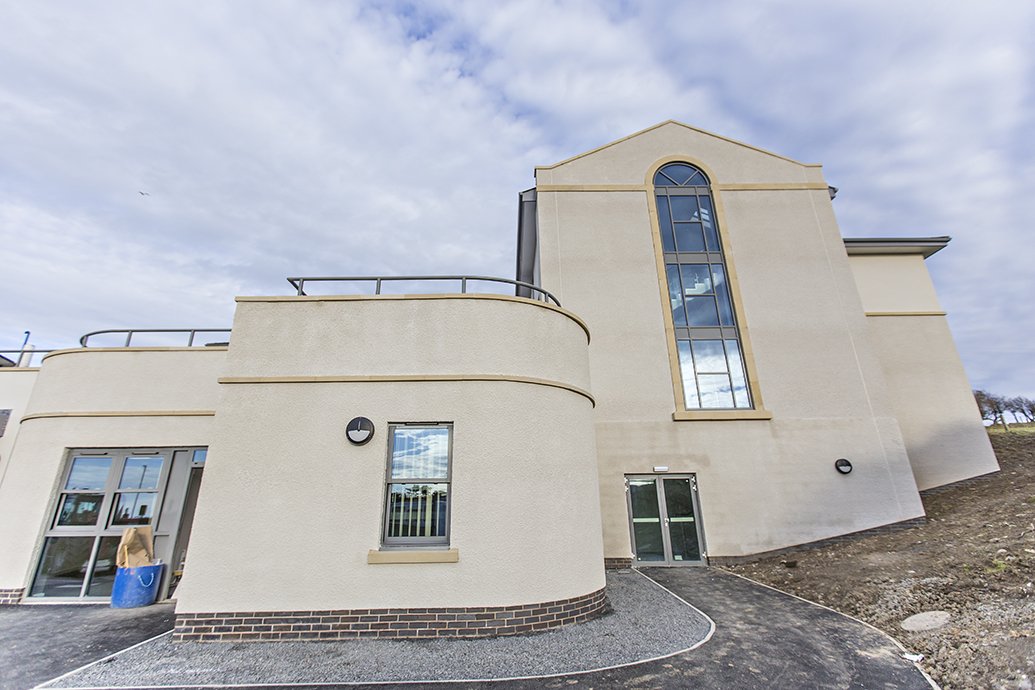

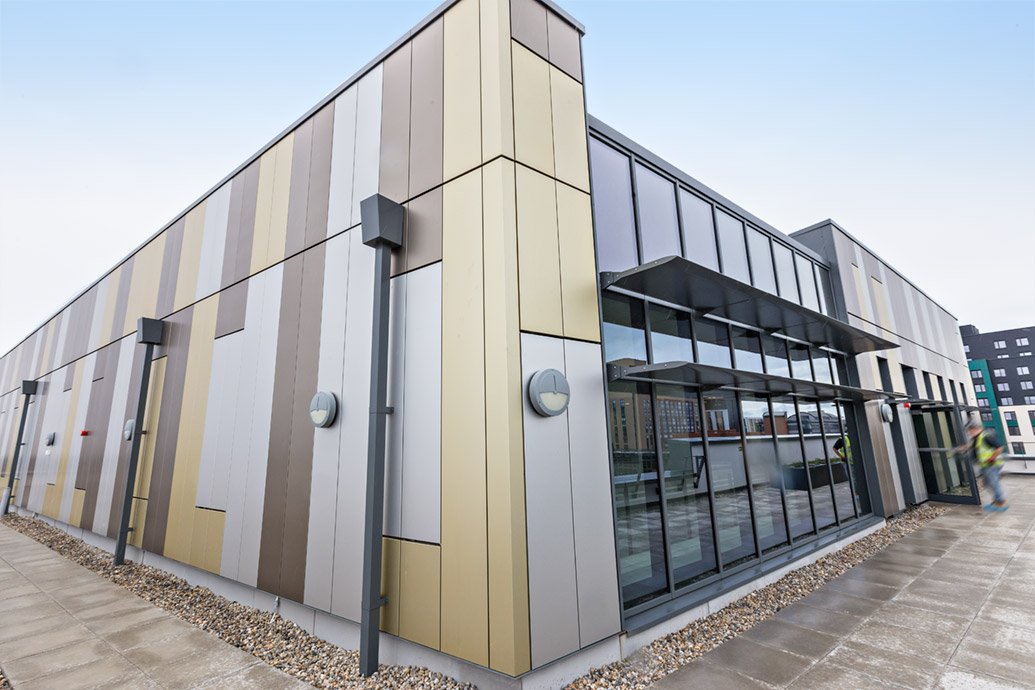

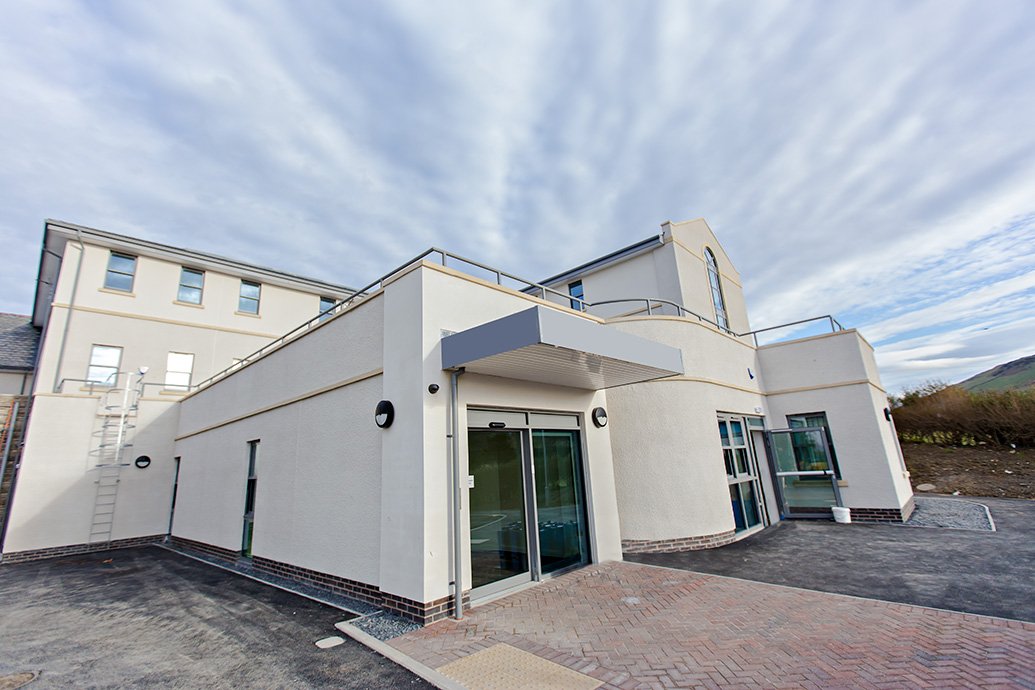

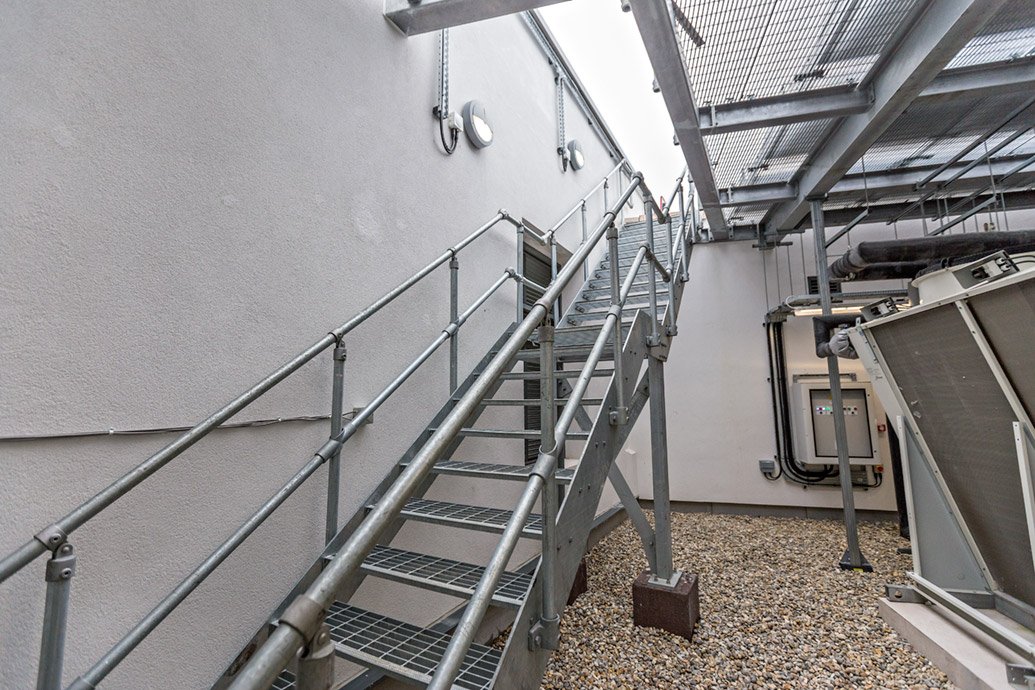

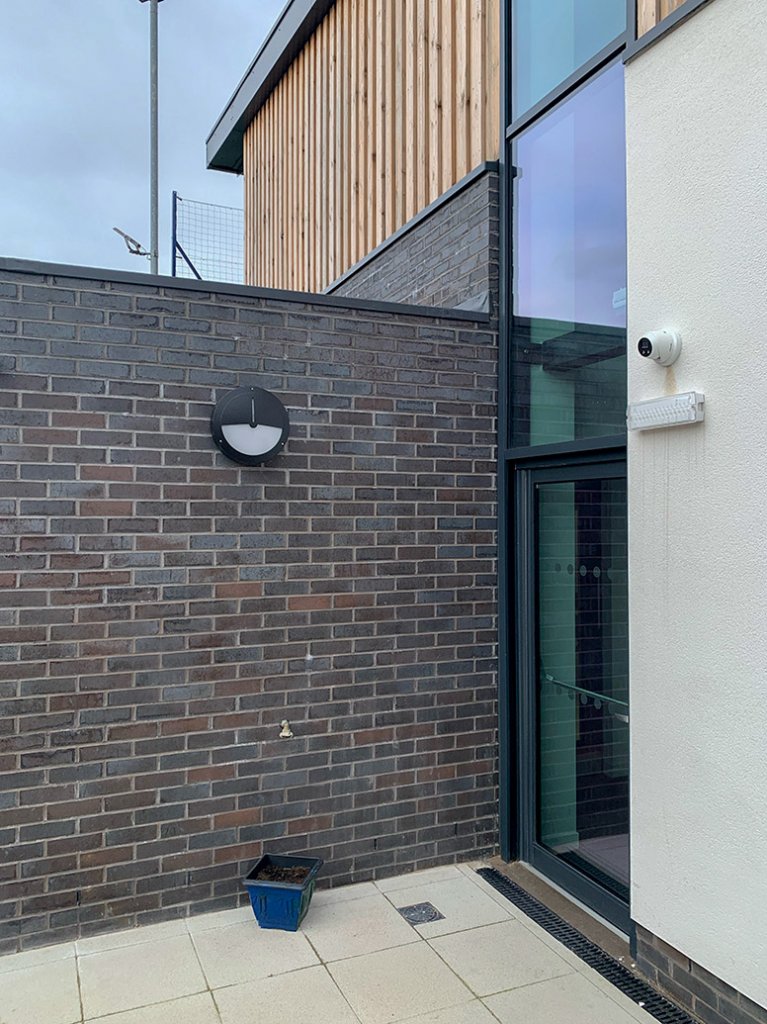

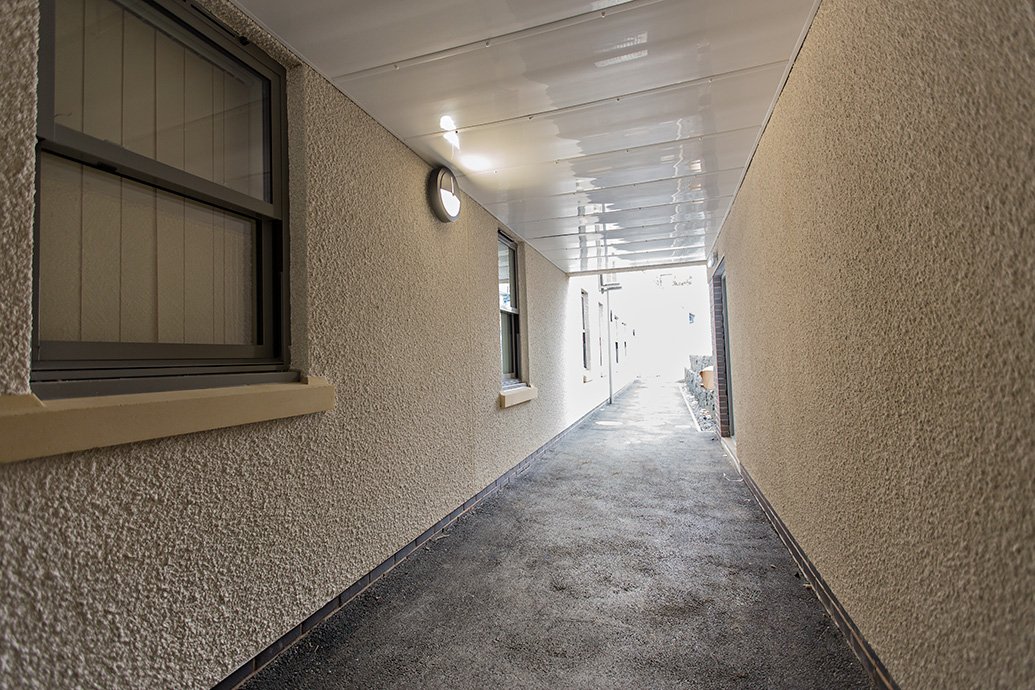

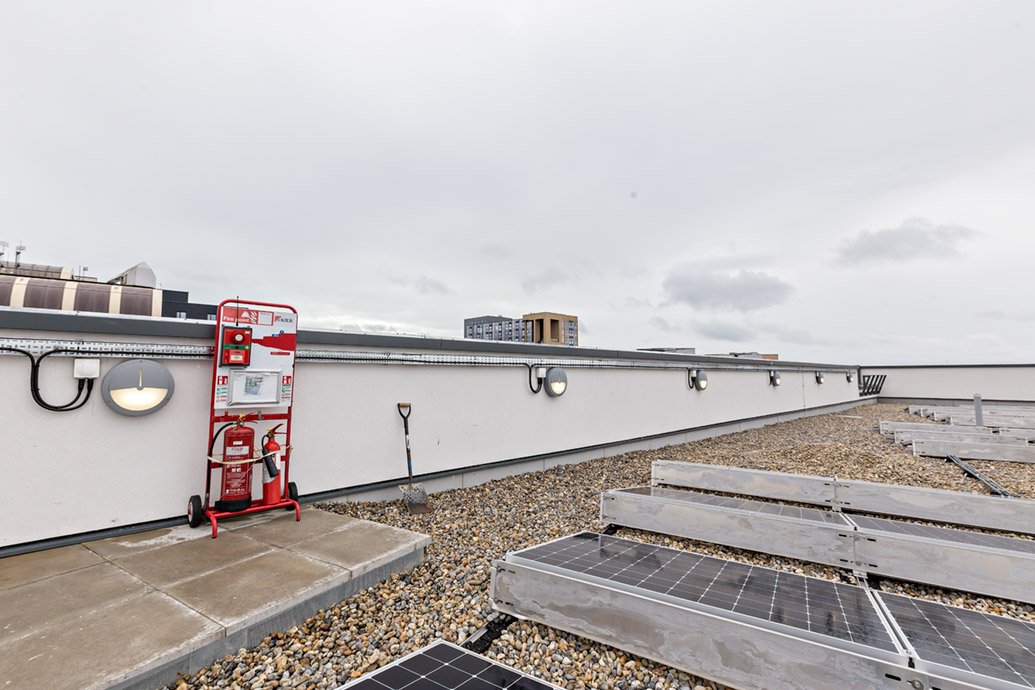

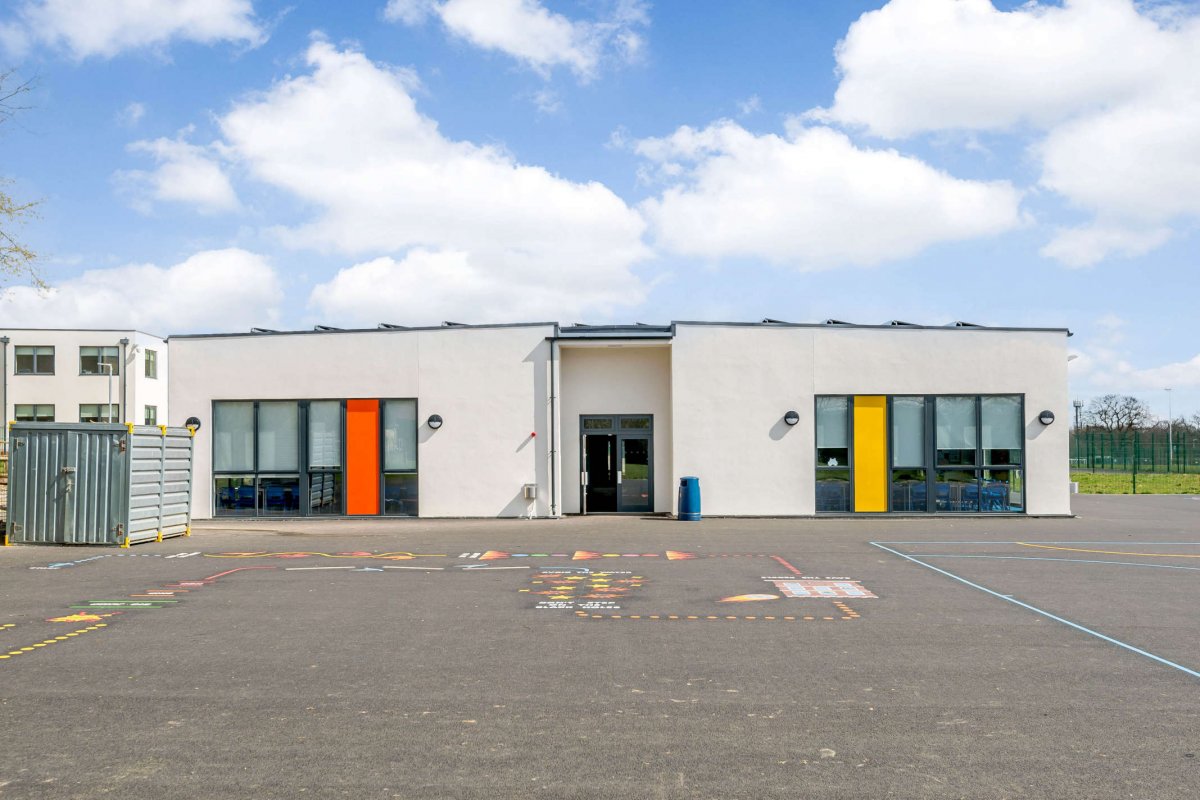

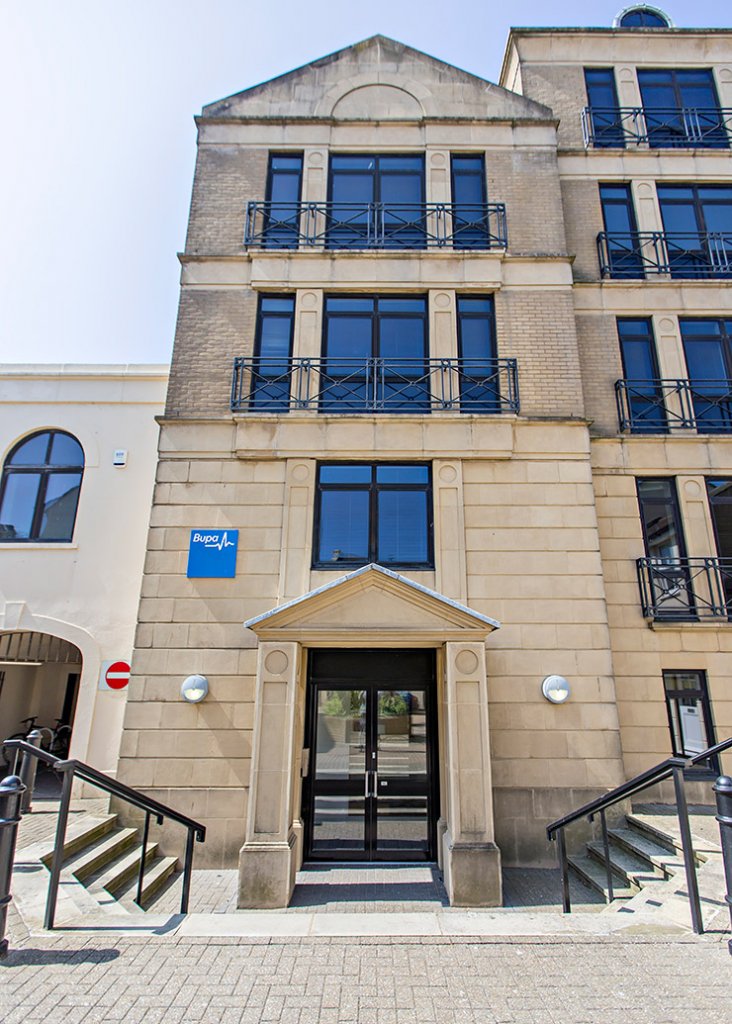

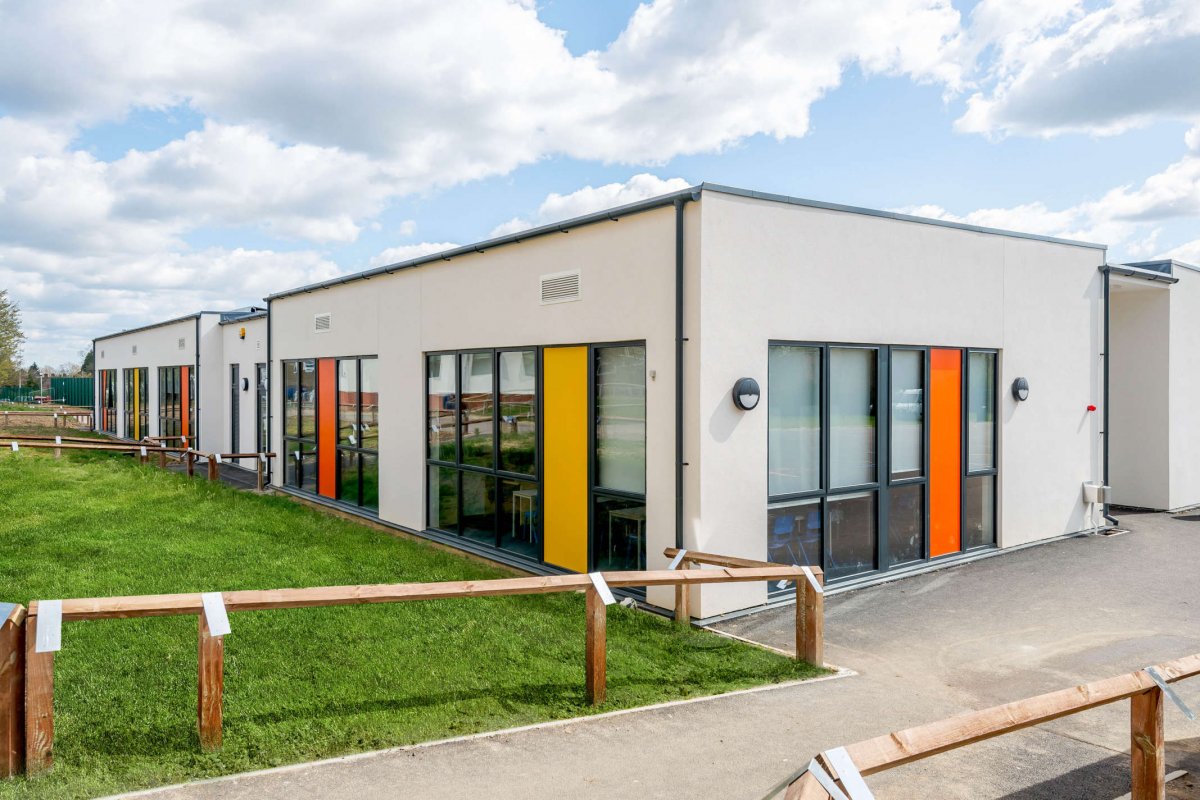

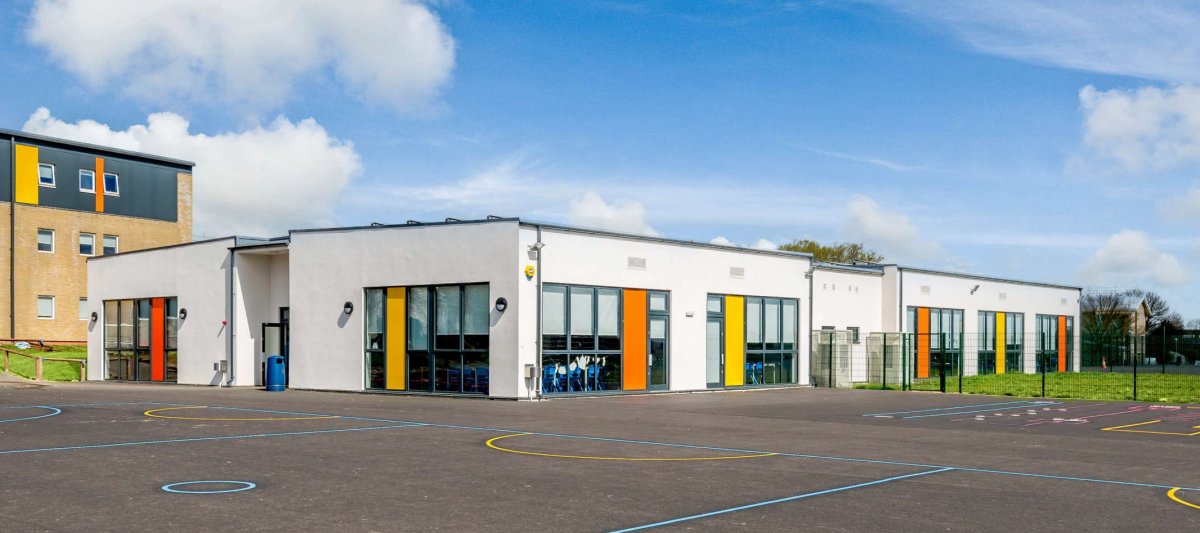

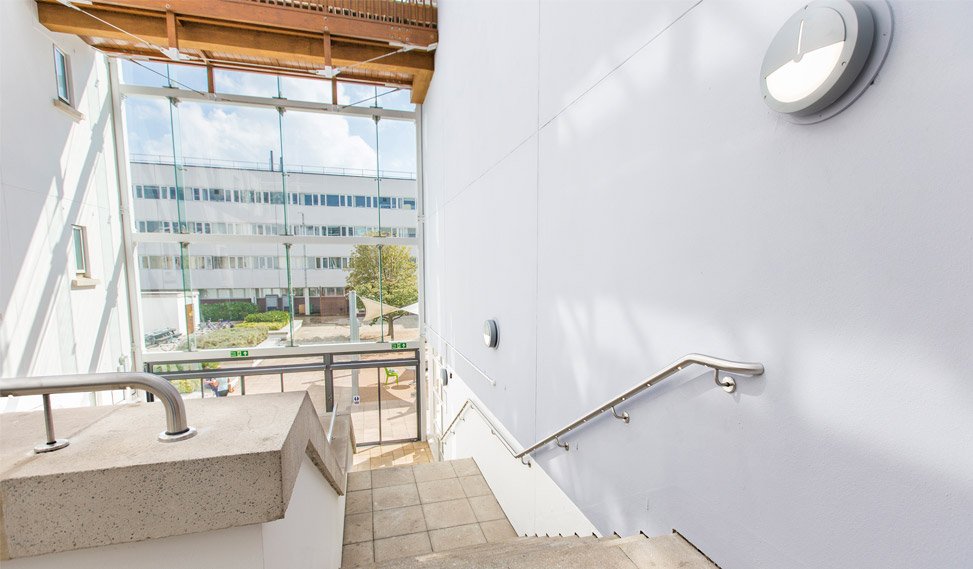

AMENITY EXTERIOR – EYELID in action

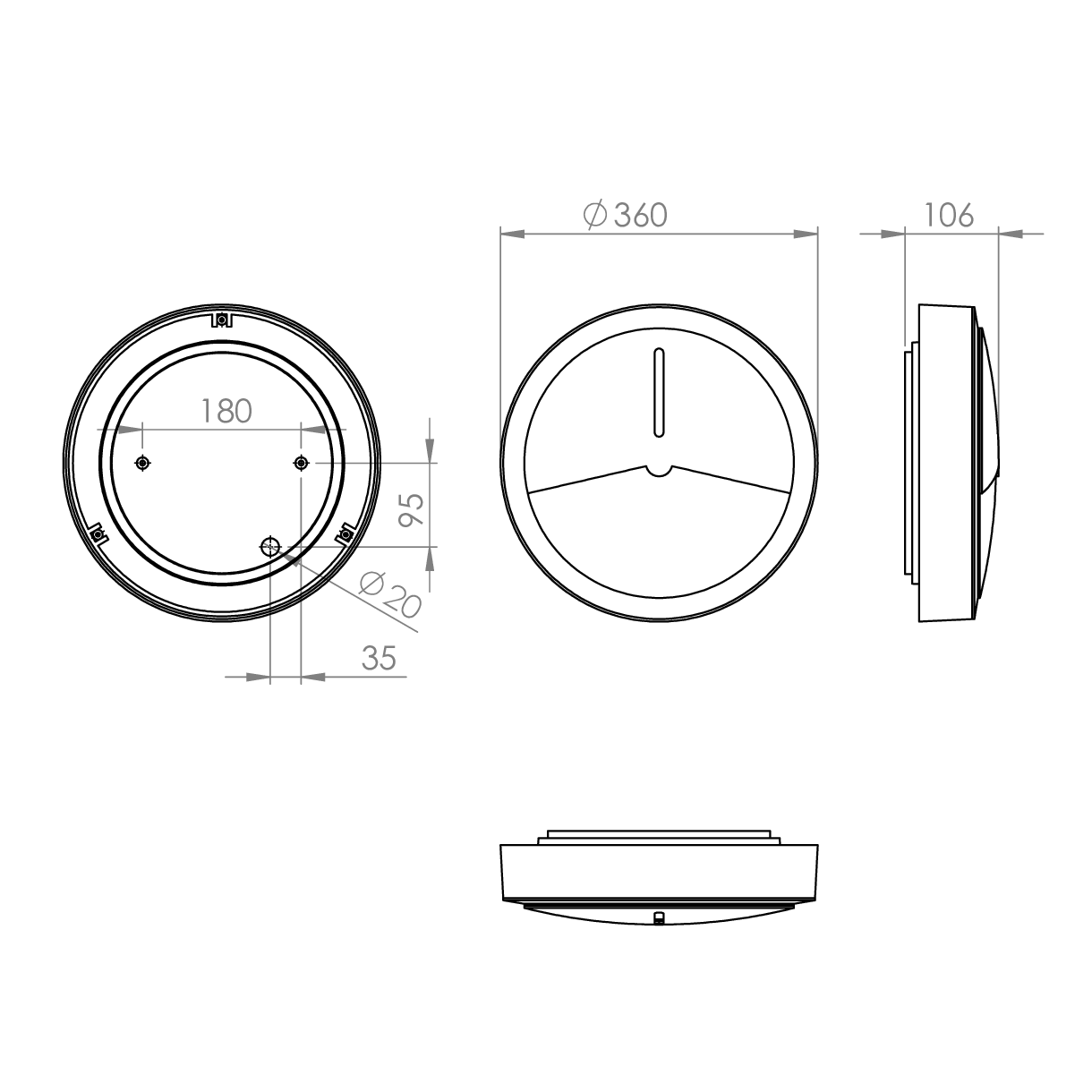

Technical

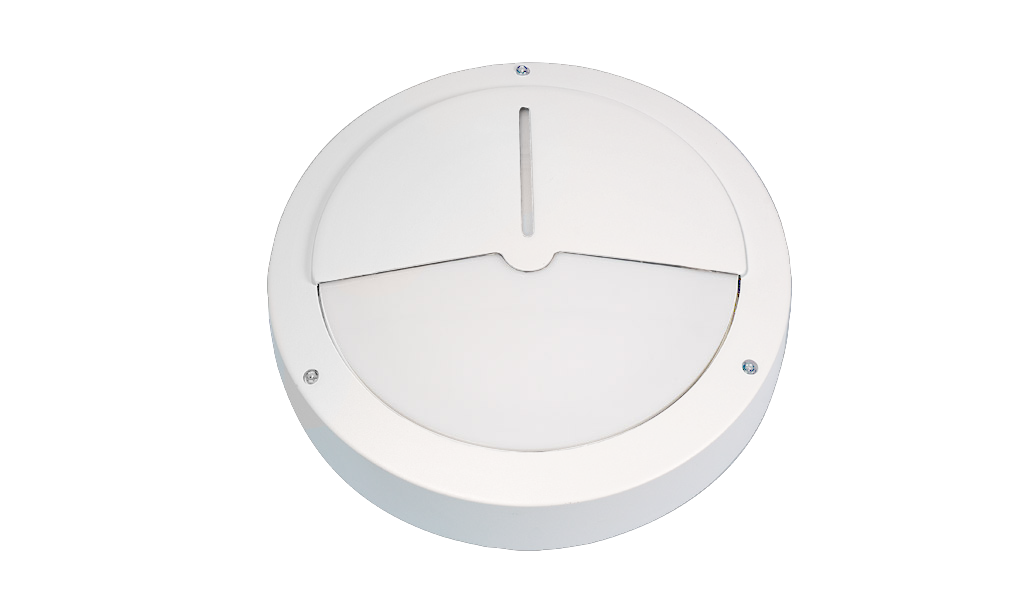

Amenity Exterior Eyelid

Amenity Exterior Eyelid

Ordering

Luminaires

Code Description Power Llm/W
AMEX L8 EW Amenity Exterior, 430llm, Eyelid, White Opal, Colour 84 6.6W 65
AMEX L8 EB Amenity Exterior, 430llm, Eyelid, Black Opal, Colour 84 6.6W 65
AMEX L8 ES Amenity Exterior, 430llm, Eyelid, Silver Opal, Colour 84 6.6W 65
AMEX L16 EW Amenity Exterior, 930llm, Eyelid, White Opal, Colour 84 11.8W 79
AMEX L16 EB Amenity Exterior, 930llm, Eyelid, Black Opal, Colour 84 11.8W 79
AMEX L16 ES Amenity Exterior, 930llm, Eyelid, Silver Opal, Colour 84 11.8W 79

Dimming

Code Description
A DALI Digital Addressable Lighting Interface
S Switch Dimming
D DSI Digital Dimming
C Bi-Level Dimming For Standalone Switched Sensor

Control

Code Description
R25E Reacta 25, Presence & Bright Out, On / Off, 2.5-4M
R25C* Reacta 25, Presence & Bright Out, Bi-Level Dimming, 2.5-4M
RLM Reacta-Link, Wireless, Presence & Bright Out, 2.5-4M
RC Reacta-Control, Wireless Enabled Luminaire
RCMC* Reacta-Control, Presence & Bright Out, Bi-level Dimming, 2.5-4M
RCME Reacta-Control, Presence & Bright Out, On / Off, 2.5-4M
Please click here for full details on our wireless controls.
*Bi-Level Dimming will only dim the luminaire to 10% during absence and brightout, it will not turn the luminaire off.

Emergency

Code Description
LE3 Lithium Standard Emergency 3 Hour
LS3 Lithium Selftest Emergency 3 Hour
LA3 Lithium Autotest Emergency 3 Hour
LSTR Lithium Reacta-Link Emergency 3 Hour
LA3RC Lithium Reacta-Control Emergency 3 Hour

Miscellaneous

Code Description
C** Select Colour Temperature and Rendering; C827, C83, C85, C865, C93, C94
LSF Low Smoke Zero Halogen
