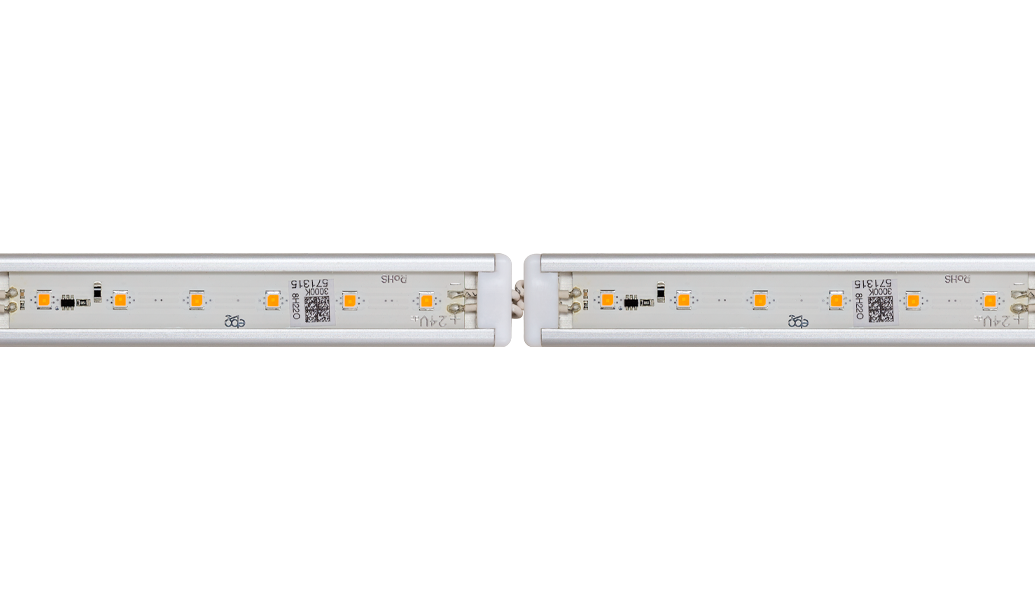

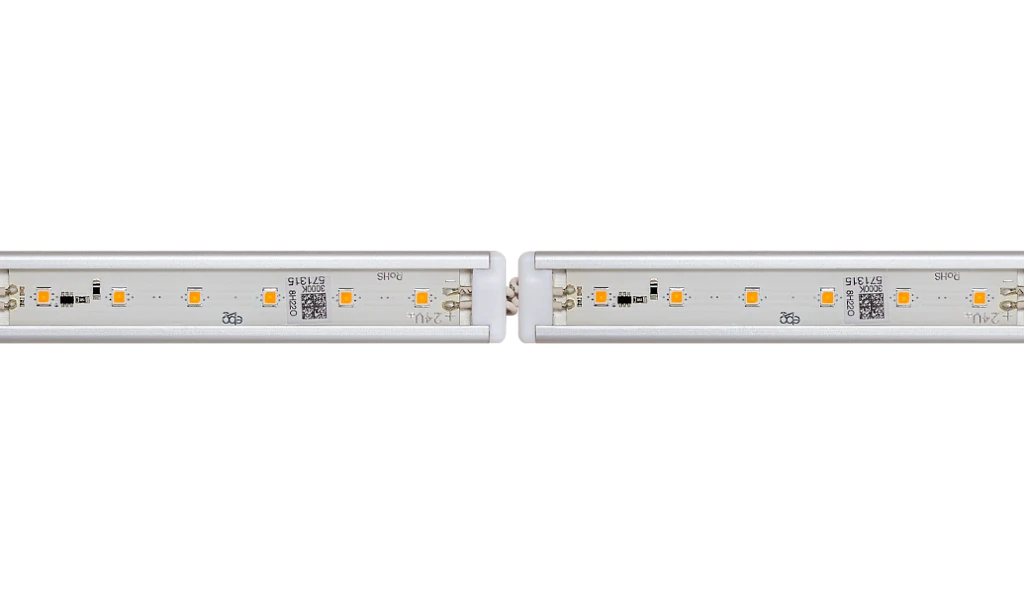

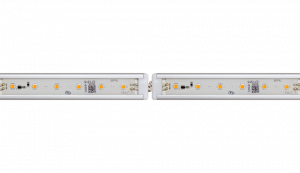

AluLED IP67 (Clear)

Introduction

The AluLED is designed for indirect accent lighting to create a range of decorative effects. The slim design ensures the AluLED is ideal for cove lighting, shadow gaps and other concealed spaces where decorative lighting effects are required to enhance the space. With an IP67 construction the AluLED is suitable for both internal and external applications whilst the modular design and spring steel mounting clip allows multiple lengths to be operated from a single driver for quick and simple installation to suit a range of concealed applications.

AluLED complies with:

UKCA | CE | IP67 | 24V

Recommended applications:

Accent Lighting | Canteen | Commercial / Offices | Corridor | Display Lighting | Exterior | Food Production | Healthcare / Social Housing | Hotel / Leisure | Kitchen | Office | Retail | Stairwell | Toilet

Specification

Construction

  • Pre wired with IP67 click lock connectors
  • Spring steel mounting clip
  • IP67 ingress protection

Environmental

  • Designed to allow simple replacement of components with commonly available tools in compliance with the Eco Design Directive, please see the installation leaflet for maintenance instructions.
  • Powered by European branded drivers and emergency modules ensuring replacement parts are easily sourced.
  • Every luminaire is labelled with a unique ID number allowing easy identification of spare parts for the lifetime of the product.
  • Contains no single use plastics or polystyrene packaging.
  • Supplied in plain card boxes with paper tape ensuring packaging is easily recycled.
  • Designed to allow simple disassembly for end of life recycling.
  • UK based manufacturing providing local support throughout the product lifetime and minimising transportation miles.

Variations

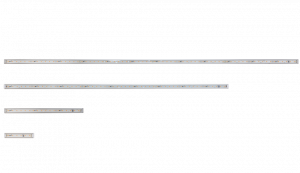

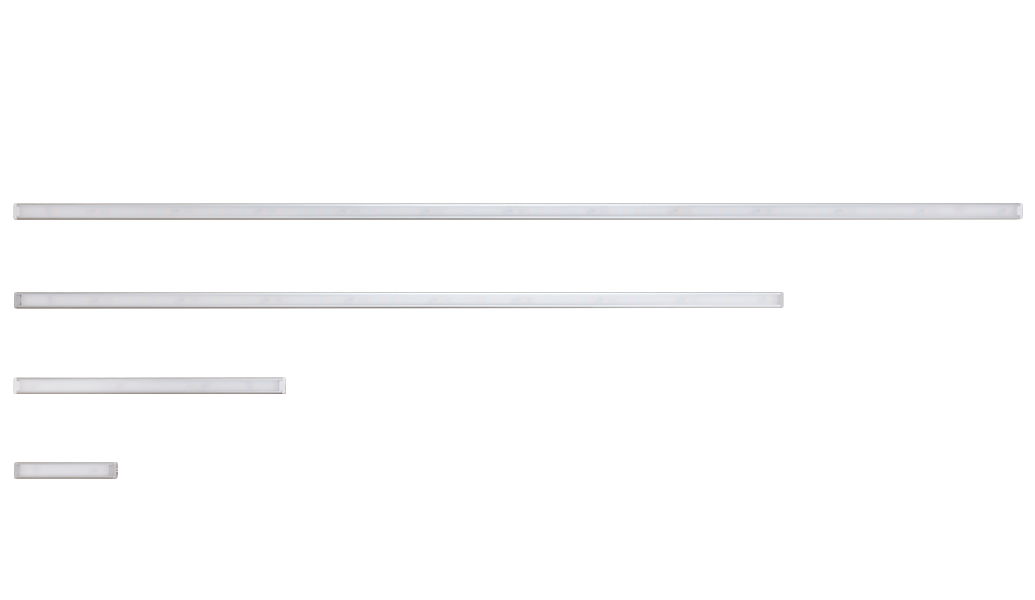

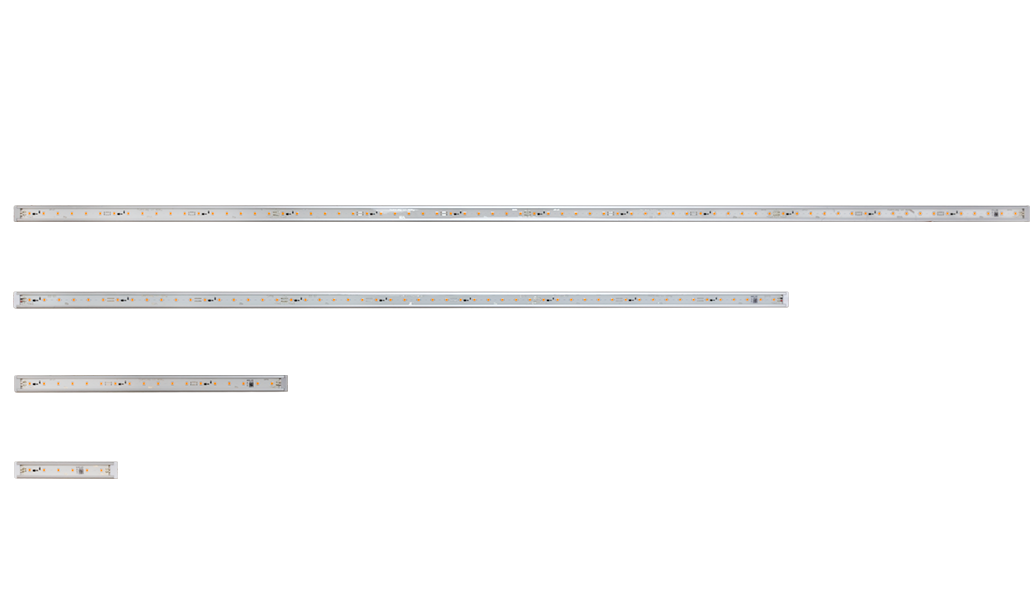

  • 120mm, 320mm, 920mm, 1220mm lengths
  • Custom lengths available upon request
  • Anti-tamper clips available
  • Large range of remote LED drivers available with different dimming options
  • 3000k or 4000k colour temperatures

Performance

  • AluLED is suitable for -20 to +85°C ambient temperatures, driver operating temperatures may vary from this specification
5 year extended warranty available on most products.
Arrow right

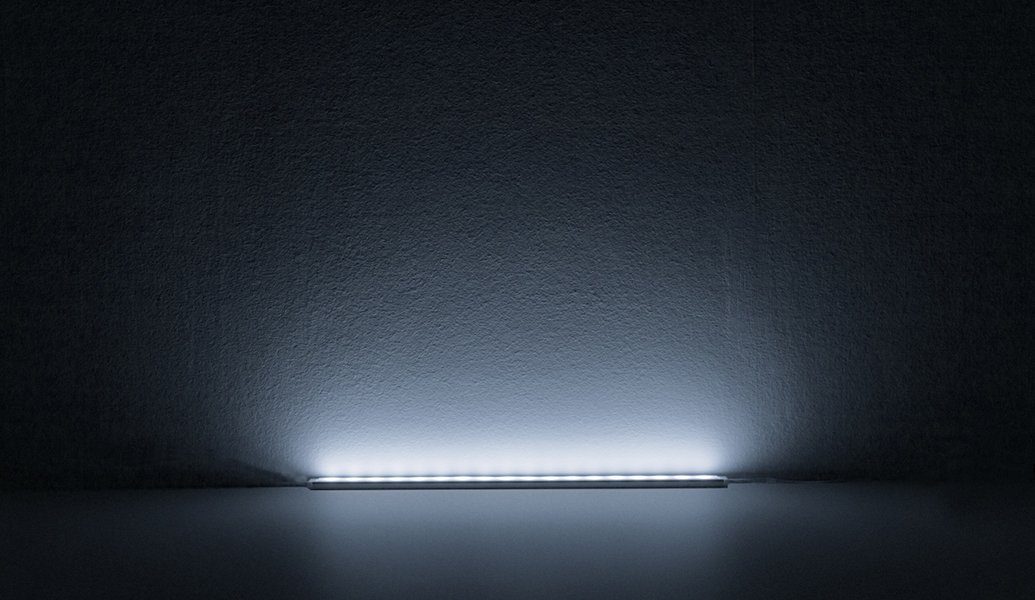

Product Images

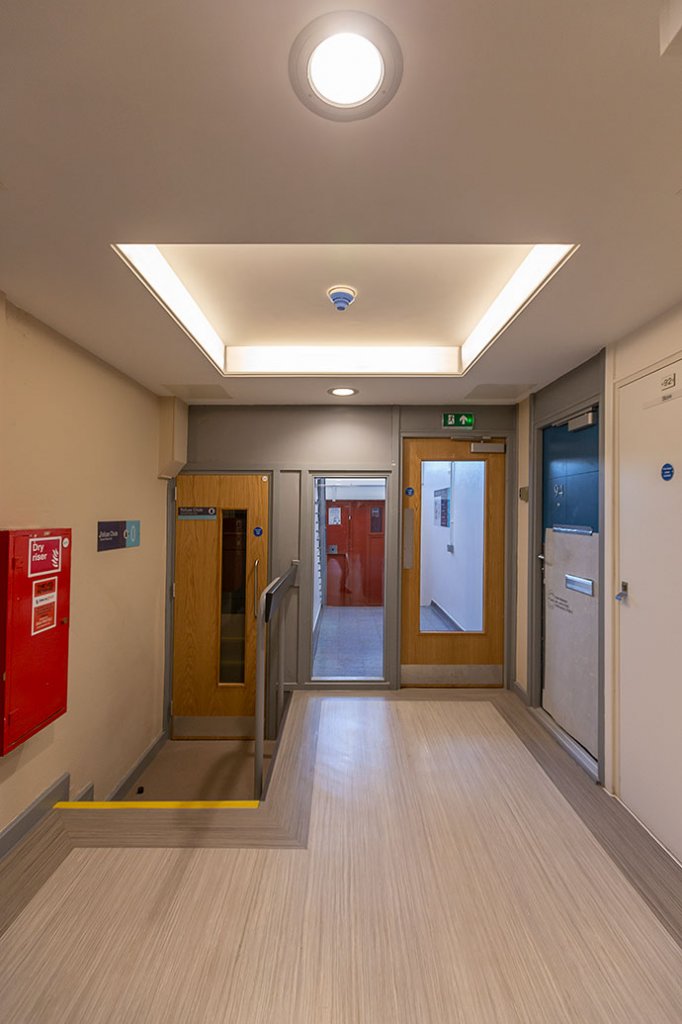

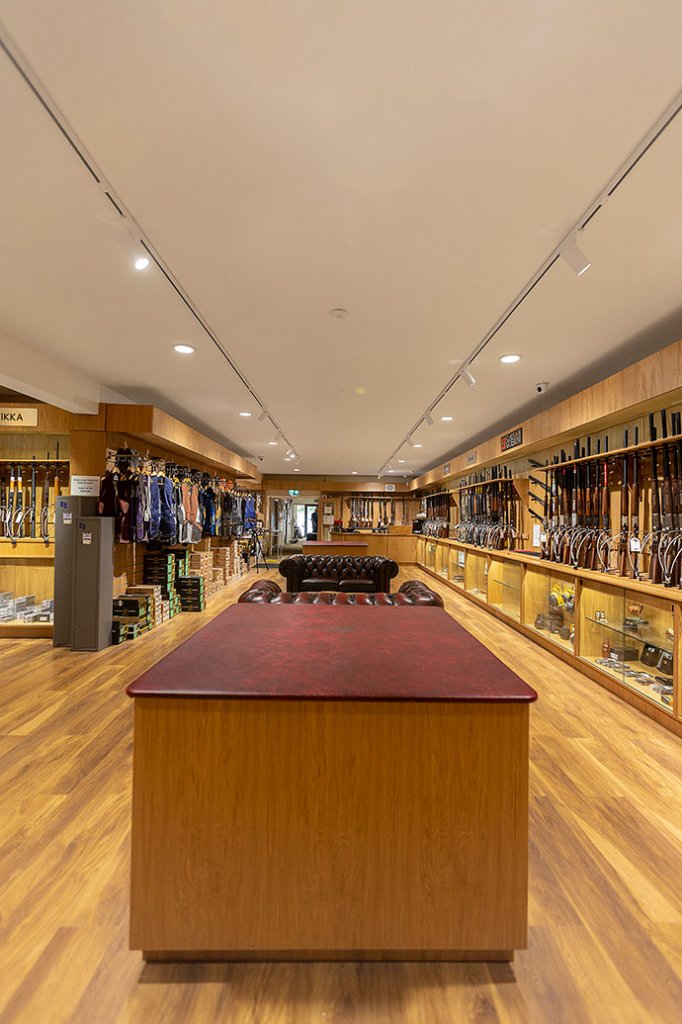

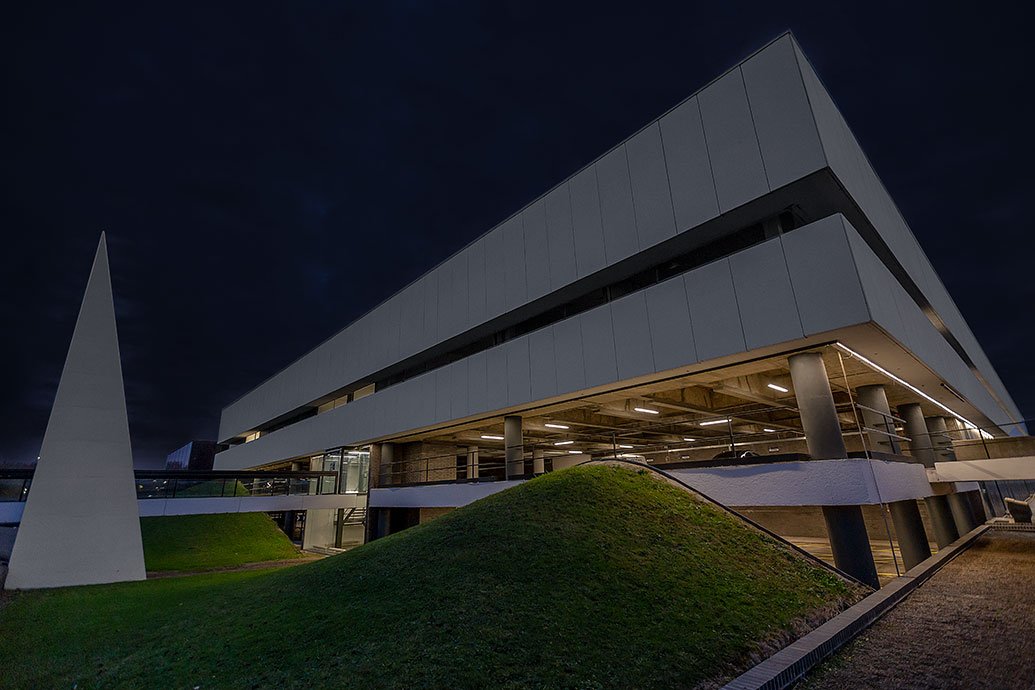

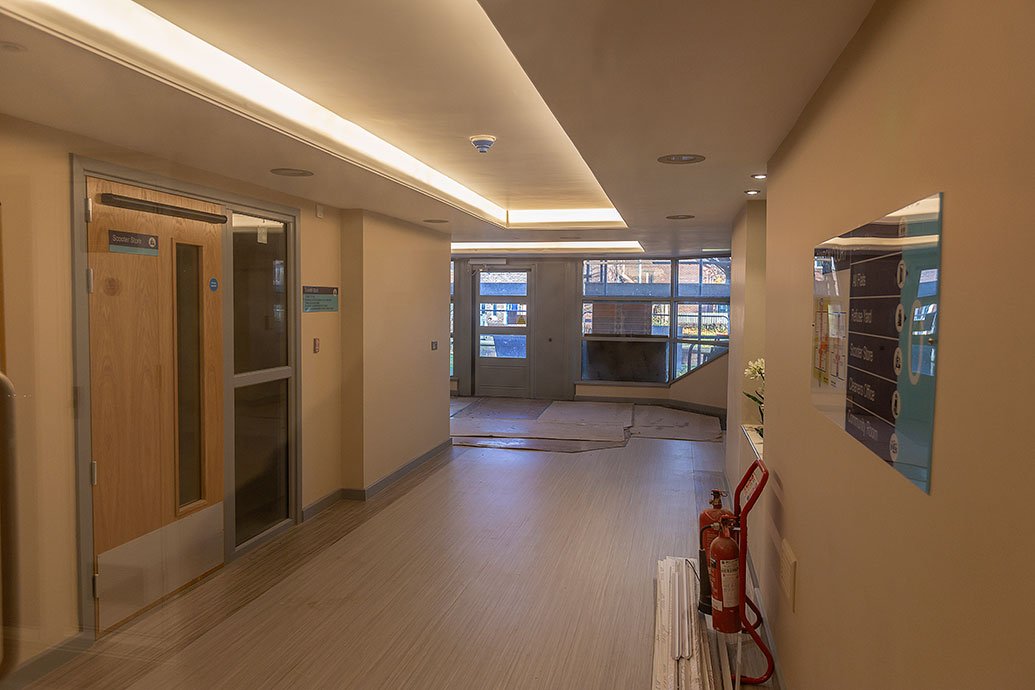

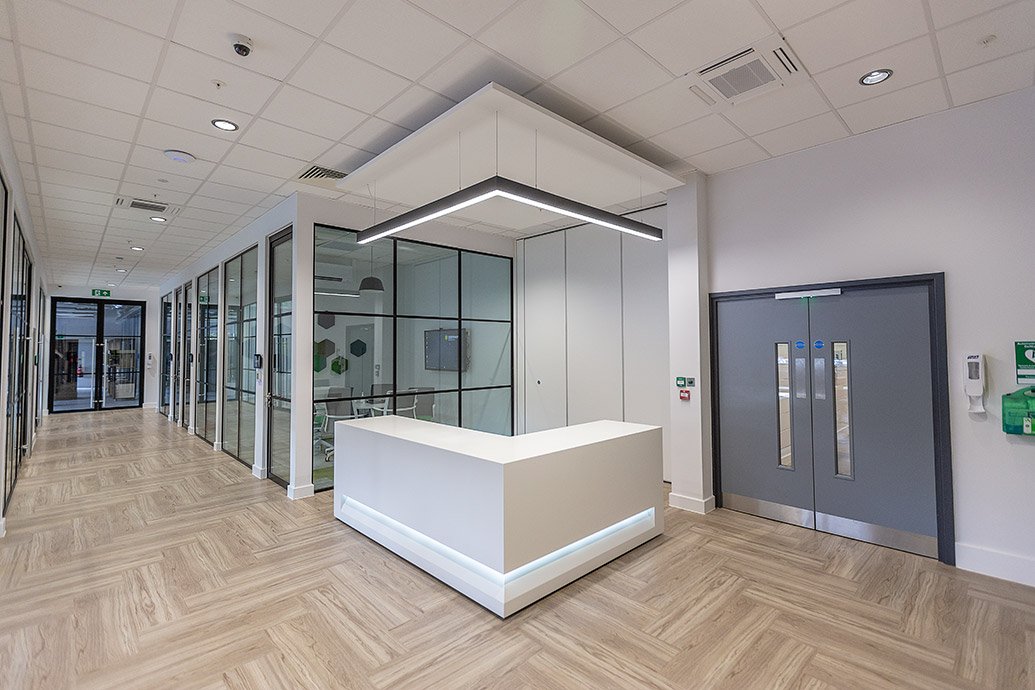

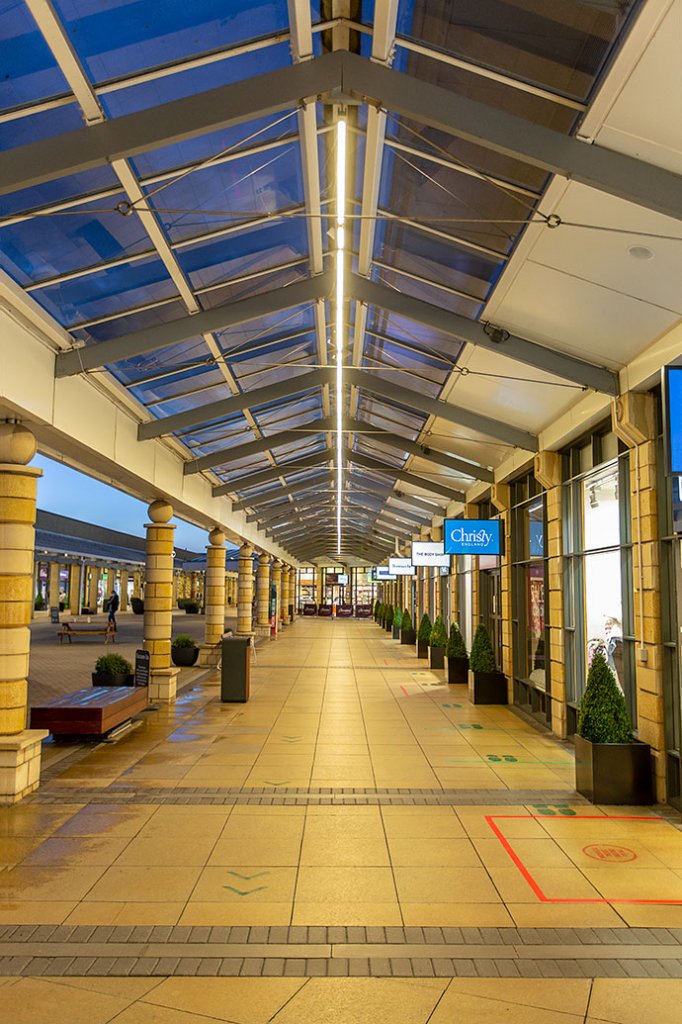

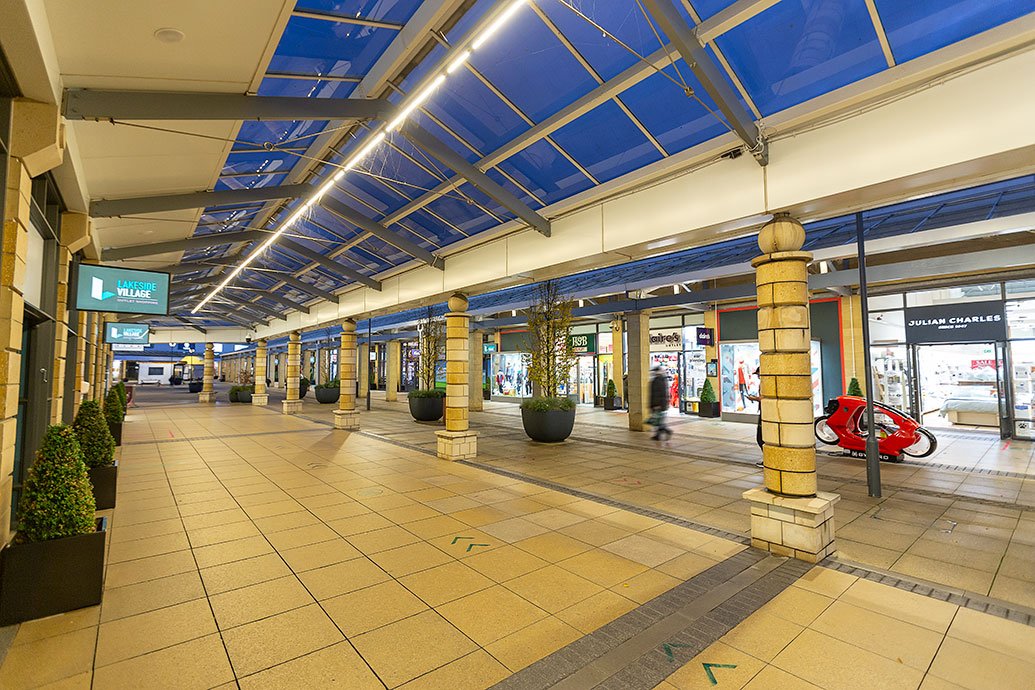

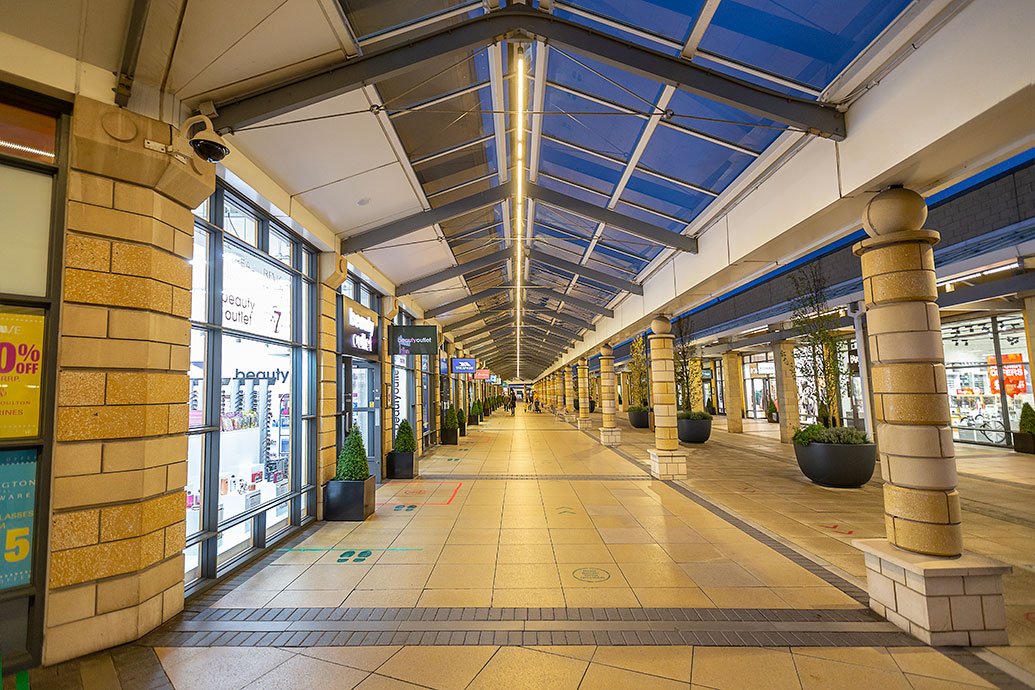

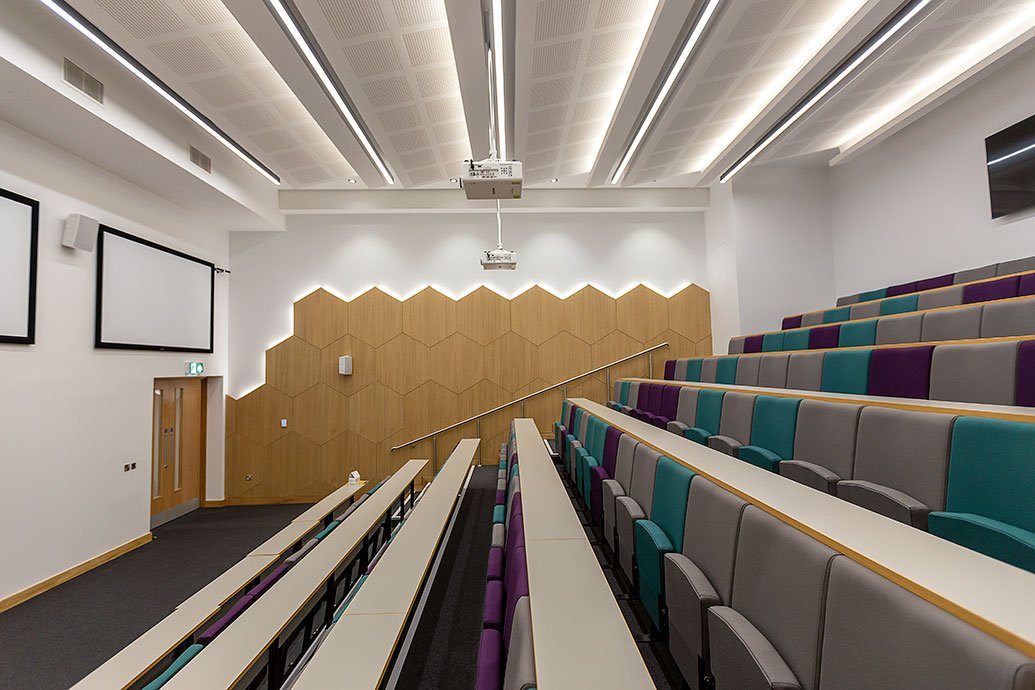

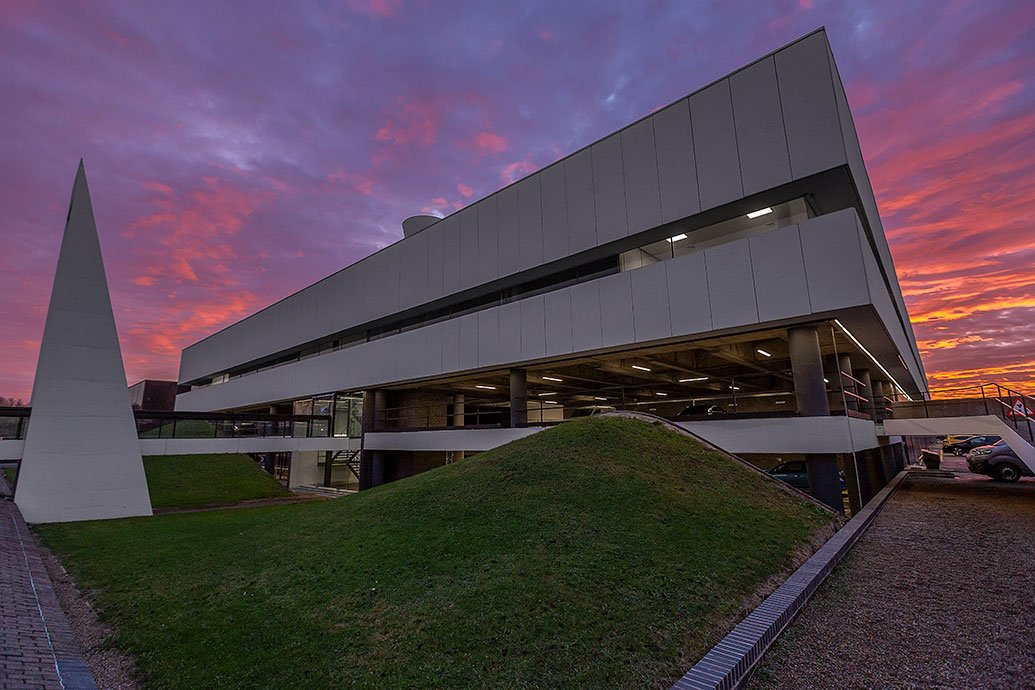

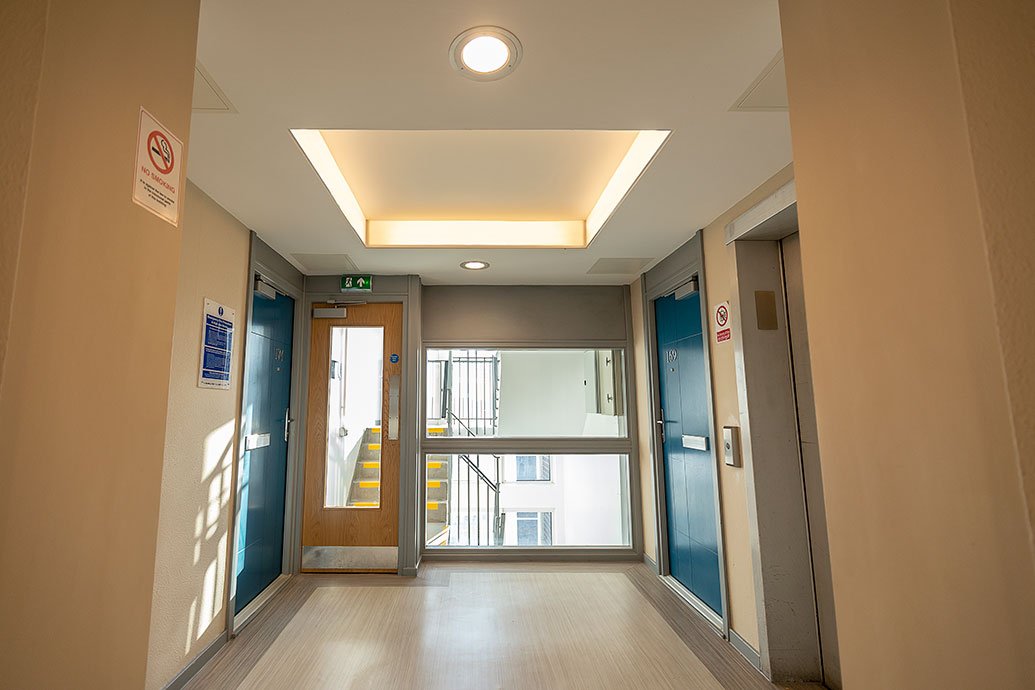

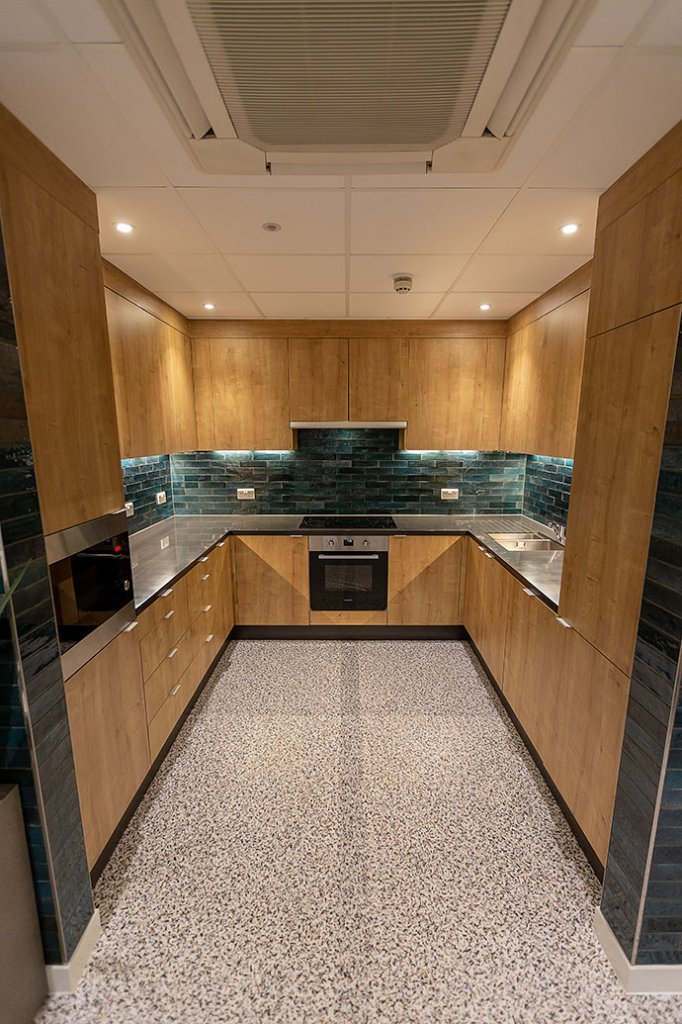

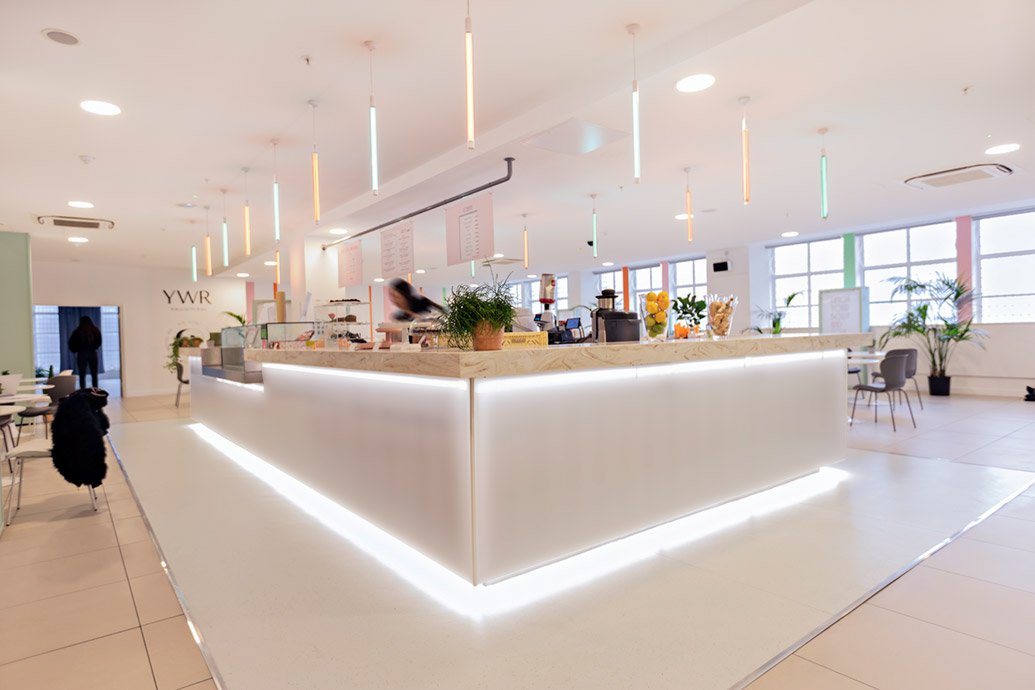

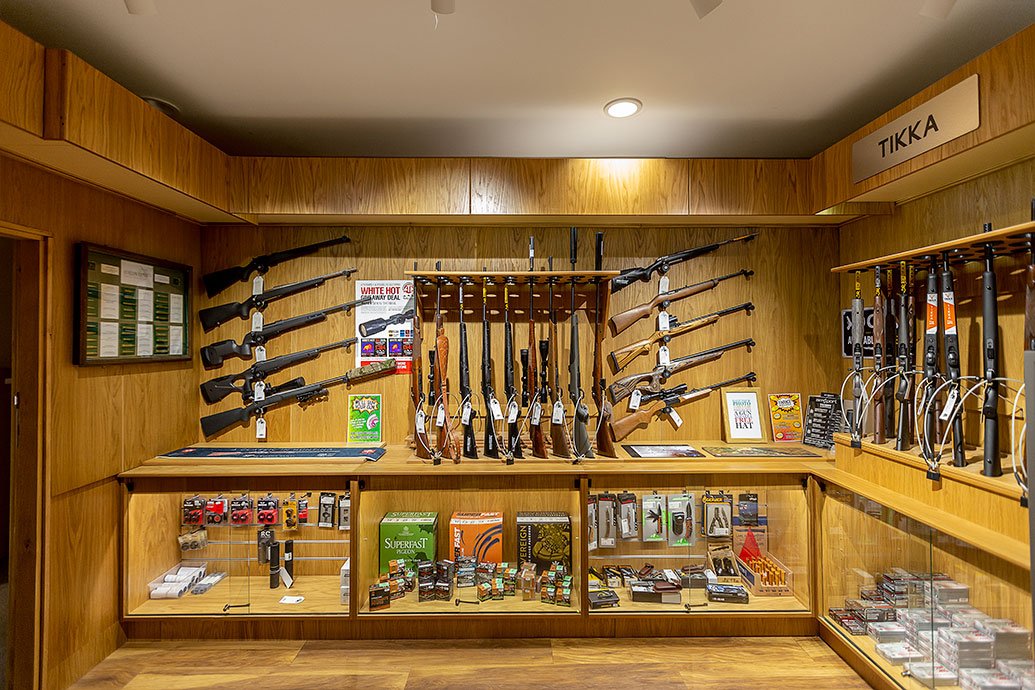

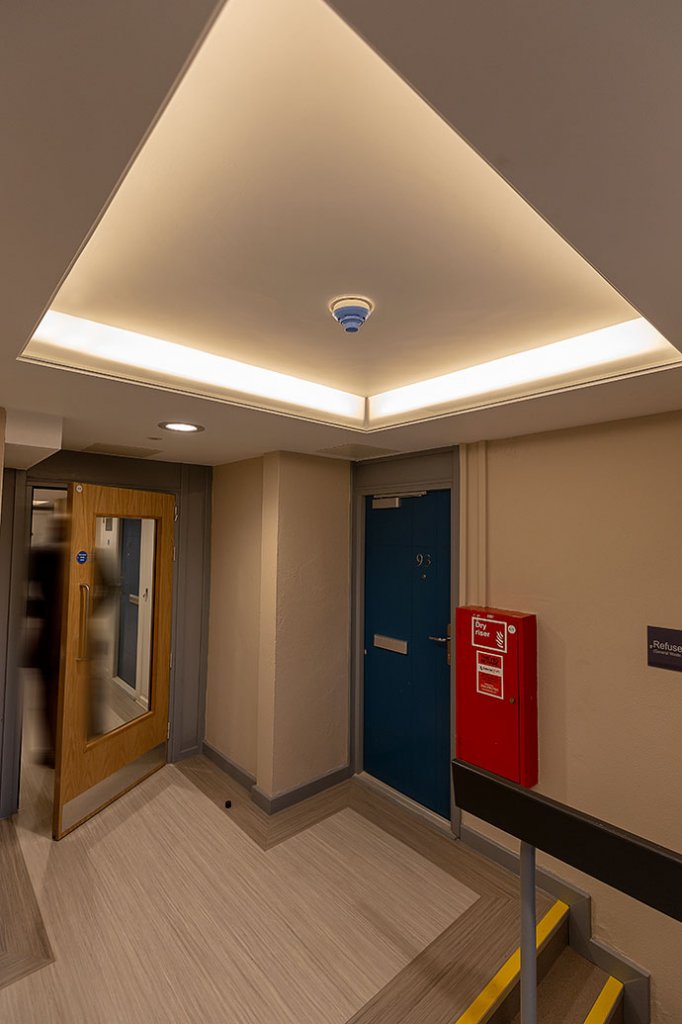

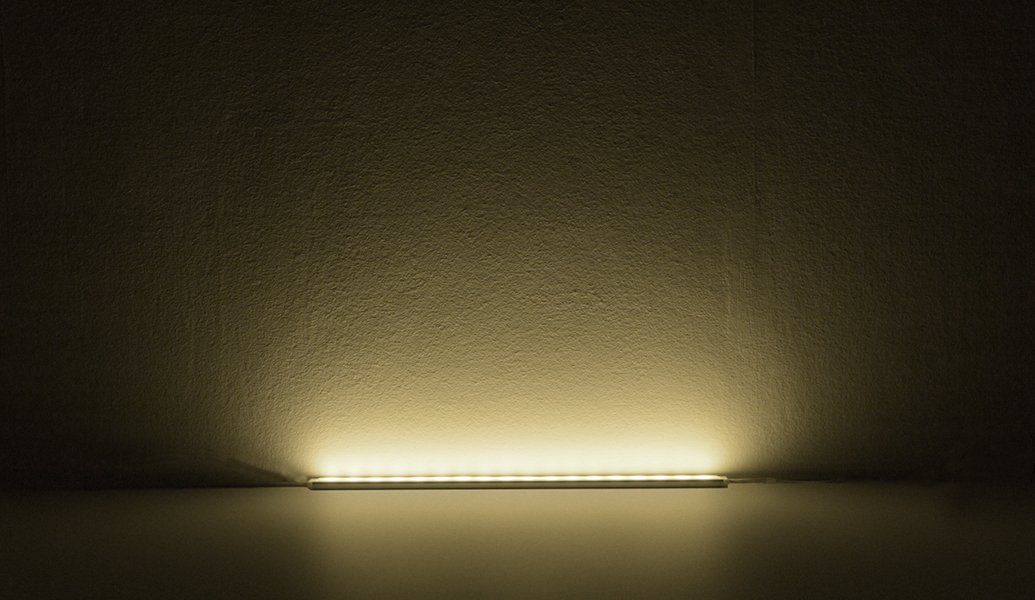

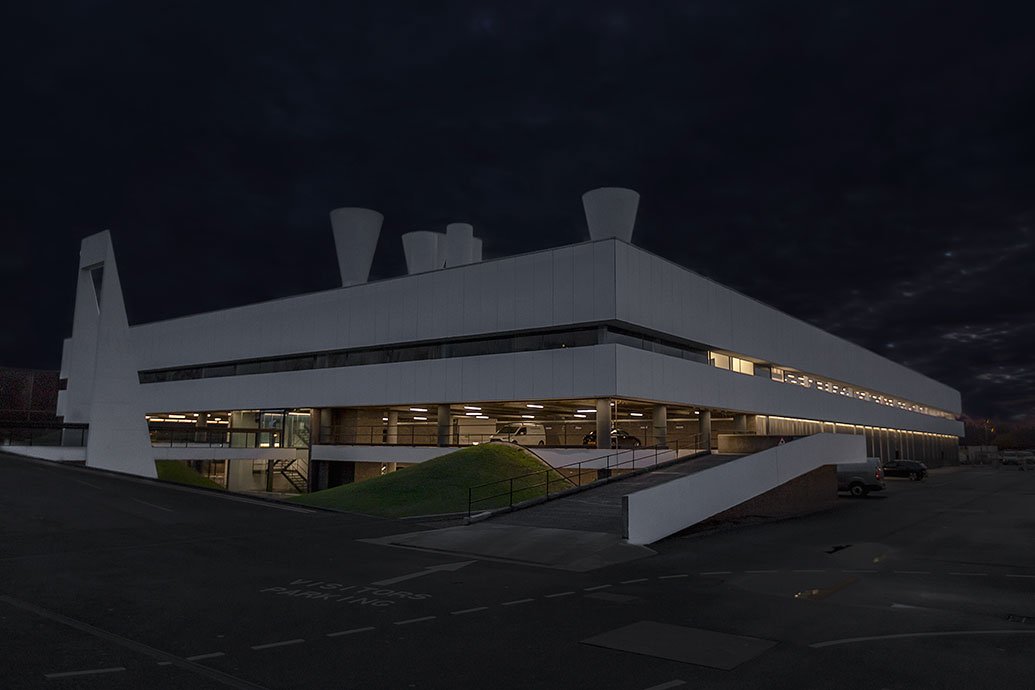

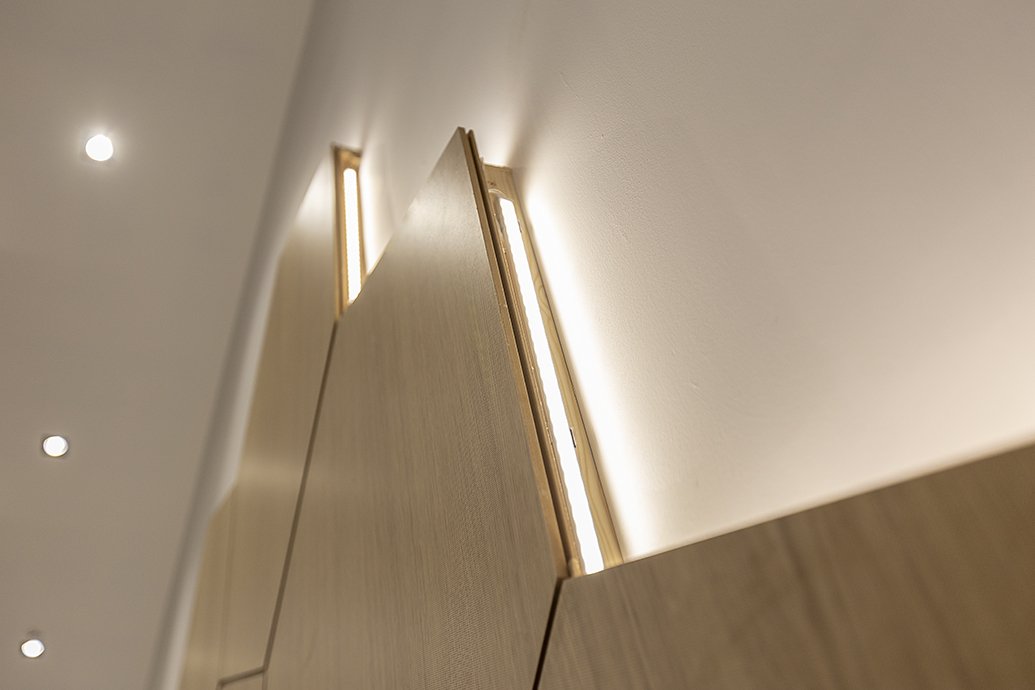

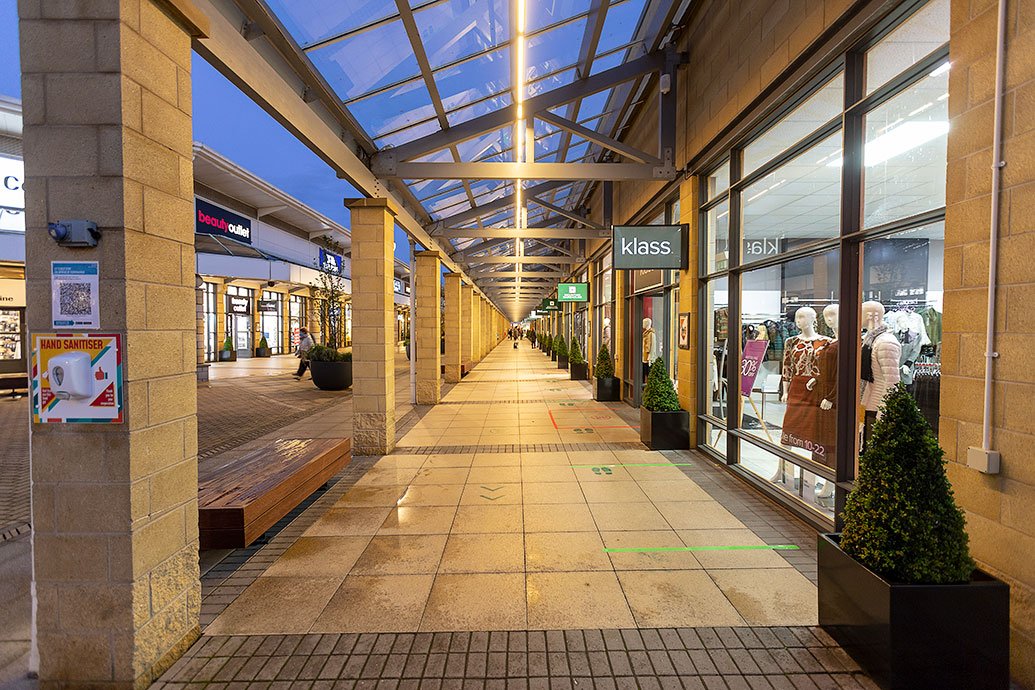

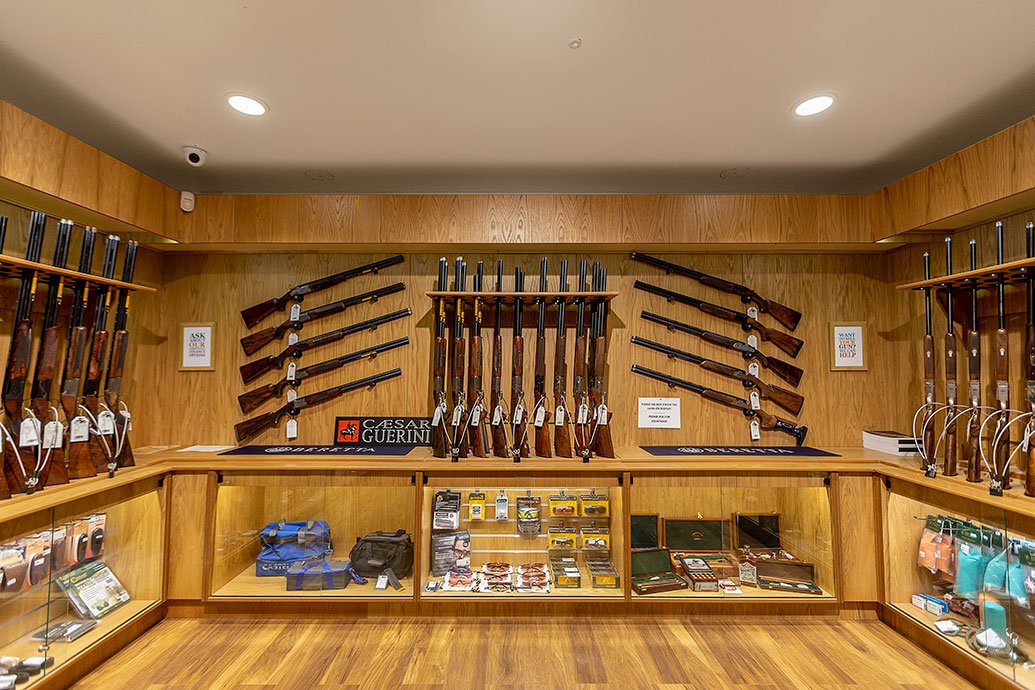

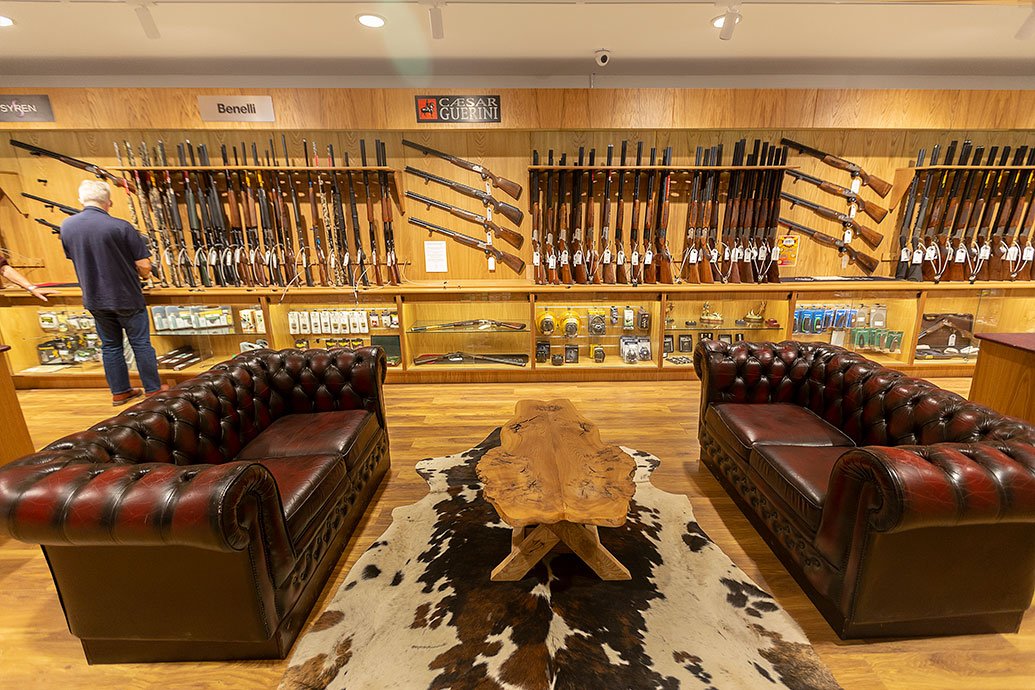

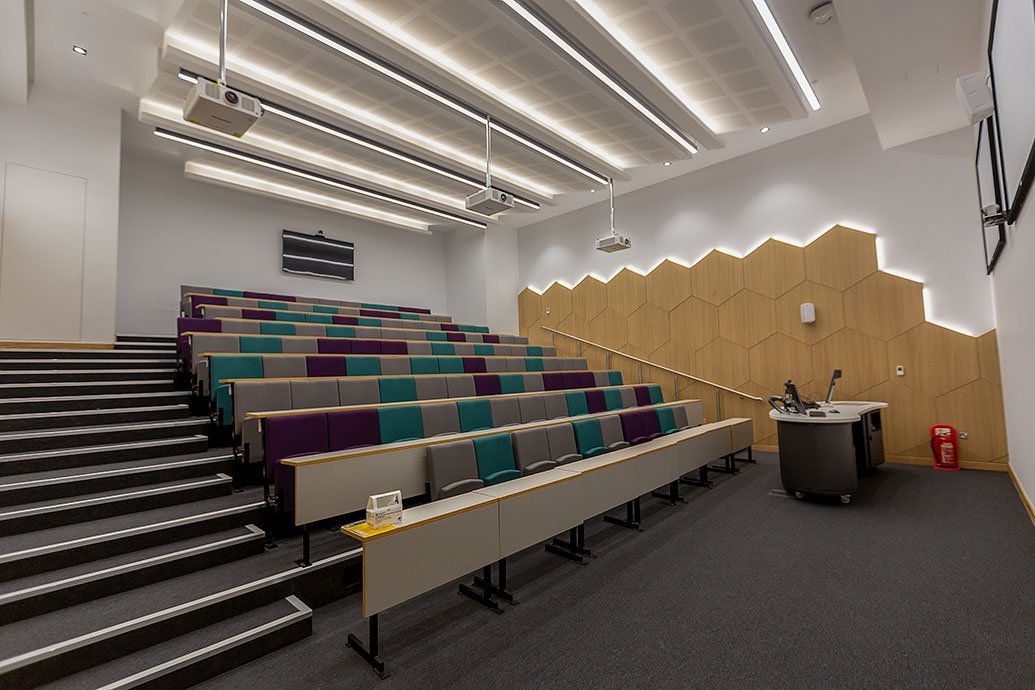

AluLED in action

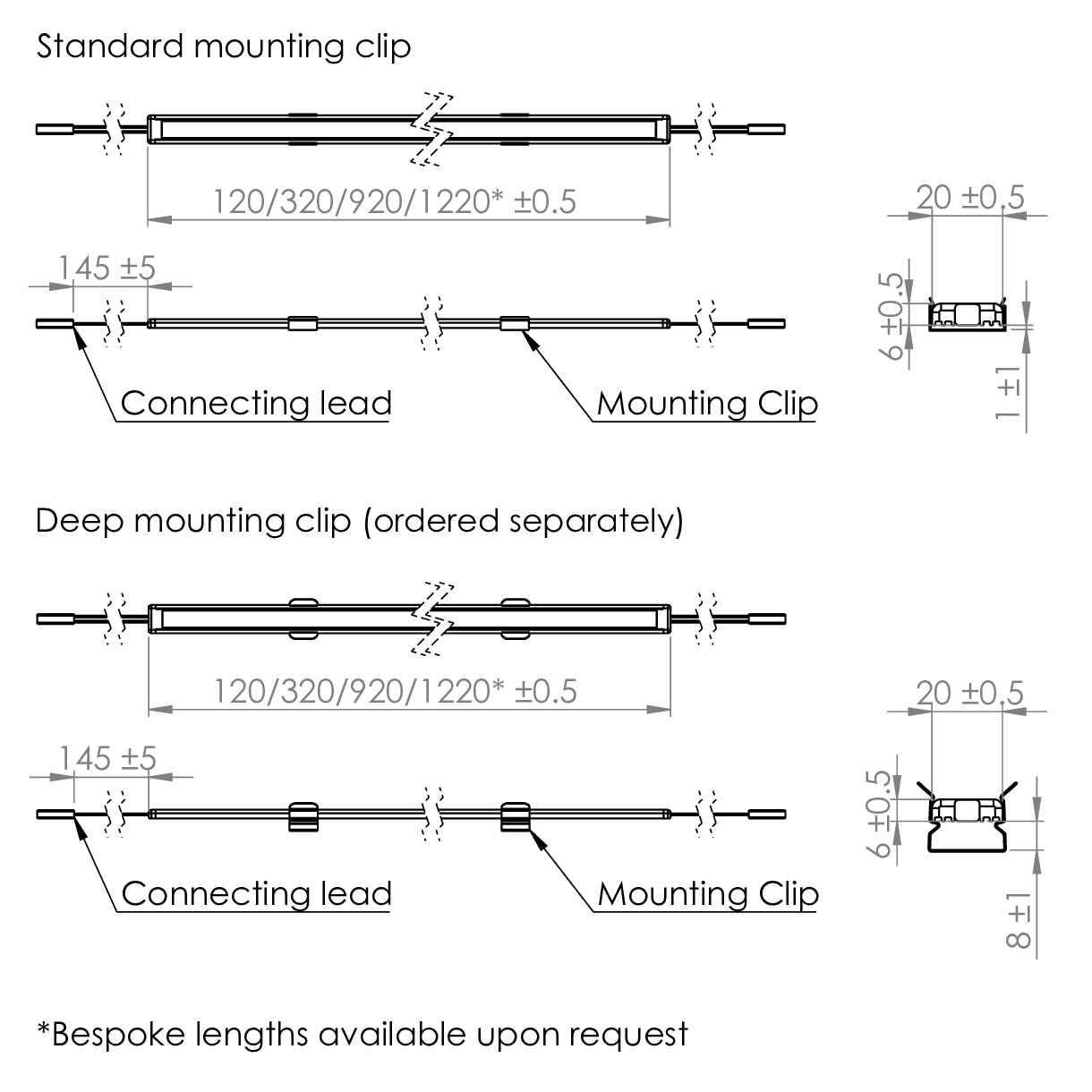

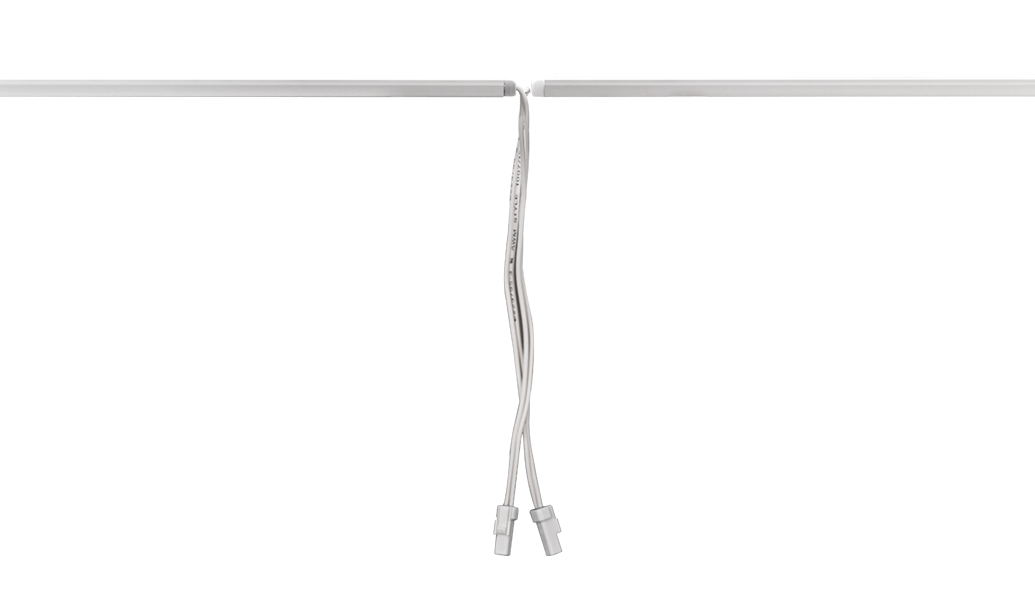

Technical

AluLED

AluLED

Ordering

Luminaires

Code Description Power Luminous Flux
AluLED1204C AluLED, 120mm, 4000k, IP67, 47mA, Colour 84 1.13W 100lm
AluLED1203C AluLED, 120mm, 3000k, IP67, 47mA, Colour 83 1.13W 90lm
AluLED3204C AluLED, 320mm, 4000k, IP67, 140mA, Colour 84 3.4W 300lm
AluLED3203C AluLED, 320mm, 3000k, IP67, 140mA, Colour 83 3.4W 240lm
AluLED9204C AluLED, 920mm, 4000k, IP67, 420mA, Colour 84 10.1W 900lm
AluLED9203C AluLED, 920mm, 3000k, IP67, 420mA, Colour 83 10.1W 720lm
AluLED12204C AluLED, 1220mm, 4000k, IP67, 560mA, Colour 84 13.5W 1200lm
AluLED12203C AluLED, 1220mm, 3000k, IP67, 560mA, Colour 83 13.5W 960lm

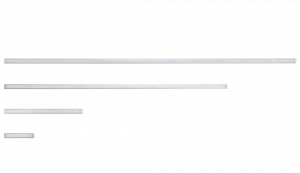

AluLED IP20 Opal available on request

Miscellaneous

Code Description
C569 2 Strand Starter lead
C5691 2 Strand interconnecting lead 500mm
C5638 AluLED Deep Clip

Downloads

Installation Guide (Download PDF) Product Datasheet (Download PDF) Revit Files Dialux Files Relux Files
