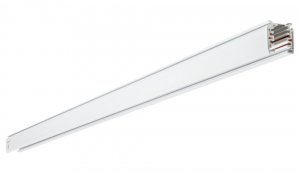

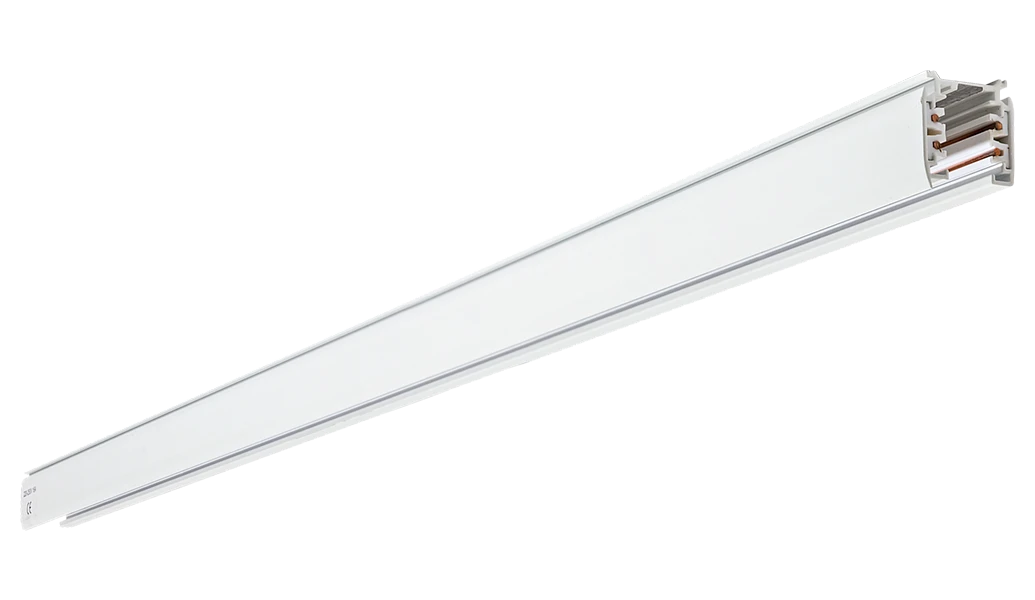

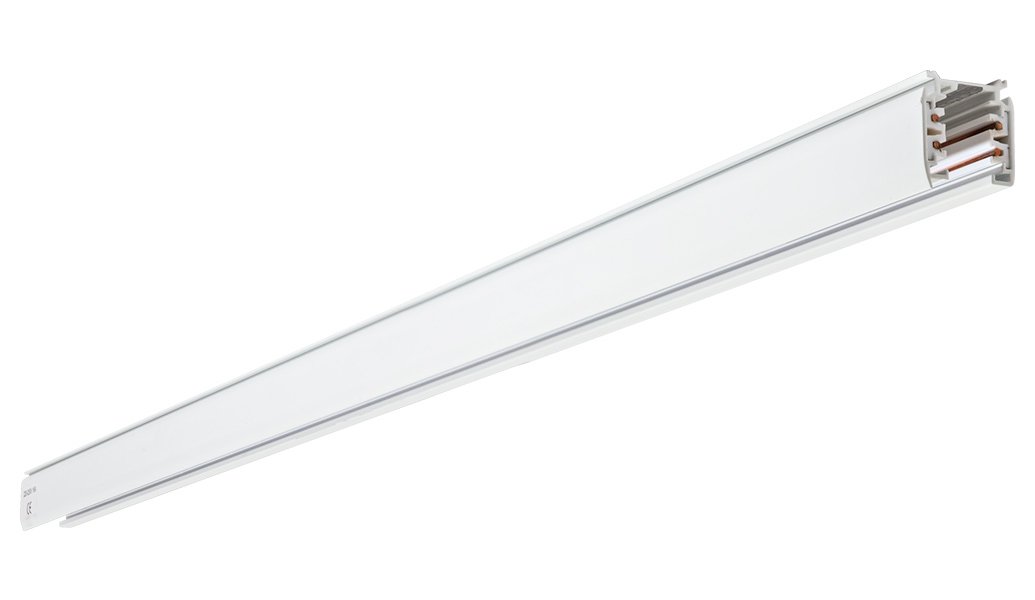

3 Circuit Track White

Introduction

We offer a comprehensive selection of recessed track and accessories, our three circuit offering has been designed for the professional and is renowned for its reliability, durability and quality finish. The extruded aluminium profiles of this 16 amp three circuit system are available in a choice of three colours and are complimented by a wide array of accessories ensuring complete flexibility in track configurations.



3 CIRCUIT TRACK SURFACE / SUSPENDED complies with:

UKCA | CE | IP20

Recommended applications:

Accent Lighting | Display Lighting | Retail

Specification

Construction

  • Housing: Extruded aluminium

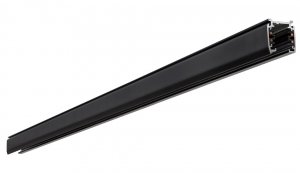

  • Finish: Matt black
  • Finish: Matt white

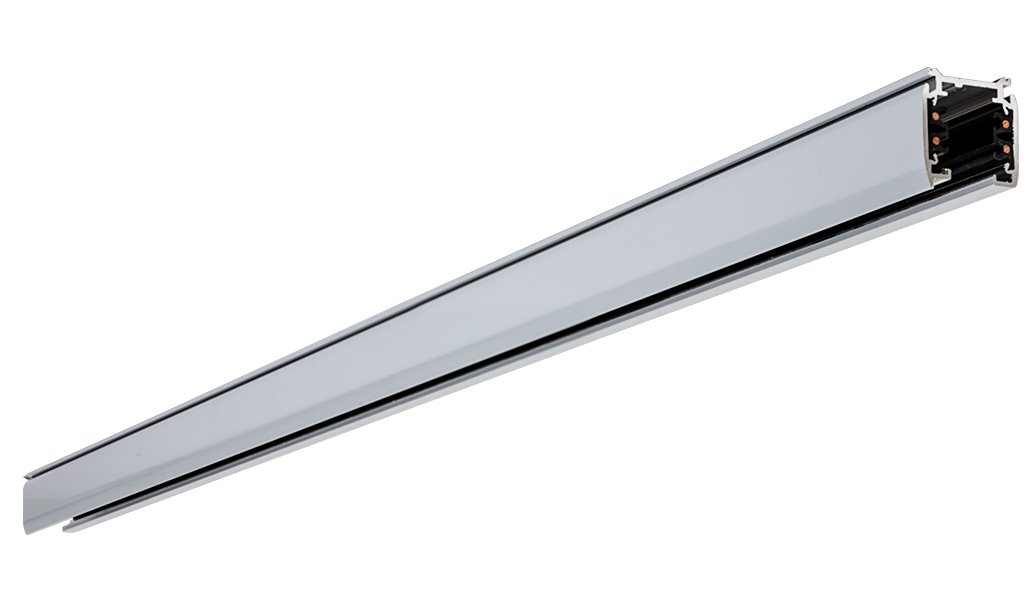

  • Finish: Matt grey
  • Endcaps: Injection moulded polycarbonate
  • IP20

Environmental

  • UK based manufacturing providing local support throughout the product lifetime and minimising transportation miles.

Variations

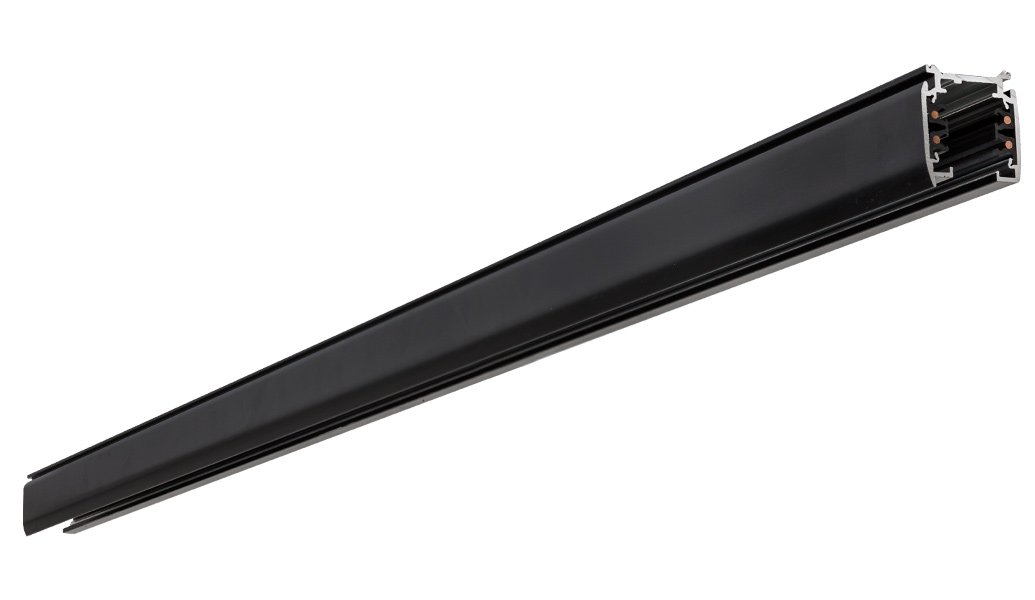

  • Available in white, black or grey finishes
5 year extended warranty available on most products.
Arrow right

Product Images

Technical

Track Configuration

Track Configuration

Track Dimensions and Loadings

Track Dimensions and Loadings

Ordering

Luminaires

Code Description
HT 1M GLOBAL 1m Length 3 Circuit Track Global White
HT 2M GLOBAL 2m Length 3 Circuit Track Global White
HT 3M GLOBAL 3m Length 3 Circuit Track Global White
HT J GLOBAL 3 Circuit Straight Track Joiner Global White
HT INT J GLOBAL 3 Circuit Internal Track Joiner Global White

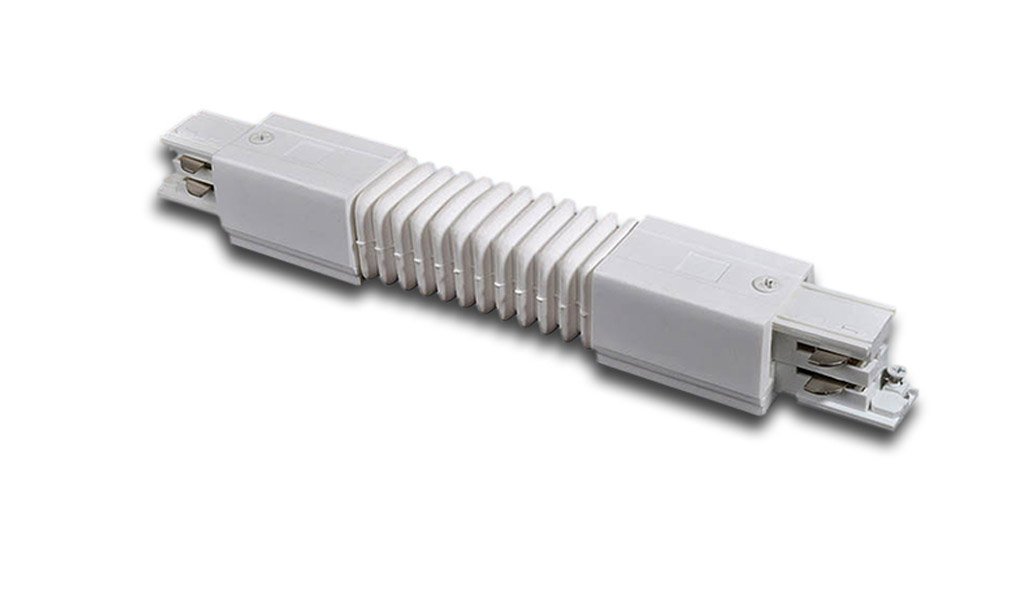

HT FJC GLOBAL 3 Circuit Flexible Track Joiner Global White

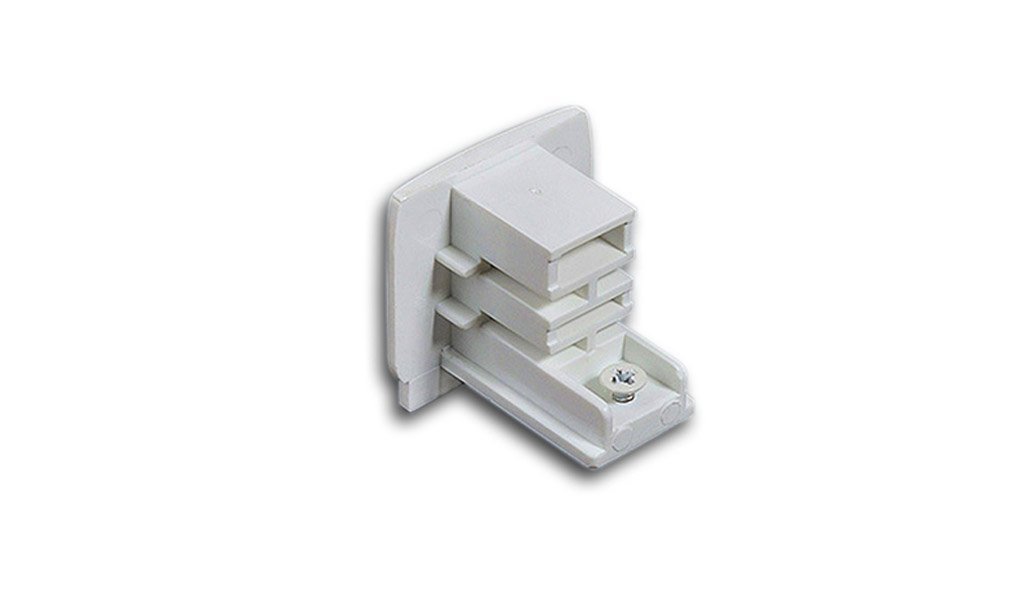

HT DE GLOBAL 3 Circuit Dead End Global White
HT LE LEFT GLOBAL 3 Circuit Live End Left Global White

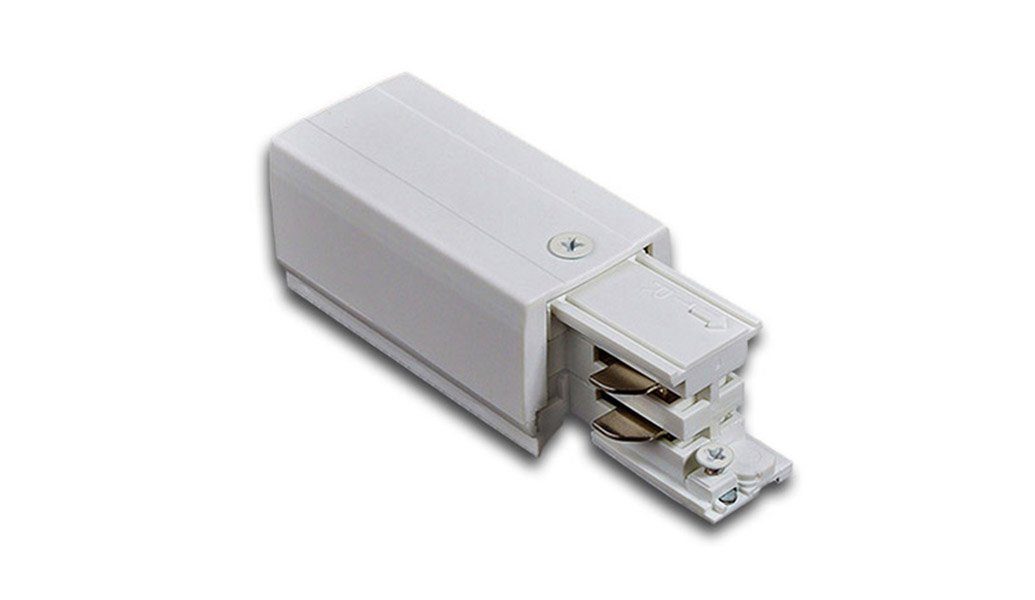

HT LE RIGHT GLOBAL 3 Circuit Live End Right Global White
HT T LEFT L1 GLOBAL 3 Circuit 3 Way Connector Left L1 Global White
HT T LEFT L2 GLOBAL 3 Circuit 3 Way Connector Left L2 Global White
HT T RIGHT R1 GLOBAL 3 Circuit 3 Way Connector Right R1 Global White

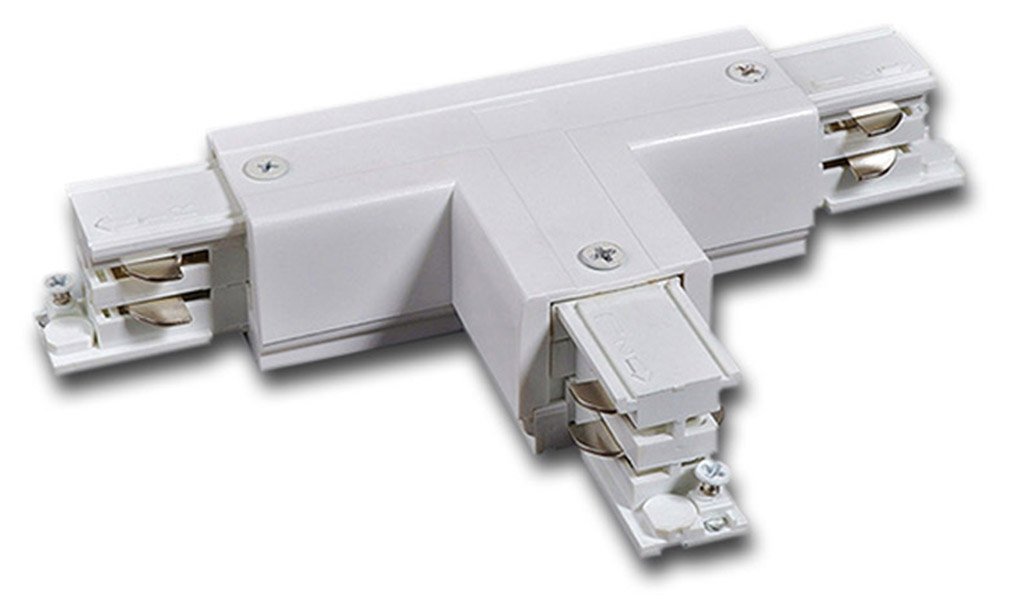

HT T RIGHT R2 GLOBAL 3 Circuit 3 Way Connector Right R2 Global White
HT COR LEFT GLOBAL 3 Circuit Corner Left Global White

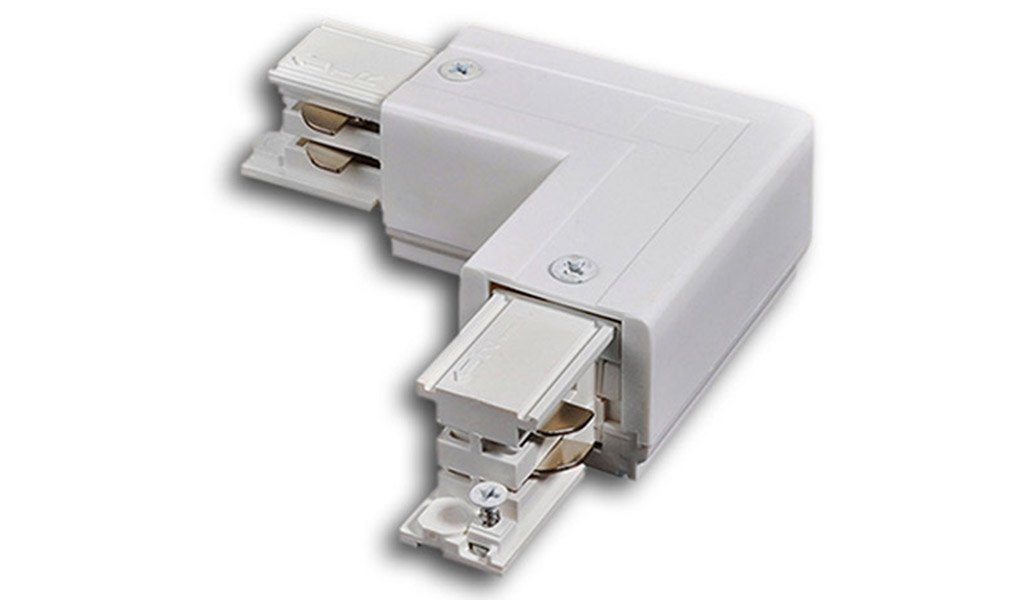

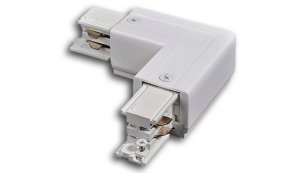

HT COR RIGHT GLOBAL 3 Circuit Corner Right Global White
HT CROSS GLOBAL 3 Circuit 4 Way Connector Global White

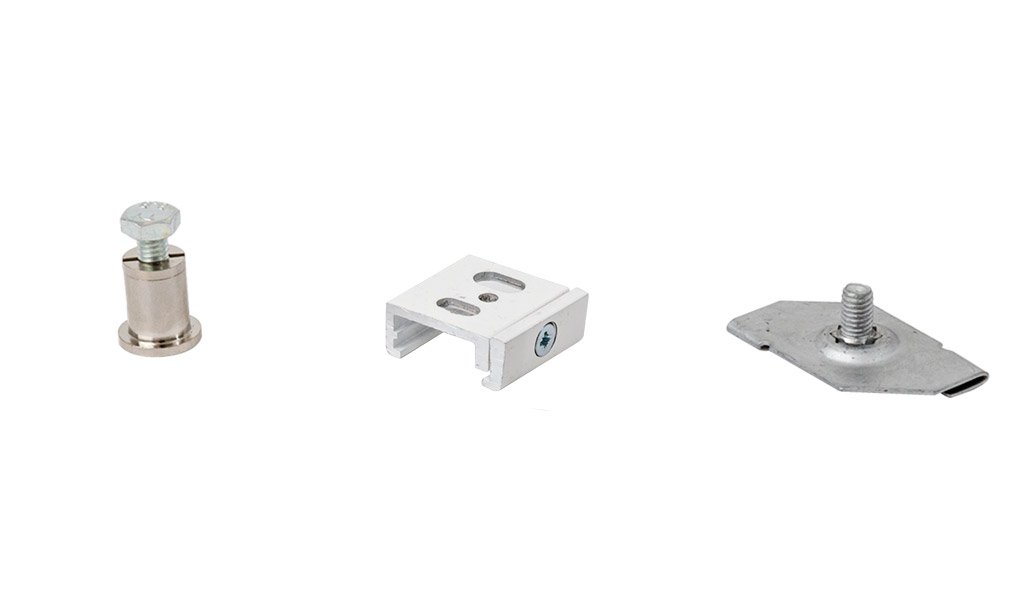

HT SC Suspension Clamp

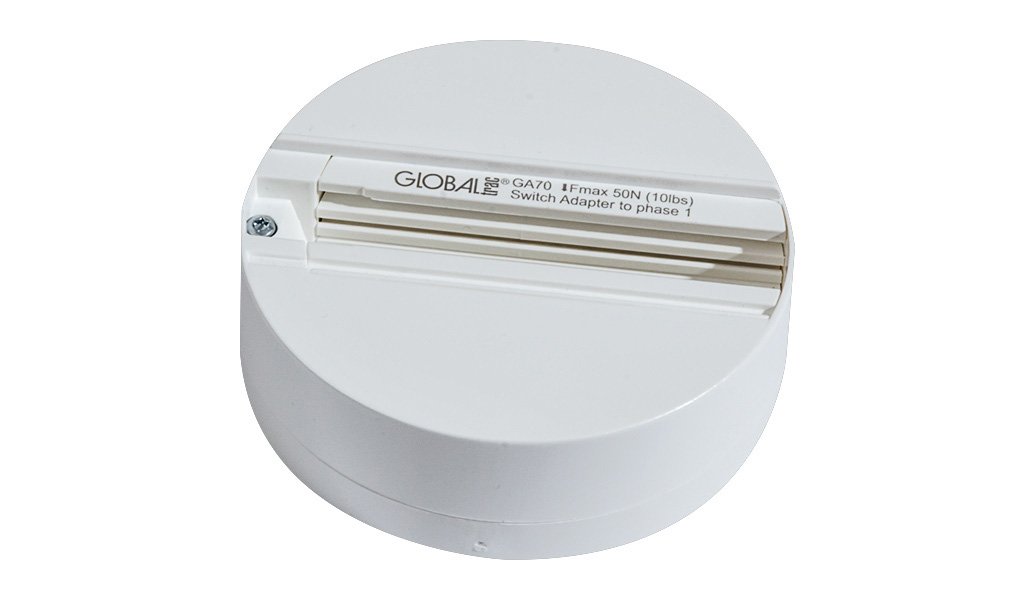

HT FIX-POINT GLOBAL 3 Circuit Circular Fixing Point Box

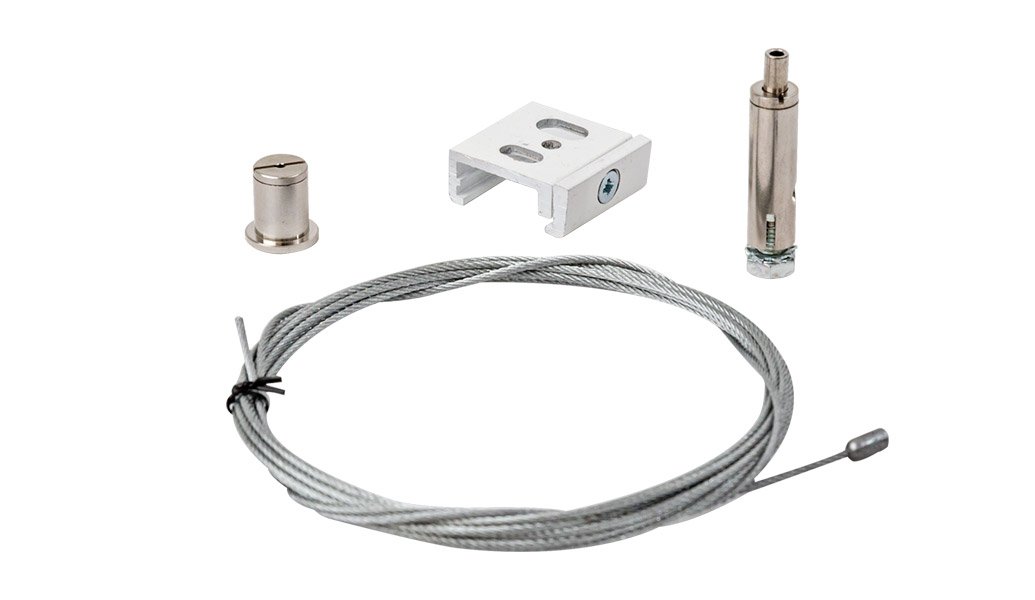

SUSP HT 10M BF X1 BL Suspension Hi-Track, 10M, Barrel Fix, One Drop, Black
SUSP HT 10M BF X1 WH Suspension Hi-Track, 10M, Barrel Fix, One Drop, White
SUSP HT 10M LO X1 BL Suspension Hi-Track, 10M, Loop Over, One Drop, Black
SUSP HT 10M LO X1 WH Suspension Hi-Track, 10M, Loop Over, One Drop, White
SUSP HT 1M DR X1 BL Suspension Hi-Track, 1M 6mm Drop Rod, One Drop, Black
SUSP HT 1M DR X1 WH Suspension Hi-Track, 1M 6mm Drop Rod, One Drop, White
SUSP HT 3M BF X1 BL Suspension Hi-Track, 3M, Barrel Fix, One Drop, Black
SUSP HT 3M BF X1 WH Suspension Hi-Track, 3M, Barrel Fix, One Drop, White
SUSP HT 3M LO X1 BL Suspension Hi-Track, 3M, Loop Over, One Drop, Black
SUSP HT 3M LO X1 WH Suspension Hi-Track, 3M, Loop Over, One Drop, White
SUSP HT 5M BF X1 BL Suspension Hi-Track, 5M, Barrel Fix, One Drop, Black
SUSP HT 5M BF X1 GY Suspension Hi-Track, 5M, Barrel Fix, One Drop, Grey
SUSP HT 5M BF X1 WH Suspension Hi-Track, 5M, Barrel Fix, One Drop, White
SUSP HT 5M LO X1 BL Suspension Hi-Track, 5M, Loop Over, One Drop, Black
SUSP HT 5M LO X1 GY Suspension Hi-Track, 5M, Loop Over, One Drop, Grey
SUSP HT 5M LO X1 WH Suspension Hi-Track, 5M, Loop Over, One Drop, White

Miscellaneous

Code Description
BL Black Finish
GY Grey Finish
HT BENDING TOOL Bending Tool for Cutting Track to Length

Downloads

Installation Guide (Download PDF) Product Datasheet (Download PDF) Revit Files Dialux Files Relux Files
