REAF 7 DR15 LL SENSOR
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Pellentesque tempor, purus facilisis accumsan luctus, elit metus faucibus sem, ac tempus.
Introduction
The REAF 7 DR15 LL is a Recessed flush mounted passive infrared occupancy and daylight sensor with DALI or DSI dimming and fixed output relay control.
Features & Benefits
- Mounting Type: Recessed
- Wireless: No
- Maximum Mounting Height: 3.5m
- Occupancy Detection: PIR
- Daylight Control: Daylight Regulation
- Output: DALI
- Output: On/Off
- Supply Power Source: 230V
- IP Rating: IP4X
- Standby Power: 0.15W
- Programmer: REA DPA
- Programmer: REA7 PTH DIR

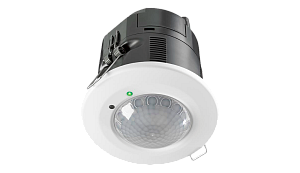

Product Images
Diagrams

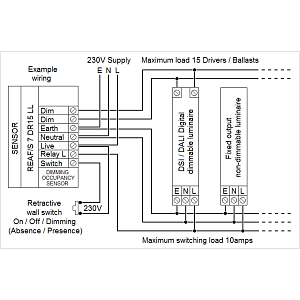

REAF 7 DR15 LL wiring diagram
REAF 7 DR15 LL
Sensor Detection
REAF 7 DR15 LL_det
Ordering
| Code | Description |
|---|---|
| REA 7 SURFMT | Reacta 7 Surface Mounting Kit |
| REA 7 WMK | Reacta 7 Wall Mounting Kit |
Downloads
Find out more about
REAF 7 DR15 LL SENSOR
For Sales and Technical Enquires call 01747 858100
