Introduction
The REAF 7 DR15 LL ML T is a Recessed flush mounted passive infrared occupancy and daylight sensor with DALI or DSI dimming and fixed output relay control. Bus linking allows for one primary and three secondary sensors to act as one control group. Comes with tiltable lens.
Features & Benefits
- Mounting Type: Recessed
- Wireless: No
- Maximum Mounting Height: 3.5m
- Occupancy Detection: PIR
- Daylight Control: Daylight Regulation
- Output: DALI
- Output: On/Off
- Supply Power Source: 230V
- IP Rating: IP4X
- Standby Power: 0.15W
- Programmer: REA DPA

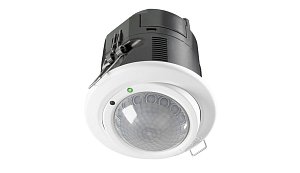

Product Images
Diagrams

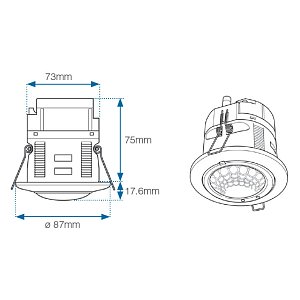

REAF 7 DR15 LL ML T

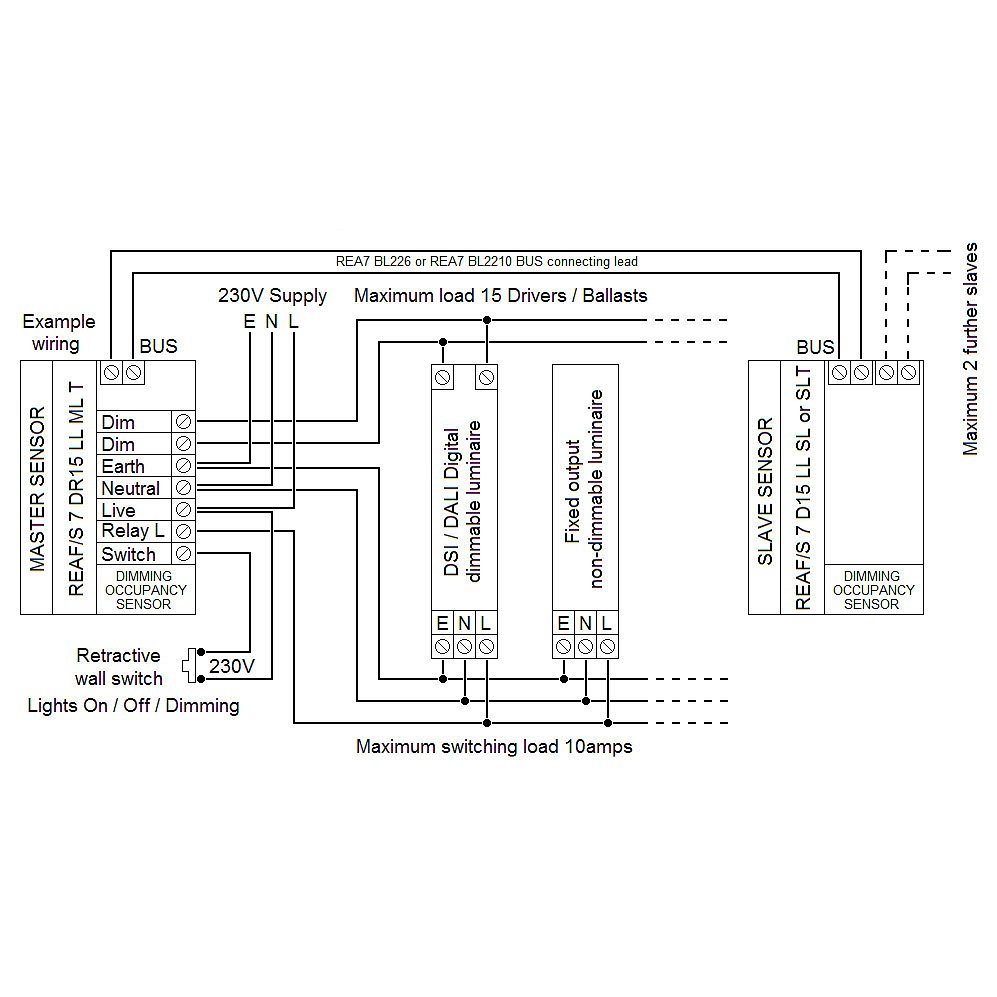

REAF 7 DR15 LL ML T wiring diagram

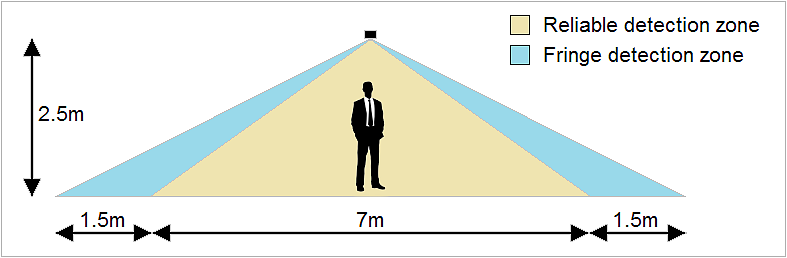

Sensor Detection
REAF 7 DR15 LL ML T_det
Ordering
| Code | Description |
|---|---|
| REAF 7 DR15 LL ML T | Flush Mounted, Low Level, 10Amp Switching Relay, DSI/DALI Dimming, Manual Override, IP4X |
| REA 7 SURFMT | Reacta 7 Surface Mounting Kit |
| REA 7 WMK | Reacta 7 Wall Mounting Kit |
