REAF 7 D15 LL SL SENSOR
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Pellentesque tempor, purus facilisis accumsan luctus, elit metus faucibus sem, ac tempus.
Introduction
The REAF 7 D15 LL SL is a Recessed flush mounted passive infrared occupancy and daylight sensor with DALI or DSI dimming and fixed output relay control. Bus linking allows for one primary and three secondary sensors to act as one control group.
Features & Benefits
- Mounting Type: Recessed
- Wireless: No
- Maximum Mounting Height: 3.5m
- Occupancy Detection: PIR
- Daylight Control: Daylight Regulation
- Output: DALI
- Supply Power Source: 12V-24V DC
- IP Rating: IP4X
- Standby Power: 0.16W
- Programmer: REA DPA

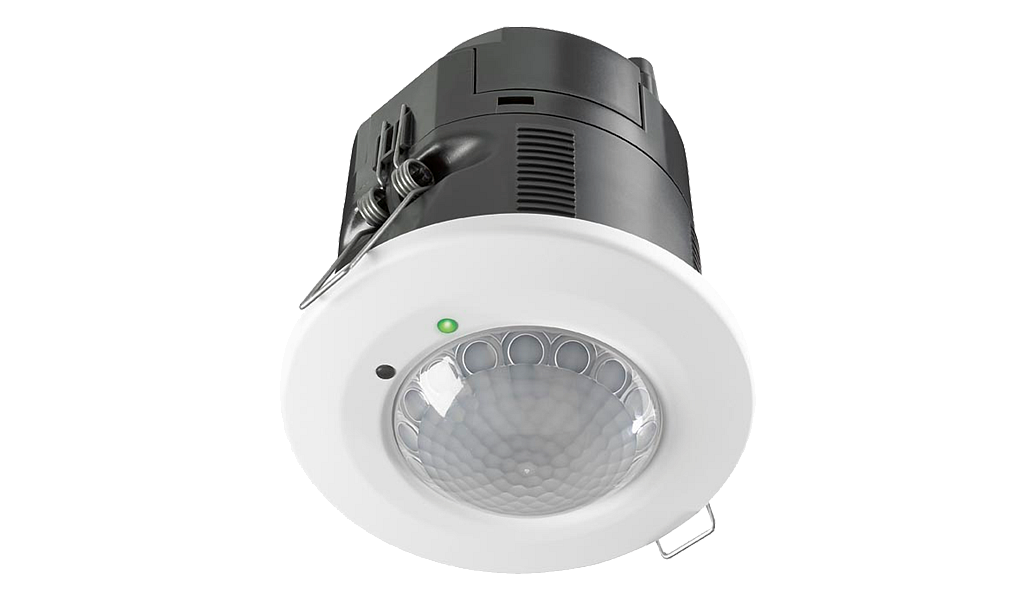

Product Images
Diagrams

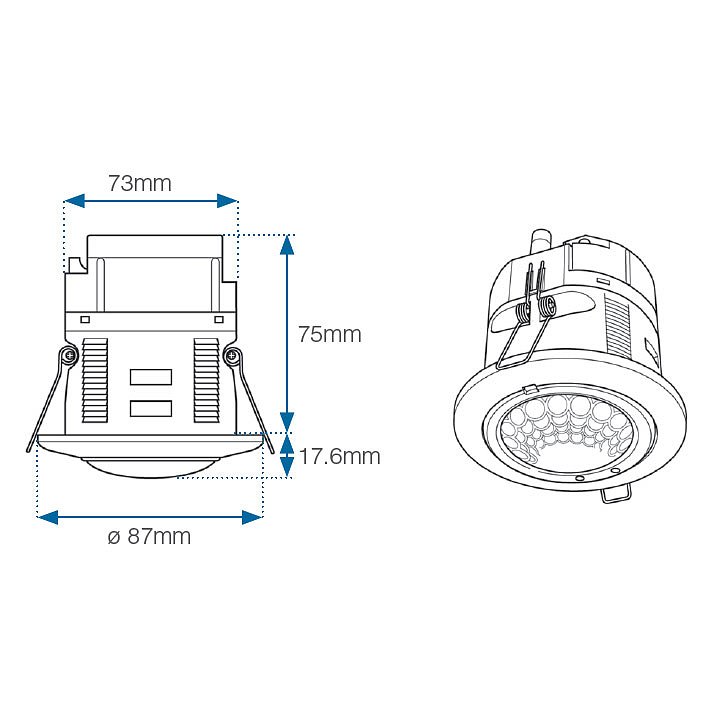

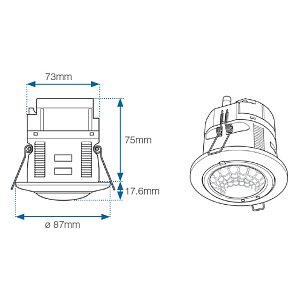

REAF 7 DR15 LL SL T

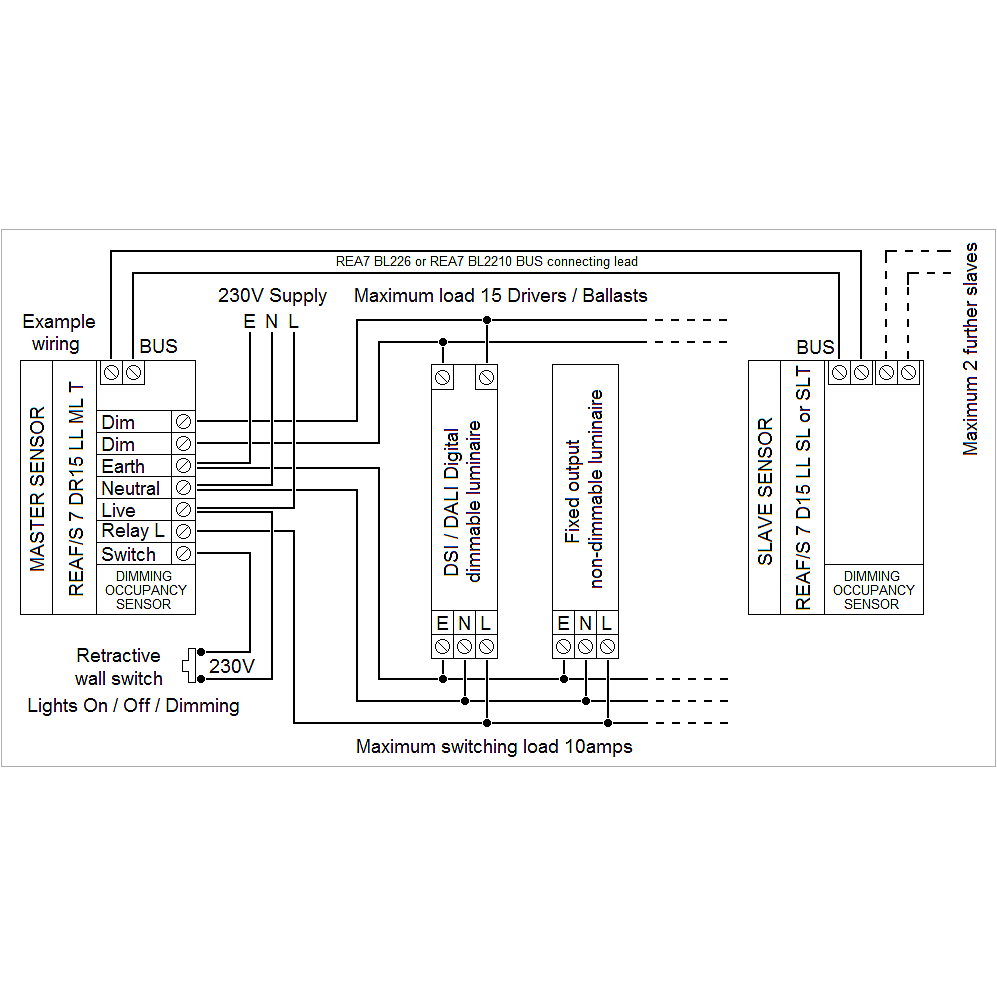

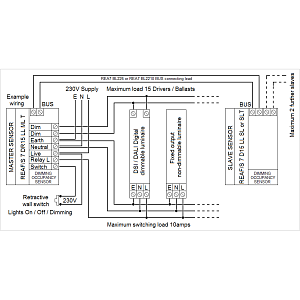

REAF 7 D15 LL SL wiring diagram

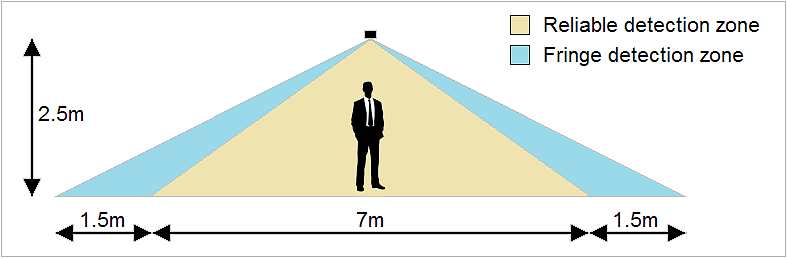

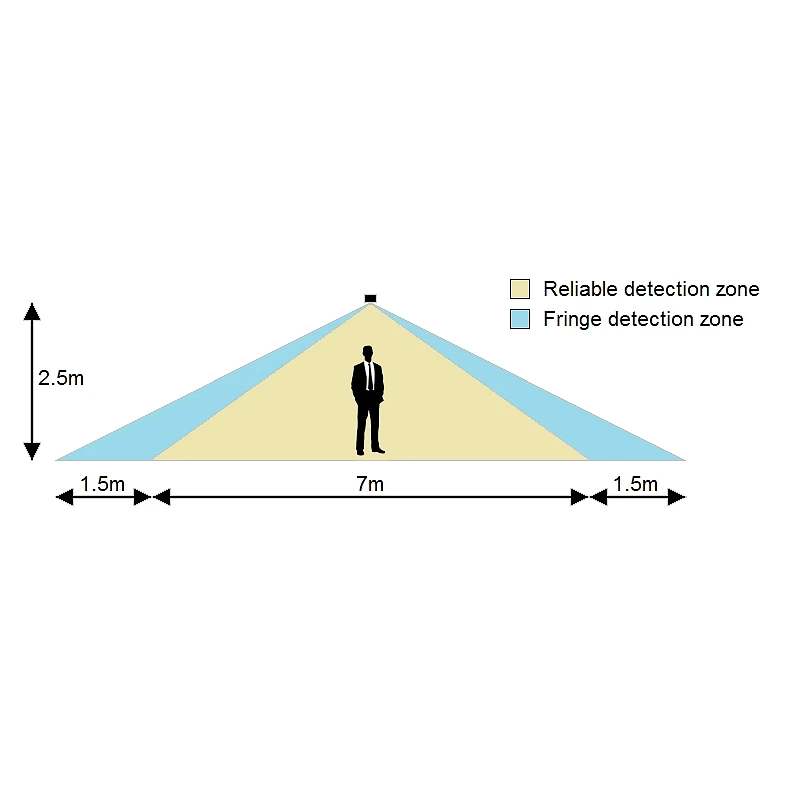

Sensor Detection
REAF 7 DR15 LL ML T_det
Ordering
| Code | Description |
|---|---|
| REAF 7 D15 LL SL | Flush Mounted, Low Level, DSI/DALI Dimming, Manual Override, IP4X, BUS Link Secondary |
| REA 7 SURFMT | Reacta 7 Surface Mounting Kit |
| REA 7 WMK | Reacta 7 Wall Mounting Kit |
