REAF 7 10A LL SENSOR
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Pellentesque tempor, purus facilisis accumsan luctus, elit metus faucibus sem, ac tempus.
Introduction
The REAF 7 10A LL is a Recessed flush mounted passive infrared occupancy and daylight sensor with fixed output relay control.
Features & Benefits
- Mounting Type: Recessed
- Wireless: No
- Maximum Mounting Height: 3.5m
- Occupancy Detection: PIR
- Daylight Control: Bright Out
- Output: On/Off
- Supply Power Source: 230V
- IP Rating: IP4X
- Standby Power: 0.15W
- Programmer: REA DPA
- Programmer: REA7 PTH DIR

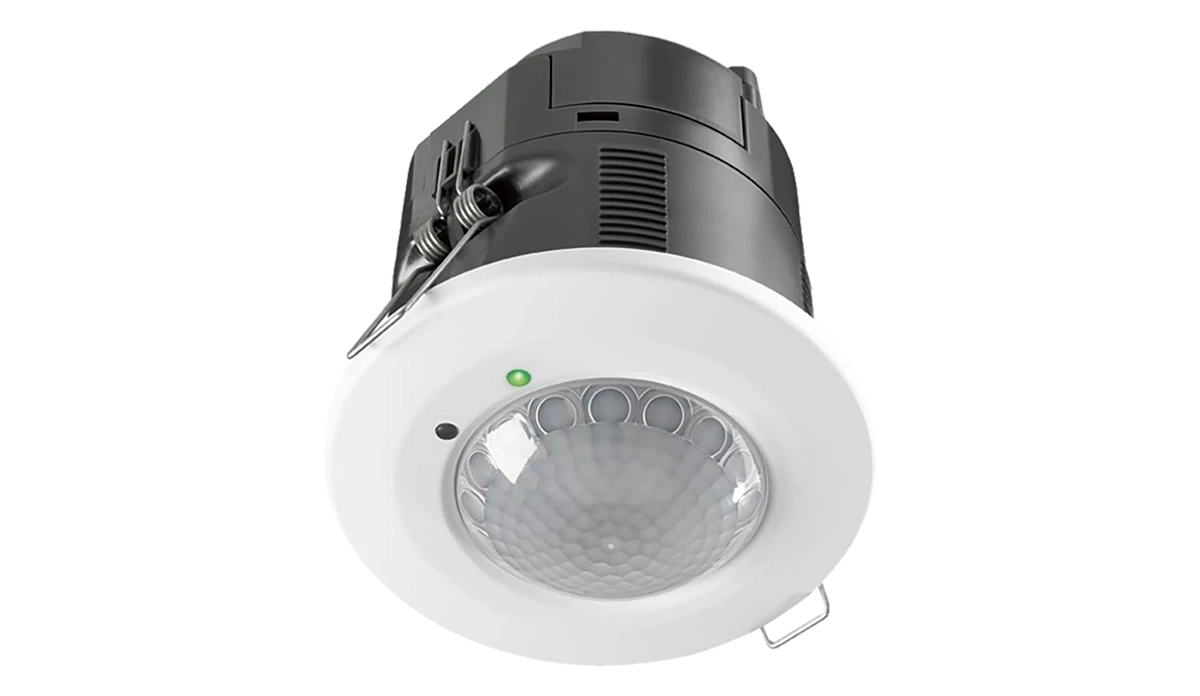

Product Images
Diagrams

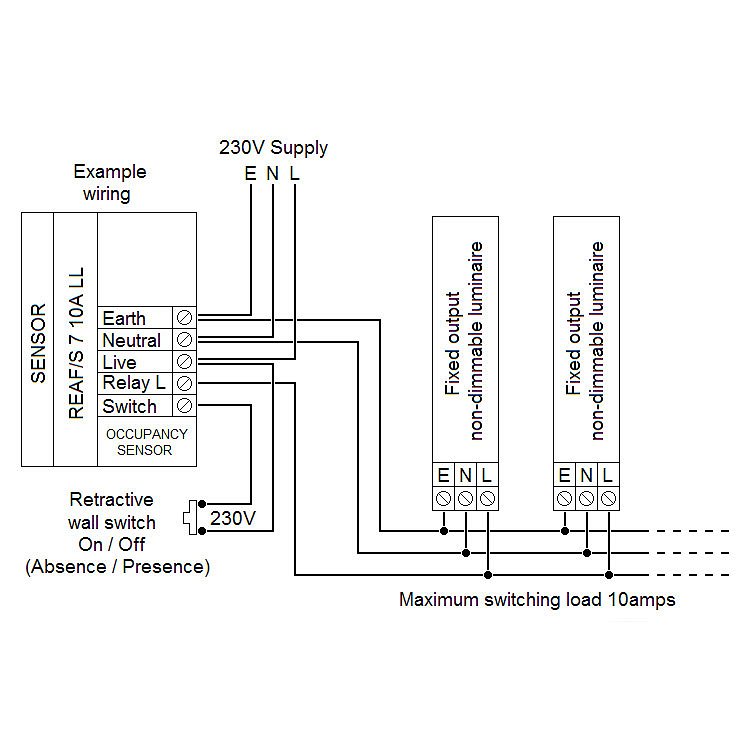

REAF 7 10A LL wiring diagram
REAF 7 10A LL

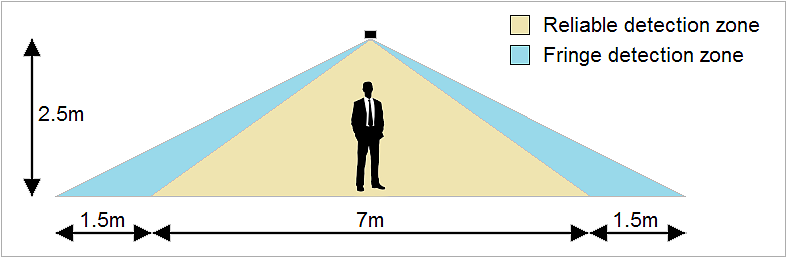

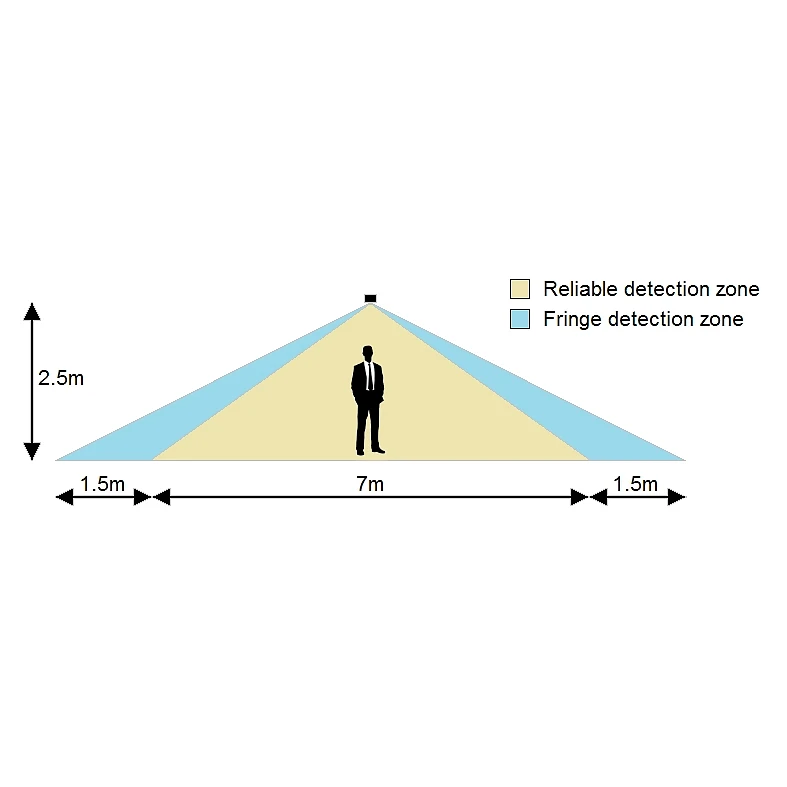

Sensor Detection
REAF 7 10A LL_det
Ordering
| Code | Description |
|---|---|
| REAF 7 10A LL | Flush Mounted, Low Level Sensor, 10Amps Switching Relay, Non-Dimming, Manual Override, IP4X |
| REA 7 SURFMT | Reacta 7 Surface Mounting Kit |
| REA 7 WMK | Reacta 7 Wall Mounting Kit |
Downloads
