Introduction
The REAF 7 10A LL IP is a Recessed flush mounted passive infrared occupancy and daylight sensor with fixed output relay control.
Features & Benefits
- Mounting Type: Recessed
- Wireless: No
- Maximum Mounting Height: 3.5m
- Occupancy Detection: PIR
- Daylight Control: Bright Out
- Output: On/Off
- Supply Power Source: 230V
- IP Rating: IP4X
- Standby Power: 0.15W
- Programmer: REA DPA

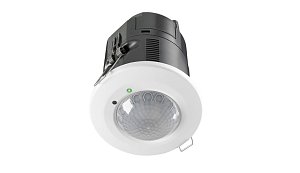

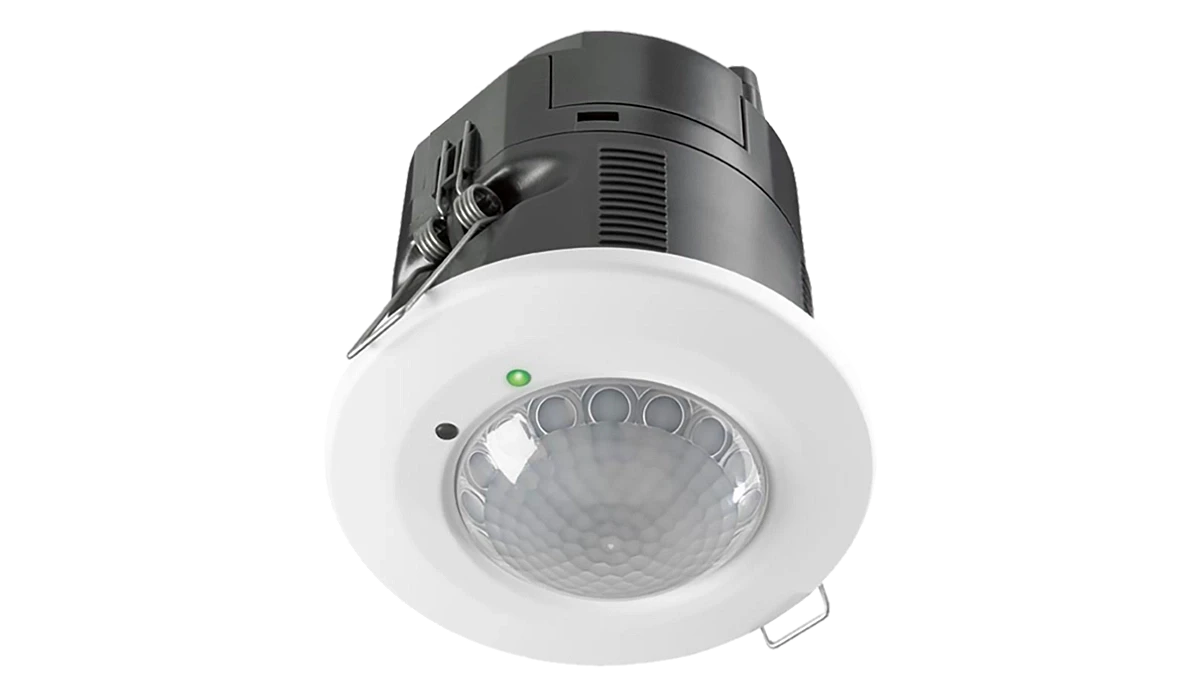

Product Images

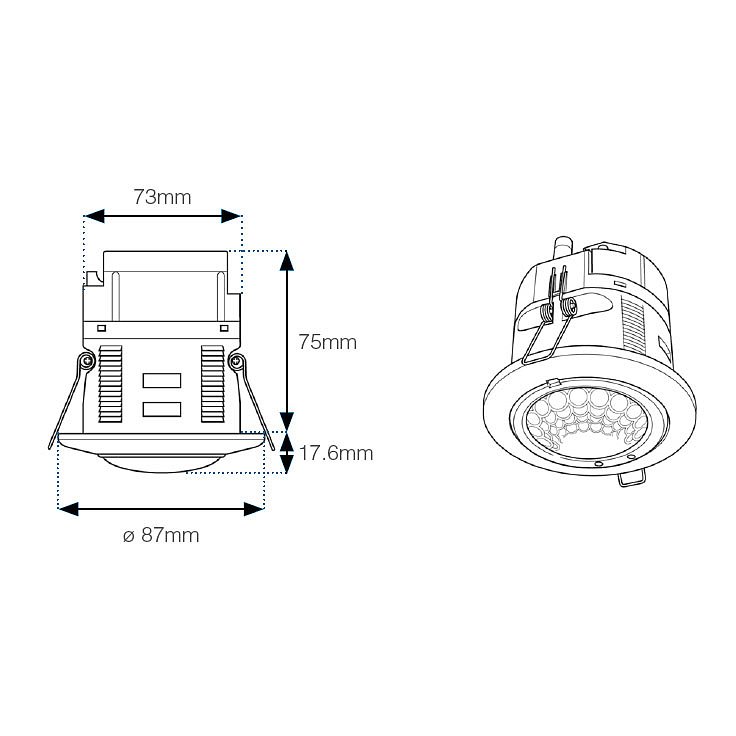

Diagrams
REAF 7 10A LL IP

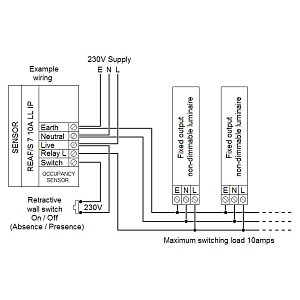

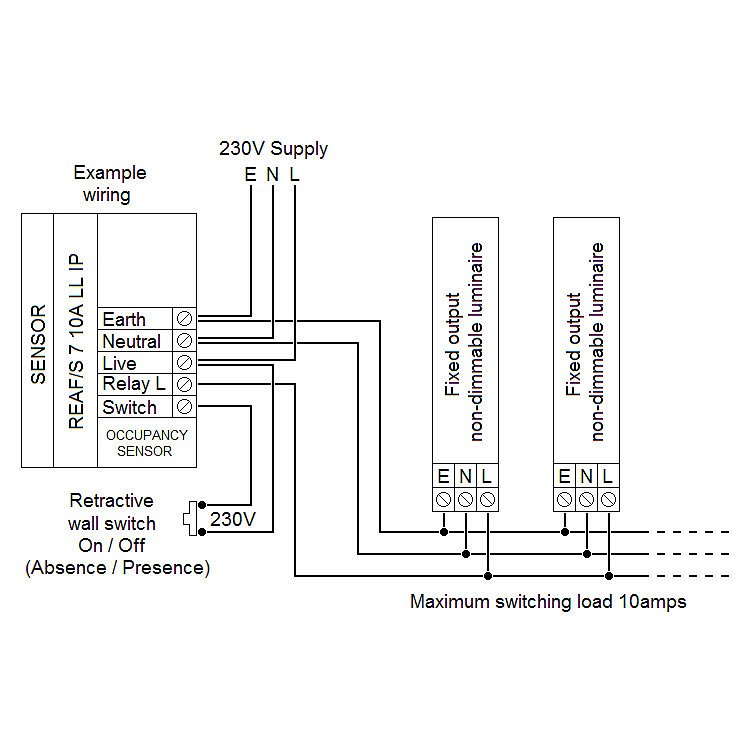

REAF 7 10A LL IP wiring diagram

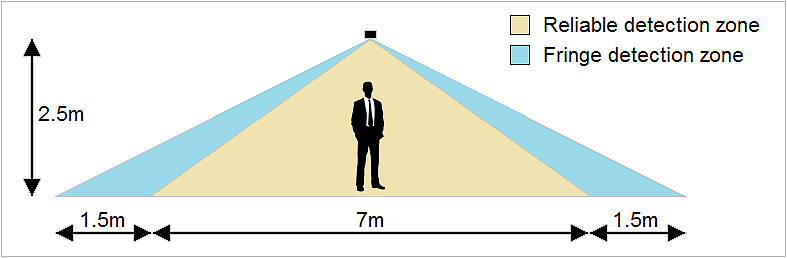

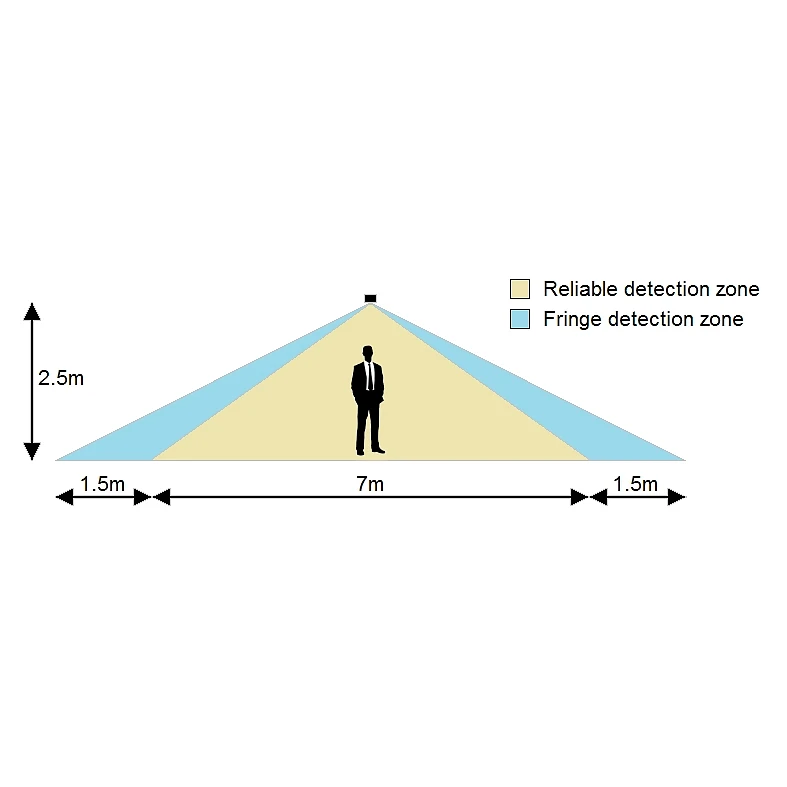

Sensor Detection
REAF 7 10A LL IP_det
Ordering
| Code | Description |
|---|---|
| REAF 7 10A LL IP | Flush Mounted, Low Level Sensor, 10Amps Switching Relay, Non-Dimming, Manual Override, IP55 |
