REA 6 BLBK 6P MB
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Pellentesque tempor, purus facilisis accumsan luctus, elit metus faucibus sem, ac tempus.
Introduction

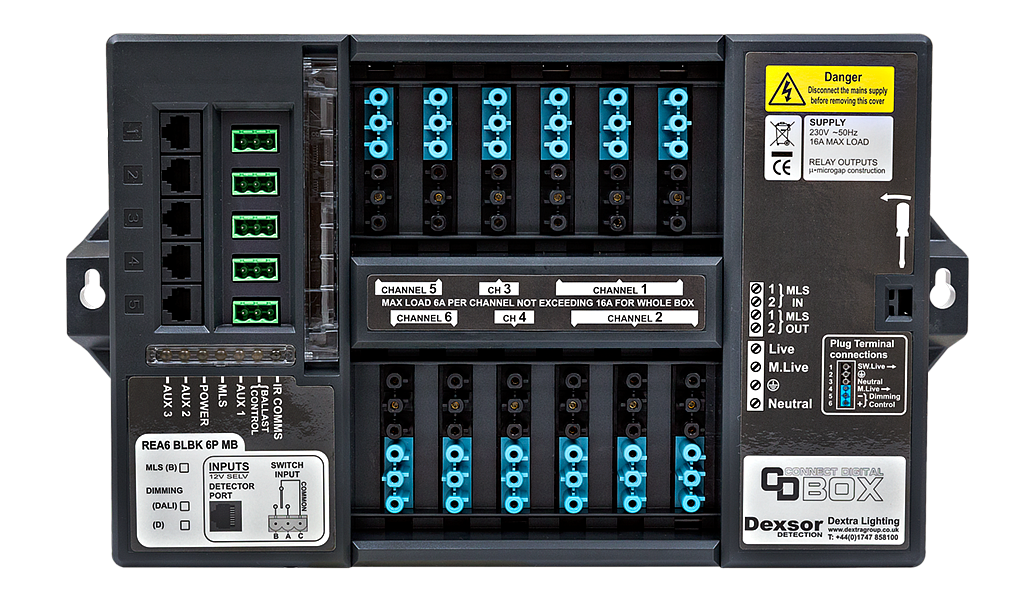

Programmable lighting control module (LCM), 12 way luminaire connection centre with 5 separate sockets for connecting Reacta 6 sensors. Luminaires are connected using 6 pole black/grey locking connection leads whilst the sensors are connected using CAT5 RJ45 leads. 5 x Hard-wired switch inputs. Locking leads provide additional electrical connection reliability. 6 Pole pre-wired luminaire leads or 6 pole male plugs are available separately.
Features & Benefits
- Wireless: No
- Supply Power Source: 230V
- IP Rating: IP20
- Standby Power: 3.4W
- Programmer: REA DPA
Adjustable Parameters
- Scene levels: 1-100%
- More parameters available on programmer
Ordering
| Code | Description |
|---|---|
| REA 6 BLBK 6P MB DALI | Programmable lighting control module (LCM), 12 black/blue luminaire sockets with 5 CAT5 sensor sockets and 5 switch input sockets, DALI dimming card (Digitally Addressable Lighting Interface). |
