LCM TO LUMINAIRE 6 POLE 6 CORE LEAD
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Pellentesque tempor, purus facilisis accumsan luctus, elit metus faucibus sem, ac tempus.
Introduction

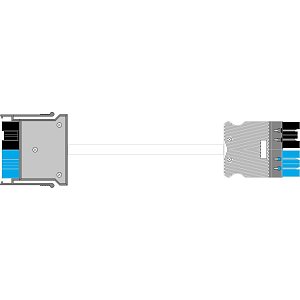

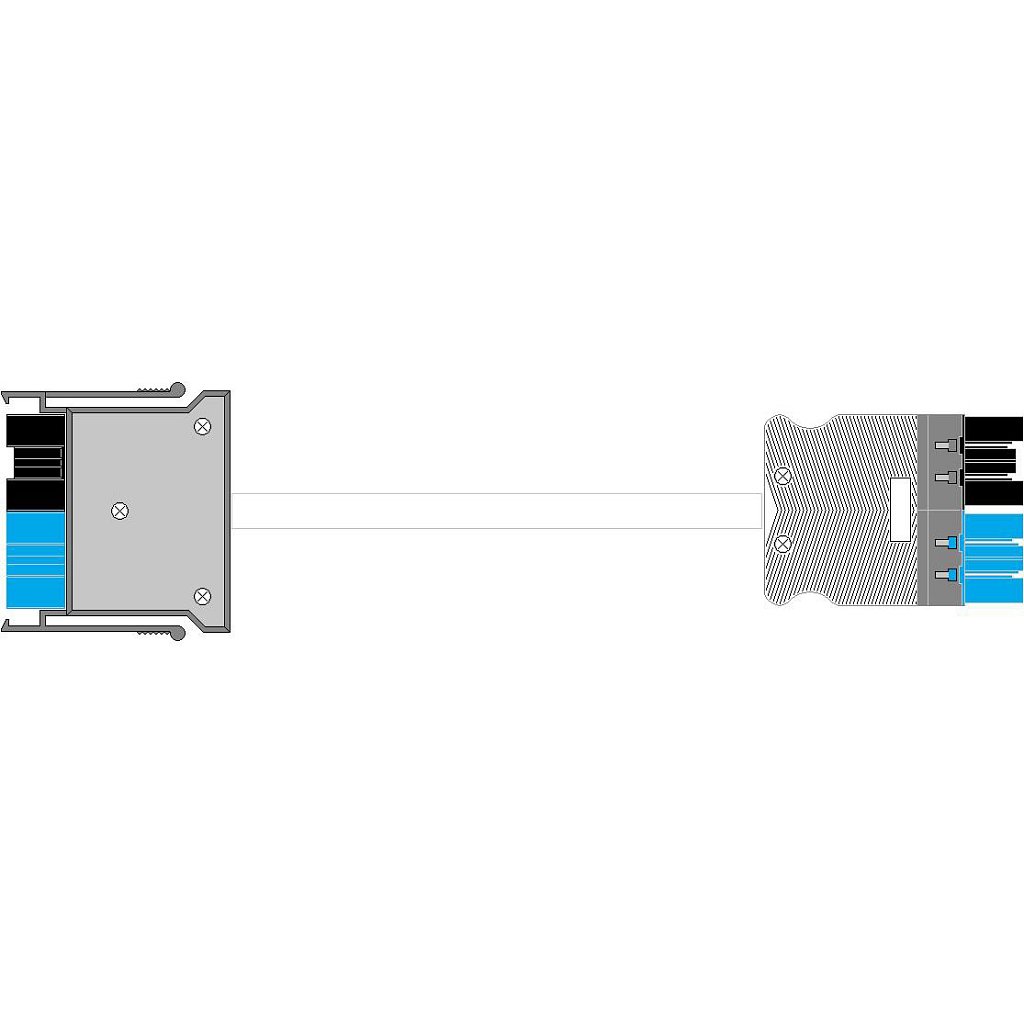

Lead to connect luminaires with 6 pole panel mount (6PM) from an REA 7 BLBK 10X6/7P MB or REA 7 BLBK 5X6/7P MB Lighting Control Module (LCM) – Blue/black 6 pole male locking LCM connector to 6 pole female black non-locking luminaire connector, 4 x 1mm2 conductor cores.
Features & Benefits
- IP Rating: IP20
- Compatible with: REA 7 BLBK 10X6/7P MB, REA 7 BLBK 5X6/7P MB
Product Images
Ordering
| Code | Description |
|---|---|
| FF 6PM 6P3M 6PF LCM | Fast Fix 6 Pole Male Blue/Black / 6P 3M Lead / 6 Pole Female Black / 1.0mm / LS0H / Locking/LCM |
| FF 6PM 6P4M 6PF LCM | Fast Fix 6 Pole Male Blue/Black / 6P 4M Lead / 6 Pole Female Black / 1.0mm / LS0H / Locking/LCM |
| FF 6PM 6P5M 6PF LCM | Fast Fix 6 Pole Male Blue/Black / 6P 5M Lead / 6 Pole Female Black / 1.0mm / LS0H / Locking/LCM |
| FF 6PM 6P6M 6PF LCM | Fast Fix 6 Pole Male Blue/Black / 6P 6M Lead / 6 Pole Female Black / 1.0mm / LS0H / Locking/LCM |
| FF 6PM 6P7M 6PF LCM | Fast Fix 6 Pole Male Blue/Black / 6P 7M Lead / 6 Pole Female Black / 1.0mm / LS0H / Locking/LCM |
| FF 6PM 6P3M FE LCM | Fast Fix 6 Pole Male Blue/Black / 6P 3M Lead / Free End / 1.0mm / LS0H / Locking/LCM |
| FF 6PM 6P4M FE LCM | Fast Fix 6 Pole Male Blue/Black / 6P 4M Lead / Free End / 1.0mm / LS0H / Locking/LCM |
| FF 6PM 6P5M FE LCM | Fast Fix 6 Pole Male Blue/Black / 6P 5M Lead / Free End / 1.0mm / LS0H / Locking/LCM |
| FF 6PM 6P6M FE LCM | Fast Fix 6 Pole Male Blue/Black / 6P 6M Lead / Free End / 1.0mm / LS0H / Locking/LCM |
| FF 6PM 6P7M FE LCM | Fast Fix 6 Pole Male Blue/Black / 6P 7M Lead / Free End / 1.0mm / LS0H / Locking/LCM |
