LED5

The LED5 incorporates Lithium batteries for extended lifetime and warranty as well as a selection of lens options.

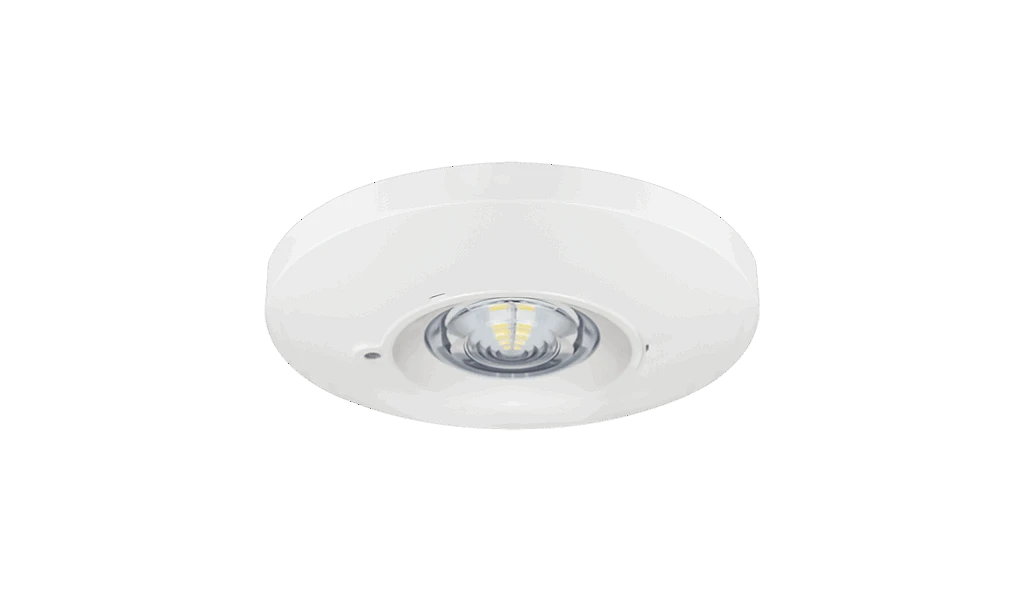

LED5 FEATURED

Introduction

The LED5 incorporates lithium batteries for extended warranty and lifetime. Designed to complement mains operated luminaires, the LED5 is a standalone non maintained emergency luminaire and is available in standard, self test and autotest emergency variants. Lens options include open area, escape route and spot lenses ensuring that the LED5 can be used in most emergency applications, whilst a one piece lens and bezel design ensures that the LED5 offers an IP65 rating to the ceiling surface when installed with appropriate sealant.

Complies with:

UKCA | CE | IP65

Recommended applications:

Canteen | Commercial / Offices | Corridor | Education | Food Production | Healthcare / Social Housing | Hotel / Leisure | Industrial / Manufacturing | Kitchen | Office | Retail | Stairwell | Store Room | Toilet | Transport | Warehousing

Specification

Construction

  • Housing: Injection moulded polycarbonate
  • Finish: Matt white
  • Lens: Injection moulded PMMA lens
  • IP65

Environmental

  • Designed to allow simple replacement of components with commonly available tools in compliance with the Eco Design Directive, please see the installation leaflet for maintenance instructions.
  • Every luminaire is labelled with a unique ID number allowing easy identification of spare parts for the lifetime of the product.
  • UK based manufacturing providing local support throughout the product lifetime and minimising transportation miles.

Emergency

  • Available with optional standard, self test and autotest integral emergency with lithium batteries for extended warranty and lifetime.

Installation

  • Suitable for plasterboard installation
  • Suitable for mineral fibre ceiling tile installation

Variations

  • Available in white or black finishes
Find out more about our 5 year extended warranty

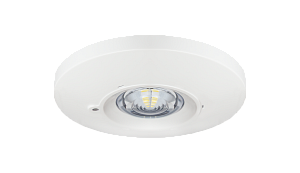

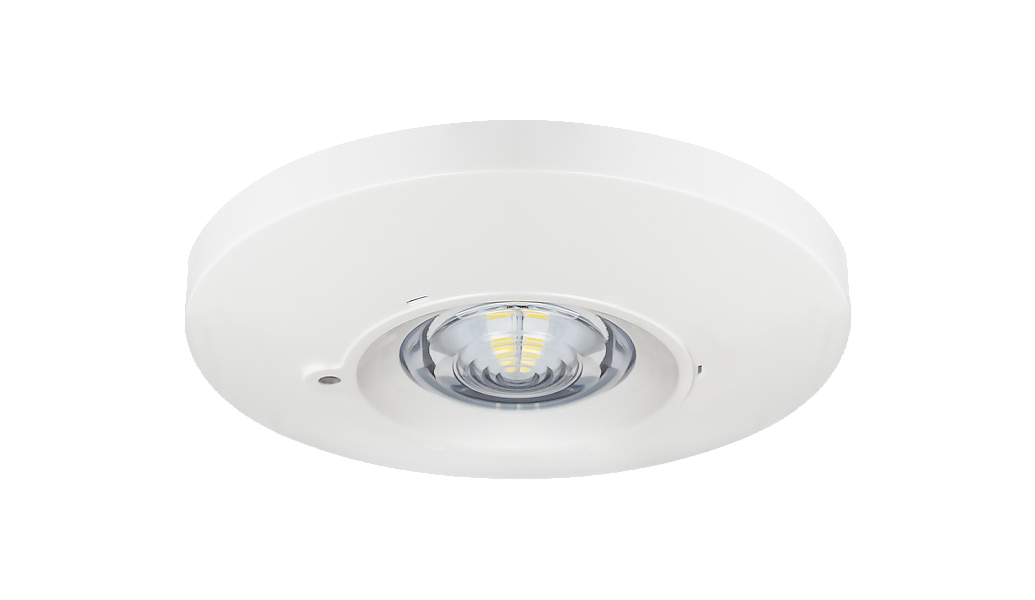

Product Images

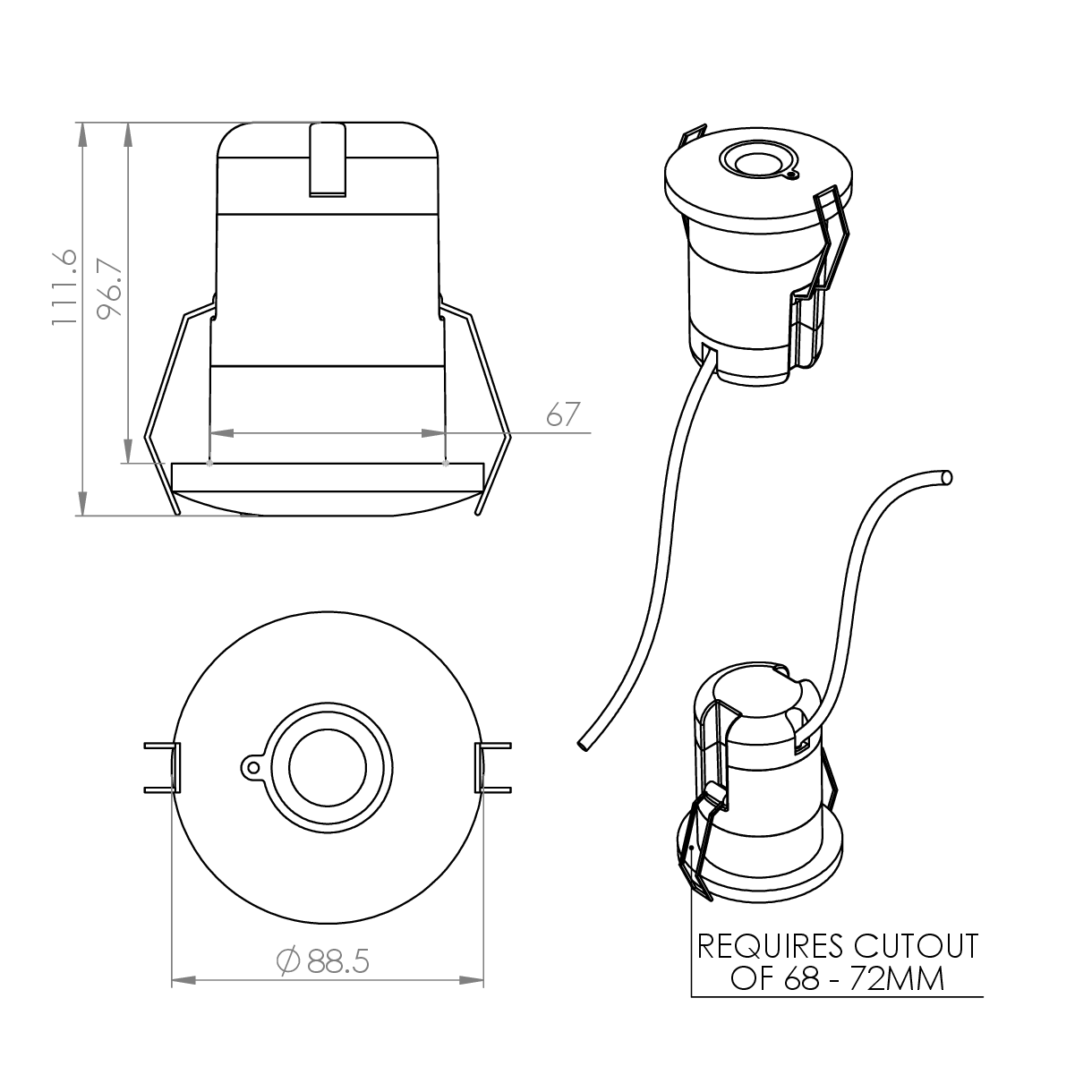

Technical

LED5

LED5

Ordering

To order this product simply select the code from each section to build your desired product.

Luminaires

Code Description Power
LED5RE NM3 LE3 LED5, 367llm, Escape, Lithium Non-Maintained, Standard Emergency 3 Hour 2.0W
LED5RE NM3 LS3 LED5, 367llm, Escape, Lithium Non-Maintained, Self Test Emergency 3 Hour 2.0W
LED5RE NM3 LA3 LED5, 367llm, Escape, Lithium Non-Maintained, Auto Test Emergency 3 Hour 2.0W
LED5RO NM3 LE3 LED5, 367llm, Open Area, Lithium Non-Maintained, Standard Emergency 3 Hour 2.0W
LED5RO NM3 LS3 LED5, 367llm, Open Area, Lithium Non-Maintained, Self Test Emergency 3 Hour 2.0W
LED5RO NM3 LA3 LED5, 367llm, Open Area, Lithium Non-Maintained, Auto Test Emergency 3 Hour 2.0W
LED5RS NM3 LE3 LED5, 367llm, Spot, Lithium Non-Maintained, Standard Emergency 3 Hour 2.0W
LED5RS NM3 LS3 LED5, 367llm, Spot, Lithium Non-Maintained, Self Test Emergency 3 Hour 2.0W
LED5RS NM3 LA3 LED5, 367llm, Spot, Lithium Non-Maintained, Auto Test Emergency 3 Hour 2.0W
Lumen outputs based on Open Area lens

All products are supplied with a 5 year battery warranty

Downloads

Product Datasheet (Download PDF) Installation Guide (Download PDF) Revit Files Dialux Files Relux Files
